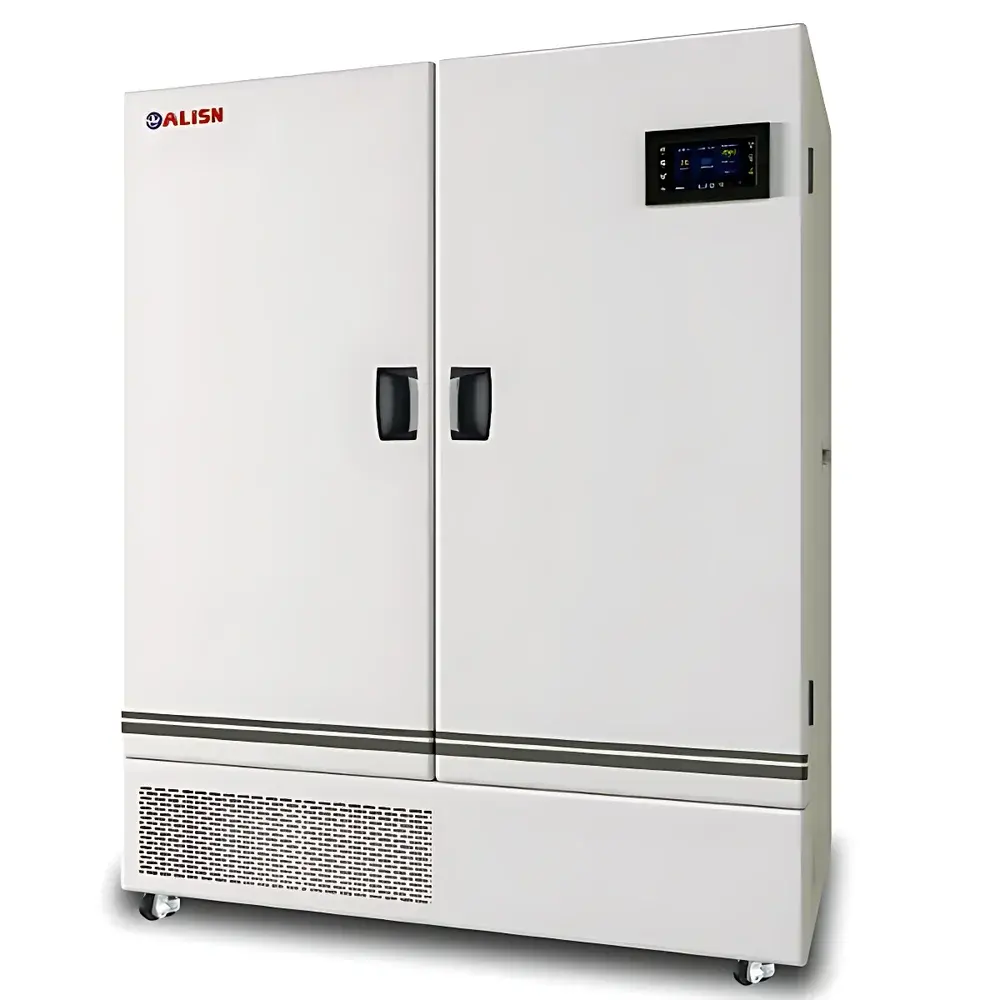

ALISN QCA 760 ICH-Compliant Photostability Testing Chamber for Low-Temperature Pharmaceutical Stability Studies

Overview

The ALISN QCA 760 is a purpose-built photostability testing chamber engineered to meet the stringent requirements of ICH Q1B (Photostability Testing of New Drug Substances and Products) and complementary regulatory frameworks including USP , ISO 15270, and EU GMP Annex 19. Designed specifically for low-temperature pharmaceutical stability studies, it integrates precision thermal control with spectrally accurate illumination—enabling simultaneous evaluation of temperature-dependent photochemical degradation pathways under controlled UV-A (320–400 nm) and D65-simulated visible light exposure. Its dual-zone illumination architecture—featuring top-mounted, height-adjustable lamps and a hemispherical optical sensor—ensures uniform irradiance distribution across the entire 760 L working chamber, eliminating spatial bias in light intensity measurement. The chamber operates within a validated temperature range of 4°C to 65°C under illumination, with ±0.1°C control accuracy and ≤0.8°C uniformity (15–45°C, no light), making it suitable for accelerated, intermediate, and long-term stability protocols per ICH Q5C guidelines.

Key Features

• ICH-compliant illumination system: Independently controllable D65 daylight and UV-A (320–400 nm) sources, calibrated to deliver 0–8000 lux visible illuminance and 0–5 W/m² UV irradiance—both continuously adjustable without stepwise increments.
• Advanced thermal architecture: SECOP (Danfoss) variable-frequency compressor with R404a refrigerant, paired with EBM German condenser fans and monolithic polyurethane insulation—achieving >40% energy reduction versus conventional chambers and enabling frost-free operation over extended cycles.
• Immutable data integrity: Onboard 10-year non-volatile memory stores raw temperature, humidity (optional), and irradiance time-series data; export via encrypted USB drive with write-protection—no post-acquisition modification permitted.
• Audit-ready software stack: Full 21 CFR Part 11–compatible audit trail (16,000-event capacity), role-based access control (five user profiles with granular permissions), and electronic signature support for GLP/GMP environments.
• Human-centered interface: 7-inch capacitive TFT touchscreen with bilingual (English/Chinese) menu navigation, real-time multi-parameter curve visualization, and intuitive program editing for multi-step photostability protocols.
• Structural reliability: Double-door design with tempered inner glass viewport, 50 mm silicone-gasketed port for external sensor integration, and RS485/RS232/USB standard communication interfaces for LIMS or SCADA system linkage.

Sample Compatibility & Compliance

The QCA 760 accommodates standard pharmaceutical packaging formats—including blister packs, amber vials, syringes, and primary containers—on two stainless-steel adjustable shelves (expandable upon request). Its internal geometry (1300 × 1180 × 500 mm) ensures ≥90% volumetric utilization while maintaining laminar airflow and radiometric homogeneity per ICH Q1B Annex 2 test zone specifications. All illumination and thermal performance validations are conducted under empty-chamber conditions per ISO 15270:2020—reporting uniformity, stability, and recovery metrics at defined setpoints (e.g., 40°C/75% RH, 25°C/60% RH, and 5°C/ambient). Calibration certificates traceable to NIM (China) or NIST (USA) are available upon request. The system supports qualification documentation (IQ/OQ/PQ) packages aligned with FDA, EMA, and PMDA expectations.

Software & Data Management

Firmware version 3.2+ embeds a deterministic real-time operating system (RTOS) ensuring microsecond-level sampling consistency for temperature, irradiance, and alarm events. Data logging occurs at user-defined intervals (1 s to 60 min), with automatic timestamping synchronized to internal RTC (battery-backed). All exported datasets include embedded metadata: operator ID, protocol ID, chamber serial number, calibration expiry date, and digital signature hash. The audit trail logs every parameter change, door opening event, alarm activation, and user login/logout—retained indefinitely until manual purge by administrator. Remote monitoring is supported via Modbus RTU over RS485, enabling integration into centralized facility management systems compliant with ASTM E2500 and Annex 11.

Applications

• ICH Q1B photostability stress testing of APIs and finished dosage forms under Option 1 (forced degradation) and Option 2 (real-time monitoring) protocols.
• Low-temperature photostability assessment of biologics, monoclonal antibodies, and mRNA formulations requiring cold-chain integrity during light exposure.
• Comparative irradiance mapping for container-closure system evaluation—particularly for amber glass vs. polymer-based primary packaging.
• Stability-indicating method development support, including validation of HPLC/UPLC assays against known photodegradants generated in situ.
• Regulatory submission dossier preparation (e.g., CTD Module 3) with fully documented environmental profiles and uncertainty budgets per GUM (JCGM 100:2008).

FAQ

Does the QCA 760 comply with ICH Q1B Option 2 requirements for real-time photostability monitoring?
Yes—the chamber’s dual-sensor irradiance feedback loop, combined with immutable time-stamped logging and D65/UV-A spectral fidelity, satisfies Option 2’s criteria for continuous, quantitative light exposure tracking.

Can the system be qualified for GMP production environments?
Yes—full IQ/OQ/PQ documentation templates, 21 CFR Part 11 configuration files, and third-party calibration reports are provided as standard.

Is remote firmware update supported?
No—firmware updates require local USB-based installation with administrator authentication to maintain regulatory integrity.

What is the maximum allowable load mass without compromising thermal uniformity?
Validation data confirm ≤80 kg total payload maintains ≤0.8°C uniformity at 25°C; load distribution must avoid obstruction of air inlet/outlet grilles.

Are UV-A spectral output reports included with shipment?
Yes—each unit ships with a factory-issued spectral power distribution (SPD) report measured per CIE S 023/E:2013 using a calibrated spectroradiometer.
