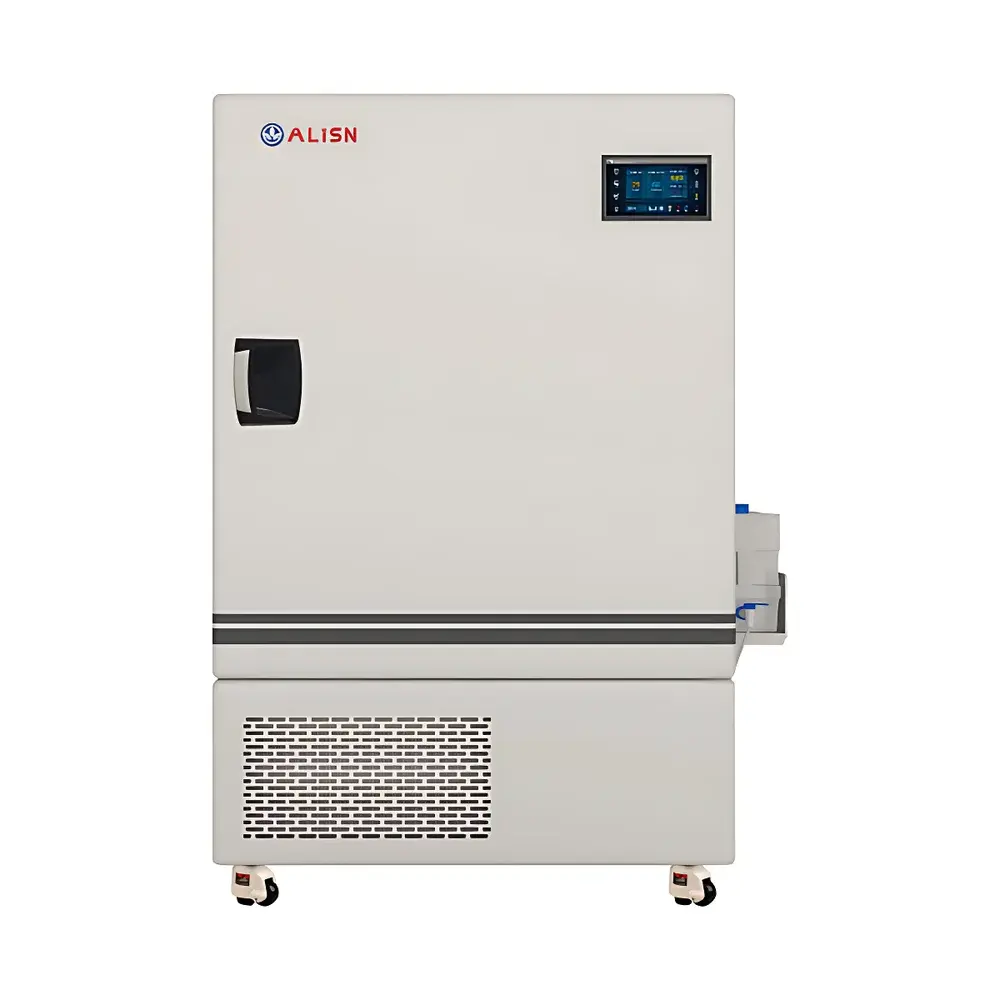

ALISN STC 250 Pharmaceutical Stability Chamber

Overview

The ALISN STC 250 Pharmaceutical Stability Chamber is an ICH-compliant environmental test system engineered for long-term stability studies of pharmaceuticals, biologics, excipients, and medical devices in accordance with ICH Q1A(R3), Q5C, and Q5D guidelines. It implements a dual-loop, high-precision climate control architecture based on PID-fuzzy hybrid regulation—ensuring thermodynamic equilibrium across the entire working chamber under both static and dynamic load conditions. The chamber maintains traceable, reproducible environmental profiles through a combination of variable-speed Secop (Danfoss) compressors, E+E Elektronik capacitive humidity sensors, and HERAEUS platinum resistance temperature detectors (PRTDs). Its monolithic polyurethane insulation (≥40 mm) achieves thermal conductivity ≤0.022 W/m·K, enabling energy consumption reductions of >40% versus conventional chambers while sustaining ±0.1 °C temperature fluctuation and ±1.5 %RH humidity fluctuation—performance validated per ISO 16770:2021 Annex A.

Key Features

• True-color 7-inch TFT capacitive touch interface with intuitive menu navigation and bilingual (English/Chinese) language switching
• Multi-segment programmable control: up to 24 segments per cycle, supporting ramp-hold-ramp profiles with independent setpoint resolution of 0.1 °C / 0.1 %RH
• Immutable data integrity architecture: 10-year internal non-volatile memory (EEPROM + SD card backup); raw log files exported via USB in .csv format without metadata alteration
• Audit trail compliance: 16,000+ timestamped, user-identified entries—including parameter changes, door openings, alarm events, and calibration interventions—stored with SHA-256 hash verification
• Role-based access control (RBAC): administrator-defined user accounts (up to five) with granular permissions (e.g., operator, technician, QA reviewer)
• Multi-point temperature offset correction: independent compensation values for up to nine spatial locations, eliminating linear drift across chamber volume
• Patented frost-free refrigeration: inverter-driven Secop compressor + EBM radial fan assembly enables continuous operation at low-humidity setpoints without defrost cycles
• Structural design: double-door configuration with tempered inner glass viewport; 50 mm silicone-gasketed port on right side for probe/cable feedthrough

Sample Compatibility & Compliance

The STC 250 accommodates standard stability sample racks (ISO 17025-compliant tray dimensions), including 250 mL amber glass vials, blister packs, and primary packaging formats. Its interior stainless-steel chamber (AISI 304, electropolished finish) resists corrosion from repeated exposure to ethanol, isopropanol, and hydrogen peroxide vapor. The system meets mechanical safety requirements per IEC 61010-1 and electromagnetic compatibility per EN 61326-1. Environmental validation protocols—including IQ/OQ/PQ documentation templates—are provided to support FDA 21 CFR Part 11, EU Annex 11, and WHO TRS 992 compliance. All temperature/humidity sensors are NIST-traceable and factory-calibrated against reference standards maintained at ±0.05 °C and ±0.8 %RH uncertainty.

Software & Data Management

Data acquisition operates at 1-second intervals with real-time interpolation between sampling points. Historical trends (temperature, humidity, alarm status) are visualized as overlayable time-series curves with zoom/pan functionality. Exported datasets include embedded digital signatures and metadata fields (operator ID, instrument serial number, firmware version, UTC timestamps). Optional PC-based ALISN StabilitySuite™ software enables automated report generation compliant with USP , ASTM E2081, and ISO 14644-3. The RS485 Modbus RTU interface supports integration into LIMS or MES platforms with configurable polling intervals and error-recovery handshaking.

Applications

• ICH Q1A(R3) long-term (25 °C/60 %RH) and accelerated (40 °C/75 %RH) stability testing
• Photostability assessment per ICH Q5B using optional D65/UV-A modules (320–400 nm, irradiance 0–2 W/m²)
• Excipient compatibility screening under controlled hygroscopic stress conditions
• Biological product shelf-life modeling at sub-zero temperatures (–10 °C to –5 °C)
• Environmental qualification of sterile packaging systems per ISO 11607-1
• Accelerated aging studies for polymer-based drug delivery devices

FAQ

Does the STC 250 comply with 21 CFR Part 11 electronic record requirements?
Yes—the system implements role-based authentication, electronic signatures, audit trail logging, and data immutability features fully aligned with FDA’s Part 11 criteria for closed systems.
Can the chamber operate continuously at 85 °C and 15 %RH simultaneously?
Yes—its air-cooled refrigeration circuit and optimized airflow distribution enable stable operation across the full specified range without condensation or thermal overshoot.
Is third-party calibration certification included with purchase?
Factory calibration certificates (traceable to NIST) are supplied; optional UKAS-accredited on-site calibration services are available upon request.
What is the maximum allowable sample load for validated performance?
Validation data confirms compliance with ICH uniformity specifications at ≥80% chamber volume occupancy (i.e., up to 200 L of inert mass equivalent to typical stability trays).
How is firmware updated, and is version history retained?
Firmware updates are performed via encrypted USB stick; all prior versions remain archived in internal memory with rollback capability and change-log documentation.
