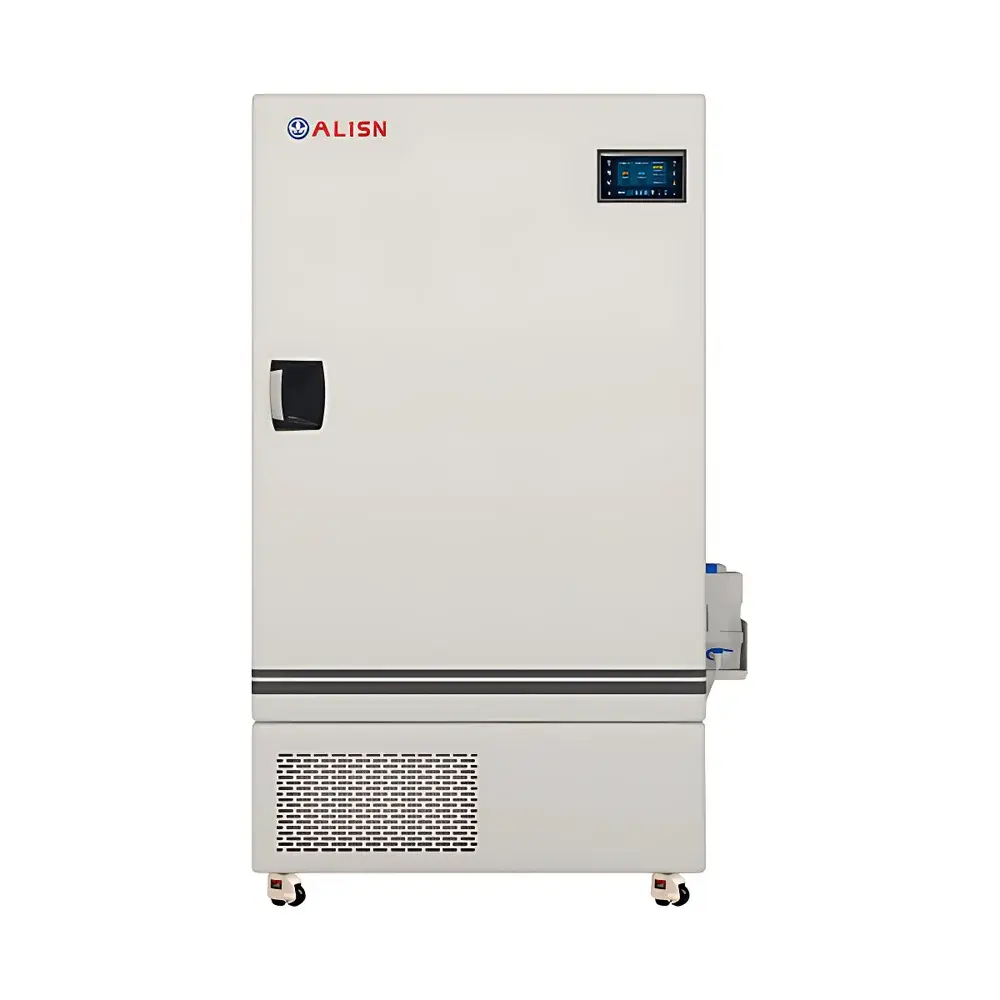

ALISN THA-460 Precision Temperature and Humidity Controlled Environmental Chamber

Overview

The ALISN THA-460 is a high-stability upright environmental test chamber engineered for precise, long-term simulation of temperature and humidity conditions in regulated laboratory and industrial quality control environments. It operates on the principle of closed-loop feedback control using dual independent PID algorithms—one for thermal regulation and one for hygral control—ensuring thermodynamic equilibrium across the working volume under dynamic load conditions. The chamber meets foundational requirements for stability-critical applications including pharmaceutical stability testing (ICH Q1–Q5), accelerated aging per ASTM D3574 and ISO 11727, and material conditioning per ISO 291 and ASTM D618. Its design prioritizes metrological integrity: all critical sensors are traceable to national standards, and system-level performance is validated under ISO 17025-aligned protocols during factory calibration.

Key Features

• Advanced dual-channel PID + fuzzy logic control architecture enabling seamless transition between static setpoint operation and multi-segment programmable profiles (up to 99 segments per program)
• 7-inch full-color resistive touchscreen interface with intuitive icon-based navigation, supporting both English and Chinese language modes without firmware reload
• Monolithic polyurethane insulation (≥120 mm thick) applied via high-pressure injection molding, achieving thermal conductivity ≤0.022 W/m·K and reducing energy consumption by >40% versus conventional foamed chambers
• Variable-speed Secop (Danfoss) hermetic compressor paired with EBM-Papst EC condenser fans, enabling continuous frost-free operation and rapid recovery (<15 min) after 30-second door opening at 25 °C/60 % RH
• Capacitive humidity sensing (E+E EE210 series) with automatic drift compensation and no routine recalibration required; platinum RTD (Heraeus Pt100 Class A) for temperature measurement
• Dual-door structure: outer door with magnetic seal and inner tempered glass door for real-time visual monitoring without thermal disturbance
• Comprehensive safety suite including over-temperature cutoff, refrigerant high-pressure shutdown, water-level monitoring for humidifier reservoir, door-open alarm, and leakage current protection (IEC 61000-4-5 compliant)

Sample Compatibility & Compliance

The THA-460 accommodates diverse sample configurations—including stacked trays, hanging racks, and custom fixtures—within its 464 L internal volume. Its stainless-steel interior (AISI 304, 2B finish) resists corrosion from saline mists, organic solvents, and repeated sterilization cycles. The chamber complies with key regulatory frameworks: it supports 21 CFR Part 11-compliant electronic records when used with ALISN’s optional validation package (IQ/OQ/PQ documentation, alarm acknowledgment logs, and user action timestamps). All firmware operations adhere to GLP and GMP principles, with immutable audit trails stored internally and exportable via USB in CSV format—no modification or deletion permitted post-generation. Humidity control accuracy satisfies ISO 17025 clause 5.9.1 for uncertainty budgeting in accredited labs.

Software & Data Management

Data acquisition occurs at 10-second intervals across all monitored parameters (chamber air temperature, relative humidity, compressor status, heater duty cycle, and alarm events). Raw time-series data is stored in non-volatile flash memory with cyclic overwrite protection, retaining ≥10 years of continuous operation history. Exported files include embedded metadata (instrument ID, operator login, calibration expiry date, and environmental timestamp). The built-in audit trail captures every user-initiated action—including parameter changes, profile uploads, and manual overrides—with ISO 8601 timestamps and role-based attribution. Optional RS485/RS232 interfaces enable integration with SCADA systems or centralized LIMS platforms using Modbus RTU protocol. Firmware updates are delivered via signed binary packages to prevent unauthorized modification.

Applications

The THA-460 serves as a primary conditioning platform in pharmaceutical QC laboratories performing ICH Q1A(R3) long-term and accelerated stability studies on APIs and finished dosage forms. In food science, it replicates shelf-life stress conditions per AOAC 985.22 and supports packaging permeability testing (ASTM F1249). Materials engineers use it for polymer hygrothermal aging (ISO 22088-3), while electronics manufacturers rely on its low-drift performance for burn-in testing of PCB assemblies per JEDEC JESD22-A110. Environmental research groups deploy it for climate simulation of biodegradation kinetics (OECD 301 series) and seed germination assays (ISTA Rules). Its wide operational envelope also supports validation of HVAC systems and cleanroom environmental monitoring equipment.

FAQ

Does the THA-460 support IQ/OQ/PQ documentation for FDA-regulated facilities?

Yes—ALISN provides a complete qualification package including installation verification checklists, operational range mapping reports, and performance qualification protocols aligned with ASTM E2500 and Annex 15.

Can humidity be controlled below 20% RH at sub-zero temperatures?

No—the minimum achievable humidity is constrained by dew-point physics; at −10 °C, the theoretical lower limit is ~25% RH. Custom low-humidity configurations require auxiliary desiccant modules.

Is remote monitoring possible via Ethernet or Wi-Fi?

Standard configuration includes only USB and serial ports; Ethernet connectivity requires the optional ALISN-NetBridge module (sold separately), supporting SNMP v3 and TLS 1.2 encryption.

What is the maximum allowable sample mass without compromising chamber uniformity?

For optimal thermal/hygrometric homogeneity, total sample mass should not exceed 35 kg. Load distribution must avoid blocking air circulation paths near rear wall vents.

How often does the humidity sensor require calibration verification?

Per manufacturer recommendation and ISO/IEC 17025 guidance, verify sensor accuracy annually using NIST-traceable saturated salt solutions (e.g., LiCl, MgCl₂, NaCl) at defined RH setpoints.
