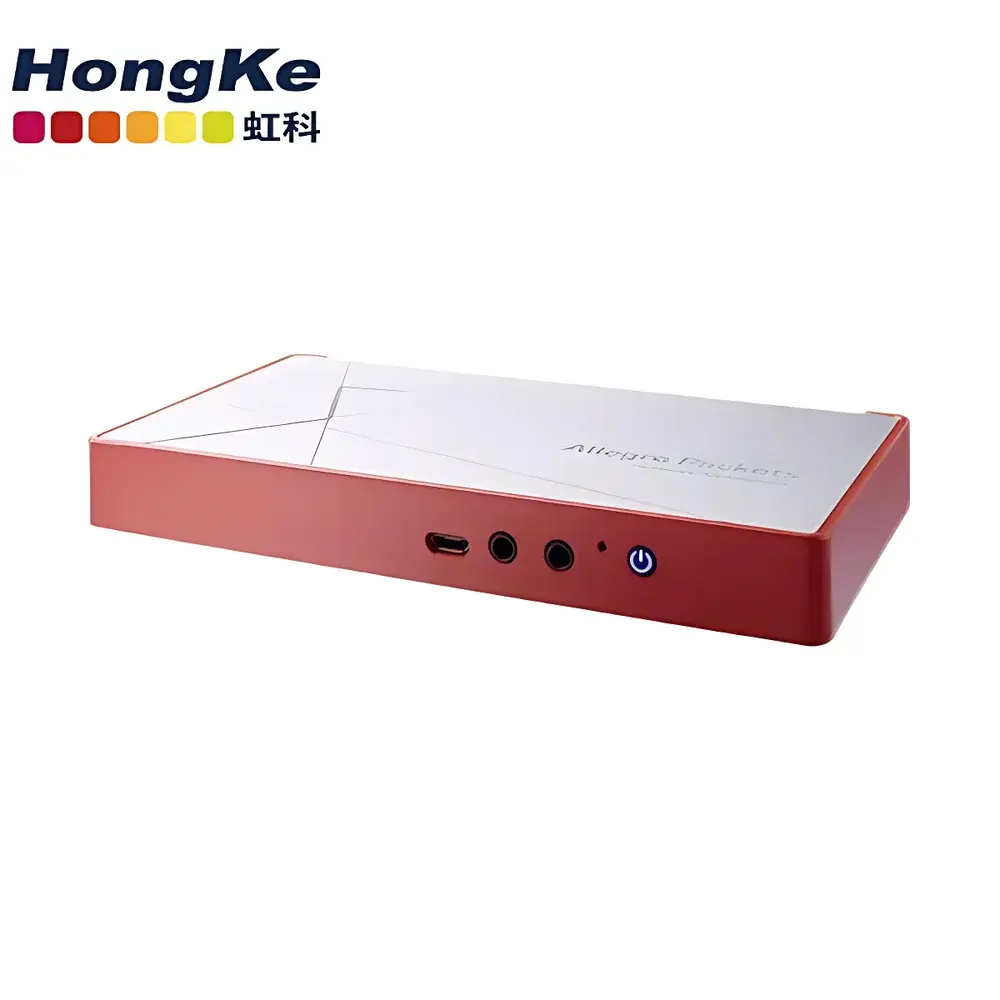

Allegro Packets Allegro 200 Network Performance Monitoring and Full-Packet Capture Analyzer
| Brand | Allegro Packets |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | Allegro 200 |
| Pricing | Upon Request |
Overview
The Allegro Packets Allegro 200 is a high-fidelity, full-packet network performance monitoring and forensic analysis platform engineered for enterprise-grade visibility into Layer 2–7 traffic across modern hybrid infrastructure. Built on a purpose-designed hardware-accelerated capture architecture, it performs real-time deep packet inspection (DPI), flow metadata extraction, and lossless packet capture at line rate up to 200 Gbps. Unlike traditional SNMP-based or sampled NetFlow collectors, the Allegro 200 ingests every packet—preserving timing accuracy, sequence integrity, and application-layer context—enabling deterministic root-cause analysis of latency spikes, TCP retransmissions, TLS handshake failures, DNS resolution anomalies, and microburst-induced buffer overruns. Its architecture supports both streaming analytics for operational dashboards and indexed, time-synchronized packet storage for retrospective forensics—making it suitable for SLA validation, security incident response, and compliance-driven network auditing.
Key Features
- Real-time, full-line-rate packet capture and analysis at up to 200 Gbps aggregate throughput
- Comprehensive Layer 2–7 protocol decoding with support for >3,500 application protocols including HTTP/2, gRPC, QUIC, TLS 1.3, Kafka, Redis, and proprietary industrial SCADA payloads
- Hardware-accelerated flow classification using programmable ASICs for sub-millisecond latency in metadata generation
- Time-synchronized, deduplicated packet indexing with nanosecond timestamp precision (IEEE 1588 PTP v2 compliant)
- Integrated distributed capture architecture: supports remote sensor deployment with centralized analysis and unified policy enforcement
- Role-based access control (RBAC) with audit logging aligned with ISO/IEC 27001 and NIST SP 800-53 requirements
Sample Compatibility & Compliance
The Allegro 200 operates transparently within production networks via passive TAPs or SPAN/mirror ports, supporting standard Ethernet framing (10/40/100 GbE), VLAN/QinQ tagging, MPLS, and VXLAN/Geneve encapsulation. It maintains strict adherence to RFC 3954 (NetFlow v9), RFC 5101 (IPFIX), and RFC 7011 (IPFIX Protocol Specification) for interoperability with SIEM, SOAR, and ITSM platforms. All stored packet data is encrypted at rest (AES-256) and in transit (TLS 1.2+), satisfying GDPR Article 32, HIPAA §164.312(a)(2)(i), and PCI DSS Requirement 4.1. The system supports FDA 21 CFR Part 11-compliant audit trails when deployed in regulated life sciences or medical device environments requiring electronic record integrity.
Software & Data Management
The Allegro Analytics Suite provides a browser-based interface for interactive exploration, correlation, and visualization of packet, flow, and event data. It includes built-in statistical baselining, anomaly detection using unsupervised machine learning (Isolation Forest and DBSCAN), and customizable alerting via email, SNMP traps, or RESTful webhooks. All analyses are reproducible through saved query templates and version-controlled workflow scripts. Raw PCAP archives are stored in vendor-neutral, compressed format (zstd + custom indexing) compatible with Wireshark, Zeek, and Elastic Common Schema (ECS) ingestion pipelines. Retention policies are configurable per data class—metadata retained for 365 days, full packets for up to 90 days depending on storage capacity and regulatory retention mandates.
Applications
- Network operations centers (NOCs) performing SLA verification and mean-time-to-resolution (MTTR) reduction
- Security operations centers (SOCs) conducting threat hunting, lateral movement detection, and C2 channel identification
- Application performance engineering teams validating cloud migration readiness and microservice dependency mapping
- Regulated industries—including financial services and healthcare—meeting FINRA Rule 6190, FFIEC IT Handbook, and HITECH Act logging requirements
- Research and education networks requiring longitudinal traffic characterization and protocol evolution studies
FAQ
Does the Allegro 200 support encrypted traffic analysis without decryption?
Yes—it performs metadata extraction and behavioral fingerprinting of encrypted flows (e.g., JA3/JA3S, TLS ALPN, SNI patterns) without requiring private key injection or SSL/TLS interception.
Can it integrate with existing SIEM platforms such as Splunk or Microsoft Sentinel?
Yes—via native Syslog, IPFIX, REST API, and pre-built connectors supporting Splunk Add-on for Allegro, Azure Sentinel Data Connector, and Elastic Security integration.
What is the maximum supported storage capacity for full-packet capture?
Configurable up to 240 TB raw storage (expandable via JBOD), enabling multi-week retention at 200 Gbps sustained capture under typical entropy profiles.
Is the system validated for use in FDA-regulated environments?
Yes—system validation documentation, IQ/OQ protocols, and 21 CFR Part 11-compliant user access and audit trail features are available upon request for GxP deployments.
How does it handle packet loss during peak traffic bursts?
The Allegro 200 employs zero-copy DMA buffers, hardware ring buffers, and adaptive memory allocation to guarantee zero packet loss at rated line speed—even during sustained microbursts exceeding 100 µs duration.
