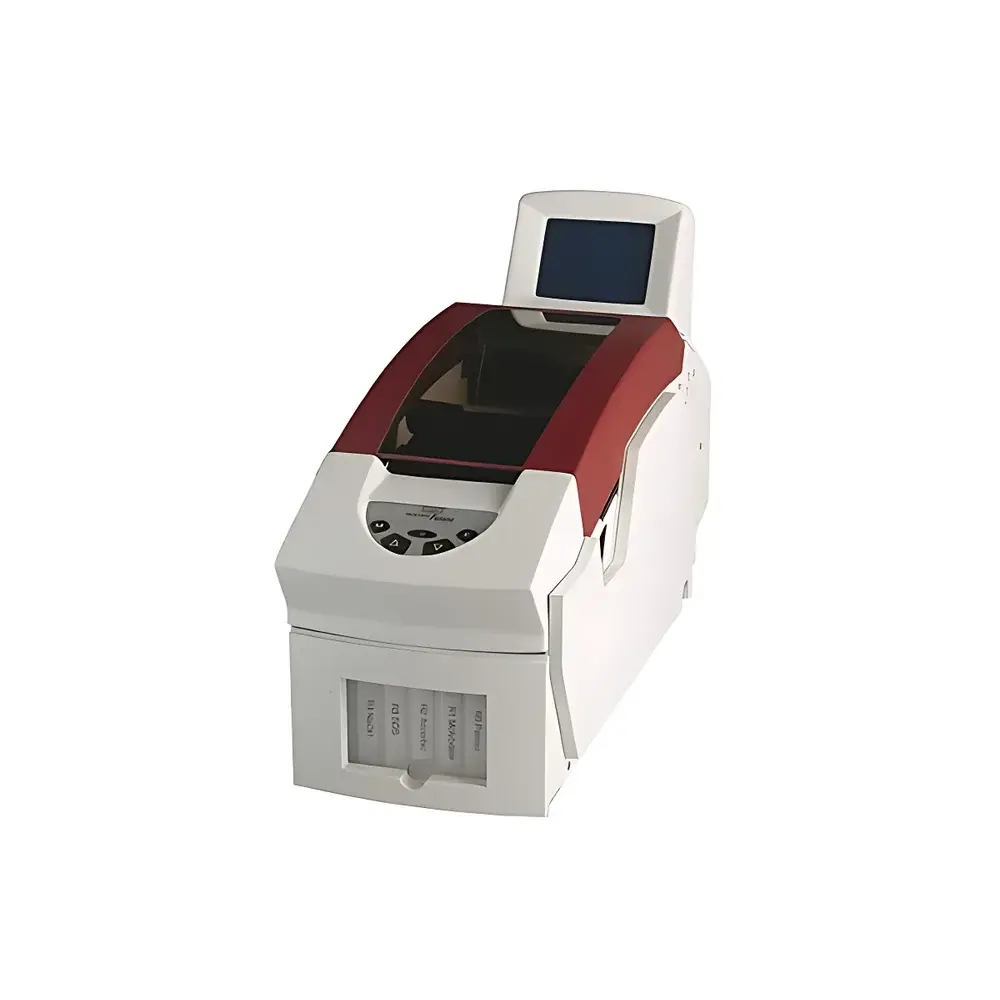

Alliance Futura Continuous Flow Analyzer

Overview

The Alliance Futura Continuous Flow Analyzer (CFA) is a high-precision, multi-channel wet-chemistry automation platform engineered for reproducible, regulatory-compliant colorimetric and photometric analysis. Based on the classical continuous flow principle—where sample, reagents, and carrier stream are pneumatically segmented by precisely spaced air bubbles—the Futura eliminates axial dispersion, minimizes carryover, and ensures robust reaction kinetics across extended analytical runs. This architecture enables strict adherence to standardized wet-chemical methodologies defined in AOAC, USP, ISO, ASTM, and EPA protocols. Designed and manufactured by AMS Alliance (a France-based division of the Rome-headquartered AMS Alliance Group), the Futura integrates decades of expertise in environmental, food, and agricultural testing. Its dual-flow capability—supporting both microflow (≤100 µL) and macroflow (up to 100 mL) configurations within a single instrument—allows method flexibility without hardware reconfiguration. The system operates under full PC control via dedicated software compliant with FDA 21 CFR Part 11 requirements, including electronic signatures, audit trails, and data integrity safeguards aligned with GLP and GMP laboratory practices.

Key Features

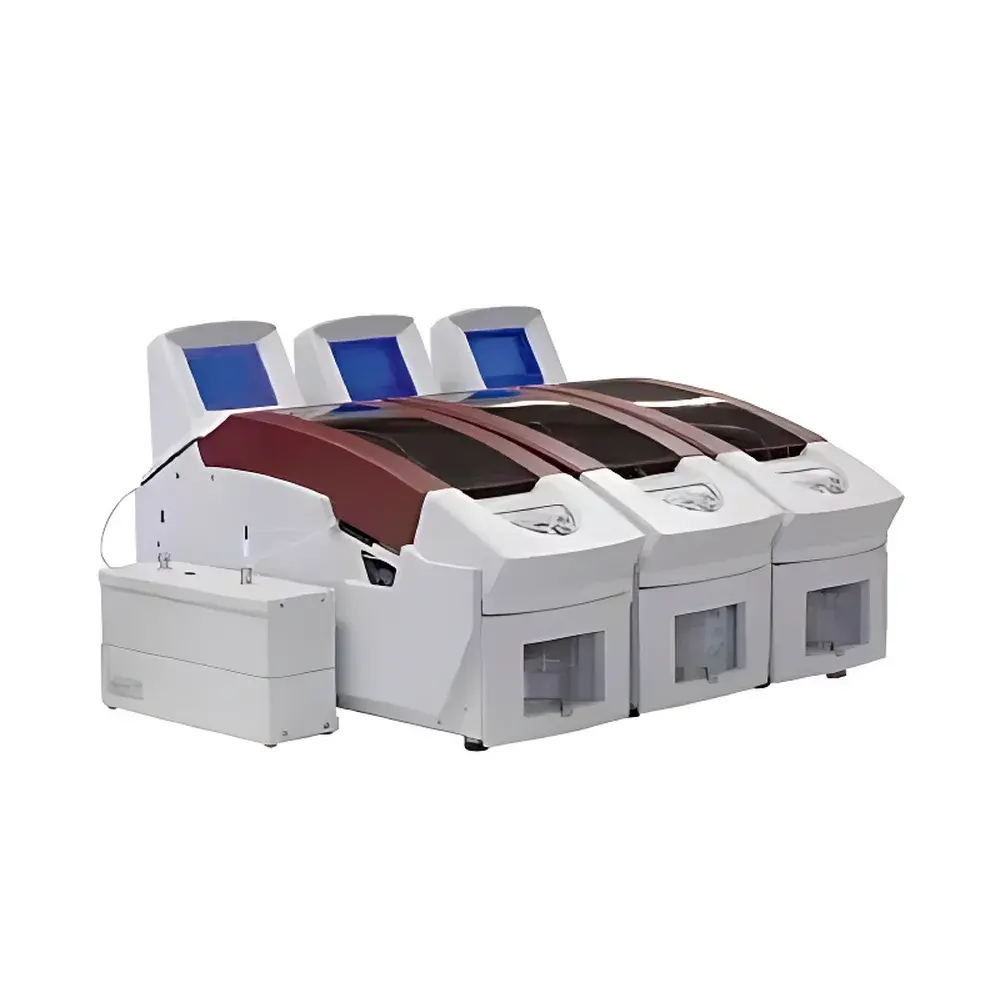

• Modular, scalable architecture supporting 1–12 independent analytical channels—each with fully isolated fluidics, optics, and temperature control.
• Integrated pneumatic segmentation delivering stable bubble generation for precise inter-sample separation and wall cleaning, ensuring long-term baseline stability.
• Dual-mode flow operation: seamless switching between microflow (for trace analyte detection) and macroflow (for high-volume or turbid matrices) without hardware modification.
• Automated parameter optimization: real-time baseline drift correction, auto-gain adjustment, and dynamic sensitivity calibration prior to each run.
• Full-featured reagent handling: motorized, transparent reagent carousel accommodating ≥100 positions with positional encoding and low-level sensing.
• Multi-step on-line processing support: programmable modules for dialysis, distillation, UV digestion, liquid–liquid extraction, heating (up to 100 °C), and thermostatic incubation.
• High-fidelity optical detection: tungsten-halogen light source coupled with precision monochromator; selectable wavelengths from 340–1100 nm; 15–50 mm pathlength flow cells optimized for sensitivity and dynamic range.

Sample Compatibility & Compliance

The Futura accommodates diverse sample matrices—including raw wastewater, seawater, digested soil extracts, clarified wine, homogenized tissue lysates, and powdered fertilizer—without manual pretreatment in most cases. Its modular design permits method-specific configuration: e.g., gas-diffusion modules for ammonia or cyanide, cadmium-reduction columns for nitrate/nitrite differentiation, or enzymatic reactors for nutrient speciation. All validated methods align with internationally recognized standards: EPA Methods 353.2, 365.3, and 4500-NH₃; ISO 6878 (phosphorus), ISO 11905-1 (nitrogen); AFNOR T90-105 (phenols); and COFRAC-accredited test procedures. Instrument qualification follows IQ/OQ/PQ protocols, and full traceability is maintained through calibrated peristaltic pump tubing, NIST-traceable photometric standards, and documented reagent lot tracking.

Software & Data Management

FuturaControl™ software provides a validated, role-based interface for method development, sequence programming, real-time monitoring, and report generation. It supports ASTM E1384-compliant data export formats (CSV, XML, PDF) and native integration with major LIMS platforms via HL7 and ASTM E1482 interfaces. Audit trail functionality records all user actions—including parameter changes, calibration events, and result overrides—with timestamps, operator IDs, and reason codes. Electronic signatures comply with 21 CFR Part 11 Subpart B requirements. Raw absorbance traces, peak integration parameters, and calibration curve statistics are stored in an encrypted SQLite database with automatic daily backup and version-controlled method libraries.

Applications

• Environmental Monitoring: Ammonia, nitrate/nitrite, total phosphorus, orthophosphate, silica, sulfate, sulfide, cyanide, phenol, chloride, fluoride, and COD in drinking water, surface water, wastewater, and marine samples.
• Food & Beverage Quality Control: Total sugar, reducing sugars, SO₂, ascorbic acid, nitrate/nitrite, chloride, protein (Kjeldahl distillate), volatile acidity, and ethanol in wine, beer, dairy, meat, tobacco, and fruit juices.
• Agricultural & Soil Science: Extractable ammonium, nitrate, phosphate, potassium, sulfate, boron, copper, zinc, iron, aluminum, and total Kjeldahl nitrogen in soil, plant tissue, compost, and fertilizer solutions.
• Public Health & Regulatory Testing: Routine compliance testing for national drinking water directives (e.g., EU Directive 98/83/EC), ISO 17025-accredited laboratories, and reference labs serving national metrology institutes.

FAQ

What regulatory standards does the Futura support?
The system complies with AOAC, EPA, ISO, ASTM, AFNOR, and COFRAC method requirements. Its software meets FDA 21 CFR Part 11 for electronic records and signatures, and hardware validation supports GLP/GMP audits.

Can the Futura perform both microflow and macroflow analyses simultaneously?
No—microflow and macroflow modes are configured per channel but cannot operate concurrently on the same flow path. However, different channels within a single instrument may be independently set to microflow or macroflow mode.

Is method transfer from older Alliance CFA models straightforward?
Yes. FuturaControl™ includes backward-compatible method import tools for Integral, Evolution, and Proxima systems, preserving existing calibration curves, timing sequences, and reagent definitions with minimal revalidation.

How is maintenance tracked and documented?
The software logs all maintenance events—including pump tube replacement, lamp hours, flow cell cleaning cycles, and calibration verifications—with automated alerts and printable service reports meeting ISO 9001 documentation requirements.

Does the system support non-photometric detection?
Yes—optional detector modules include flame photometry (Na, K, Ca, Li), fluorescence (e.g., for PAHs or vitamins), and ion-selective electrodes (e.g., for fluoride or ammonium), all controlled through the same software interface.
