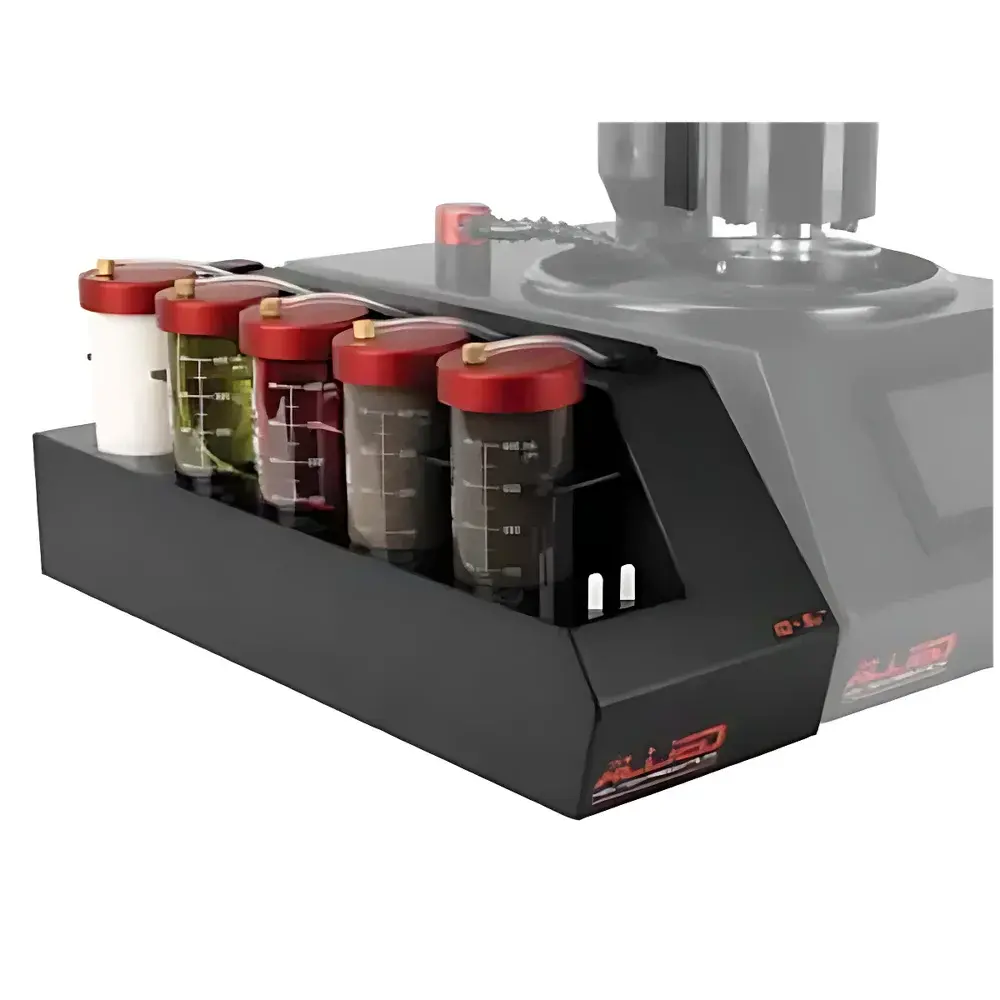

Allied ID-5x™ Automated Dispensing System

Overview

The Allied ID-5x™ Automated Dispensing System is an engineered solution for precision, repeatable delivery of polishing slurries, lubricants, and colloidal suspensions in metallurgical and materials science laboratories. Built upon positive-displacement peristaltic pump technology, the ID-5x™ eliminates operator-dependent variability in consumable application—critical for achieving consistent surface finish, planarity, and microstructural integrity during grinding and polishing workflows. Unlike gravity-fed or syringe-based dispensers, the peristaltic mechanism ensures non-contact fluid handling, preventing cross-contamination and preserving slurry homogeneity. Its core function is to synchronize reagent delivery with automated polishing equipment—particularly Allied’s line of power heads—enabling fully traceable, time-stamped, and programmable dispensing sequences aligned with standardized metallographic preparation protocols (e.g., ASTM E3, ISO 14577, and ASTM E407).

Key Features

• Five independently controlled dispensing stations, two of which integrate automatic rinse cycles to prevent clogging when handling high-viscosity colloidal suspensions (e.g., silica, alumina, and silica–alumina blends).
• Peristaltic pump architecture ensures drip-free, fog-free, and aerosol-free delivery—maintaining optical clarity on polished surfaces and minimizing environmental contamination in cleanroom-adjacent prep areas.
• Intuitive 4-line backlit LCD interface with tactile membrane keypad enables rapid menu navigation and logic-driven programming without external software.
• One-touch initialization for new polishing cloth saturation, reducing setup time and eliminating manual over-application of abrasives.
• Pulse duration (0.5–6.0 s, 0.5 s increments) and pulse frequency (1–10 pulses/min) are individually adjustable per channel, supporting both coarse grinding and fine polishing stages.
• Up to 25 user-defined dispensing menus—each configurable with custom labels for abrasive type/size, lubricant grade, cloth material, and process name—supporting multi-material labs with diverse sample matrices.
• Password-protected menu access ensures protocol integrity in regulated environments where SOP adherence and audit readiness are required (e.g., GLP-compliant QA/QC labs).
• Remote activation via Allied power head control signals enables seamless integration into automated metallographic workstations—eliminating manual trigger steps and enabling full-cycle reproducibility.
• Corrosion- and impact-resistant enclosure meets IP54-rated environmental resilience for long-term operation in humid, chemically active lab settings.

Sample Compatibility & Compliance

The ID-5x™ is validated for use with aqueous and glycol-based slurries, including colloidal silica (e.g., OP-S, MasterMet), alumina suspensions (e.g., MetaDi, AluMet), and hybrid formulations. Its chemical resistance extends to common lubricants (e.g., water-soluble oils, ethanol-based carriers) and mild acidic or alkaline etchants used in post-polish cleaning. The system complies with CE marking requirements for electrical safety (EN 61000-6-3, EN 61000-6-4) and is designed and manufactured in the United States under quality management practices aligned with ISO 9001. While not a medical device or FDA-regulated instrument, its programmable logging capability supports traceability in GMP- or ISO/IEC 17025-accredited laboratories where documented reagent application is part of method validation.

Software & Data Management

The ID-5x™ operates as a standalone, firmware-controlled platform—no PC dependency or proprietary software installation is required. All dispensing parameters, menu selections, and activation timestamps are retained in non-volatile memory. Although it does not generate exportable CSV logs or support network connectivity, its deterministic pulse timing and password-secured menu structure provide inherent data integrity for internal process audits. For labs requiring electronic records, the system’s remote trigger interface allows synchronization with third-party LIMS or MES platforms via dry-contact signaling—enabling correlation of dispensing events with sample IDs, operator codes, and equipment run logs.

Applications

• Standardized metallographic specimen preparation for ferrous/non-ferrous alloys, ceramics, composites, and additive-manufactured parts.
• Reproducible slurry delivery in failure analysis labs performing cross-sectional evaluation of solder joints, coatings, and thin-film stacks.
• High-throughput QC labs conducting routine hardness testing or grain size analysis where inter-operator consistency directly impacts measurement uncertainty.
• Research facilities developing novel polishing chemistries, where precise volumetric dosing enables controlled parameter sweeps across abrasive concentration, pH, and particle loading.
• ISO/IEC 17025-accredited calibration labs validating surface roughness instruments—where documented, repeatable surface conditioning is essential for reference standard preparation.

FAQ

Does the ID-5x™ support continuous flow mode, or is it pulse-only?
The ID-5x™ operates exclusively in discrete pulse mode; continuous flow is not supported. Pulse-based delivery ensures precise volumetric control and prevents over-saturation of polishing cloths.
Can I use non-Allied polishing cloths or slurries with this system?
Yes—the ID-5x™ is chemically and mechanically agnostic to cloth substrate or slurry formulation, provided fluid viscosity remains within the operational range of the peristaltic tubing (typically < 500 cP). Tube compatibility should be verified for highly abrasive or solvent-based media.
Is firmware update capability available?
Firmware updates are performed by authorized Allied service personnel using dedicated diagnostic hardware; end users cannot modify or upgrade firmware independently.
What maintenance is required for long-term reliability?
Primary maintenance involves periodic replacement of peristaltic pump tubing (recommended every 6–12 months depending on usage frequency) and routine visual inspection of rinse nozzles for particulate accumulation.
Does the system meet UL or CSA safety certification?
The ID-5x™ is CE-marked and conforms to IEC 61010-1 for laboratory electrical equipment safety; UL or CSA listing is not currently held but may be pursued for specific regional deployments upon request.
