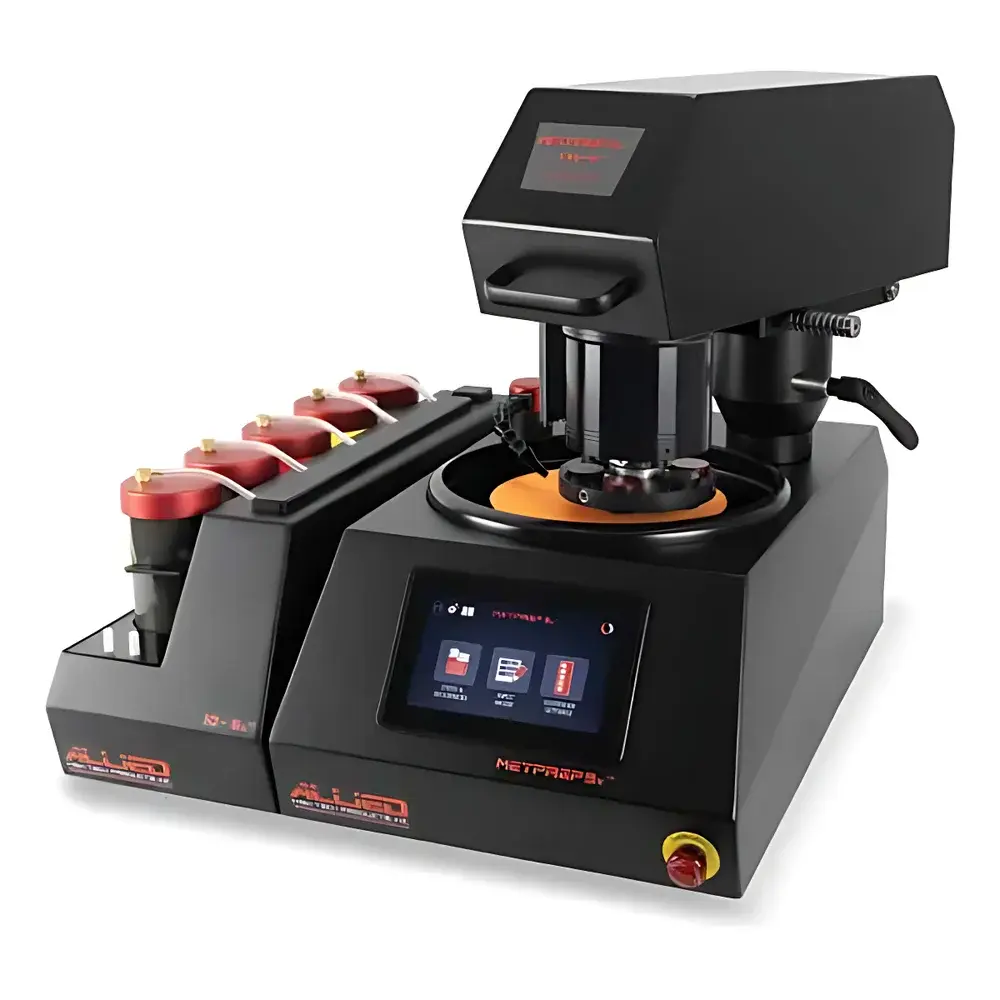

Allied MetPrep 3x™ Automated Grinding and Polishing System

Overview

The Allied MetPrep 3x™ is a fully automated, microprocessor-controlled grinding and polishing system engineered for high-reproducibility metallographic sample preparation in industrial quality control laboratories, academic research facilities, and materials science core labs. Built on Allied’s proprietary PH-3™ precision grinding head architecture, the system employs closed-loop pneumatic-electronic force regulation to deliver consistent, programmable normal load application—either via ring-load or point-load modes—ensuring uniform material removal across heterogeneous microstructures. Its tilt-adjustable head design eliminates mechanical interference during setup and enables unobstructed access to both the platen surface and specimen holders without repositioning. The system operates on a robust 375 W (½ HP) drive motor delivering high-torque rotational stability across the full speed range (0–150 RPM in 10-RPM increments), while independent control of platen rotation direction and light-push motion allows for optimized abrasive action in sequential grinding, lapping, and polishing stages.

Key Features

• 25 user-programmable methods with full parameter control: start/stop triggers, total cycle time (0–120 min, 15-sec resolution), applied force profile (via PH-3™ head), platen RPM, light-push speed, and timed coolant spray activation.
• Modular PH-3™ grinding head with dual-force application modes (ring-load and point-load), soft-start/soft-stop acceleration profiles, and 15° tilt mechanism for ergonomic specimen loading/unloading.
• Quick-change anodized aluminum platen (corrosion- and wear-resistant) compatible with standard 8″, 10″, and 12″ consumable discs (140 mm, 160 mm, and 200 mm diameters).
• Electronically regulated cooling system with solenoid-valve control to maintain thermal stability during extended runs—critical for preserving microstructural integrity in heat-sensitive alloys.
• Integrated safety architecture: interlocked polycarbonate shield, emergency stop circuit meeting UL 61010-1 and IEC 61000-6-2 requirements, and automatic power cutoff upon lid opening.
• Intuitive backlit LCD interface with tactile membrane keypad; no external PC required for routine operation.
• Optional AD-5 automated fluid dispensing module enables unattended multi-step protocols—including timed abrasive slurry delivery and rinse cycles—supporting GLP-compliant documentation workflows.

Sample Compatibility & Compliance

The MetPrep 3x™ accommodates a broad spectrum of metallurgical, ceramic, geological, and composite specimens through Allied’s expandable family of precision-machined specimen holders—including center-force, teardrop, dual-cavity, and single-force configurations. Standardized mounting interfaces ensure compatibility with PH-3™ (up to 3 samples), PH-4™ (up to 4 samples), and PH-6™ (up to 6 samples) heads. All sample fixtures are designed to meet ASTM E3, ISO 14577, and EN 10365 dimensional tolerances for planar parallelism and clamping repeatability. The system supports traceable process validation under ISO/IEC 17025-accredited environments and integrates seamlessly with laboratory information management systems (LIMS) via RS-232 or optional Ethernet module. When configured with audit-trail-enabled firmware and AD-5 fluid control, it satisfies FDA 21 CFR Part 11 requirements for electronic records and signatures in regulated GMP manufacturing settings.

Software & Data Management

While the MetPrep 3x™ operates autonomously via its embedded microcontroller, optional AlliedWin™ software (v5.2+) provides advanced method development, remote monitoring, and digital logbook functionality. Each executed program automatically timestamps and records operational parameters—including actual vs. setpoint RPM, real-time force feedback (where equipped), coolant activation events, and thermal sensor readings. Exportable CSV logs support statistical process control (SPC) analysis and root-cause investigation per AIAG CQI-11 guidelines. Firmware updates are delivered via secure USB key, maintaining version control and cybersecurity compliance aligned with NIST SP 800-161 risk management frameworks.

Applications

This system is routinely deployed in failure analysis labs preparing cross-sections of weld joints, turbine blades, and additive-manufactured components; in foundry QA departments verifying grain structure homogeneity in cast iron and aluminum alloys; and in semiconductor packaging R&D for controlled thinning of copper-clad laminates and die-attach interfaces. Its reproducible force application and bidirectional platen control make it especially effective for preparing brittle-phase-rich composites (e.g., WC-Co cermets), multiphase steels (e.g., duplex stainless), and layered battery electrode materials where delamination or edge rounding must be minimized. Routine use aligns with ASTM E407 (etchant selection), ASTM E1558 (electrolytic polishing), and ISO 1127 (surface roughness correlation studies).

FAQ

What types of specimens can be prepared using the MetPrep 3x™?
It supports metallic, ceramic, geological, and polymeric specimens ranging from 10 mm to 51 mm in diameter—or rectangular sections up to 53 × 94 mm—when mounted in compatible Allied fixture families (5-33xx, 5-34xx, 5-36xx, 5-38xx, etc.).
Is the system compliant with international safety and electromagnetic standards?
Yes. It conforms to UL 61010-1 (2nd Ed.), IEC 61000-6-2 (immunity), IEC 61000-6-4 (emissions), and carries CE marking for EMC and Low Voltage Directive compliance.
Can the MetPrep 3x™ be integrated into a validated quality system?
When paired with AD-5 fluid control and AlliedWin™ audit-trail software, it supports 21 CFR Part 11 compliance, including electronic signature capture, operator authentication, and immutable method history logging.
What maintenance intervals are recommended for long-term reliability?
Platen bearing lubrication every 1,000 operating hours; pneumatic filter replacement quarterly; and annual calibration of force transducers and RPM sensors by an Allied-certified service engineer.
Does the system support custom abrasive disc mounting solutions?
Yes—standard M6 threaded inserts allow direct attachment of third-party diamond, silicon carbide, or alumina discs, provided they meet ISO 527-2 concentricity and balance specifications (G2.5 at 150 RPM).
