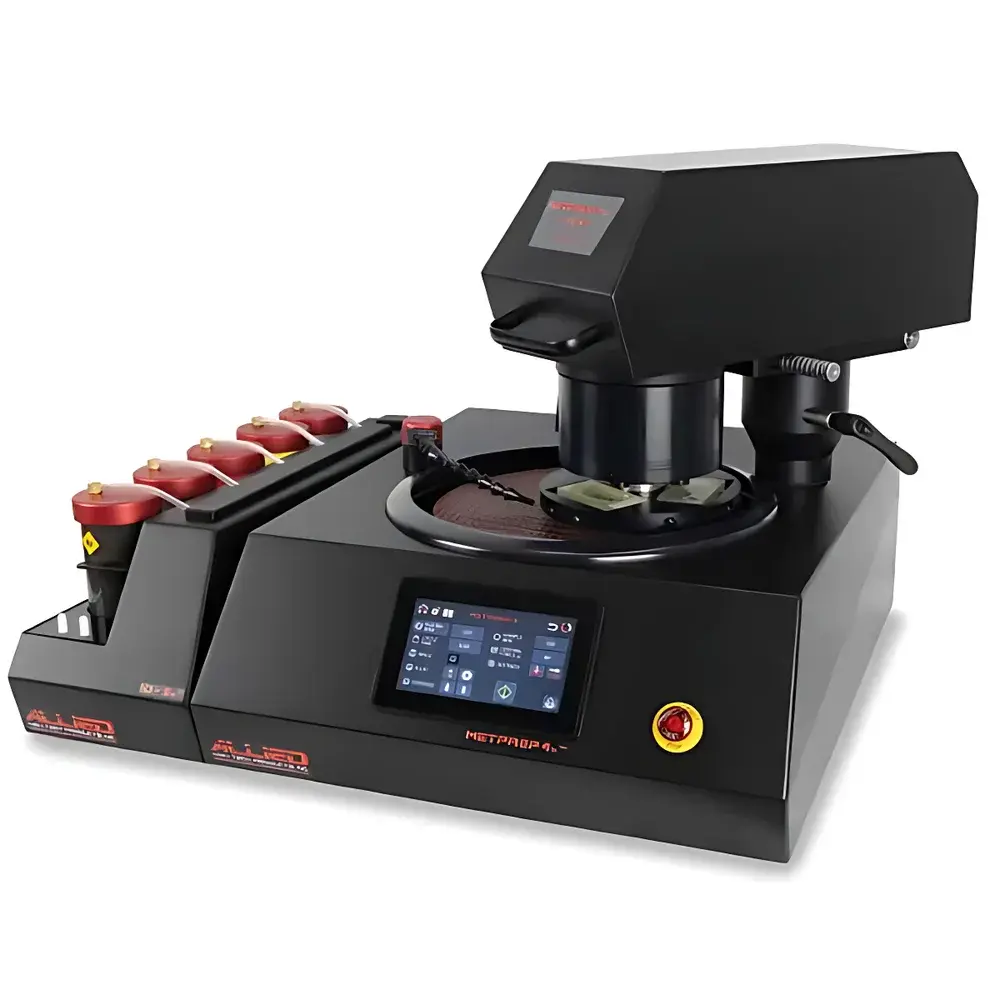

Allied MetPrep 4x™ Automated Grinding and Polishing System

Overview

The Allied MetPrep 4x™ is a fully automated, microprocessor-controlled grinding and polishing system engineered for precision metallographic sample preparation in industrial QA/QC laboratories, academic research facilities, and failure analysis centers. Built on a robust mechanical architecture, it employs a dual-axis motion control principle—simultaneous platen rotation and programmable head traverse—to deliver reproducible planar material removal across diverse specimen geometries. Unlike manual or semi-automated systems, the MetPrep 4x™ integrates closed-loop force regulation via pneumatic-electronic actuators, enabling consistent normal load application regardless of specimen height variation or abrasive wear progression. Its modular design supports interchangeable PH-4™ (4-sample capacity) and PH-6™ (6-sample capacity) heads, each featuring tilt-adjustable kinematics for unobstructed access to the platen surface and fixture interface—eliminating repositioning during multi-step preparation protocols.

Key Features

• 25 programmable preparation methods with independent control over start/stop sequence, dwell time (0–120 min, ±15 sec resolution), applied force (via pneumatic head actuation), platen direction/speed (0–150 RPM, 10-RPM increments), oscillation rate (“light push” speed), and fluid dispensing timing
• High-torque 375 W (0.5 HP) motor with hardened gear train ensures stable rotational output under variable load conditions; platen rotates bidirectionally (clockwise or counterclockwise) with selectable compensation mode
• Anodized aluminum platen (610 × 711 × 610 mm footprint) provides corrosion resistance and dimensional stability; quick-release mounting enables tool-less platen exchange within 90 seconds
• Backlit LCD interface with tactile membrane keys and hierarchical menu navigation simplifies method setup and real-time parameter monitoring without external software dependency
• Integrated AD-5 optional module enables autonomous fluid delivery—including coolant, lubricant, or diamond suspension—synchronized precisely with stage transitions and dwell periods
• Full safety compliance: impact-resistant polycarbonate guard with interlocked door switch, emergency stop button meeting IEC 60204-1 requirements, and thermally regulated electronic cooling system with adjustable valve control

Sample Compatibility & Compliance

The MetPrep 4x™ accommodates a comprehensive range of specimen types—from brittle ceramics and composite laminates to ductile alloys and geological sections—through its expandable family of precision-machined fixtures. Center-force holders maintain coplanarity for multi-specimen batches (up to 12 samples with PH-6™ under center-load configuration), while single-point-force fixtures allow independent loading of irregularly shaped or dimensionally disparate specimens without mechanical coupling. Fixture series include tear-drop (5-33xx/5-34xx/5-36xx), dual-cavity (5-3361/5-3460/5-3661), and clamp-style (5-3466/5-3494) configurations, all machined to ≤±5 µm flatness tolerance and compatible with standard 8″, 10″, and 12″ abrasive discs. All mechanical and electrical subsystems conform to ASTM E3-22 (Standard Guide for Preparation of Metallographic Specimens), ISO 14971:2019 (risk management for medical devices), and support GLP audit trails when paired with Allied’s optional data logging firmware.

Software & Data Management

While the MetPrep 4x™ operates as a standalone instrument with embedded firmware, its method storage architecture facilitates traceability and regulatory alignment. Each of the 25 user-defined protocols stores full parameter sets—including force setpoints, RPM profiles, time stamps, and fluid delivery events—in non-volatile memory with write-cycle protection. When connected to Allied’s optional Ethernet-enabled data logger (sold separately), the system exports timestamped CSV logs compliant with FDA 21 CFR Part 11 requirements—including operator ID, method revision number, and electronic signature fields. Audit trail functionality records all parameter modifications, method executions, and system errors with immutable timestamps—supporting ISO/IEC 17025 accreditation and internal quality audits.

Applications

The MetPrep 4x™ serves critical roles in metallurgical laboratories requiring high-fidelity cross-sectional analysis of weld zones, heat-affected regions, coating interfaces, and microstructural gradients. It is routinely deployed for preparing specimens prior to SEM-EDS mapping, electron backscatter diffraction (EBSD), focused ion beam (FIB) milling, and quantitative image analysis per ASTM E112 and ISO 643. In aerospace and power generation sectors, it supports turbine blade coating integrity assessment and creep-damage evaluation in nickel-based superalloys. Within electronics manufacturing, the system enables controlled thinning of solder joint intermetallic layers and PCB cross-sections for IPC-A-610 conformance verification. Its repeatability (CV < 2.1% across 10 consecutive runs on Al 6061-T6 per internal validation protocol) makes it suitable for ISO 17025-accredited testing environments.

FAQ

What voltage options are available for the MetPrep 4x™?
The system is offered in both 115 VAC (50/60 Hz) and 230 VAC (50/60 Hz) configurations, with model-specific part numbers indicating voltage and head type (e.g., 5-6550 = 115 V + PH-4™; 5-6600-230 = 230 V + PH-6™).
Can the MetPrep 4x™ be integrated into a laboratory LIMS or MES platform?
Yes—via optional RS-232 or Ethernet data export modules, the system supports structured log output compatible with common LIMS middleware; custom API integration is available through Allied’s OEM support program.
Is the platen speed independently controllable from the head oscillation speed?
Yes—the microprocessor governs platen rotation and head traverse as separate axes, allowing independent optimization of material removal rate (RPM) and surface finish uniformity (oscillation frequency).
What maintenance intervals are recommended for the pneumatic force control system?
Allied recommends quarterly inspection of air filter regulators and annual calibration of pressure transducers using NIST-traceable deadweight testers; no routine lubrication of the pneumatic actuator is required due to sealed diaphragm design.
Are consumables such as abrasive discs and polishing cloths standardized across Allied platforms?
Yes—all MetPrep 4x™ fixtures accept industry-standard 8″, 10″, and 12″ diameter discs and pads; Allied supplies proprietary diamond-impregnated and alumina-based media with documented particle size distributions (D50 values certified per ISO 13320).
