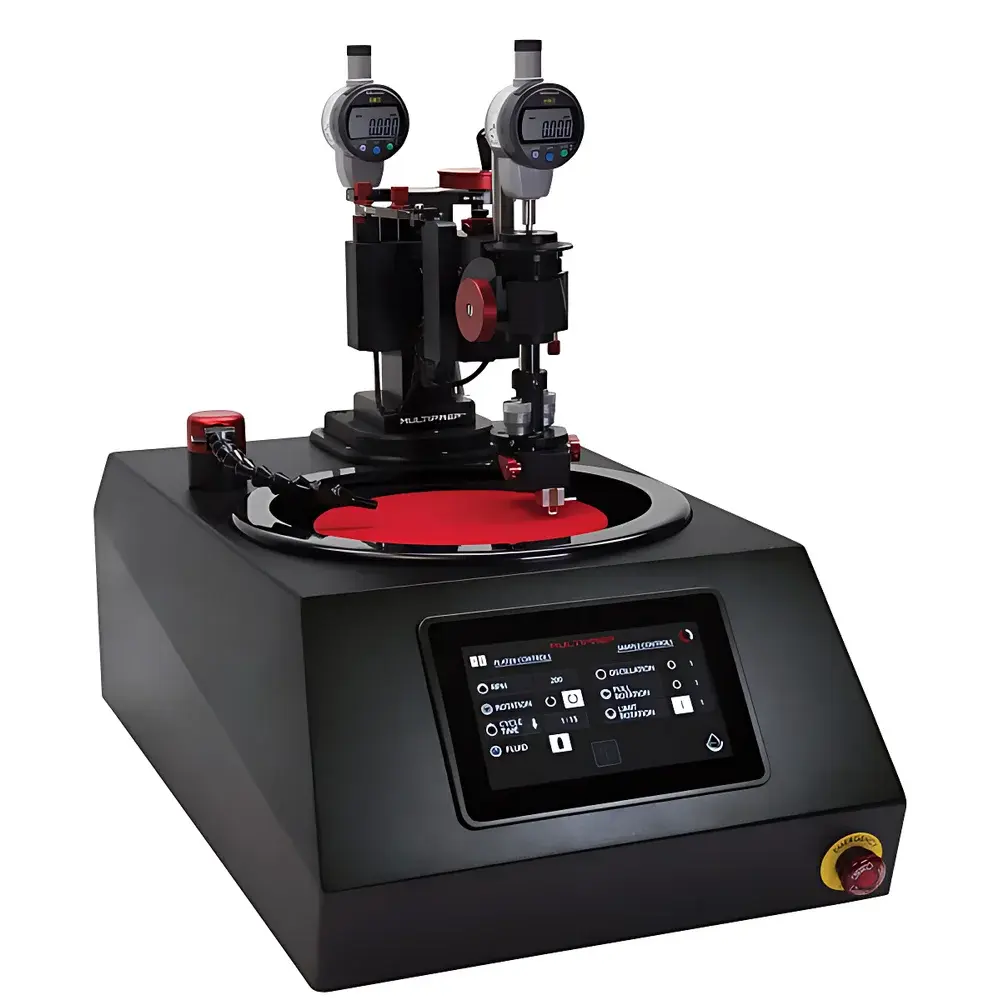

Allied MultiPrep™ Precision Grinding and Polishing System

Overview

The Allied MultiPrep™ Precision Grinding and Polishing System is an engineered solution for reproducible, high-fidelity sample preparation in advanced materials characterization laboratories. Designed around a rigid RIM-aluminum-and-stainless-steel architecture, the system implements controlled mechanical material removal via precision rotational and oscillatory motion—enabling deterministic surface planarization, cross-sectional thinning, wedge polishing, and angular specimen alignment. Its core functionality relies on dual-axis micrometric adjustment (tilt and swing), sub-micron Z-axis positional feedback (1 µm resolution), and synchronized sample rotation/oscillation to eliminate operator-dependent variability. The MultiPrep™ is specifically optimized for applications demanding nanoscale surface integrity and geometric fidelity—including transmission electron microscopy (TEM), scanning electron microscopy (SEM), atomic force microscopy (AFM), focused ion beam (FIB) site-specific preparation, and semiconductor cross-sectioning. Unlike manual or semi-automated grinders, the MultiPrep™ decouples sample handling from material removal: samples are fully clamped and kinematically constrained, ensuring only the designated face contacts the abrasive medium under precisely defined load, angle, and motion profile.

Key Features

• 7-inch full-color LCD touchscreen interface with alphanumeric keypad for intuitive parameter entry, real-time monitoring, and recipe-based operation
• Dual digital indicators: front-mounted display for real-time material removal depth (Z-travel) with 1 µm resolution; rear-mounted indicator for static vertical position with zero-reset function
• High-torque 0.5 HP (375 W) motor delivering consistent rotational force across the full 5–350 RPM range (5-RPM increments), with selectable clockwise or counterclockwise platen rotation
• Programmable oscillation (6× speed relative to platen) and rotation (8× speed) to maximize abrasive utilization and minimize edge rounding or non-uniform wear
• Adjustable sample loading (0–600 g in 100-g increments) via calibrated weight kits, enabling gentle processing of fragile ceramics, thin films, or encapsulated devices
• Two-axis micrometric stage: tilt (±10°) and swing (−2.5°) adjustments with 0.02° incremental control for precise angular orientation relative to the grinding plane
• Cam-lock quick-release sample holder mechanism requiring no auxiliary tools for rapid fixture reconfiguration
• Integrated electronic coolant flow control and optional AD-5™ automatic fluid dispenser with adjustable valve for consistent slurry delivery
• Robust enclosure with corrosion-resistant and impact-resistant cover compliant with CE safety directives

Sample Compatibility & Compliance

The MultiPrep™ accommodates a broad spectrum of specimen geometries and material classes—including brittle intermetallics, multilayer thin-film stacks, ceramic composites, polymer blends, and semiconductor wafers—through its modular fixture ecosystem. Standard accessories include cross-section holders (e.g., #15-1010, #15-1010-RE), TEM/FIB wedge clamps (#15-1013, #15-1014), SIMS-compatible thinning fixtures (#15-1018), parallel-polishing chucks (#15-1020 series), and multi-pocket universal holders (#15-1045–#15-1048). All fixtures mount directly to the precision-machined spindle without adapters. The system meets CE marking requirements for electromagnetic compatibility (EMC) and low-voltage directive (LVD) compliance. While not certified to ISO/IEC 17025 or GLP/GMP out-of-the-box, its programmable parameters, digital audit trail (via touchscreen log export), and repeatable mechanical execution support integration into validated workflows aligned with ASTM E3, ISO 14577, and USP <1061> sample preparation guidelines.

Software & Data Management

The MultiPrep™ operates without external PC dependency—the embedded controller manages all operational logic, timing, motion sequencing, and sensor feedback. Process parameters (speed, time, oscillation ratio, load, tilt/swing angles) are stored as user-defined protocols with timestamped execution logs accessible via the touchscreen interface. Digital indicators record Z-axis displacement at 1 µm resolution, allowing quantitative correlation between removal depth and process duration—a critical capability for establishing removal rate baselines per abrasive type and material system. Data can be exported via USB port in CSV format for post-processing in third-party analysis tools (e.g., MATLAB, Python pandas). Although native software does not provide FDA 21 CFR Part 11-compliant electronic signatures or role-based access control, the system’s deterministic behavior and traceable parameter logging make it suitable for environments implementing supplementary procedural controls for audit readiness.

Applications

• TEM lamella preparation via wedge polishing and ion milling pre-thinning verification
• SEM cross-sectional analysis of solder joints, die attach layers, and through-silicon vias (TSVs)
• AFM-ready surface planarization of optical coatings and MEMS structures
• Parallel polishing of metallographic specimens for grain structure analysis per ASTM E3-22
• FIB lift-out site selection using precisely angled, artifact-free surfaces
• Wafer-level packaging metrology requiring sub-micron thickness uniformity
• Failure analysis of layered battery electrodes, solid-state electrolytes, and thermal barrier coatings

FAQ

What platen sizes are supported by the MultiPrep™ system?
The standard configuration uses an 8-inch (203 mm) platen; compatible options include aluminum (#10-1005) and magnetic (#10-1005M) variants.
Is the MultiPrep™ suitable for TEM sample preparation?
Yes—the 15-2200-TEM variant includes O-ring drive coupling and specialized wedge clamps (#15-1013, #15-1014) optimized for electron-transparent thinning with minimal amorphous layer formation.
Can the system operate unattended?
Yes—predefined protocols with digital timers, auto-stop triggers, and real-time removal monitoring enable lights-out operation for extended polishing sequences.
What is the maximum sample weight capacity?
The system supports loads from 0 to 600 g, adjustable in 100-g increments using calibrated weight kits (e.g., #15-1035).
Does the MultiPrep™ require external cooling or exhaust?
No—integrated electronic coolant control and splash ring design manage fluid containment; ambient lab ventilation is sufficient for standard operation.
