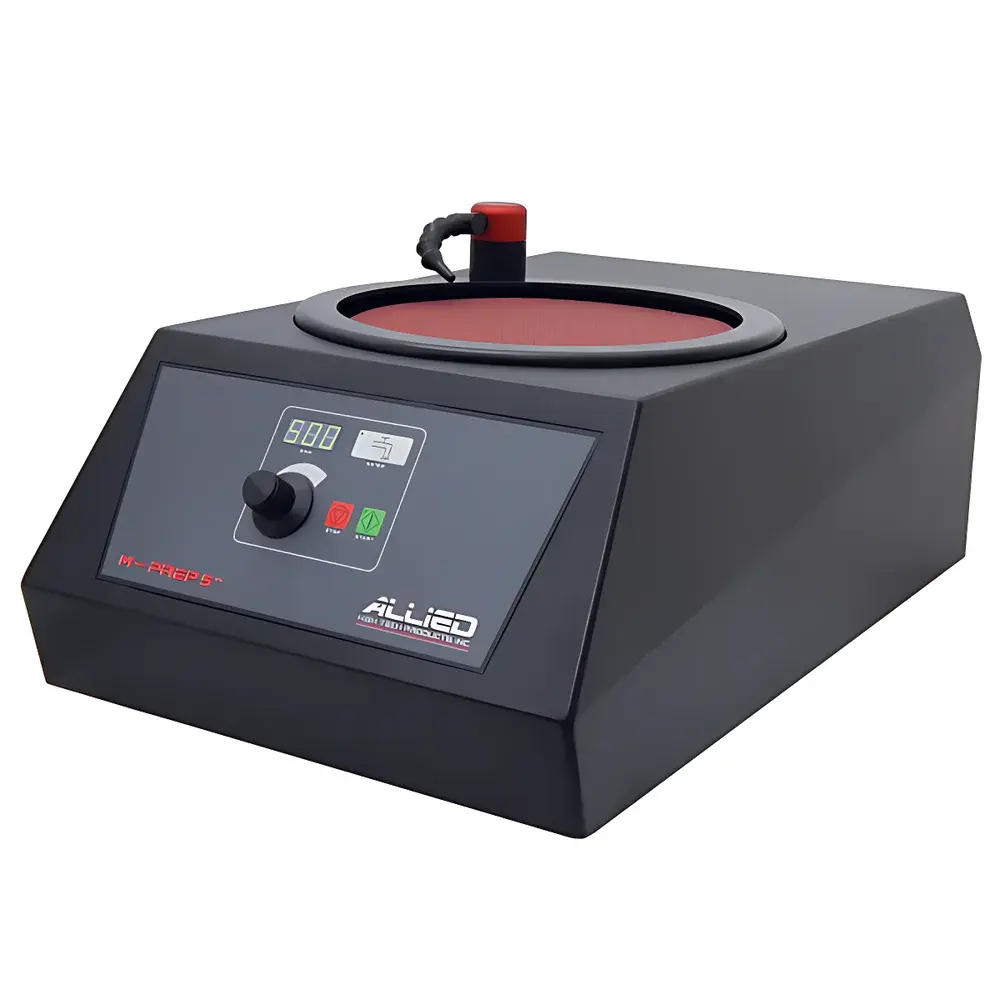

Allied M-Prep 5™ Manual Grinding and Polishing System
| Brand | Allied |
|---|---|
| Origin | USA |
| Model | M-Prep 5™ |
| Dimensions (L×W×D) | 15" W × 26" D × 20" H (381 × 660 × 508 mm) |
| Number of Platen | 1 |
| Platen Diameter | 8" (203 mm) |
| Speed Range | 5–350 RPM (5 RPM increments) |
| Motor | 0.5 HP (370 W) DC, high-torque |
| Voltage | 100–240 V AC, 50/60 Hz |
| Weight | 66 lb (30 kg) |
Overview
The Allied M-Prep 5™ is a precision-engineered manual grinding and polishing system designed for consistent, repeatable sample preparation in metallurgical, materials science, and failure analysis laboratories. Built upon a robust Couette-flow–compatible mechanical architecture, it enables controlled material removal and surface refinement through rotational shear between the specimen—mounted on a holder—and a rotating platen fitted with abrasive or polishing media. Unlike automated systems requiring complex programming, the M-Prep 5™ delivers deterministic control via direct operator input, making it ideal for low-volume, high-mix workflows where flexibility, tactile feedback, and procedural transparency are critical. Its design adheres to core principles of ASTM E3, ISO 14489, and USP for metallographic specimen preparation, ensuring compatibility with standardized mounting, grinding, and polishing protocols used in QA/QC, R&D, and third-party testing environments.
Key Features
- Digitally controlled variable-speed platen drive: 5–350 RPM in precise 5-RPM increments, enabling fine-tuned optimization for coarse grinding, intermediate lapping, and final polishing stages.
- High-torque 0.5 HP (370 W) DC motor with stable speed regulation under load—critical for maintaining consistent shear stress across varying specimen hardness and geometry.
- Dual-material frame constructed from corrosion-resistant anodized aluminum and stainless steel, engineered for long-term durability in humid or chemically aggressive lab environments.
- Quick-change platen interface with electroplated aluminum or magnetic-aluminum platens (8″ / 203 mm diameter), supporting rapid media swaps without tools or recalibration.
- Integrated splash guard with adjustable coolant flow control—enabling operator-defined fluid delivery rates to minimize thermal damage and optimize slurry dynamics during wet grinding/polishing.
- Ergonomic, minimalist control panel featuring tactile touch switches for start/stop, coolant activation, and speed adjustment—designed for glove-compatible operation and reduced contamination risk.
- Low-profile footprint (381 × 660 × 508 mm) and 30 kg mass ensure stability during manual pressure application while fitting standard lab bench configurations.
Sample Compatibility & Compliance
The M-Prep 5™ accommodates specimens up to 40 mm in diameter when mounted in standard metallographic holders (e.g., epoxy, phenolic, or cold-mount resins). It supports all common abrasive media—including silicon carbide papers (P80–P2500), diamond suspensions (1–9 µm), alumina slurries (0.05–3 µm), and colloidal silica—with compatibility verified per ASTM E7, ISO 643, and EN 10365. The system’s mechanical repeatability meets GLP documentation requirements when paired with calibrated force applicators and time-stamped procedural logs. All electrical components comply with UL 61010-1 and IEC 61010-1 safety standards; CE marking is applicable for EU deployment under Directive 2014/30/EU (EMC) and 2014/35/EU (LVD).
Software & Data Management
As a manually operated platform, the M-Prep 5™ does not incorporate embedded firmware or digital data logging. However, its analog control architecture ensures full traceability in regulated environments: operators record speed, duration, coolant flow rate, and media type in paper-based or LIMS-integrated electronic batch records. When integrated into FDA-regulated workflows (e.g., medical device material characterization), the system supports 21 CFR Part 11 compliance via external audit-trail-capable documentation systems—leveraging its deterministic mechanical behavior and absence of proprietary software dependencies.
Applications
- Metallurgical specimen preparation for optical and electron microscopy (SEM/TEM cross-sectioning).
- Failure analysis of welds, castings, and additive-manufactured components per ASTM E340 and ISO 17873.
- Surface finish validation in aerospace turbine blade coatings and automotive powertrain alloys.
- Quality assurance of sintered ceramics, composites, and semiconductor packaging substrates.
- Academic research requiring method transparency and minimal automation bias in microstructural correlation studies.
FAQ
Is the M-Prep 5™ compatible with vacuum-mounted specimens?
Yes—standard specimen holders with threaded base plates interface directly with the platen’s mounting pattern; optional vacuum chucks are available as field-upgrade kits.
What platen accessories are included by default?
The base configuration includes one 8″ aluminum platen, splash ring, and cover plate. Magnetic platens and clamping hardware (e.g., 18″ platen clamp, P/N 125-1001) are sold separately.
Can the unit operate continuously at maximum speed?
Yes—the motor and thermal management system are rated for indefinite operation at 350 RPM under nominal load conditions, provided ambient temperature remains below 35°C and coolant flow is maintained.
Does Allied provide calibration documentation for the speed control circuit?
Factory calibration certificates (traceable to NIST standards) are available upon request at time of purchase; routine verification can be performed using a handheld tachometer per ISO 17025-accredited procedures.
Is service support available outside North America?
Yes—Allied maintains authorized service partners in over 40 countries; technical documentation, spare parts diagrams, and OEM-certified repair training are accessible through the Allied Technical Portal.
