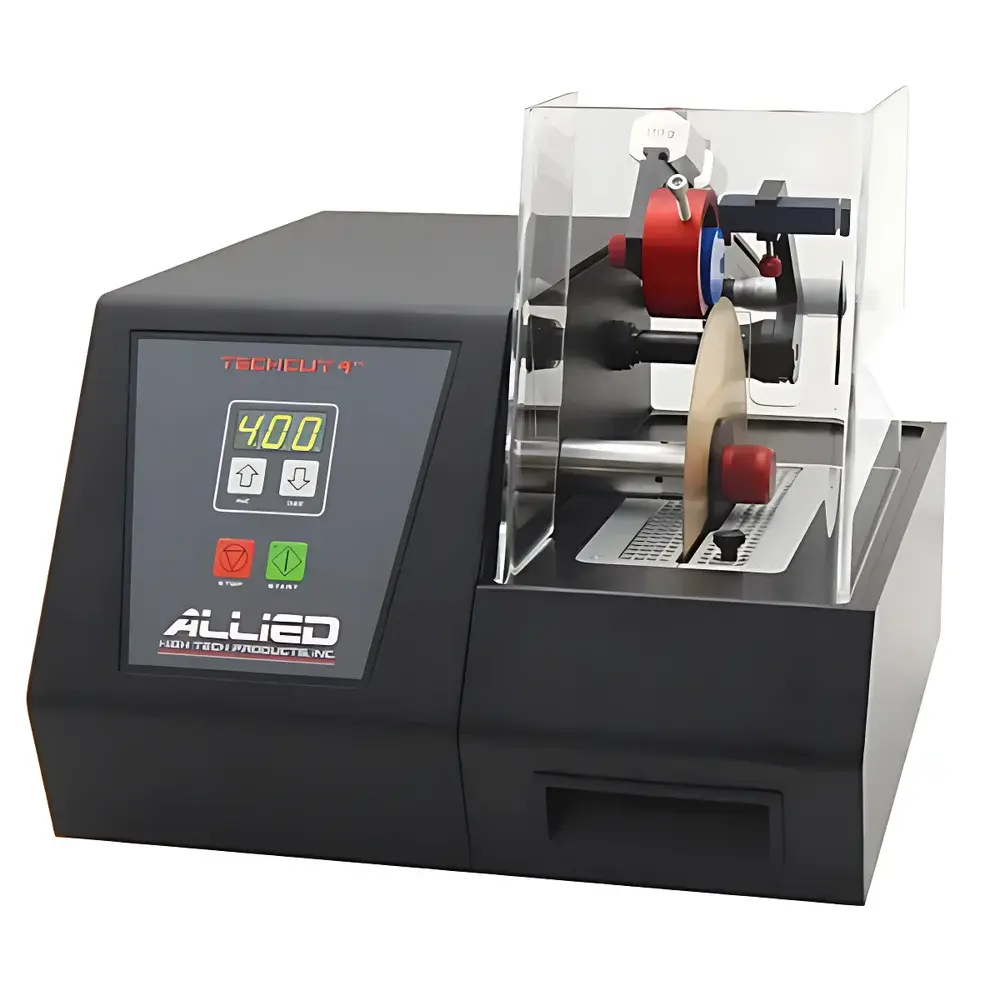

Allied TechCut 4™ Low-Speed Precision Cutting System

Overview

The Allied TechCut 4™ Low-Speed Precision Cutting System is an engineered solution for controlled, low-thermal-impact sectioning of delicate, brittle, or heat-sensitive specimens—including sintered ceramics, semiconductor wafers, thin metal foils, geological cores, biological tissue blocks, and mounted metallurgical samples. Unlike high-speed abrasive cutters that induce microfractures or thermal distortion, the TechCut 4™ employs a gravity-assisted, variable-speed rotational cutting principle with continuous coolant delivery. Its design adheres to core principles of precision material removal: minimal kerf loss, consistent blade engagement angle, and reproducible feed force—critical for downstream analysis via SEM, TEM, micro-CT, or optical microscopy. The system operates on a rigid aluminum-and-stainless-steel frame, ensuring dimensional stability under repeated load cycles and resistance to corrosion from aqueous or oil-based coolants.

Key Features

• Variable-speed DC motor (10–500 RPM in precise 10 RPM increments), digitally displayed on integrated LED interface for real-time monitoring and repeatability.
• Gravity-feed mechanism with adjustable counterweight assembly (0–300 g range), enabling consistent downward force without mechanical actuation—ideal for fragile or non-rigid samples.
• Precision micrometer feed with 2 µm resolution and 38 mm total travel, allowing sub-micron positioning accuracy for serial sectioning or depth-controlled cuts.
• Modular blade compatibility: accepts 3″ to 6″ diameter diamond or resin-bonded blades with standard 0.5″ arbor; optimized for low-RPM torque transmission and vibration damping.
• Integrated coolant management: removable 1.9 L reservoir, centrifugal delivery via rotating blade hub, and splash guard with transparent polycarbonate shielding for operator safety and visibility.
• Tool-free sample capture tray with sliding sieve insert prevents debris ingress into coolant reservoir and simplifies post-cut cleanup.
• Automatic brake activation upon reaching pre-set depth stop—eliminates over-travel and ensures process consistency across multi-sample batches.
• Spring-loaded dressing rod enables in-situ blade conditioning during operation, maintaining optimal cutting geometry and extending blade life.

Sample Compatibility & Compliance

The TechCut 4™ accommodates a broad spectrum of specimen geometries and materials through its expandable accessory ecosystem—including tear-drop chucks (for 1.5″ mounted samples), V-blocks (for 1″ round specimens), bone-specific fixtures, dual-saddle clamps, vacuum chucks (27 × 47 mm), irregular-shape holders, and rotary indexing attachments for angular sectioning. All fixtures are CNC-machined from corrosion-resistant alloys and designed for ISO 9001-aligned mounting repeatability (< ±5 µm positional deviation). The system supports GLP-compliant workflows via manual logbook documentation of speed, depth, and coolant type; optional integration with laboratory information management systems (LIMS) is achievable via RS-232 or USB-to-serial adapters. While not FDA 21 CFR Part 11 certified out-of-the-box, its deterministic mechanical control architecture facilitates validation per ASTM E3, ISO 14577, and USP <1061> guidelines for sample preparation integrity.

Software & Data Management

The TechCut 4™ operates as a standalone electromechanical instrument with no embedded firmware or proprietary software stack. All operational parameters—including RPM setting, depth-stop position, and run duration—are manually configured and recorded externally. This architecture eliminates cybersecurity vulnerabilities associated with networked controllers and aligns with ITAR and export-controlled lab environments where air-gapped instrumentation is mandated. Process documentation follows traditional lab notebook conventions, supporting audit readiness for ISO/IEC 17025-accredited testing laboratories. For automated data capture, third-party digital calipers or laser displacement sensors can be interfaced externally using standard analog voltage outputs (0–10 V) available at the rear I/O panel.

Applications

• Preparation of electron-transparent lamellae for FIB-SEM lift-out and TEM analysis.
• Cutting of brittle intermetallic compounds and oxide dispersion-strengthened alloys without delamination.
• Sectioning of mineralogical thin sections (e.g., petrographic slides) with minimized edge chipping.
• Serial block-face trimming for volume electron microscopy (SBEM) and array tomography.
• Dimensional metrology sample prep—generating reference surfaces for profilometry or coordinate measuring machine (CMM) calibration.
• Pharmaceutical solid dosage form analysis: cross-sectioning coated tablets or layered transdermal patches for API distribution mapping.

FAQ

What types of blades are compatible with the TechCut 4™?

Standard 3″ to 6″ diamond-impregnated or resin-bonded blades with 0.5″ (12.7 mm) arbor diameter and maximum thickness of 0.062″ (1.57 mm) are supported.
Can the TechCut 4™ be used for unmounted, free-standing samples?

Yes—when paired with vacuum chucks, irregular-shape fixtures, or custom-machined adapters, it accommodates unmounted wafers, crystals, or irregular geological specimens.
Is coolant flow rate adjustable?

Coolant delivery is passive and blade-speed-dependent; flow volume increases proportionally with RPM. No manual flow valve is provided, but reservoir fill level and blade porosity govern effective wetting.
Does the system meet CE or UL safety standards?

The TechCut 4™ is manufactured in the USA to UL 61010-1 and CSA C22.2 No. 61010-1 requirements for laboratory electrical equipment and carries the cULus mark.
What maintenance intervals are recommended?

Motor brushes require inspection every 1,500 operating hours; coolant reservoir and pump housing should be cleaned quarterly; micrometer threads must be lubricated biannually with silicone-free grease.
