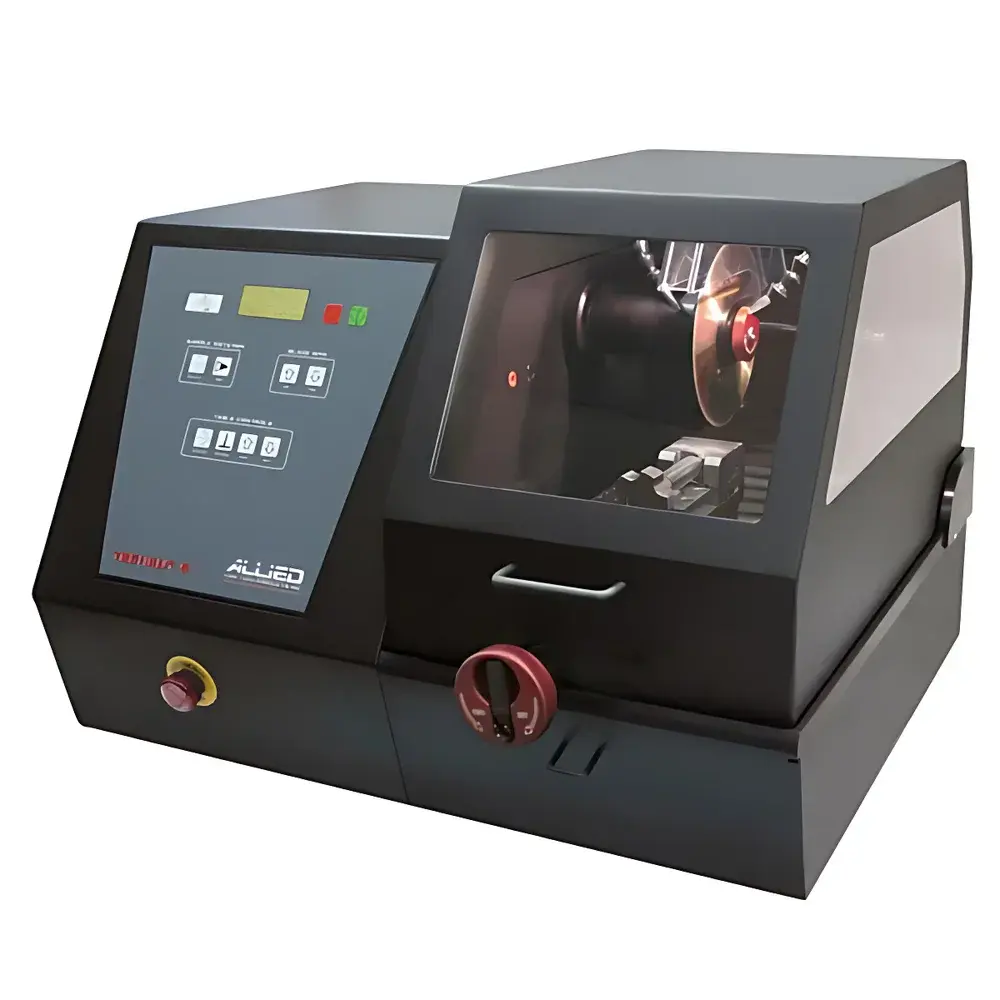

Allied TechCut 5™ High-Speed Precision Cutting Machine

Overview

The Allied TechCut 5™ High-Speed Precision Cutting Machine is an engineered solution for reproducible, low-damage sectioning of hard and brittle materials in metallurgical, geological, electronic, and advanced materials laboratories. Built upon a rigid cast-iron base and precision-machined aluminum frame, the system employs controlled rotary abrasive cutting—using diamond-impregnated or silicon carbide blades—to achieve clean, planar cuts with minimal thermal distortion or mechanical deformation. Its core architecture integrates programmable depth control, motorized Z-axis auto-retract, and variable-speed spindle operation to accommodate diverse sample geometries—from thin wafers and ceramic substrates to thick alloy blocks and composite laminates. Designed and manufactured in the United States by Allied High-Tech Products, Inc., the TechCut 5™ complies with UL 61010-1 and CE safety directives, and supports GLP/GMP-aligned documentation workflows when paired with optional accessories and validated SOPs.

Key Features

• Programmable cut depth with automatic post-cut retraction: The worktable returns to its home position, blade rotation ceases, and coolant circulation continues for thermal stabilization.
• Dual-platform interchangeability: Rapid-swap T-style and X-style precision stages—available with 25 µm or 5 µm resolution encoders—enable flexible fixture integration for flat, irregular, or multi-axis positioning.
• High-torque 1.25 HP (950 W) brushless motor with soft-start functionality: Ensures smooth blade engagement and consistent torque delivery across the full 500–5000 RPM range.
• Adjustable feed force control (Low/Medium/High): Dynamically modulates downward pressure during cutting to optimize material removal rate and surface integrity.
• Rotary and pulse-mode capability (with optional #5-5545 Rotary Cutting Attachment): Enables precise circumferential sectioning of cylindrical specimens, such as rods, wires, and bearings, with angular resolution down to 0.1°.
• Integrated coolant management: Recirculating system with adjustable nozzles, cleaning hose, and stainless-steel reservoir—configurable as internal (1.5 gal / 4.7 L) or external (7 gal / 26.5 L) for extended operation and metal particulate containment.
• Electronic safety interlock on transparent polycarbonate splash guard: Cuts power to spindle and coolant pump upon door opening; chamber illuminated by LED lighting for visual inspection.

Sample Compatibility & Compliance

The TechCut 5™ accommodates a broad spectrum of sample types—including ferrous and non-ferrous metals, sintered ceramics, graphite, polymers, PCBs, and geological cores—when paired with appropriate blade chemistry and coolant formulation. For ferromagnetic materials, the optional #5-5580 Magnetic Particle Collector is recommended to prevent abrasive contamination and extend blade life. All standard configurations meet ISO 14001 environmental handling guidelines and support ASTM E3-22 (Standard Guide for Preparation of Metallographic Specimens) and ISO 13008:2012 (Microbeam analysis — Electron probe microanalysis — Preparation of bulk specimens). When operated with audit-trail-enabled software (e.g., Allied’s optional DataLink™ interface), the system can be configured to satisfy FDA 21 CFR Part 11 requirements for electronic records and signatures in regulated QC environments.

Software & Data Management

While the TechCut 5™ operates via intuitive front-panel touch controls and real-time LCD feedback (including speed, depth, elapsed time, and coolant level), it is compatible with Allied’s DataLink™ PC interface module (sold separately). This enables remote parameter configuration, automated log export (CSV/TXT), timestamped operation records, and integration into centralized LIMS or MES platforms. All user-defined protocols—including RPM, feed rate, cut depth, dwell time, and coolant flow—are stored in non-volatile memory and recallable via alphanumeric naming. Firmware updates are delivered via USB and include version-controlled release notes compliant with IEC 62304 medical device software lifecycle standards.

Applications

• Preparation of cross-sectional specimens for SEM, TEM, and optical metallography.
• Sectioning of additive-manufactured parts for porosity and layer-bond analysis.
• Cutting of battery electrode stacks and solid-state electrolyte pellets under inert atmosphere-compatible enclosures (with optional purge kit).
• Dimensionally accurate slicing of semiconductor wafers, MEMS devices, and photovoltaic cells prior to polishing.
• Routine quality control sectioning in aerospace component manufacturing (e.g., turbine blades, Ti-6Al-4V fasteners).
• Geological thin-section preparation from basalt, granite, and shale cores using low-speed, high-coolant-flow protocols.

FAQ

What blade sizes and arbor types are supported?
The TechCut 5™ accepts blades from 3″ to 8″ (76–203 mm) in diameter, with standard arbor options of 1/2″ (12.7 mm) and 1.25″ (32 mm). Flanges and adapters are included for immediate compatibility.

Is the machine suitable for cutting hardened steels or tungsten carbide?
Yes—when equipped with diamond-segmented blades and appropriate coolant (e.g., water-soluble synthetic fluid), the TechCut 5™ achieves consistent sectioning of materials up to 65 HRC, provided feed parameters are optimized per ASTM E3-22 Annex A3.

Can the system be integrated into an automated lab workflow?
Via the optional DataLink™ interface and RS-232/USB connectivity, the TechCut 5™ supports trigger-based start/stop commands, status polling, and protocol synchronization with robotic sample handlers or conveyance systems.

What maintenance intervals are recommended?
Daily: Coolant level check and nozzle cleaning. Weekly: Belt tension verification and guide rail lubrication. Annually: Encoder calibration verification and motor brush inspection (if applicable). Full service logs are retained in internal memory and exportable.
