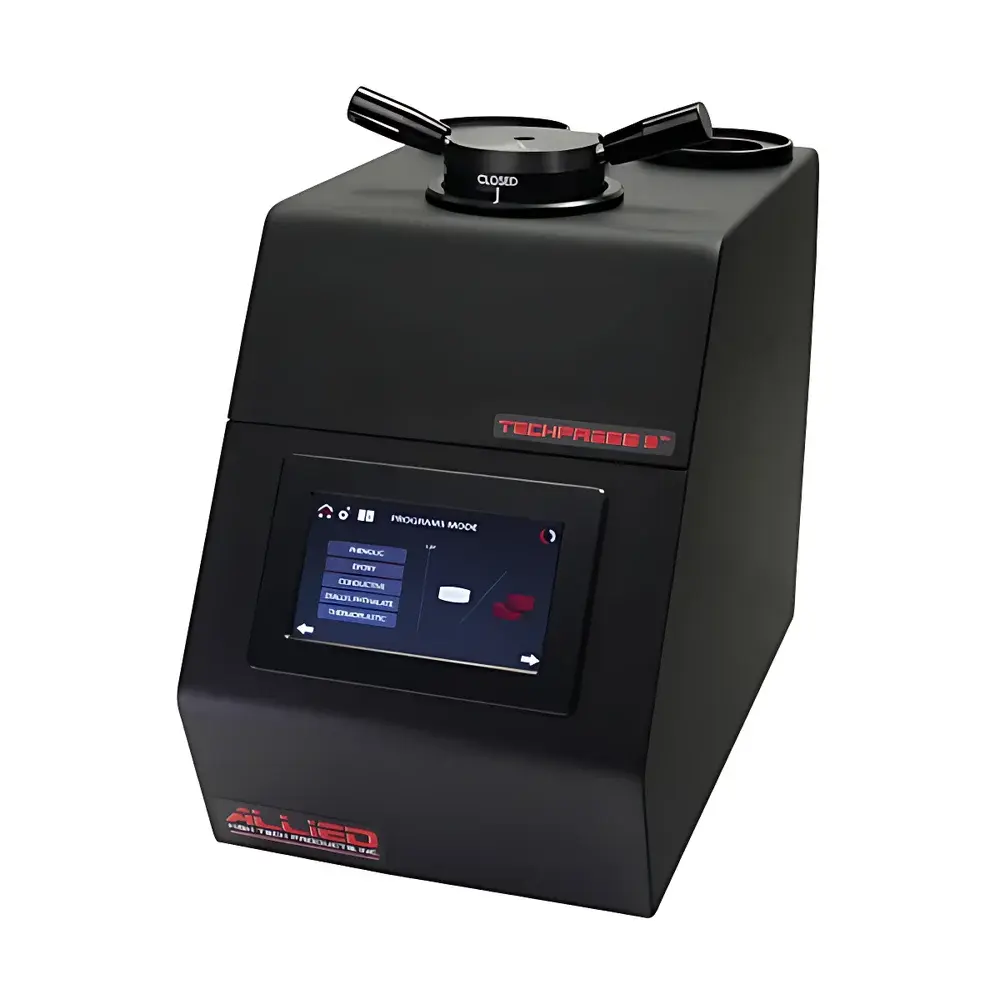

Allied TechPress3™ Electric-Hydraulic Hot Mounting Press

Overview

The Allied TechPress3™ Electric-Hydraulic Hot Mounting Press is a microprocessor-controlled, thermosetting resin embedding system engineered for precision, repeatability, and operator safety in metallurgical and materials science laboratories. It operates on the principle of hot compression molding—applying controlled heat and hydraulic pressure to consolidate thermosetting resins (e.g., epoxy, phenolic, acrylic) around specimens, producing dimensionally stable, edge-retentive mounts suitable for subsequent grinding, polishing, and microscopic analysis. Unlike mechanical or pneumatic presses, the TechPress3™ employs a closed-loop electric-hydraulic actuation system that delivers consistent pressure profiles across the full range (up to 4500 psi / 310 bar), minimizing specimen distortion and void formation. Its dual-mode interface—comprising both manual parameter entry and one-touch programmable execution—enables seamless transition between routine batch processing and method-critical applications requiring strict thermal and mechanical protocol adherence.

Key Features

• Two operational modes: “Manual Input” for granular control over all process variables, and “One-Touch Program” mode accessing a preloaded database of 80 customizable methods—each storing mold diameter, single/dual mounting configuration, resin type, cure temperature & duration, applied pressure, and cooling time.
• 7-inch full-color LCD touchscreen with intuitive icon-driven navigation; supports 10 languages (English, Italian, French, Spanish, Portuguese, German, Russian, Korean, Chinese, Japanese) for multilingual lab environments.
• Dual-station capability via interchangeable duplex spacers—enabling simultaneous mounting of two specimens per cycle, reducing average turnaround time to ≤5 minutes per pair under standard protocols.
• Modular mold/heater assemblies compatible with diameters from 25 mm up to 2 inches (50.8 mm); quick-release bayonet coupling ensures tool-free, repeatable alignment and thermal uniformity.
• Safety-integrated design: interlocked bayonet lid requires full mechanical closure before cycle initiation; non-conductive bayonet handles remain cool during operation; password-protected parameter editing prevents unauthorized method modification.
• Flexible unit selection: pressure display in psi or bar; temperature in °C or °F; programmable ramp-and-soak profiles for optimized resin crosslinking kinetics.
• Compact footprint (292 × 559 × 483 mm) with corrosion-, impact-, and heat-resistant enclosure; optional recirculating chiller integration (Model 5-1550, 115 V or 230 V variants) enables energy-efficient, solvent-free cooling independent of facility water supply.

Sample Compatibility & Compliance

The TechPress3™ accommodates a broad spectrum of specimen geometries—including irregular, fragile, porous, or multi-material samples—common in failure analysis, quality control, and R&D workflows. Its precise thermal regulation (±1.5 °C stability over 0–200 °C) and pressure fidelity (±2% full-scale) support compliance with ASTM E3, ISO 15510, and EN 10365 standards for metallographic specimen preparation. The system’s electrical architecture conforms to EU CE directives (2014/30/EU EMC and 2014/35/EU LVD), and its firmware architecture supports audit-ready operation when paired with validated SOPs and electronic logbooks. While not inherently 21 CFR Part 11 compliant, the device’s password protection, parameter locking, and timestamped cycle logs provide foundational traceability required for GLP/GMP-aligned labs.

Software & Data Management

The embedded microprocessor records and displays real-time values for temperature, pressure, elapsed time, and stage (heating → curing → cooling) on the primary interface. Each completed cycle stores metadata—including selected program ID, start/end timestamps, operator ID (if logged), and final mount dimensions—to internal memory (non-volatile flash). Data export is performed via USB port using standard CSV format, enabling integration with LIMS or QA documentation systems. No proprietary software installation is required; exported files are natively readable in Excel, Python pandas, or statistical analysis platforms. Firmware updates are delivered via secure USB load, with version history and change logs accessible through service menus.

Applications

• Preparation of cross-sectioned electronic components (PCBs, solder joints, wire bonds) for SEM/EDS analysis.
• Embedding of brittle ceramics, composites, or additive-manufactured parts prior to sectioning and hardness testing.
• Routine QC mounting of incoming raw materials (e.g., cast alloys, forged billets) in foundry and aerospace manufacturing.
• Edge preservation of coated substrates, thin films, or layered battery electrodes for interfacial morphology assessment.
• High-throughput sample preparation in contract testing laboratories serving automotive, medical device, and nuclear sectors where method reproducibility and documentation rigor are mandated.

FAQ

What types of mounting resins are compatible with the TechPress3™?
Standard thermosetting resins—including epoxy, phenolic, and acrylic formulations—are fully supported. Resin selection should align with specimen thermal sensitivity, required edge retention, and post-mounting processing (e.g., diamond grinding compatibility).

Is the TechPress3™ suitable for vacuum-assisted impregnation?
No. The TechPress3™ is a hot compression press only and does not integrate vacuum chambers or degassing functionality. Vacuum embedding requires separate equipment (e.g., Allied’s VacuMet series).

Can I retrofit an older TechPress model with TechPress3™ software or hardware?
No. The TechPress3™ features a proprietary control architecture, hydraulic manifold, and touchscreen interface not backward-compatible with prior generations (e.g., TechPress 2 or AutoMet).

Are mold assemblies included with the base system?
No. Mold/heater assemblies (e.g., 25 mm, 1″, 2″ configurations) and the recirculating chiller (Model 5-1550) are sold separately to allow customized system configuration based on lab throughput and specimen size requirements.

Does the system support automated reporting or network connectivity?
The TechPress3™ operates as a standalone instrument. It lacks Ethernet/Wi-Fi interfaces or cloud synchronization; however, its USB data export enables offline integration into centralized QA reporting pipelines.
