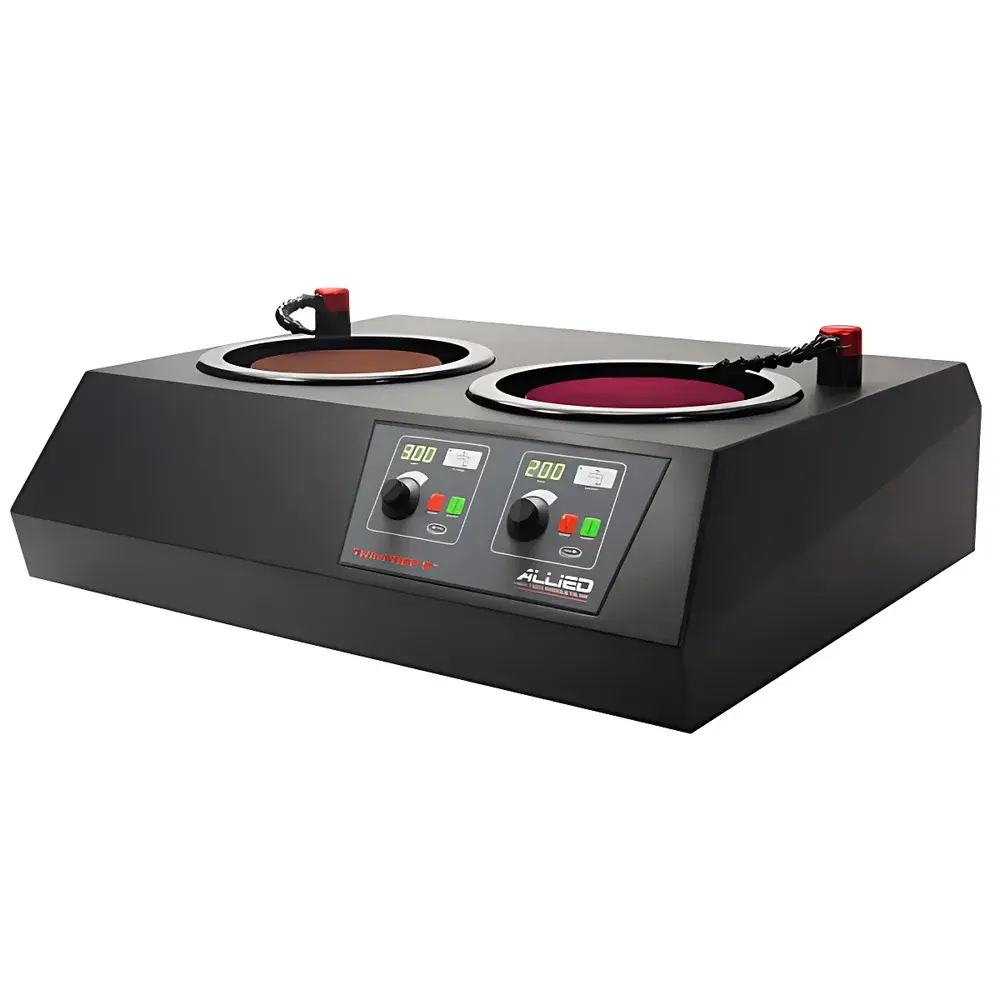

Allied TwinPrep 5™ Dual-Disk Manual Grinding and Polishing System

Overview

The Allied TwinPrep 5™ is a precision-engineered dual-disk manual grinding and polishing system designed for reproducible, operator-controlled sample preparation of metallurgical, geological, ceramic, and composite specimens. Unlike single-disk systems, the TwinPrep 5™ integrates two fully independent grinding/polishing stations—each driven by its own 370-W high-torque DC motor—enabling simultaneous or sequential operation with independent speed and coolant control. Its core functionality relies on controlled mechanical abrasion under consistent normal force and rotational shear, optimized for planarization, edge retention, and artifact-free surface generation prior to microstructural analysis (e.g., optical microscopy, SEM, EBSD). The system adheres to standardized metallographic preparation workflows defined in ASTM E3, ISO 13022, and EN 10365, supporting both routine QC labs and research facilities requiring traceable, repeatable specimen conditioning.

Key Features

• Dual independent disk drives with separate 370-W DC motors—eliminates cross-coupling and ensures stable torque delivery across the full 10–500 RPM range (10-RPM resolution)
• Touch-activated front-panel controls for motor start/stop, coolant activation, and emergency shutdown—designed for glove-compatible operation in cleanroom and industrial lab environments
• Modular disk mounting system with quick-release clamps (125-10011 for 8″, 125-10012 for 10″) enabling tool-free disk changes in under 60 seconds
• Independent, continuously adjustable coolant flow per disk via calibrated needle valves—prevents thermal damage and supports aqueous, oil-based, or colloidal suspensions
• Robust structural frame fabricated from anodized aluminum and electropolished stainless steel—resistant to acid, alkaline, and abrasive slurry exposure per ASTM B117 salt-spray testing protocols
• Integrated splash guards and removable drip trays—minimize aerosol dispersion and simplify daily decontamination per CLIA and GLP housekeeping requirements

Sample Compatibility & Compliance

The TwinPrep 5™ accommodates a broad spectrum of rigid solid specimens up to 4″ (100 mm) in diameter, including ferrous/non-ferrous alloys, sintered carbides, semiconductor wafers, geological thin sections, and polymer composites. Disk options include non-magnetic aluminum (5-2005) and magnetic-backed variants (5-2005M, 5-6010M) for secure retention of ferromagnetic backing plates. All configurations comply with electrical safety standards IEC 61010-1 and UL 61010-1. The system’s mechanical design supports method validation under ISO/IEC 17025:2017 for accredited testing laboratories, and its operational repeatability aligns with ASTM E3-22 Section 7.2 (grinding/polishing parameter documentation) and ISO 13022:2012 Annex A (equipment qualification criteria).

Software & Data Management

As a manually operated platform, the TwinPrep 5™ does not incorporate embedded firmware or digital control software. However, its analog control architecture ensures deterministic, latency-free response to operator input—critical for tactile feedback during fine-stage polishing. All operational parameters (disk speed, coolant duration, dwell time) are recorded manually or integrated into LIMS via external time-stamped log sheets. For audit readiness, the system supports 21 CFR Part 11-compliant documentation when paired with validated electronic notebooks (e.g., LabArchives, Benchling), and its physical configuration stability enables straightforward IQ/OQ protocol execution per GMP Annex 15 guidelines.

Applications

• Metallurgical specimen preparation for grain structure analysis, inclusion rating (ASTM E45), and phase quantification (ISO 643)
• Geological thin-section polishing for transmitted-light petrography and cathodoluminescence mapping
• Failure analysis of solder joints, PCB substrates, and battery electrode cross-sections
• Quality assurance of additive-manufactured metal parts—removing layer lines while preserving porosity distribution
• Preparation of ceramic matrix composites for interfacial bond strength evaluation (ASTM C1161)

FAQ

Is the TwinPrep 5™ compatible with automated force-applying accessories?

No—it is strictly a manual operator-controlled system; no motorized load heads or programmable pressure modules are supported.
Can I use diamond-impregnated pads or cloth-backed abrasives?

Yes—standard 8″ and 10″ backing plates accept industry-standard adhesive-backed or Velcro-mounted consumables, including electroplated diamond discs and woven polishing cloths.
What maintenance intervals are recommended for the DC motors?

Brush inspection every 2,000 operating hours; replacement only if measured brush length falls below 6 mm—no scheduled lubrication required due to sealed motor construction.
Does Allied provide installation qualification (IQ) documentation?

Yes—factory-issued IQ templates, including dimensional verification, voltage tolerance checks, and coolant flow calibration records, are supplied with each unit.
Are replacement parts traceable to material certifications?

All structural components carry mill test reports (MTRs); motor assemblies include RoHS and REACH declarations compliant with EU Directive 2011/65/EU.
