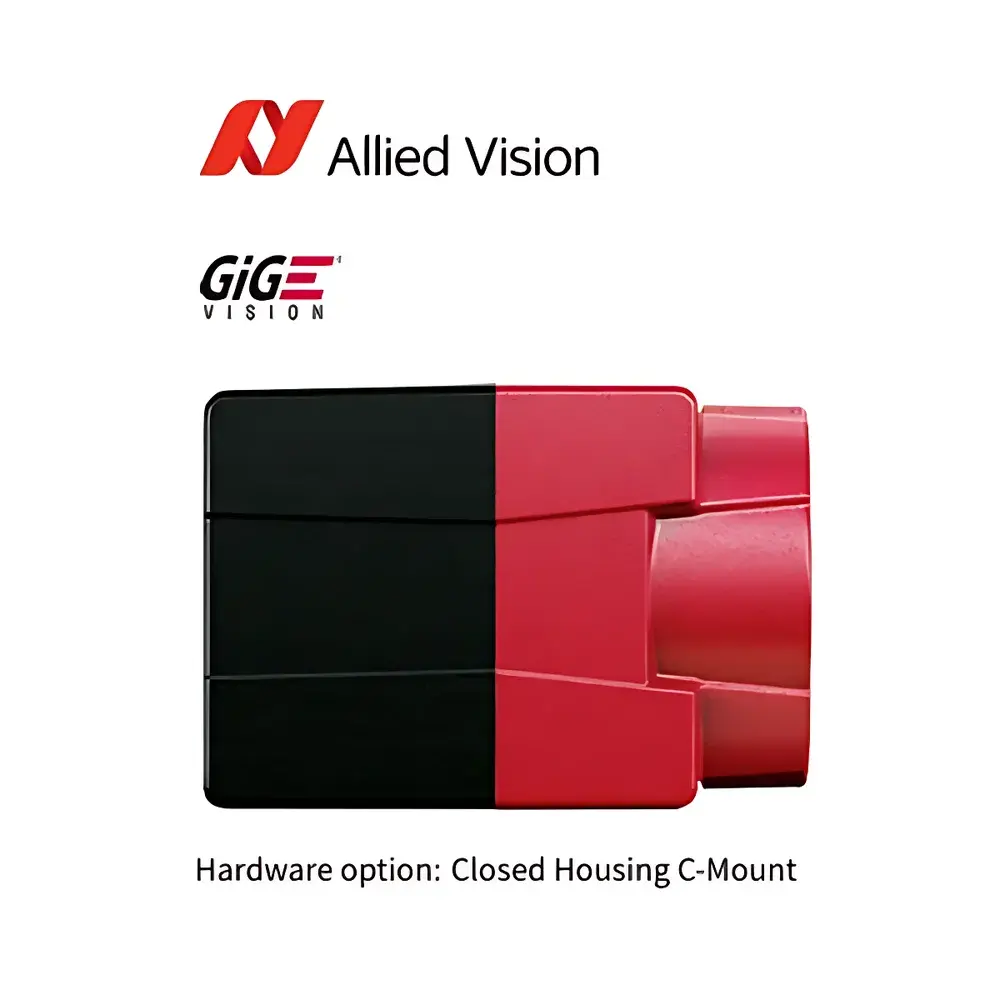

AlliedVision Alvium G1-2050m GigE Vision CMOS Camera

Overview

The AlliedVision Alvium G1-2050m is a high-performance, compact industrial CMOS camera engineered for precision machine vision applications requiring robust image quality, deterministic data transfer, and long-term system integration stability. Built upon the proprietary ALVIUM® application-specific integrated circuit (ASIC) platform developed by AlliedVision, this GigE Vision-compliant camera leverages the Sony IMX183 global-shutter CMOS sensor to deliver 20.2 megapixels of spatial fidelity at up to 5.9 frames per second in full-resolution mode. Unlike conventional off-the-shelf sensors paired with generic interface controllers, the ALVIUM® architecture integrates sensor control logic, image preprocessing pipelines, and GigE Vision protocol stack directly into hardware—reducing latency variability, minimizing host CPU overhead, and enabling deterministic trigger-to-image-timestamp synchronization essential for time-critical inspection systems. Designed for continuous operation in factory-floor environments, the Alvium G1-2050m features a passive-cooled, IP-rated aluminum housing compliant with IEC 60945 mechanical shock and vibration standards, making it suitable for embedded deployment in automated optical inspection (AOI), semiconductor metrology, life science imaging, and robotic guidance platforms.

Key Features

• Proprietary ALVIUM® ASIC platform enabling low-latency, GenICam-compliant GigE Vision implementation with hardware-accelerated image processing functions (e.g., LUT correction, pixel binning, ROI readout)
• Sony IMX183 CMOS sensor with 1” optical format, 5.86 µm pixel pitch, and true global shutter operation for motion artifact-free capture of fast-moving objects
• Dual lens mount compatibility (C-mount and CS-mount) supporting interchangeable optics without mechanical adapters or focus recalibration
• Industrial-grade thermal management via conductive aluminum chassis, rated for sustained operation between 0 °C and 50 °C ambient temperature
• Comprehensive firmware-upgradable feature set including programmable GPIOs, hardware-triggered exposure control, and multi-camera synchronization via PTPv2 (IEEE 1588)
• Full compliance with GigE Vision 2.0 and GenICam 3.x specifications, ensuring interoperability across heterogeneous vision ecosystems

Sample Compatibility & Compliance

The Alvium G1-2050m supports monochrome and color variants of the IMX183 sensor family, accommodating diverse spectral requirements—from visible-light PCB inspection to near-UV fluorescence imaging in life sciences. Its mechanical design conforms to EMVA 1288-compliant mounting interfaces and standard DIN 45026 connector footprints. Regulatory certifications include CE (EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU), RoHS 2011/65/EU, FCC Part 15 Subpart B, and UL/cUL Class 2 listing for safe integration into industrial control cabinets. The camera’s firmware implements audit-trail-capable configuration logging and supports optional secure boot validation—aligning with ISO 13849-1 PLd functional safety prerequisites when deployed in collaborative robot vision cells.

Software & Data Management

AlliedVision Vimba X SDK provides native C/C++, Python, .NET, and MATLAB APIs with zero-copy memory mapping and real-time streaming buffers optimized for multi-threaded acquisition pipelines. The camera exposes all GenICam XML features—including dynamic exposure control, gain adjustment, black level calibration, and on-device debayering—via standardized SFNC (Standard Feature Naming Convention) identifiers. Integration with third-party libraries such as OpenCV (via cv2.VideoCapture or Aravis bindings), HALCON 22.11+, and NI Vision Acquisition Software is validated and documented. For regulated environments, Vimba supports FDA 21 CFR Part 11-compliant electronic signature workflows through optional plugin modules, enabling traceable parameter changes and image metadata stamping required under GLP/GMP quality management systems.

Applications

• High-accuracy dimensional metrology in automotive component manufacturing, where sub-pixel edge detection and geometric distortion correction are critical
• Automated defect classification in printed circuit board (PCB) assembly lines using deep learning inference pipelines fed by calibrated, timestamp-synchronized image streams
• Live-cell imaging and digital pathology slide scanning requiring stable frame timing, low dark current, and consistent quantum efficiency across batch production units
• Embedded vision nodes in AGV navigation systems leveraging synchronized multi-camera arrays for real-time SLAM-based localization
• Food and pharmaceutical packaging verification, including fill-level assessment, cap presence detection, and label orientation validation under varying ambient illumination conditions

FAQ

Does the Alvium G1-2050m support Power over Ethernet (PoE)?

Yes—it complies with IEEE 802.3af (Class 0) PoE, allowing single-cable power and data delivery up to 100 meters over CAT6 cabling.
Can multiple Alvium G1 cameras be synchronized without external hardware?

Yes—the built-in PTPv2 master/slave clock synchronization enables sub-millisecond inter-camera timestamp alignment over standard GigE infrastructure.
Is firmware update capability available in-field?

Yes—firmware updates are performed securely via Vimba X GUI or command-line tools using signed binary packages; rollback functionality preserves operational continuity.
What is the warranty period and extended support lifecycle?

AlliedVision provides a standard 36-month limited warranty with guaranteed minimum 7-year component availability and firmware maintenance cycles aligned to IEC 62443-2-4 lifecycle planning guidelines.
