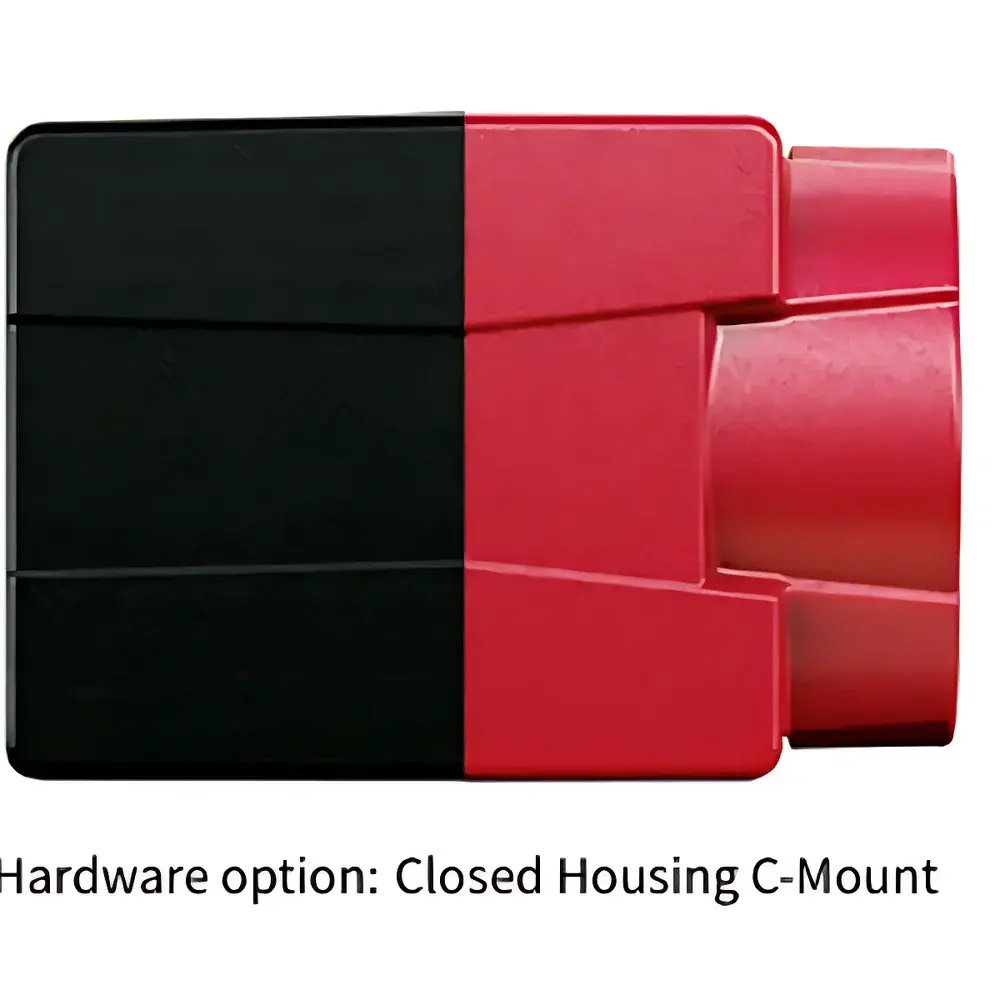

AlliedVision Alvium G1-2460M GigE Vision CMOS Camera

Overview

The AlliedVision Alvium G1-2460M is a high-performance, compact GigE Vision-compliant CMOS camera engineered for precision industrial imaging applications requiring reliability, long-term availability, and seamless system integration. Built upon AlliedVision’s proprietary ALVIUM® technology platform — featuring a custom-designed ASIC that offloads critical image processing tasks from the host — the Alvium G1 series delivers deterministic latency, low CPU overhead, and robust real-time control. At its core lies the Sony IMX540 global-shutter CMOS sensor, offering 24.6 megapixels (6240 × 3996) with high quantum efficiency, low read noise (<2.5 e⁻ RMS), and excellent dynamic range (>70 dB). The camera operates under the standardized GigE Vision 2.0 protocol, ensuring interoperability across vision ecosystems while supporting jumbo frames, packet resend, and precise timestamping via IEEE 1588 PTP (Precision Time Protocol) for synchronized multi-camera deployments.

Key Features

• Proprietary ALVIUM® ASIC architecture enabling hardware-accelerated features including LUTs, flat-field correction, pixel binning, and on-board ROI cropping — reducing host-side computational load.
• Two interchangeable lens mount options: industry-standard C-mount and compact S-mount — facilitating optical flexibility without mechanical redesign of the imaging station.
• Industrial-grade aluminum housing (44 × 44 × 29 mm) with IP30-rated ingress protection, optimized for convection cooling and stable operation in ambient temperatures from 0 °C to 50 °C.
• Flexible power delivery via either 12–24 V DC input or Power over Ethernet (PoE, IEEE 802.3af Class 0), simplifying cabling in factory-floor environments.
• Full GigE Vision 2.0 compliance with GenICam 3.x support, enabling plug-and-play integration with third-party software and embedded vision platforms.
• Hardware-triggered exposure control with microsecond-level timing accuracy and programmable strobe output for synchronized illumination control.

Sample Compatibility & Compliance

The Alvium G1-2460M is designed for use in regulated and mission-critical imaging workflows across semiconductor inspection, PCB AOI, precision metrology, life science microscopy, and automated optical sorting. Its firmware and driver stack are developed under ISO 9001-certified processes and validated for compatibility with GLP/GMP-aligned validation protocols. While not inherently FDA 21 CFR Part 11-compliant as a standalone device, the camera supports audit-trail-ready metadata embedding (e.g., acquisition timestamp, sensor temperature, exposure settings) when used with validated application software. All electrical and electromagnetic emissions meet CE (EN 61000-6-3/6-4), FCC Part 15 Subpart B, and UL/cUL 61010-1 safety standards. RoHS 3 and REACH compliance ensure environmental and material traceability for global supply chain requirements.

Software & Data Management

The camera is natively supported by AlliedVision’s Vimba X Software Development Kit — a cross-platform, open-source-compatible framework providing C, C++, Python, and .NET APIs with comprehensive documentation and example code. Vimba enables low-level register access, real-time parameter tuning, and multi-camera synchronization via hardware triggers or PTP. Integration with leading machine vision libraries is validated: HALCON 22.11+, OpenCV 4.5+ (via Aravis or Vimba-based wrappers), and MATLAB R2022a+ Image Acquisition Toolbox. Raw image data is delivered in standard Bayer or mono formats (8/10/12-bit), with optional on-camera debayering and gamma correction. Metadata is embedded in each frame’s GenICam feature set and can be exported alongside image streams for traceable data lineage in quality management systems.

Applications

• Semiconductor wafer inspection: high-resolution defect detection at sub-10 µm feature sizes using calibrated telecentric optics and uniform LED illumination.
• Automated PCB assembly verification: component presence/absence, polarity check, and solder joint integrity analysis in inline SMT lines.
• Precision dimensional metrology: sub-pixel edge detection and calibration against NIST-traceable targets for GD&T validation.
• Life science slide scanning: wide-field fluorescence imaging with motorized stage synchronization and Z-stack acquisition support.
• Food and pharmaceutical packaging inspection: label alignment, fill-level monitoring, and foreign object detection under varying lighting conditions.

FAQ

Is the Alvium G1-2460M suitable for outdoor or high-vibration environments?
While rated for industrial indoor use (IP30, 0–50 °C), it is not sealed against dust or moisture; external enclosures or conformal coating may be required for harsh environments.
Does the camera support hardware triggering with sub-millisecond jitter?
Yes — the camera provides TTL-compatible trigger input/output with <10 µs jitter and configurable trigger delay (0–10 s) in 1 µs increments.
Can I perform on-camera image preprocessing without host CPU involvement?
Yes — the ALVIUM® ASIC supports real-time LUT application, flat-field correction, region-of-interest extraction, and pixel binning prior to data transmission.
What is the maximum cable length supported for reliable GigE Vision operation?
Up to 100 m using certified Cat6a/Cat7 shielded twisted-pair cabling; longer distances require managed switches or fiber media converters.
Is firmware update capability available in the field?
Yes — firmware updates are performed via Vimba or GenTL-compliant tools, with checksum verification and rollback support to ensure system stability.
