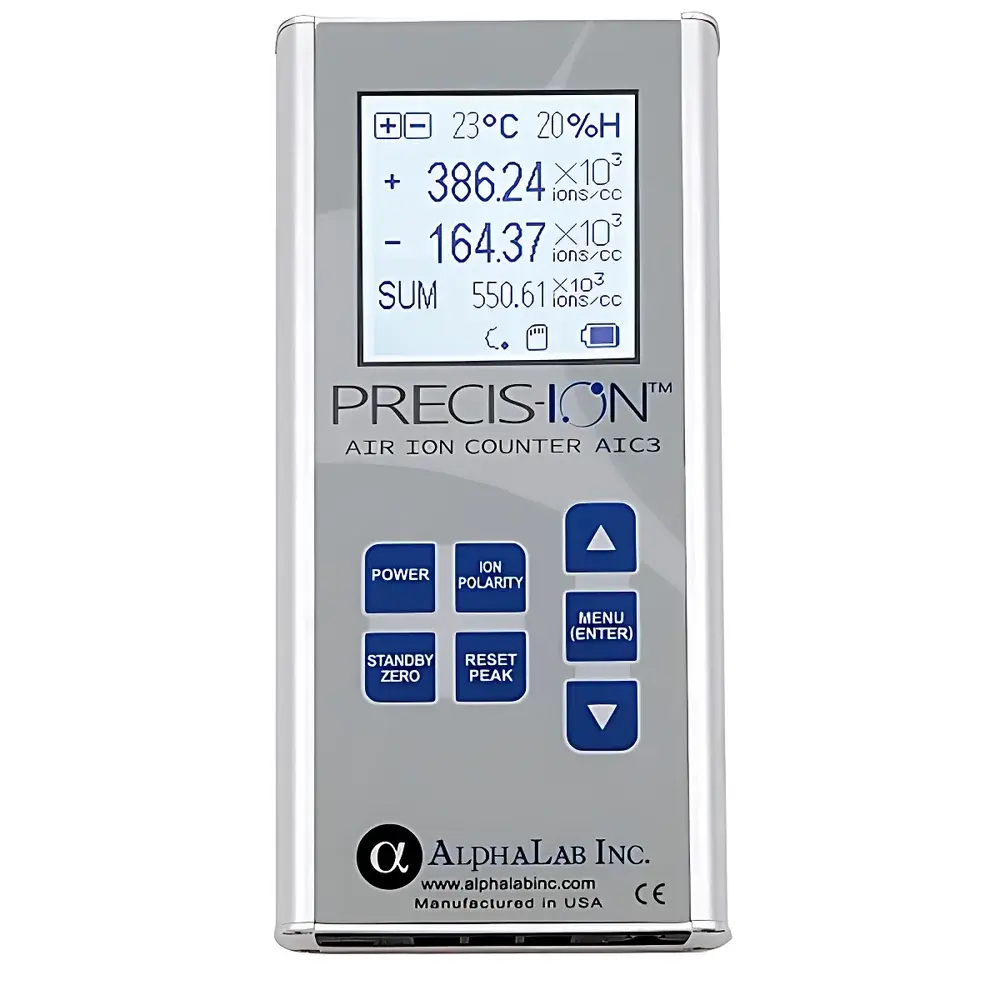

Alpha AIC3Pro Precis-Ion™ Handheld Air Ion Counter

Overview

The Alpha AIC3Pro Precis-Ion™ Handheld Air Ion Counter is an engineered solution for quantitative measurement of atmospheric air ions—specifically negative and positive small air ions—in environmental, occupational health, indoor air quality (IAQ), and research applications. Based on the Gerdien condenser tube principle, the instrument draws ambient air through a precision-machined cylindrical electrode assembly under controlled low-flow conditions. Ions are collected on a central collector electrode; the resulting current is converted to ion concentration (ions per cubic centimeter) via calibrated amplification and temperature/humidity-compensated algorithms. Unlike passive electrostatic sensors or corona-based estimators, the AIC3Pro delivers traceable, polarity-resolved measurements with documented repeatability and metrological traceability to NIST-traceable reference standards (via optional calibration services). Its dual-polarity capability enables simultaneous monitoring of both ion species—critical for assessing charge balance, atmospheric electrodynamics, and ion-mediated aerosol behavior.

Key Features

• Gerdien-tube architecture optimized for low-flow, high-sensitivity ion collection with minimal aspiration artifact
• Bipolar measurement mode with automatic polarity alternation every 7.5 seconds and real-time sum calculation (total net ion density)
• Selectably scalable concentration ranges: 0–2 million ions/cm³ (high-resolution mode) or 0–200 million ions/cm³ (extended-range mode)
• Integrated temperature and relative humidity sensing (±2% RH accuracy) for environmental compensation of ion mobility and collection efficiency
• Onboard timestamped data logging to user-replaceable microSD card (up to 32 GB), storing ion concentration, polarity state, temperature, and RH in standard CSV format
• Configurable averaging (1–15 s) and optional peak-hold function (unipolar mode only) for transient event capture
• Zero-reference calibration routine with self-diagnostic verification; optional auto-zero scheduling (3/6/12/24 h intervals) for unattended long-term deployments

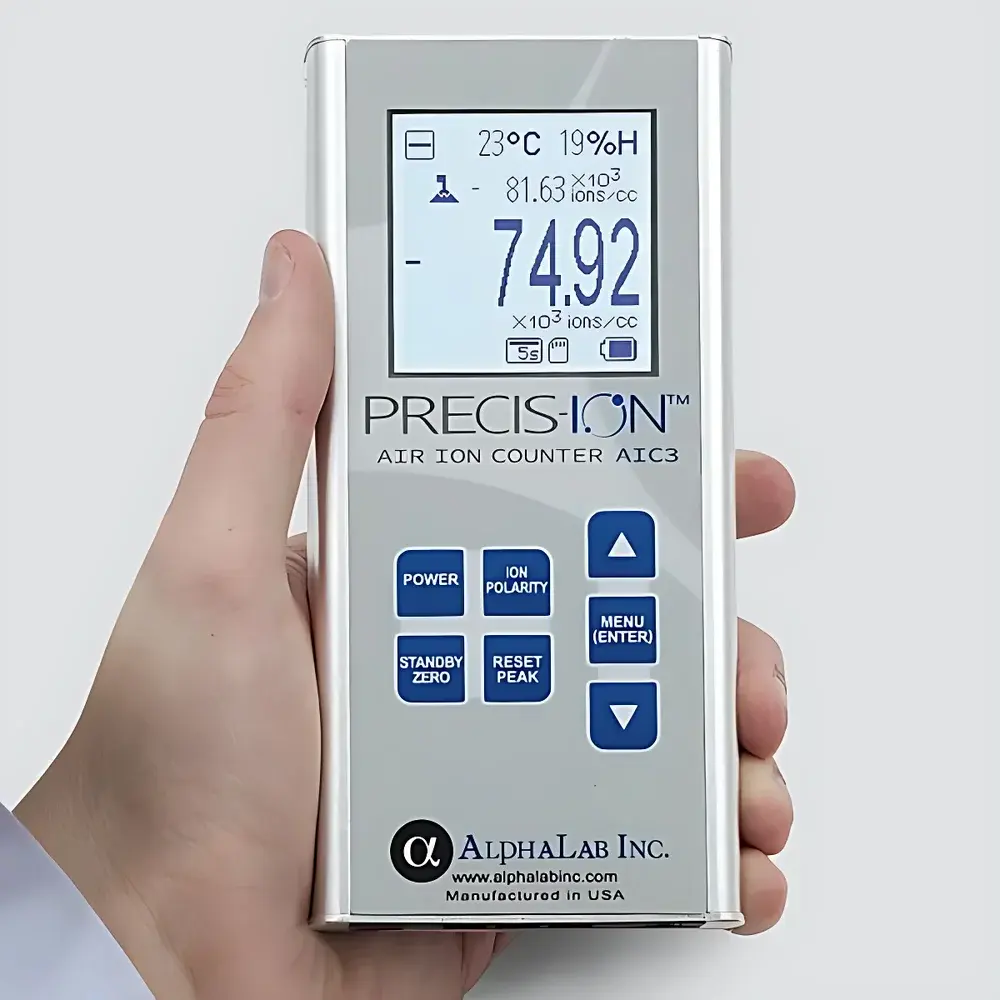

• Ergonomic handheld form factor (166.7 × 76.2 × 38.1 mm; 366 g) with ESD-shielded sampling cap and grounding cable for electrostatic integrity

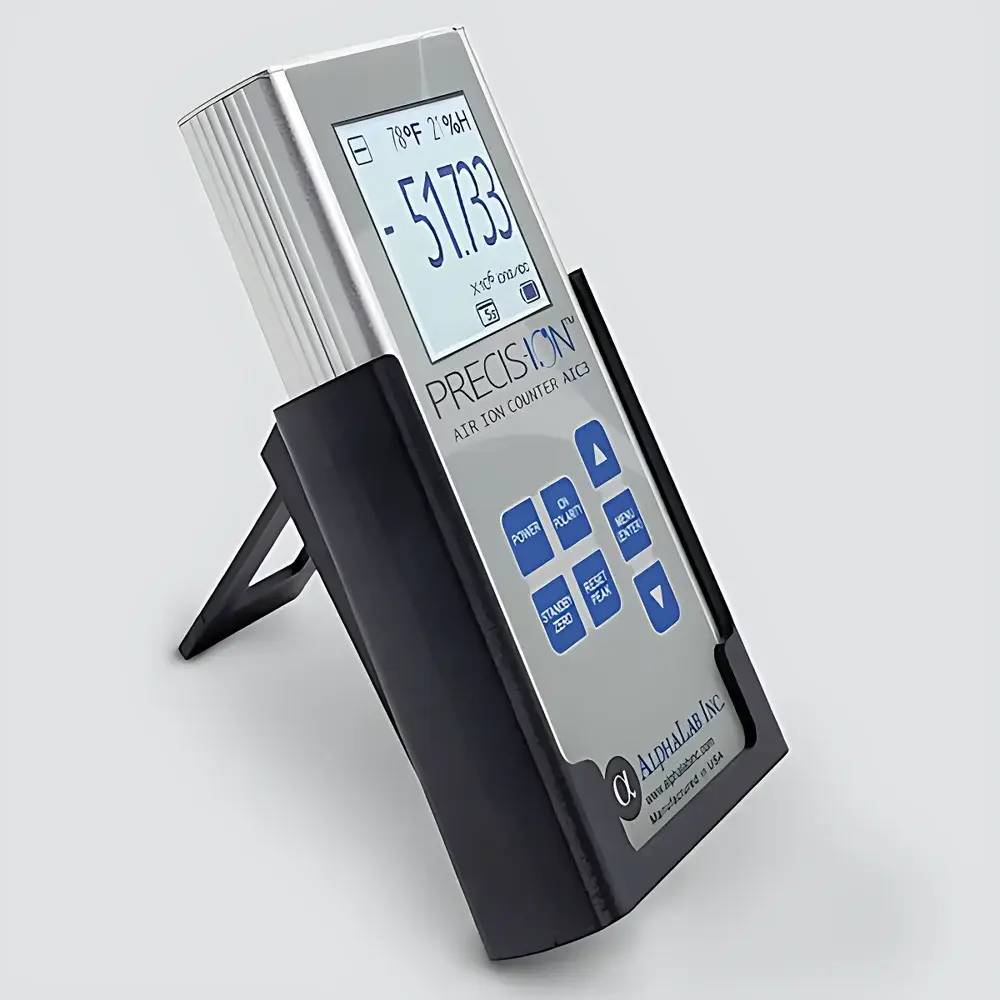

• Flexible mounting: includes tripod, wall-mount, and desktop stand; housed in ruggedized protective carry case (305 × 269 × 69 mm; 0.5 kg)

Sample Compatibility & Compliance

The AIC3Pro is designed for direct sampling of ambient, indoor, or controlled-environment air without preconditioning. It accommodates variable particulate loading (<100 µg/m³ PM₂.₅) and operates reliably across typical urban, rural, forest, and HVAC duct environments. The instrument complies with international electromagnetic compatibility and safety directives essential for laboratory and field use: FCC Part 15 Class B, CE-marked per EMC Directive 2014/30/EU (BS EN 55032, BS EN 61000-3-2/-3-3, BS EN 55035), and RoHS 2011/65/EU (EN 50581:2012). While not certified to GLP or ISO/IEC 17025 out-of-box, its documented measurement uncertainty (±20% at full scale, ±5% repeatability), traceable calibration protocol, and audit-ready data logging support integration into ISO 16000-22 (indoor air—ion concentration), ASTM D8193 (standard guide for air ion measurement), and institutional QA/QC workflows requiring documented chain-of-custody and instrument performance verification.

Software & Data Management

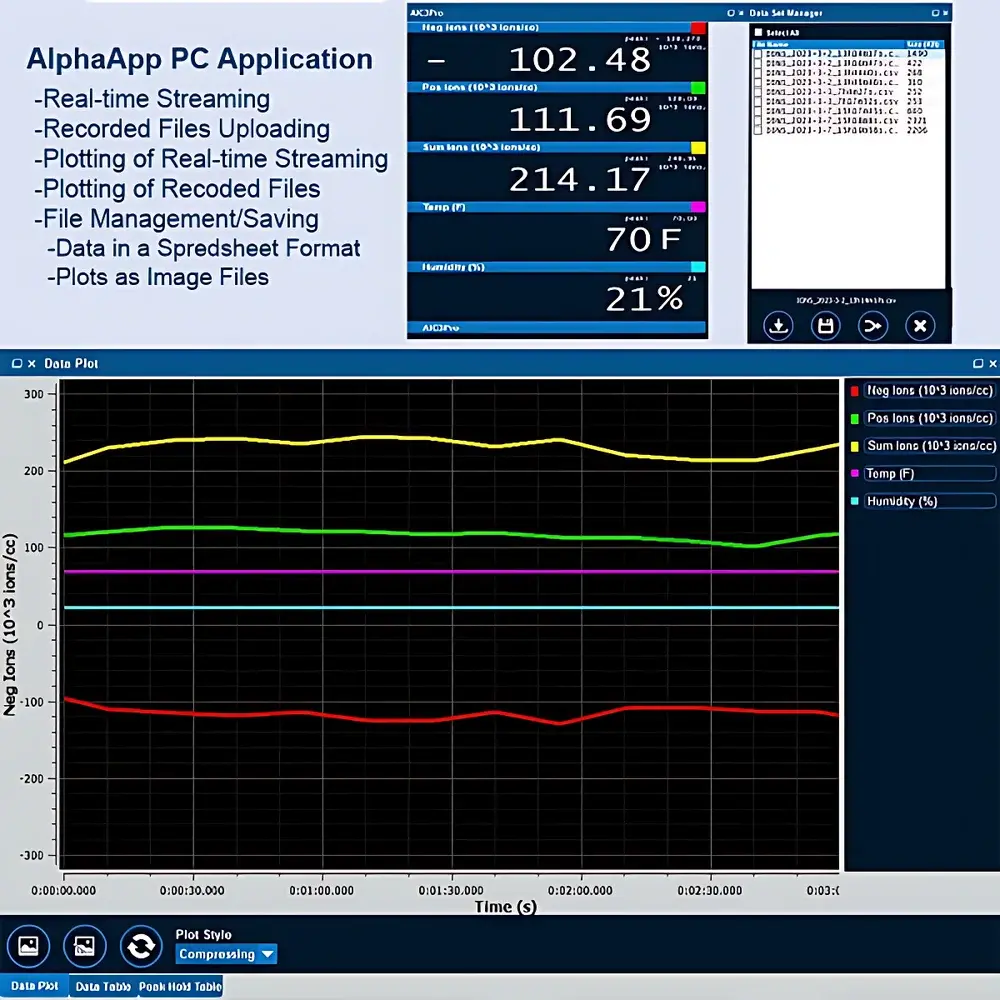

AlphaApp—a free Windows-based desktop application—enables real-time streaming, post-acquisition analysis, and visualization of ion concentration time series. Via the included 6-ft USB-C cable, users can initiate live plotting, upload logged CSV files, apply configurable smoothing or filtering, export to Excel-compatible formats, and generate compliance-ready reports. All logged data include ISO 8601 timestamps, sensor metadata, and polarity flags. The CSV structure is fully compatible with MATLAB, Python (pandas), R, and commercial statistical packages. For regulated environments, AlphaApp supports manual annotation of sampling events and operator ID entry—though native 21 CFR Part 11 compliance (e.g., electronic signatures, audit trails) requires third-party validation and system-level implementation beyond the device’s firmware scope.

Applications

• Indoor air quality assessment in offices, hospitals, schools, and cleanrooms—correlating ion levels with ventilation efficacy and occupant well-being
• Environmental monitoring near waterfalls, forests, coastal zones, and mountain regions where natural ion generation is elevated
• Validation of ionizer performance in air purification systems and electrostatic precipitator R&D
• Atmospheric electricity studies—including fair-weather electric field modeling and ion-aerosol attachment kinetics
• Occupational hygiene evaluations in printing facilities, electronics manufacturing, and powder handling operations where static charge accumulation poses risk
• Academic research in biometeorology, respiratory physiology, and ion-induced oxidative stress mechanisms

FAQ

What physical principle does the AIC3Pro use to measure air ions?
It employs the Gerdien condenser tube method: ambient air is drawn through a cylindrical capacitor; ions migrate under a fixed electric field and deposit charge on a collector electrode, generating a current proportional to ion concentration.
Can the AIC3Pro distinguish between small, intermediate, and large ions?
No—it measures total unipolar or bipolar small air ions (mobility > ~0.5 cm²/V·s), consistent with ISO 16000-22 definitions. It does not classify by mobility spectrum or size distribution.
Is calibration required before each use?
A zero-reference check is recommended before critical measurements. Full calibration is traceable via ALPHA’s accredited service lab; field recalibration is not user-performed.
Does the instrument compensate for temperature and humidity effects?
Yes—integrated sensors feed real-time corrections into the ion concentration algorithm, improving accuracy across –20 °C to +43 °C and 0–85% RH.
Can data be exported for statistical process control (SPC) or LIMS integration?
Yes—CSV output is structured for direct ingestion into SPC software (e.g., Minitab, JMP) or LIMS via API or batch import; no proprietary binary formats are used.
