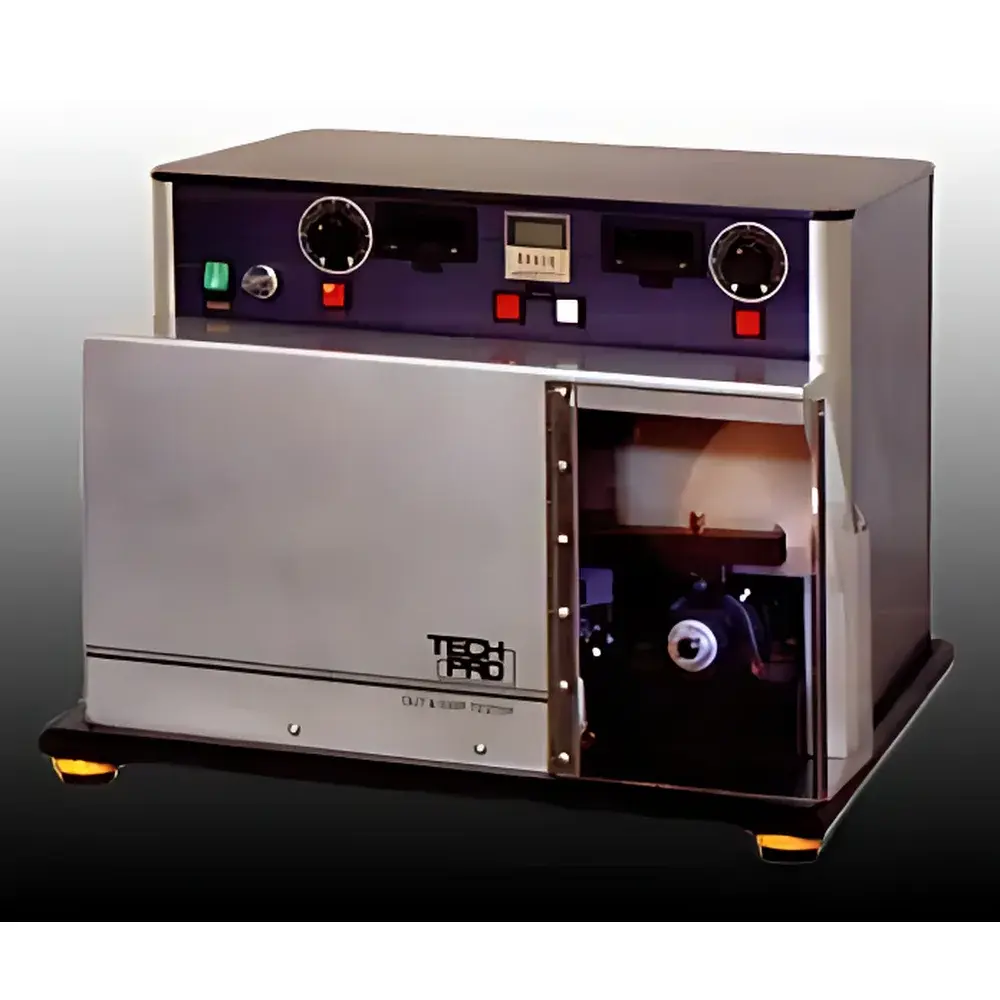

ALPHA ALPHA Cutting and Chipping Tester
| Brand | ALPHA |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported Instrument |
| Model | ALPHA |
| Pricing | Available Upon Request |
Overview
The ALPHA ALPHA Cutting and Chipping Tester is a specialized mechanical durability testing instrument engineered to evaluate the resistance of rubber compounds—particularly tire treads—to cutting, chipping, and chunking under simulated off-road service conditions. Originally developed by B.F. Goodrich Co., this tester replicates the abrasive and impact-driven degradation mechanisms encountered by agricultural, construction, and mining tires traversing rocky, uneven terrain. It operates on a controlled rotational principle: a standardized test specimen (typically a cured rubber tread block) is mounted on a rotating drum and subjected to repeated impacts from a hardened tungsten carbide cutting blade operating at a defined frequency. The resulting damage—quantified as cut length, chip volume, or mass loss—is directly correlated to real-world tread life performance in severe non-highway applications. Designed for laboratory-based R&D and quality assurance environments, the system delivers high reproducibility across test cycles when operated within calibrated parameters and standardized sample preparation protocols.
Key Features
- Adjustable rotational speed of the test drum, enabling simulation of varying vehicle speeds and contact dwell times
- Interchangeable tungsten carbide cutting blades with standardized geometry and hardness (HRA ≥ 85), ensuring consistent edge integrity and wear resistance across test campaigns
- Precisely programmable chipping frequency—mechanically actuated blade engagement per revolution—to isolate the effect of impact rate on material failure modes
- Digital timer with ±0.1 s resolution for accurate control and documentation of test duration, supporting ASTM D5963 and ISO 4662-compliant exposure intervals
- Modular specimen mounting fixture accommodating standard tread blocks (e.g., 25 mm × 25 mm × 12 mm) with repeatable clamping force and alignment
- Robust cast-iron frame with vibration-dampening base, minimizing extraneous motion and ensuring mechanical stability during high-frequency cyclic loading
Sample Compatibility & Compliance
The ALPHA Cutting and Chipping Tester accepts vulcanized rubber specimens prepared in accordance with ASTM D3182 and ISO 2781 for compound evaluation. Test samples include tread compounds for OTR (Off-The-Road), agricultural, and solid industrial tires; elastomeric composites containing silica, carbon black, or hybrid filler systems; and prototype formulations undergoing iterative development. The instrument supports compliance with internationally recognized standards including ASTM D5963 (Standard Test Method for Rubber Property—Cut Growth), ISO 4662 (Rubber—Determination of Cut Growth Resistance), and SAE J2265 (Test Procedure for Tire Tread Chip and Cut Resistance). Data generated meets GLP documentation requirements when paired with validated SOPs and audit-ready calibration records.
Software & Data Management
While the ALPHA ALPHA Cutting and Chipping Tester operates via analog/digital panel controls, it is fully compatible with external data acquisition systems. Optional integration with PC-based logging software enables time-synchronized recording of rotational speed, cycle count, elapsed time, and operator-entered pass/fail annotations. All test metadata—including specimen ID, cure history, blade serial number, and environmental conditions (temperature/humidity logged separately)—can be exported in CSV or XML format for traceability. When deployed in regulated environments (e.g., Tier-1 supplier QA labs), the system supports 21 CFR Part 11-compliant electronic signatures and audit trails through third-party LIMS or ELN platforms.
Applications
- Comparative ranking of tread compound formulations for cut growth resistance in OTR tire development
- Quality conformance testing of incoming raw rubber batches against internal specification limits
- Failure analysis of field-returned tires exhibiting premature chipping or chunking
- Correlation studies between lab-scale chipping metrics and full-scale drum or road testing results
- Accelerated aging trials combining thermal cycling with mechanical chipping stress
- Evaluation of adhesion promoters, reinforcing fillers, and crosslink density effects on surface fracture propagation
FAQ
What standards does the ALPHA Cutting and Chipping Tester support?
ASTM D5963, ISO 4662, and SAE J2265 are the primary referenced standards. Custom test protocols can be implemented per customer-defined specifications.
Is blade replacement required between tests?
Blades are inspected prior to each test series per ASTM D5963 Section 7.2; replacement is mandated after 100,000 impacts or upon measurable edge rounding (>5 µm radius deviation measured via optical profilometry).
Can the tester accommodate non-rubber elastomers?
Yes—thermoplastic elastomers (TPEs), polyurethanes, and silicone-based compounds have been successfully evaluated using modified mounting fixtures and reduced impact frequencies.
What maintenance is required for long-term calibration stability?
Monthly verification of drum rotational speed (±1 rpm tolerance), annual torque calibration of the blade actuation mechanism, and biannual verification of timer accuracy per ISO/IEC 17025 guidelines.
Is technical support available for method validation?
ALPHA’s global distributor network provides application engineering support, including IQ/OQ documentation templates, Gage R&R study guidance, and inter-laboratory round-robin coordination.
