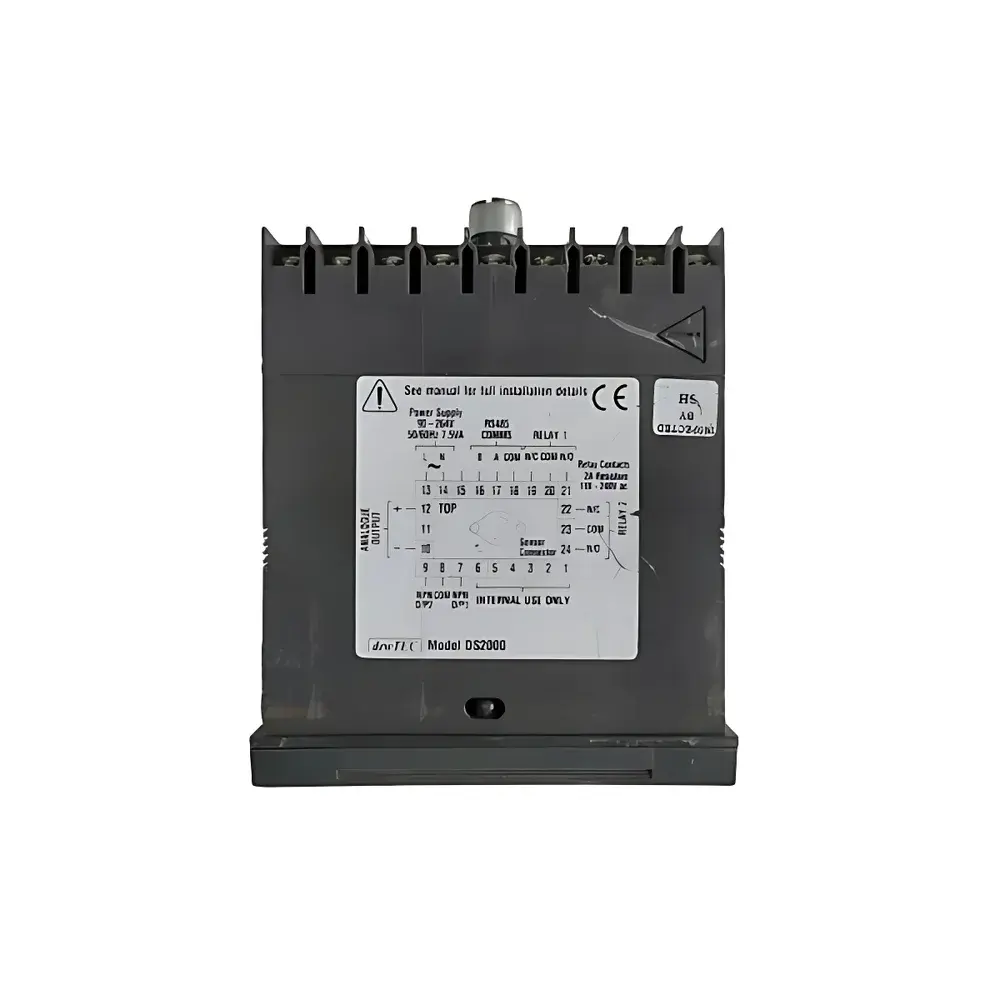

ALPHA DS2000 Panel-Mount Dew Point Transmitter with Integrated Display

Overview

The ALPHA DS2000 is a panel-mounted, single-channel dew point transmitter engineered for continuous, high-stability moisture monitoring in critical industrial gas streams. It employs a field-proven aluminium oxide capacitive sensor — widely recognized as the reference technology for trace moisture measurement in dry gases — operating on the principle of dielectric constant variation induced by water vapor adsorption onto a porous anodized alumina layer. This sensor architecture delivers exceptional long-term stability, minimal hysteresis, and immunity to condensation-induced drift. The DS2000 is specifically designed for integration into compressed air drying systems, SF₆-insulated switchgear monitoring, semiconductor purge gas lines, and cryogenic nitrogen supply networks where sub-ppm(v) moisture control is mandated by process integrity or safety requirements. Its sealed, IP65-rated front panel housing ensures reliable operation in factory-floor environments subject to dust, vibration, and ambient temperature fluctuations.

Key Features

• High-reliability aluminium oxide sensor with proven performance in aggressive gas matrices including SF₆, CO₂, and H₂ — no catalytic poisoning or chemical degradation observed under normal operating conditions
• Factory-configurable output units: selectable display and analog retransmission in °C dew point, °F dew point, ppm(v), g/m³, or lb/MMSCF — eliminating need for external conversion logic

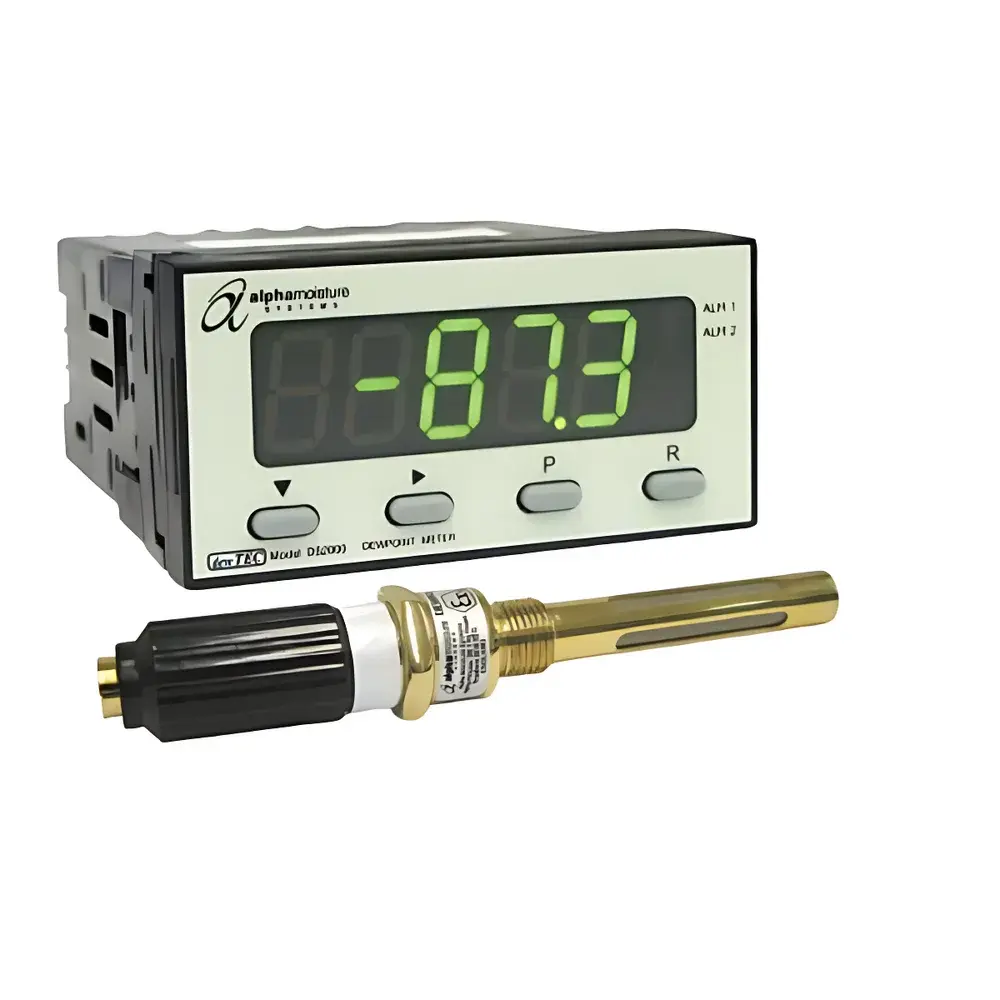

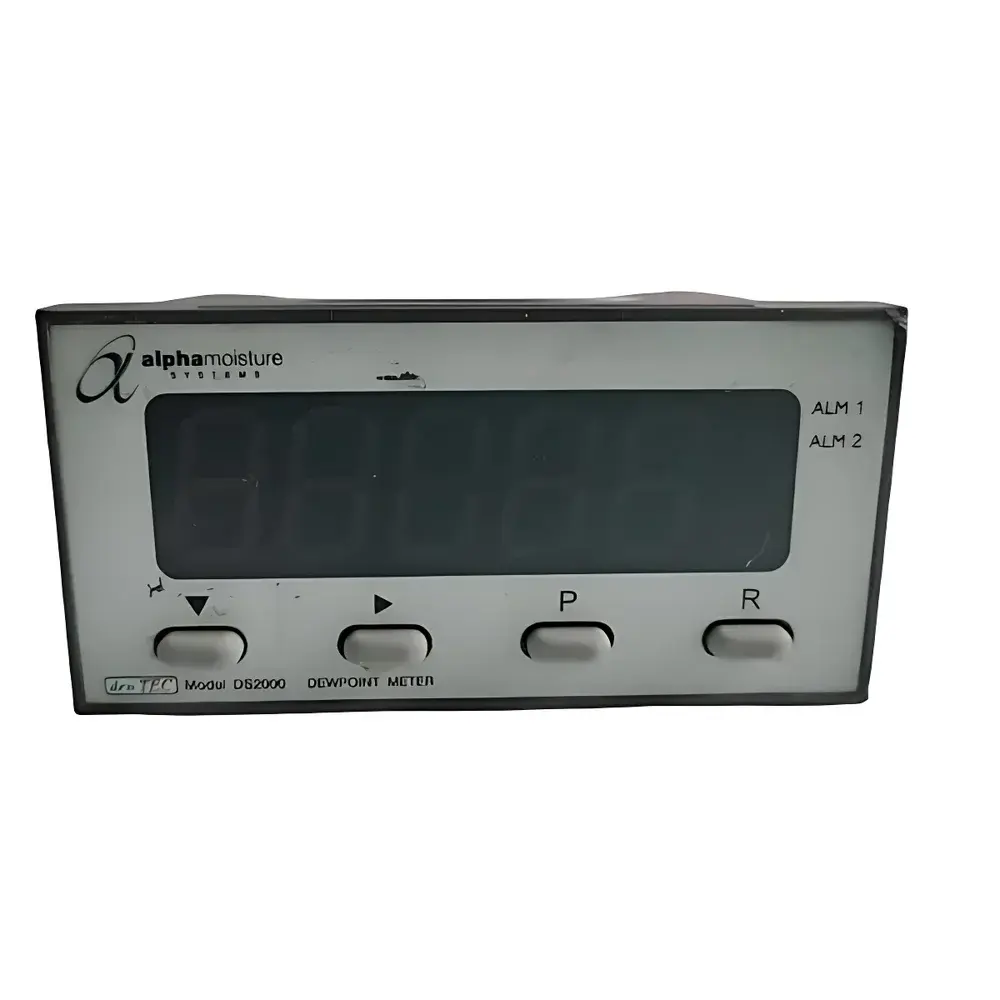

• Dual-color (red/green) 7-segment display: 5-digit primary readout (18 mm height) with dedicated 1-digit auxiliary indicator for alarm status or unit selection
• Two independently programmable alarm thresholds (Alarm 1 & Alarm 2) with visual LED indicators and relay outputs (optional module) for interlock signaling
• Linear analog output (4–20 mA or 0–10 V) fully scalable across user-defined dew point ranges; supports HART-compatible smart configuration via handheld communicator or PC software
• RS-485 serial interface compliant with Modbus RTU protocol for seamless integration into SCADA, DCS, or PLC-based plant automation systems
• Calibration certificates traceable to the UK’s National Physical Laboratory (NPL) and issued under ISO/IEC 17025-accredited procedures — fully compliant with GLP and internal audit requirements

Sample Compatibility & Compliance

The DS2000 is validated for continuous operation in non-corrosive, non-particulate gas streams with dew points ranging from -110°C to +20°C. It exhibits full compatibility with sulfur hexafluoride (SF₆), making it suitable for real-time monitoring in high-voltage GIS (Gas-Insulated Switchgear) applications per IEC 62271-1 and IEEE C37.122.2. The sensor remains stable in compressed air systems meeting ISO 8573-1 Class 2 or Class 1 specifications, as well as in ultra-high-purity nitrogen used in pharmaceutical lyophilization and electronics manufacturing. No sample conditioning (e.g., flow restrictors, filters, or chillers) is required for standard installations; however, a particulate filter (0.1 µm) is recommended upstream of the sensor inlet when measuring in dirty or oil-laden air streams. All electrical interfaces meet EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions) standards.

Software & Data Management

Configuration and diagnostics are performed using ALPHA’s proprietary PC-based DS Configurator software (Windows 10/11 compatible), which provides intuitive access to all instrument parameters: alarm setpoints, damping time constants, unit selection, zero/span adjustment, and Modbus register mapping. The software logs calibration history, firmware revision, and sensor health metrics — supporting FDA 21 CFR Part 11 compliance when deployed with electronic signature and audit trail modules. For enterprise-level data aggregation, the DS2000 integrates natively with OPC UA servers via Modbus-to-OPC gateways, enabling centralized visualization in PI System, Ignition, or Siemens Desigo CC platforms. Raw dew point values, alarm states, and diagnostic flags are timestamped with millisecond resolution and can be exported in CSV or XML format for trending and statistical process control (SPC) analysis.

Applications

• Real-time dew point verification in heatless and heated desiccant air dryers for automotive paint booths and food packaging lines
• Moisture surveillance in SF₆-filled circuit breakers and transformers to prevent dielectric failure and hydrolysis byproduct formation
• Quality assurance of medical-grade compressed air per ISO 8573-1:2010 Class 2:2:2 and HTM 02-01 requirements
• In-line monitoring of purge gases in lithium-ion battery electrode coating and drying ovens
• Validation of nitrogen blanketing systems in API synthesis reactors and solvent recovery units
• Environmental chamber humidity control feedback loops where low-temperature dew point stability is critical

FAQ

Is the DS2000 sensor certified for use in explosive atmospheres?
No — the DS2000 is rated for general-purpose industrial environments (IP65 front panel). For Zone 1 or Zone 2 hazardous areas, ALPHA offers the intrinsically safe DS2000-Ex variant with ATEX/IECEx certification.
Can the sensor be recalibrated in-field without returning to the lab?
Yes — zero calibration is possible using dry nitrogen (<1 ppmv H₂O) or compressed air passed through a validated desiccant dryer; span calibration requires certified moisture gas standards and is recommended annually or after exposure to saturation events.
Does the DS2000 support digital diagnostics per NAMUR NE107?
Yes — via Modbus RTU, the device reports standardized status codes including ‘Maintenance Required’, ‘Sensor Fault’, ‘Signal Out of Range’, and ‘Calibration Due’ — compatible with Emerson DeltaV, Honeywell Experion, and Yokogawa CENTUM VP asset management systems.
What is the typical sensor lifetime under continuous operation?
Under clean, dry gas conditions, the aluminium oxide sensor demonstrates >5 years of stable performance with <±0.5°C drift; lifetime decreases proportionally with cumulative exposure to condensate or reactive contaminants such as ammonia or chlorine.
Is firmware upgrade supported remotely?
Firmware updates require local USB connection using the DS Configurator tool; remote updates are not supported to maintain cybersecurity integrity in regulated industries.
