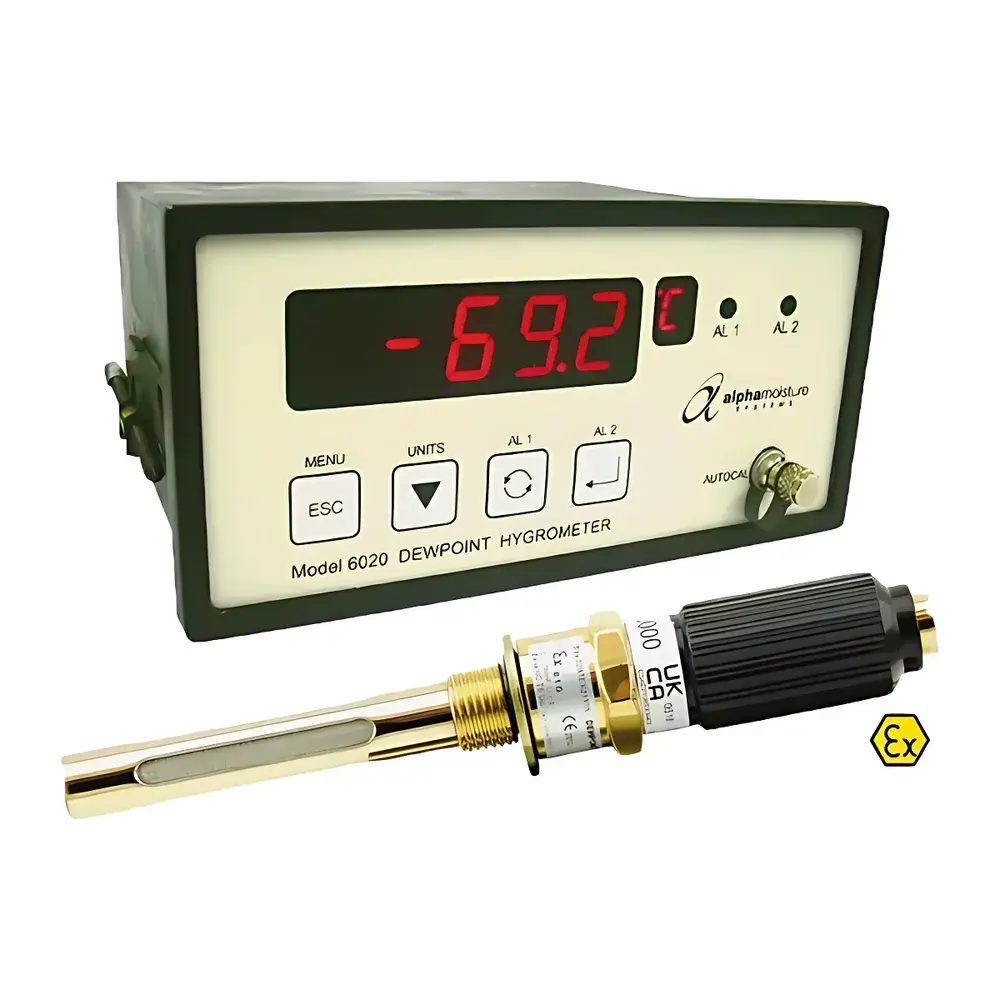

ALPHA Model 6020 Panel-Mount Dew Point Monitor
| Brand | ALPHA |
|---|---|
| Origin | United Kingdom |
| Model | 6020 |
| Measurement Range | -110°C to +20°C dew point |
| Accuracy | ±2°C dew point (full scale) |
| Display | 5-digit red 14mm LED main display + dual 7mm auxiliary LEDs |
| Output | Dual programmable 10A SPCO relays |
| Analog Output | 0–20 mA / 4–20 mA (±0.5% accuracy) |
| Digital Interface | RS485 MODBUS RTU |
| Certifications | ATEX II 1G Ex ia IIC T6 Ga, IECEx, UKCA |
| Sensor Type | Ultra-high-capacitance aluminum oxide |
| Max Cable Length | 1 km |
| IP Rating | IP54 (front panel) |
| Power Supply | 90–250 VAC / 18–28 VDC |
| Operating Temperature | -20°C to +60°C |
| Weight | ≤0.47 kg |
Overview
The ALPHA Model 6020 is a precision-engineered, single-channel panel-mount dew point monitor designed for continuous, trace-level moisture measurement in industrial process gases. It operates on the principle of capacitive sensing using a high-stability aluminum oxide (Al2O3) dielectric sensor—capable of detecting water vapor concentrations from 1.6 ppb to 23,000 ppmv. The instrument’s core architecture integrates a field-installable sensor with an embedded microprocessor-based display unit, enabling real-time dew point calculation across a broad range of -110°C to +20°C (equivalent to -166°F to +68°F). Its measurement methodology conforms to ISO 8503-1 and ASTM D6304 principles for trace moisture analysis in compressed gases and insulating media. The system supports multiple engineering units—including °C/°F dew point, ppmv, ppmw, g/m³, and lb/MMSCF—allowing seamless integration into diverse operational workflows across power generation, gas processing, and laboratory metrology environments.
Key Features
- Ultra-wide dew point range: -110°C to +20°C with selectable sub-ranges (SR, PL, RD, GY, YE, BL), each optimized for specific gas matrices and condensation dynamics
- High-reproducibility capacitive sensing: Ultra-high-capacitance Al2O3 sensor with proven long-term drift stability (<0.1°C/year typical) and minimal hysteresis
- AutoCal™ automatic calibration maintenance: Compensates for sensor aging and environmental drift without manual intervention, preserving traceability between certified calibrations
- Dual independent alarm relays: Programmable SPCO contacts rated at 10A resistive load (120/240V AC, 50/60Hz), configurable for high/low thresholds or latching/non-latching operation
- Flexible analog & digital outputs: Isolated 4–20 mA output (linear, ±0.5% full-scale accuracy) and RS485 MODBUS RTU interface for SCADA/HMI integration and remote configuration
- Intrinsically safe sensor design: Certified to ATEX II 1G Ex ia IIC T6 Ga, IECEx, and UKCA standards; compatible with Zener barriers (e.g., AZB-C) for Zone 0/1 hazardous area deployment
- Robust mechanical architecture: IP54-rated front panel, compact 135 × 108 × 66 mm housing, and universal panel cutout (138 × 68 mm) supporting DIN rail or wall mounting
Sample Compatibility & Compliance
The Model 6020 is validated for use with non-corrosive, non-condensing process gases including nitrogen, air, SF6, hydrogen, natural gas, and dry compressed air. It is explicitly incompatible with oxidizing or chemically aggressive species such as chlorine (Cl2), ozone (O3), ammonia (NH3), and mercury vapor (Hg), which degrade the aluminum oxide dielectric layer. For SF6 applications in high-voltage switchgear monitoring, the instrument complies with IEC 60480 and IEEE C37.122.1 requirements for moisture-in-gas specification. All factory calibrations are traceable to NPL (UK) and NIST humidity standards under ISO/IEC 17025-accredited procedures. The system supports audit-ready data logging when paired with ALPHA’s optional Modbus-enabled data acquisition modules, fulfilling GLP/GMP documentation expectations per FDA 21 CFR Part 11 where electronic records are employed.
Software & Data Management
While the Model 6020 operates as a standalone hardware monitor, its RS485 MODBUS RTU interface enables bidirectional communication with third-party control systems or ALPHA’s proprietary PC-based configuration utility (AlphaDew Config v3.2+). This software allows full parameterization—including unit selection, alarm setpoints, relay logic, analog scaling, and AutoCal scheduling—without physical access to the unit. Configuration changes are stored in non-volatile memory and retain settings during power loss. The MODBUS register map includes real-time dew point values, sensor status flags (e.g., “sensor saturated”, “calibration due”), and diagnostic counters (e.g., total alarm activations, calibration cycles completed). No cloud connectivity or proprietary firmware updates are required; all configuration remains local and deterministic—critical for cybersecurity-sensitive infrastructure such as substations and nuclear support systems.
Applications
- Power Industry: Continuous moisture monitoring in SF6 circuit breakers and GIS systems to prevent dielectric failure and comply with IEC 62271-1 moisture limits (≤150 ppmv for new gas, ≤300 ppmv in service)
- Gas Processing: Real-time dehydration verification in natural gas pipelines and hydrogen purification loops, ensuring compliance with pipeline specifications (e.g., GPA 2145, ISO 8503-1)
- Industrial Drying: Closed-loop control feedback for desiccant wheel dryers, refrigerated dryers, and fluidized bed dryers operating below -40°C dew point
- Laboratory Metrology: Reference-grade dew point verification for secondary humidity standards and gravimetric calibration rigs
- Pharmaceutical Manufacturing: Monitoring purge gas dryness in lyophilizer chambers and inert gas blanketing systems per USP and Annex 1 requirements
FAQ
What is the maximum allowable cable length between the sensor and display unit?
The system supports up to 1 km of standard shielded coaxial cable (RG-174 or equivalent) while maintaining signal integrity and noise immunity.
Can the Model 6020 be used in Zone 0 hazardous areas?
Yes—the sensor carries ATEX II 1G Ex ia IIC T6 Ga certification, permitting installation in Zone 0 when connected via an approved Zener barrier (e.g., AZB-C) and installed per IEC 60079-14 guidelines.
Is NIST-traceable calibration documentation provided with each unit?
Each instrument ships with a Certificate of Conformance and a factory calibration report showing as-tested values at three points (-70°C, -40°C, and +10°C dew point) against NPL-traceable reference standards.
Does the AutoCal function replace periodic recalibration?
No—AutoCal maintains measurement consistency between scheduled calibrations but does not eliminate the need for annual or biannual traceable recalibration per ISO/IEC 17025 or internal QA protocols.
What mounting options are available for the sensor head?
Standard configurations include 1/8″ NPT female thread; optional Swagelok stainless steel compression fittings (1/4″, 1/8″, or 6 mm) are available for direct pipe insertion or sampling probe integration.
