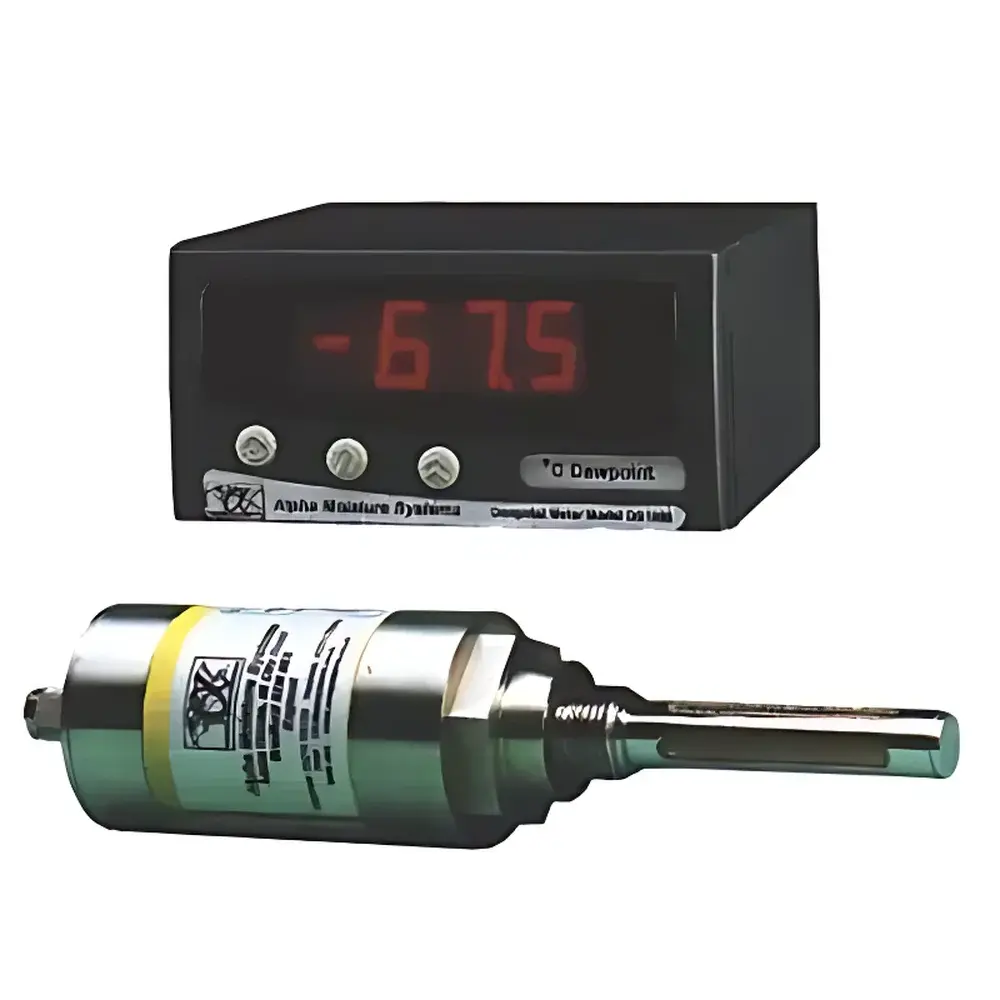

Alpha Moisture DS-1000 Dew Point Hygrometer

Overview

The Alpha Moisture DS-1000 is a high-stability, online dew point hygrometer engineered for continuous moisture monitoring in compressed air, industrial gas, and inert process streams. It employs a robust capacitive aluminum oxide (Al₂O₃) sensing element—specifically the proprietary DDSS (Dual-Dielectric Sensing System) electrode—to deliver stable, low-drift measurements across ultra-dry conditions. Unlike chilled-mirror or tunable diode laser technologies, the DS-1000 operates on the principle of relative permittivity change in a hygroscopic alumina layer exposed to water vapor; this capacitance shift is linearly correlated to dew point temperature under controlled thermal and pressure conditions. Its design targets applications requiring long-term unattended operation in environments where trace moisture control is critical—such as semiconductor purge lines, pharmaceutical nitrogen blankets, cryogenic LNG transfer, and power transformer oil gas analysis. The instrument complies with ISO 8573-1:2010 Class 0–4 moisture classification requirements and supports integration into validated manufacturing systems governed by FDA 21 CFR Part 11 and EU Annex 11 data integrity frameworks.

Key Features

• Interchangeable PL (−110 to +20 °C) and BL (−80 to +20 °C) aluminum oxide sensor cartridges—enabling range optimization without system reconfiguration
• Integrated microprocessor with non-volatile memory storing sensor serial number, factory calibration coefficients, last calibration date, and next due date—supporting full metrological traceability
• Front-panel programmable dual dew point alarms with visual LED indicators and relay outputs for automated process interlock or SCADA notification
• Self-contained analog output (4–20 mA) with HART® compatibility (optional firmware upgrade), enabling seamless integration into DCS and PLC architectures
• Wide operating pressure tolerance up to 50 bar (725 psi), with pressure-compensated measurement algorithms ensuring accuracy across dynamic process conditions
• Onboard linear two-point calibration capability—performed via front-panel interface using certified reference gases or NIST-traceable dew point generators

Sample Compatibility & Compliance

The DS-1000 is compatible with non-corrosive, non-condensing gas matrices including compressed air, nitrogen, argon, helium, hydrogen, CO₂, and SF₆. It is not suitable for use with reactive gases (e.g., chlorine, ammonia), solvent vapors, or particulate-laden streams without upstream filtration (≥0.1 µm absolute rating). All sensor assemblies conform to IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emission) standards. The unit carries CE marking per the EU Measuring Instruments Directive (MID 2014/32/EU) for legal metrology applications. Calibration certificates are issued with NPL (National Physical Laboratory, UK) traceability and comply with ISO/IEC 17025:2017 requirements when performed by Alpha Moisture–accredited service centers.

Software & Data Management

While the DS-1000 operates as a stand-alone transmitter, optional PC-based configuration software (AlphaConfig v3.2) enables advanced parameter setup—including custom alarm hysteresis, damping time constants (0.1–60 s), engineering unit scaling, and diagnostic log export (CSV format). All configuration changes are timestamped and logged in internal memory with operator ID fields (when integrated with enterprise authentication systems). Audit trails meet GLP/GMP requirements, supporting 21 CFR Part 11 compliance when deployed with electronic signature modules and role-based access controls. Data retention includes minimum/maximum dew point values over configurable intervals (1 min to 24 h), facilitating trend analysis and preventive maintenance scheduling.

Applications

• Compressed air quality assurance in food & beverage packaging lines (ISO 8573-1 Class 2–4 verification)
• Moisture monitoring in pharmaceutical nitrogen purging systems for lyophilization and API synthesis
• In-line verification of dryness in semiconductor fab tool purge gases (≤−70 °C DP for ALD/CVD processes)
• Transformer insulating oil dissolved gas analysis (DGA) headspace moisture validation
• LNG liquefaction plant boil-off gas (BOG) drying loop control
• Electronics manufacturing cleanroom nitrogen supply monitoring (Class 100/ISO 5 environments)

FAQ

Is the DS-1000 suitable for measuring moisture in hydrogen gas?
Yes—the aluminum oxide sensor is chemically inert to H₂ and provides stable readings up to 100% H₂ concentration, provided the gas is free of condensables and catalyst poisons such as siloxanes.
Can the sensor be recalibrated in-field without returning to the factory?
Yes—linear two-point calibration can be performed on-site using certified zero (dry nitrogen) and span (known dew point) gases, with full parameter retention in onboard memory.
Does the instrument support Modbus RTU communication?
Not natively; however, optional RS-485 interface modules with Modbus RTU firmware are available as an accessory kit (Order Code: DS-1000-MBUS-KIT).
What is the recommended maintenance interval for the sensor cartridge?
Under typical industrial conditions, sensor life exceeds 24 months; replacement is advised when drift exceeds ±1.5 °C against reference standards or after exposure to liquid water or oil aerosol contamination.
How is pressure compensation handled during measurement?
The DS-1000 incorporates an integrated pressure transducer (0–50 bar range) and applies real-time compensation using the Magnus–Tetens equation, ensuring dew point accuracy remains within specification across rated pressure variations.
