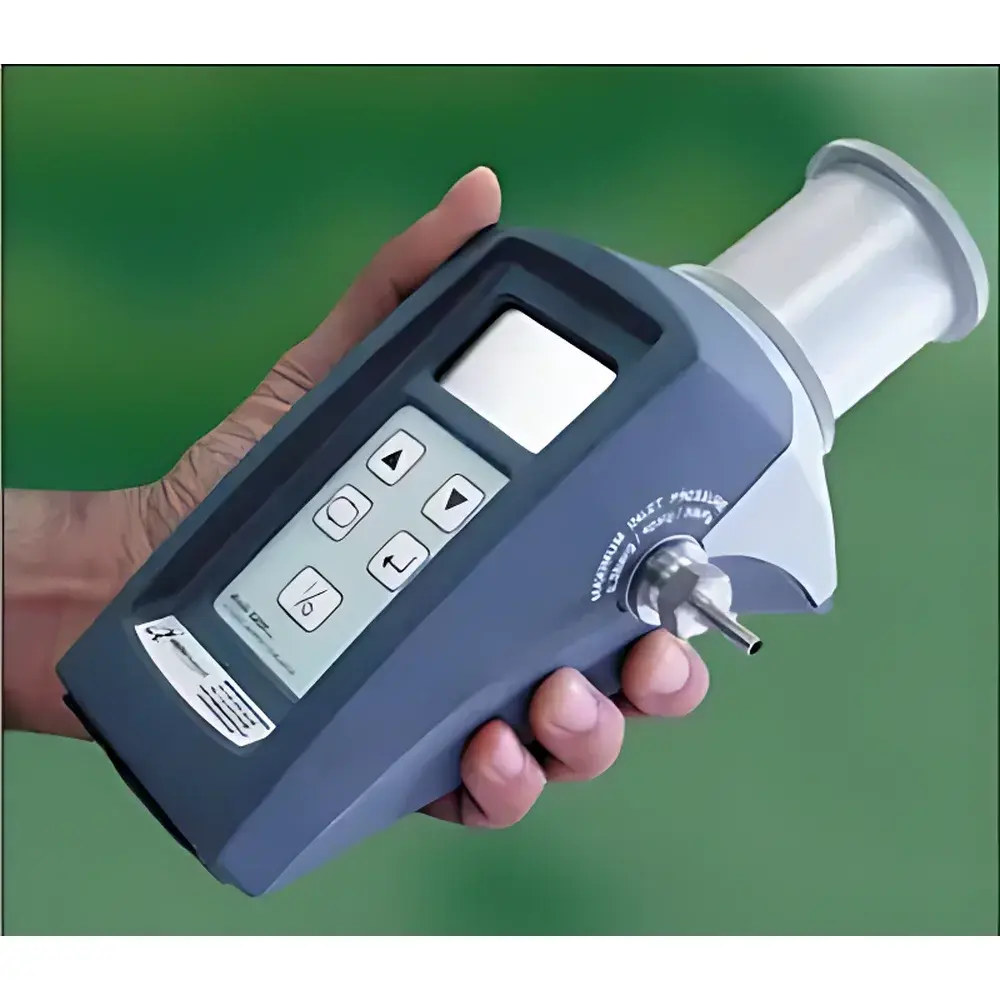

Alpha Moisture SADPmini Portable Dew Point Meter

Overview

The Alpha Moisture SADPmini Portable Dew Point Meter is a field-deployable, capacitive aluminum oxide-based instrument engineered for high-reliability dew point measurement in compressed air, industrial gas systems, and laboratory environments. It operates on the well-established principle of moisture-dependent capacitance change in a hygroscopic aluminum oxide dielectric layer — a method standardized under ISO 8573-1 for compressed air purity classification and widely accepted in pharmaceutical, semiconductor, and power generation applications where trace moisture control is critical. Unlike chilled-mirror or tunable diode laser (TDL) analyzers, the SADPmini leverages solid-state sensor architecture to deliver rapid response (< 60 s to 90% of final value), minimal maintenance, and immunity to condensation-induced drift. Its compact form factor and battery-powered operation support both spot-check verification and extended unattended monitoring — particularly valuable during commissioning, leak detection, dryer validation, and preventive maintenance audits.

Key Features

• Capacitive aluminum oxide sensing element with built-in linearization correction capability, enabling stable performance across wide dynamic ranges (–110 °C to +20 °C DP)
• Multi-range interchangeable sensor cartridges (SR, PL, RD, GY, BL) — user-swappable without recalibration, minimizing downtime during range adaptation
• Integrated molecular sieve drying system with telescoping electrode design — prevents mechanical wear, eliminates seal leakage, and ensures consistent sample conditioning prior to measurement
• High-resolution 128 × 64 pixel backlit LCD display supporting simultaneous dual-unit readout (e.g., °C + ppm_v) and real-time pressure-compensated dew point calculation
• Onboard memory storing up to 16,000 timestamped data points with automatic logging intervals (1 s to 24 h configurable); export via USB or RS-485 serial interface
• Rechargeable lithium-ion battery rated for 250 hours of continuous use — compliant with IEC 62133 and UN 38.3 transport safety requirements
• Robust enclosure rated IP54 / NEMA 12 — suitable for indoor industrial environments with moderate dust and non-corrosive splashing exposure

Sample Compatibility & Compliance

The SADPmini is validated for use with dry, non-corrosive gases including compressed air, nitrogen, carbon dioxide, sulfur hexafluoride (SF₆), hydrogen, and argon. When gas composition and molecular weight are entered manually or selected from the onboard library, the instrument automatically converts dew point to volumetric (ppm_v, ppb) and gravimetric (g/m³, lbs/MMSCF, ppm_w) moisture units per ISO 6245 and ASTM D6304 Annex A2 conventions. All factory calibrations are traceable to UKAS-accredited laboratories and NIST reference standards, with documented uncertainty budgets provided in the certificate of calibration. The device supports GLP-compliant operation through password-protected multi-level access (operator, technician, administrator), audit trail logging of calibration events, and secure firmware update protocols aligned with IEC 62443-3-3 cybersecurity principles.

Software & Data Management

Data acquisition and configuration are managed via the optional AlphaView PC software suite (Windows 10/11 compatible), which provides time-synchronized waveform visualization, statistical trend analysis (min/max/avg/std dev), CSV export for LIMS integration, and automated report generation per ISO/IEC 17025 requirements. Raw data files include embedded metadata: sensor ID, calibration date, ambient temperature/pressure, gas type, and operator ID. For industrial SCADA integration, the RS-485 interface supports Modbus RTU protocol, while the optional 4–20 mA analog output enables direct connection to PLCs and DCS systems without additional signal conditioning. All communication channels enforce CRC error checking and timeout recovery to ensure data integrity in electrically noisy plant environments.

Applications

• Validation of desiccant and refrigerated air dryers per ISO 8573-1 Class 2–4 specifications
• In-line moisture monitoring during SF₆ handling in high-voltage switchgear maintenance
• Pre-shipment verification of packaged medical gases (USP , EP 2.2.43)
• Moisture mapping in cleanroom compressed air networks (ISO 14644-1)
• Field verification of purge gas dryness prior to catalyst loading in petrochemical reactors
• Quality assurance testing of inert gas blankets used in lithium battery manufacturing

FAQ

What calibration standards does the SADPmini comply with?
The instrument is supplied with a UKAS/NIST-traceable calibration certificate covering the specified dew point range, with stated measurement uncertainty per ISO/IEC 17025. Field two-point calibration using certified humidity generators (e.g., Rotronic HC2-IC, MBW 373) is supported.
Can the SADPmini measure dew point in high-pressure gas lines?
It is designed for sampling at pressures below 30 kPa(g); for higher-pressure applications, an external pressure regulator and cooled sample line are required to meet the instrument’s inlet specification.
Is the data logger function compliant with FDA 21 CFR Part 11?
While the standalone device does not provide electronic signatures or audit trail encryption, its raw data export format and timestamping are compatible with validated third-party LIMS or ELN platforms that implement Part 11 controls.
How often should the sensor be recalibrated?
Annual recalibration is recommended under normal operating conditions; more frequent verification is advised when used in aggressive environments (e.g., high oil aerosol load, frequent condensation cycles).
Does the SADPmini support automatic pressure compensation?
Yes — users can input absolute or gauge pressure manually, and the instrument applies the Magnus formula to compute pressure-corrected dew point in accordance with ISO 8573-3 Annex B.
