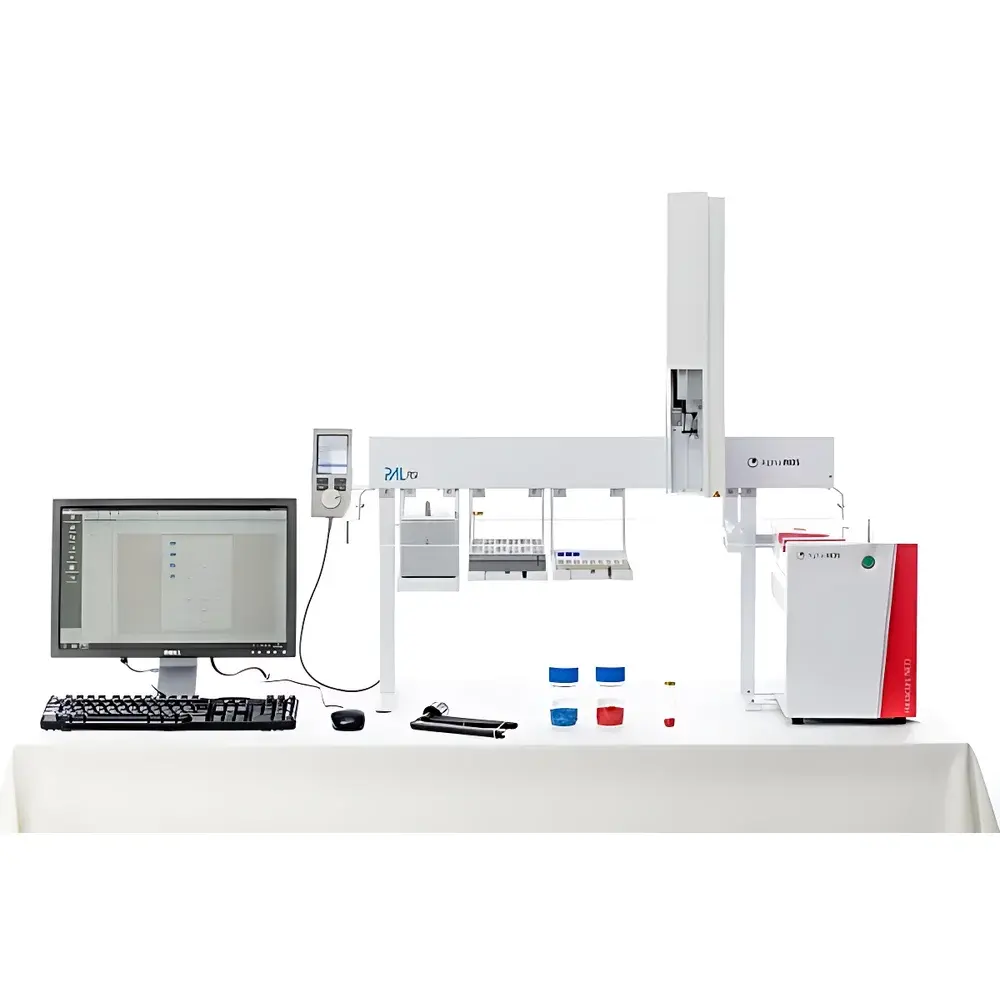

Alpha MOS Heracles NEO 50 Fast Gas Chromatographic Electronic Nose

Overview

The Alpha MOS Heracles NEO 50 is a high-performance olfactory analysis system engineered for rapid, reproducible characterization of volatile organic compound (VOC) profiles in complex matrices. Unlike conventional single-column gas chromatographs, the Heracles NEO 50 implements dual fast gas chromatography (dual-FGC) — two parallel capillary columns with distinct stationary phases — enabling simultaneous separation and detection of overlapping odorants with enhanced resolution and retention time stability. This architecture supports both qualitative fingerprinting and semi-quantitative profiling of headspace volatiles, making it particularly suitable for applications requiring rapid batch screening, origin verification, spoilage detection, and sensory defect identification. The system operates on the principle of pattern recognition rather than absolute quantification: VOCs are thermally desorbed from solid, liquid, or gaseous samples, separated across two independently temperature-controlled columns, and detected using high-dynamic-range FID or PID sensors. Retention indices are calculated in real time, forming multidimensional chromatographic fingerprints that serve as input for multivariate statistical modeling.

Key Features

• Dual fast gas chromatography platform with independent column ovens and optimized thermal management for ±0.1 °C temperature stability, ensuring long-term retention time reproducibility (RSD < 0.3% over 72 h).
• Enhanced detector electronics offering 35× wider dynamic range without compromising limit of detection — enabling co-detection of major and trace-level volatiles without signal saturation.
• Automated system conditioning protocol integrated into AlphaSoft v15: initiates trap regeneration and column backflush prior to each analytical sequence if idle time exceeds user-defined thresholds, minimizing carryover and baseline drift.
• Sensory ID algorithm: a patented, integration-free data processing method that performs automatic chromatogram alignment, peak matching, and PASS/FAIL classification based on pre-trained models — eliminating manual peak integration and reducing operator dependency.
• MMI Pro v1.0 interface: role-based, production-floor-optimized dashboard with one-click method launch, real-time status monitoring, and contextual tool visibility — designed to minimize training time and procedural errors in routine QC environments.
• AroChemBase v7 molecular database: contains >15,000 experimentally validated VOC entries with associated retention indices, mass spectra (where applicable), and sensory descriptors — supporting compound-level annotation within the Heracles NEO workflow.

Sample Compatibility & Compliance

The Heracles NEO 50 accepts direct headspace sampling from solids (e.g., food, polymers, pharmaceuticals), liquids (beverages, solvents, extracts), and gases (industrial emissions, packaging headspaces). Optional autosamplers (gas-phase only for NEO 50; liquid/gas for higher-tier models) extend throughput and repeatability. All hardware and software components are engineered to support regulated laboratory operations: AlphaSoft v15 provides configurable audit trails, electronic signatures, user privilege tiers, and method versioning — fulfilling foundational requirements for GLP compliance and aligning with FDA 21 CFR Part 11 Annex 11 expectations. While not certified as medical device or IVD equipment, the system meets ISO/IEC 17025 criteria for method validation when deployed in accredited testing laboratories.

Software & Data Management

AlphaSoft v15 serves as the unified control, acquisition, and interpretation platform. It natively supports principal component analysis (PCA), discriminant function analysis (DFA), hierarchical cluster analysis (HCA), and partial least squares discriminant analysis (PLS-DA). Raw chromatograms are stored in vendor-neutral .cdf format; processed models and metadata are archived in encrypted project files with timestamped revision history. Data export options include CSV, Excel, and structured XML for LIMS integration. The software supports multi-instrument synchronization for cross-platform method transfer and enables remote monitoring via secure HTTPS connection. All analytical sequences are fully scriptable, allowing automated reprocessing of legacy datasets with updated algorithms or calibration parameters.

Applications

• Quality Assurance: Batch-to-batch consistency assessment of raw materials (e.g., coffee beans, spices, essential oils) and finished products (dairy, baked goods, cosmetics) via fingerprint deviation scoring.
• Off-odor & Contamination Detection: Identification of trace-level contaminants (e.g., geosmin in water, limonene in PET packaging, residual solvents in APIs) through outlier detection in PCA space.
• Shelf-life Monitoring: Tracking progressive VOC profile shifts during accelerated aging studies to predict sensory degradation endpoints.
• Competitive Benchmarking: Objective comparison of product aroma profiles against market leaders using supervised PLS-DA models trained on consumer panel data.
• Process Optimization: Correlating headspace signatures with fermentation parameters, drying conditions, or storage environments to establish critical control points.

FAQ

What distinguishes Heracles NEO 50 from traditional GC-MS systems?
Heracles NEO 50 prioritizes speed, robustness, and multivariate interpretability over structural elucidation. It uses fast GC with dual columns and universal detectors (FID/PID), not mass spectrometry — delivering full chromatographic fingerprints in under 90 seconds per sample, with no need for spectral library matching or expert spectral interpretation.
Can Heracles NEO 50 quantify analytes?
It supports semi-quantitative relative abundance profiling using normalized peak areas. Absolute quantification requires external calibration with reference standards and is not its primary design objective — though linear dynamic range and reproducibility enable reliable trend analysis across large sample sets.
Is AroChemBase accessible outside AlphaSoft?
No. AroChemBase v7 is embedded exclusively within AlphaSoft v15 and cannot be exported or queried independently. Compound annotations are generated in-context during data processing and linked to retention index windows calibrated on Heracles hardware.
How is method validation performed for regulatory submissions?
Alpha MOS provides IQ/OQ documentation templates and validation support packages. Users must perform application-specific PQ (Performance Qualification) per ISO 17025 or ICH Q2(R2) guidelines, including specificity, precision, linearity, and robustness testing — all feasible using built-in AlphaSoft tools and reference standards.
Does Heracles NEO 50 support 21 CFR Part 11 compliance out-of-the-box?
Yes — when configured with enabled audit trail logging, electronic signatures, and role-based access control, the system meets technical requirements for Part 11 compliance. However, procedural controls (e.g., SOPs, training records, change control) remain the responsibility of the end-user laboratory.
