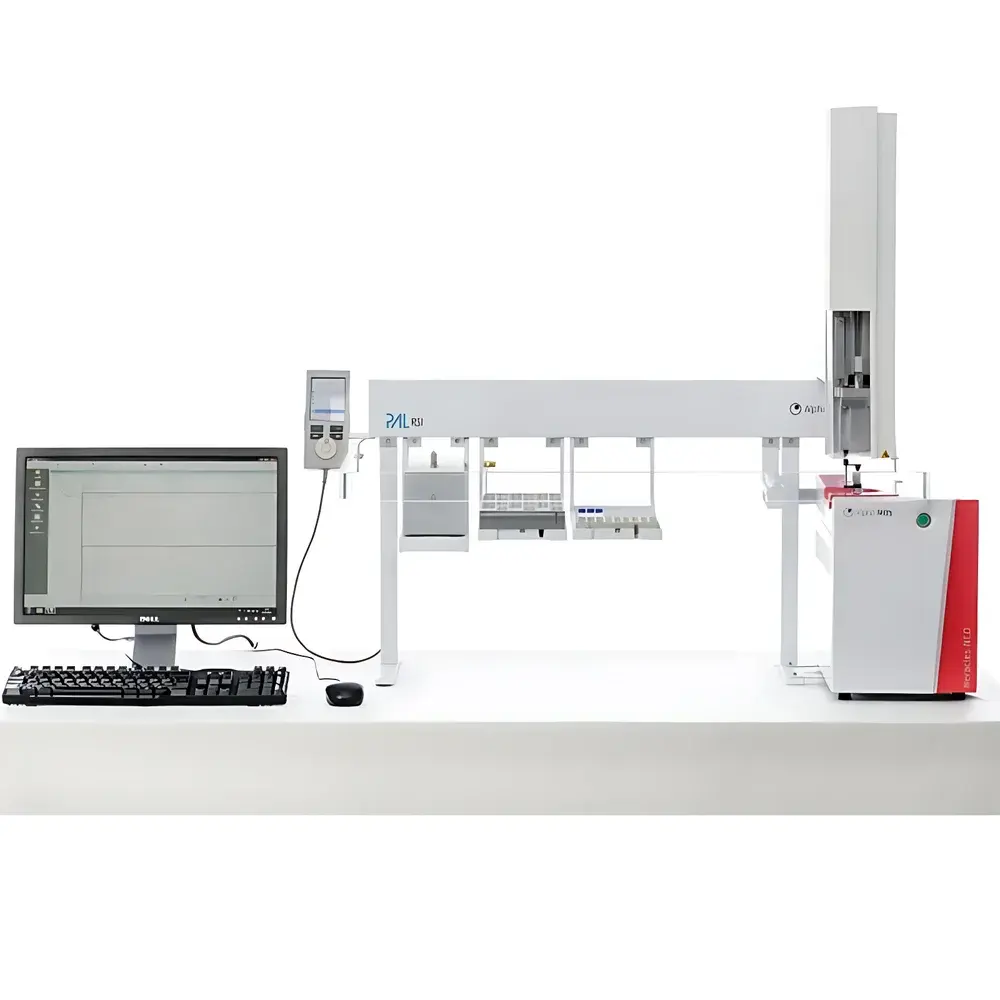

Alpha MOS HERACLES Neo Fast Gas Chromatography Electronic Nose

Overview

The Alpha MOS HERACLES Neo is a high-performance fast gas chromatography (GC) electronic nose engineered for objective, reproducible, and high-throughput olfactory profiling of volatile organic compounds (VOCs) and complex odor mixtures. Unlike conventional sensory panels, the HERACLES Neo applies rapid GC separation—using two parallel, orthogonally polarized fused-silica capillary columns—to resolve overlapping odorant signals in a single injection. This dual-column architecture generates complementary chromatographic fingerprints, significantly enhancing pattern discrimination and reducing co-elution ambiguity. The system operates on the principle that odor perception arises from multivariate combinations of VOCs; therefore, its analytical output is not limited to compound identification but extends to holistic odor space mapping via multivariate statistical modeling (e.g., PCA, SIMCA, PLS-DA). Designed for laboratories requiring regulatory-compliant, operator-independent odor assessment—including QC/QA in food, pharmaceuticals, cosmetics, packaging, and environmental monitoring—the HERACLES Neo delivers trace-level detection, sub-minute cycle times, and long-term baseline stability essential for longitudinal studies and routine release testing.

Key Features

• Dual-column fast GC architecture with independent temperature-controlled ovens, enabling simultaneous acquisition of two orthogonal chromatograms per injection
• Two flame ionization detectors (FIDs) with real-time ignition monitoring, operating up to 300 °C and delivering linear response over six orders of magnitude (10⁶ dynamic range)
• Integrated thermal desorption unit with 10 mg Tenax TA (60/80 mesh) sorbent trap for preconcentration—enhancing sensitivity by up to three orders of magnitude for low-abundance VOCs
• Programmable autosampler supporting up to 180 samples (3 × 60-position trays), with independent heating of vials and syringes to prevent condensation and adsorption losses
• High-speed oven ramping (up to 8 °C/s) and trap desorption (up to 10 °C/s), enabling full GC runs under 6 minutes without compromising resolution
• Headspace and liquid-phase injection modes, compatible with optional sampling pumps for direct air or bag sampling—eliminating manual preparation variability
• Robust mechanical design with <0.3% retention time RSD and <3% peak area RSD across 24-hour unattended operation

Sample Compatibility & Compliance

The HERACLES Neo accommodates solid, liquid, semi-solid, and gaseous matrices—including foods, beverages, polymers, cleaning agents, medical devices, and ambient air samples—without derivatization or extensive pretreatment. Its headspace-focused workflow aligns with ISO 17510 (sensory analysis—general guidance), ASTM E2921 (standard guide for electronic nose data analysis), and USP <1225> (validation of compendial procedures). When deployed in regulated environments, the system supports audit-ready operation: raw chromatographic data files are timestamped and immutable; software logs all user actions, method changes, and instrument events in accordance with FDA 21 CFR Part 11 requirements. Optional GLP/GMP-compliant validation packages include IQ/OQ/PQ documentation templates and electronic signature functionality.

Software & Data Management

HERACLES Neo is operated via Alpha MOS’ proprietary Compass® software—a validated platform for acquisition, multivariate analysis, and reporting. Compass® implements automated peak alignment, baseline correction, and feature extraction across dual-channel datasets. It integrates principal component analysis (PCA), hierarchical clustering (HCA), soft independent modeling of class analogy (SIMCA), and partial least squares discriminant analysis (PLS-DA) to translate chromatographic patterns into actionable sensory insights—e.g., batch conformity, spoilage detection, or origin authentication. All processing workflows are scriptable and exportable as SOPs. Raw data (.cdf), processed results (.xls/.csv), and statistical models (.cmp) are stored in a relational database with role-based access control, version history, and automatic backup scheduling. Export formats comply with LIMS interoperability standards (ASTM E1467, HL7).

Applications

• Food & Beverage: Shelf-life prediction, authenticity verification (e.g., olive oil, honey, coffee), off-flavor detection (e.g., light-struck taste in beer, oxidation in dairy)
• Pharmaceuticals: Excipient compatibility screening, residual solvent quantification (ICH Q3C), packaging leachables profiling
• Personal Care & Cosmetics: Fragrance stability assessment, raw material batch consistency, microbial contamination early warning
• Packaging & Polymers: Migration studies, VOC emission profiling (e.g., automotive interiors, medical tubing), seal integrity evaluation
• Environmental & Industrial Hygiene: Odor source identification in wastewater treatment plants, indoor air quality monitoring, workplace exposure assessment

FAQ

What distinguishes HERACLES Neo from conventional electronic noses based on sensor arrays?
Unlike metal-oxide or polymer-based e-noses, HERACLES Neo employs true gas chromatographic separation prior to detection—delivering chemical specificity, quantitative capability, and resistance to sensor drift.
Can HERACLES Neo meet regulatory requirements for GMP or ISO 17025-accredited labs?
Yes—when configured with Compass® software’s audit trail, electronic signatures, and data integrity modules, it fulfills ALCOA+ principles and supports full 21 CFR Part 11 compliance.
Is method transfer possible between HERACLES Neo and standard GC-FID systems?
Retention indices and relative peak intensities are transferable; however, the dual-column fast-GC methodology requires re-optimization of temperature ramps and flow parameters for equivalent separation fidelity.
How does the system handle complex matrices with high background VOC load?
The Tenax TA preconcentration trap includes selective thermal desorption and cold trapping options, while dual-column orthogonality improves resolution of co-eluting peaks in crowded chromatograms.
What maintenance routines are required for sustained FID performance?
Routine checks include hydrogen/air flow calibration, jet cleaning every 200 injections, and periodic detector alignment—documented in the included preventive maintenance logbook.
