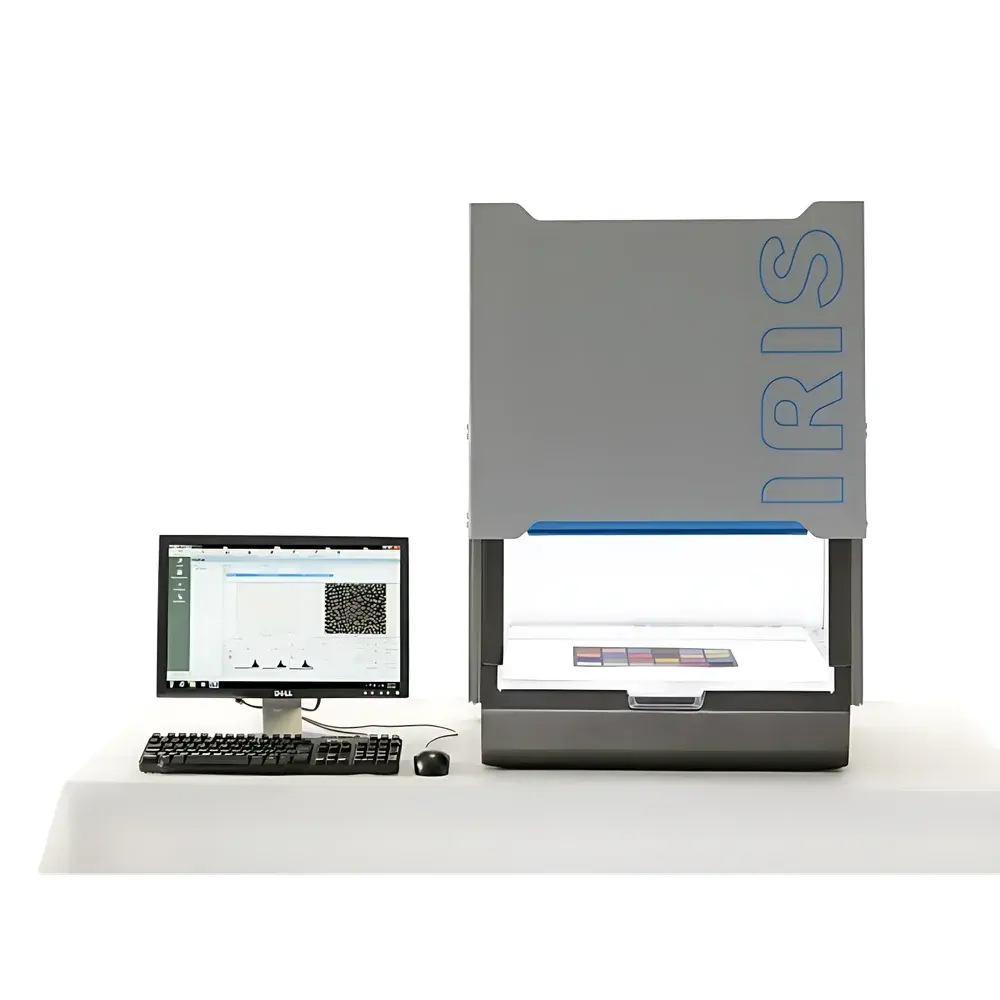

Alpha MOS IRIS Visual Analysis System (Electronic Eye)
| Brand | Alpha MOS |
|---|---|
| Origin | France |
| Product Type | Visual Analysis System (Electronic Eye) |
| Model | IRIS |
| Lighting | Dual LED (top and/or bottom), >40,000 h lifetime, 5 min warm-up time |
| Illumination Surface | 270 × 390 mm, uniform backlighting, removable tray (420 × 560 mm, white/black options) |
| Camera | Embedded CMOS, 2588 × 1942 resolution, 16M color depth, software-controlled zoom & focus |
| Lens | Fixed focal length (standard 5 mm |
| Color Calibration | Certified 24-color checker (4–8 mm or 12–25 mm formats), white balance, avg. ΔE standard deviation <5 across 24 colors |
| Compliance | CE, FCC, IP30, RoHS, PoE (IEEE 802.3af), UL, GigE Vision, GenICam |
Overview
The Alpha MOS IRIS Visual Analysis System is a fully integrated, laboratory-grade electronic vision platform engineered for objective, quantitative assessment of visual attributes—primarily color, shape, texture, and surface uniformity—in solid and semi-solid samples. Unlike subjective human panel evaluations, IRIS operates on the principles of standardized digital imaging metrology: it captures high-fidelity RGB images under rigorously controlled illumination conditions, then applies calibrated photometric and morphometric algorithms to extract reproducible, traceable metrics. The system’s core architecture follows ISO/IEC 17025-aligned measurement practices, ensuring data integrity suitable for QC release, formulation development, and regulatory documentation. Its sealed optical chamber eliminates ambient light interference, while dual-axis LED illumination (top and/or bottom) enables flexible contrast optimization—critical for translucent, reflective, or heterogeneous materials such as tablets, powders, confectionery, dairy products, and cosmetic creams.
Key Features
- Optically isolated imaging chamber with 270 × 390 mm illuminated surface and programmable dual-axis LED lighting (top/bottom/backlight), delivering uniform irradiance and eliminating shadow artifacts.
- Embedded industrial CMOS camera (2588 × 1942 pixels, 16-bit color depth) with software-controllable zoom, focus, and exposure—mounted directly inside the enclosure for mechanical stability and thermal consistency.
- Interchangeable lens options (4 mm to 25 mm focal lengths) optimized for sample scale: standard 5 mm lens supports analysis of objects from 10 mm to 200 mm in dimension; extended focal lengths accommodate macro- or micro-scale surface inspection.
- Traceable color calibration using NIST-traceable 24-color reference checkers (available in two physical formats: 4–8 mm “standard” and 12–25 mm “passport” sizes), enabling ΔE-based validation per CIEDE2000 and ISO 11664-4.
- Compliance with international electrotechnical and imaging standards: CE, FCC, UL, RoHS, IP30 ingress protection, IEEE 802.3af Power over Ethernet (PoE), GigE Vision v2.0, and GenICam v3.1—ensuring interoperability and audit readiness.
- White balance automation and long-term photometric stability (<0.5% geometric distortion, >40,000 h LED lifetime, <5 min thermal stabilization).
Sample Compatibility & Compliance
IRIS accommodates a broad range of physical forms—including tablets, capsules, granules, pastes, gels, baked goods, meat cuts, and packaged consumer goods—without requiring sample preparation beyond placement on the removable 420 × 560 mm tray (available in matte black or white finish to optimize contrast). Its modular base allows reconfiguration for different lighting geometries (e.g., diffuse transmittance for clear liquids or specular reflectance for glossy surfaces). From a regulatory standpoint, IRIS supports GLP and GMP environments through secure user access control, full audit trail logging (per FDA 21 CFR Part 11 requirements when deployed with AlphaSoft IQ/OQ/PQ packages), and raw image archiving with embedded metadata (timestamp, illumination mode, lens ID, calibration status). All measurements adhere to ASTM E308 (computing tristimulus values), ISO 11664 (colorimetry), and ISO 13660 (geometric feature extraction).
Software & Data Management
Data acquisition, processing, and reporting are executed via AlphaSoft™—a validated Windows-based application developed by Alpha MOS specifically for sensory intelligence platforms. AlphaSoft provides real-time image preview, batch acquisition scripting, multivariate statistical analysis (PCA, PLS-DA), and automated pass/fail decision logic based on user-defined thresholds for L*a*b*, hue angle, chroma, area, circularity, aspect ratio, and edge roughness. Raw images are stored in lossless TIFF format with embedded EXIF and custom metadata fields; processed results export to CSV, PDF, or SQL databases. The software supports electronic signatures, role-based permissions, and integration with LIMS and MES systems via OPC UA or RESTful API. Optional IQ/OQ/PQ documentation packages are available for regulated laboratories requiring formal validation per ISO/IEC 17025 or Annex 11.
Applications
- Pharmaceutical: Tablet coating uniformity assessment, capsule shell color consistency, blister pack defect detection (e.g., discoloration, foreign particles), and stability study image archiving.
- Foods & Beverages: Batch-to-batch color matching of sauces, cheeses, and baked goods; ripeness grading of fruits; surface defect classification (bruising, mold, browning); packaging print verification.
- Cosmetics: Foundation shade consistency, powder compact homogeneity, lipstick gloss mapping, and emulsion phase separation quantification.
- Chemicals & Polymers: Pigment dispersion evaluation in masterbatches, polymer pellet color drift monitoring, and film haze/transparency profiling.
- Academic & R&D: Objective correlation of visual parameters with instrumental or sensory data (e.g., linking L* values to perceived lightness in hedonic testing).
FAQ
What standards does IRIS comply with for color measurement accuracy?
IRIS implements CIE 1931 color space calculations and supports calibration traceable to NIST-certified color standards. It complies with ISO 11664-4 (colorimetry), ASTM E308 (tristimulus computation), and ISO 13660 (shape parameter definitions).
Can IRIS be integrated into an existing LIMS or ERP environment?
Yes—via AlphaSoft’s configurable database connectors (ODBC, SQL Server, Oracle) and RESTful API for bidirectional data exchange, including sample IDs, measurement results, and image thumbnails.
Is remote operation supported?
The system supports full remote control and monitoring over LAN/WAN using AlphaSoft Remote Client, with encrypted communication and session logging compliant with GDPR and HIPAA data handling protocols.
How often must color calibration be performed?
Initial calibration is required before first use; routine verification is recommended daily or per shift using the 24-color checker. Full recalibration is advised every 6 months or after hardware maintenance.
Does IRIS require specialized training for operators?
Alpha MOS provides certified operator training covering image acquisition protocols, calibration procedures, statistical interpretation, and 21 CFR Part 11 compliance workflows—typically delivered over two days on-site or virtually.
