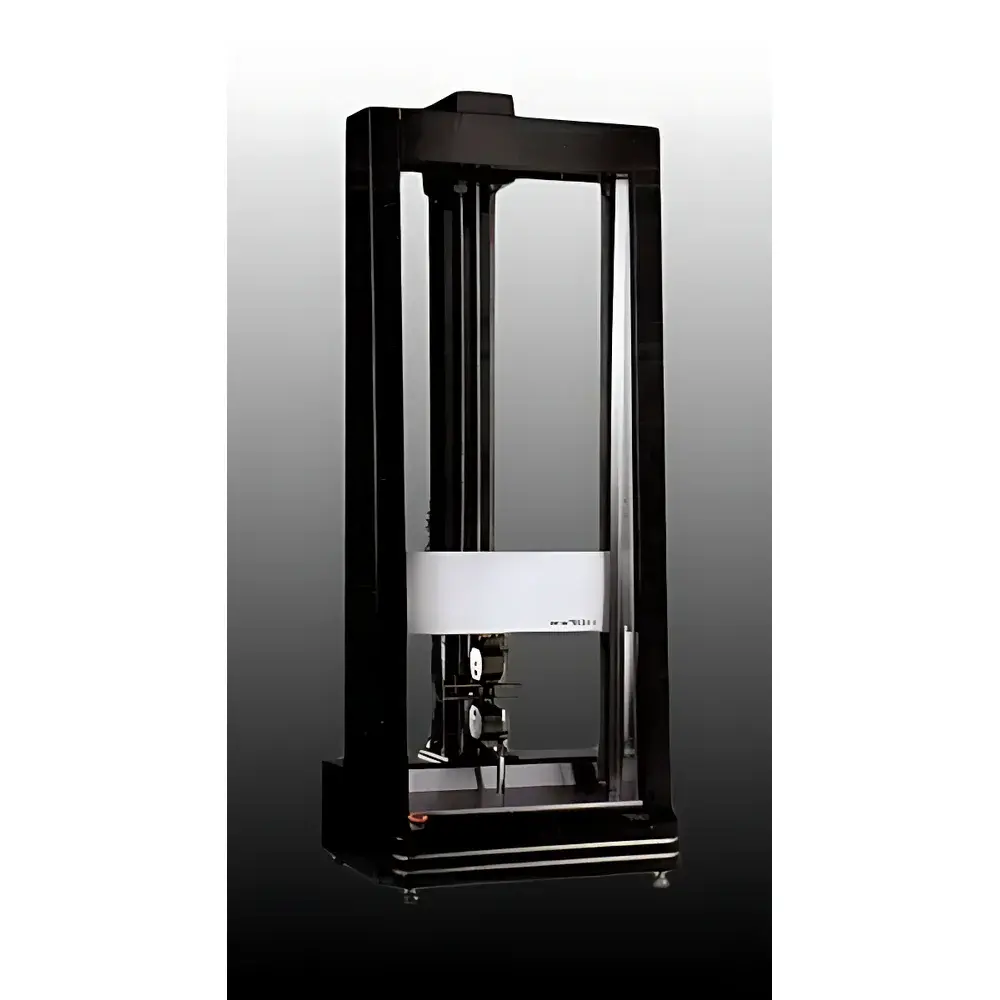

ALPHA tensiTech+ Universal Tensile Testing Machine

Overview

The ALPHA tensiTech+ Universal Tensile Testing Machine is a precision-engineered electromechanical testing system designed specifically for mechanical characterization of elastomers, thermoplastic elastomers (TPEs), textiles, and rubber compounds. Built in the United States and deployed globally in R&D laboratories, QC facilities, and contract testing centers, the tensiTech+ implements servo-controlled crosshead motion with high-fidelity load cell feedback and real-time strain acquisition. Its core measurement principle follows uniaxial quasi-static tensile testing per standardized force–displacement transduction, enabling calculation of tensile strength, elongation at break, modulus (e.g., 100% and 300% modulus), and stress–strain hysteresis. The system complies with fundamental mechanical testing paradigms defined in ASTM D412 (vulcanized rubber), ASTM D575 (rubber in compression), and ASTM D624 (tear resistance), supporting both dumbbell- and ring-shaped specimens across a broad range of geometries and thicknesses.

Key Features

• Fully programmable test sequences with up to 20 specimens per batch, each configurable for independent pre-load, extension rate, hold duration, and return path
• Pneumatically actuated jaw systems with interchangeable gripping interfaces: O-ring clamps, wire-wedge grips, and curved surface fixtures optimized for low-modulus, high-elongation materials
• Integrated digital thickness gauge with ±0.005 mm resolution for automatic specimen dimension input prior to test initiation
• Modular crosshead architecture with linear guide rails and brushless DC motor drive, engineered for long-term repeatability and minimal backlash
• Front-access service panel and tool-free access to load cell, encoder, and pneumatic manifolds—reducing scheduled maintenance downtime by up to 40% versus legacy platforms
• Comprehensive unit flexibility: selectable output in SI (N, MPa, mm/mm) or imperial (lbf, psi, in/in), with real-time conversion during acquisition

Sample Compatibility & Compliance

The tensiTech+ accommodates standard and custom specimen geometries used across rubber compounding, tire manufacturing, medical device elastomer validation, and technical textile evaluation. Compatible specimen types include ASTM D412 Type A and C dumbbells, ISO 37 rings, and proprietary flat-strip configurations up to 25 mm wide and 5 mm thick. All test protocols support full traceability per GLP and GMP requirements, with audit-ready test logs including operator ID, environmental conditions (optional external hygrothermograph integration), calibration certificate references, and raw sensor timestamps. The platform meets essential regulatory alignment for FDA-submitted material dossiers when paired with validated tensiDATA software configuration (21 CFR Part 11 compliant mode available upon qualification).

Software & Data Management

tensiDATA is the native Windows-based control and analysis suite, providing synchronized acquisition from load cell (±0.5% FS accuracy), extensometer (±0.1% strain), and environmental inputs. It supports automated pass/fail evaluation against user-defined upper/lower limits for tensile strength, elongation, and modulus—generating PDF reports with embedded metadata, signature fields, and revision-controlled templates. Raw data exports are available in CSV, XML, and ASTM E1434-compliant .tdf formats. Version-controlled method libraries allow lab-wide deployment of standardized test routines, while role-based user permissions ensure separation of calibration, operation, and reporting functions. Software validation documentation (IQ/OQ/PQ protocols) is provided for regulated environments.

Applications

• Quality control of natural rubber (NR), styrene–butadiene rubber (SBR), nitrile rubber (NBR), silicone elastomers, and thermoplastic polyurethanes (TPU)
• R&D screening of filler dispersion effects (e.g., carbon black or silica loading) on tensile hysteresis and permanent set
• Validation of vulcanization kinetics via stress relaxation and creep compliance measurements
• Mechanical benchmarking of textile-reinforced composites and coated fabrics under controlled humidity
• Support for ISO 37, ISO 527, DIN 53504, and JIS K6251 test execution with automatic parameter mapping

FAQ

Is the tensiTech+ compatible with third-party extensometers?
Yes—via analog voltage output (±10 V) and TTL synchronization triggers; certified compatibility exists with MTS 632.13F-24 and Instron 2630-101 models.
Does tensiDATA support multi-language UI?
The interface is English-only; however, report generation supports Unicode character sets for localized annotations and customer-specific terminology.
What calibration standards are supplied with the system?
NIST-traceable load cell calibration certificate (Class M2), dimensional verification gauge block set, and extensometer linearity verification kit are included at shipment.
Can the system perform cyclic fatigue testing?
Yes—using tensiDATA’s waveform generator module, users can define sinusoidal, triangular, or custom amplitude–frequency profiles for low-cycle fatigue up to 5 Hz.
Is remote diagnostics supported?
Standard Ethernet connectivity enables secure remote assistance via TLS-encrypted VNC session, subject to customer firewall policy approval.
