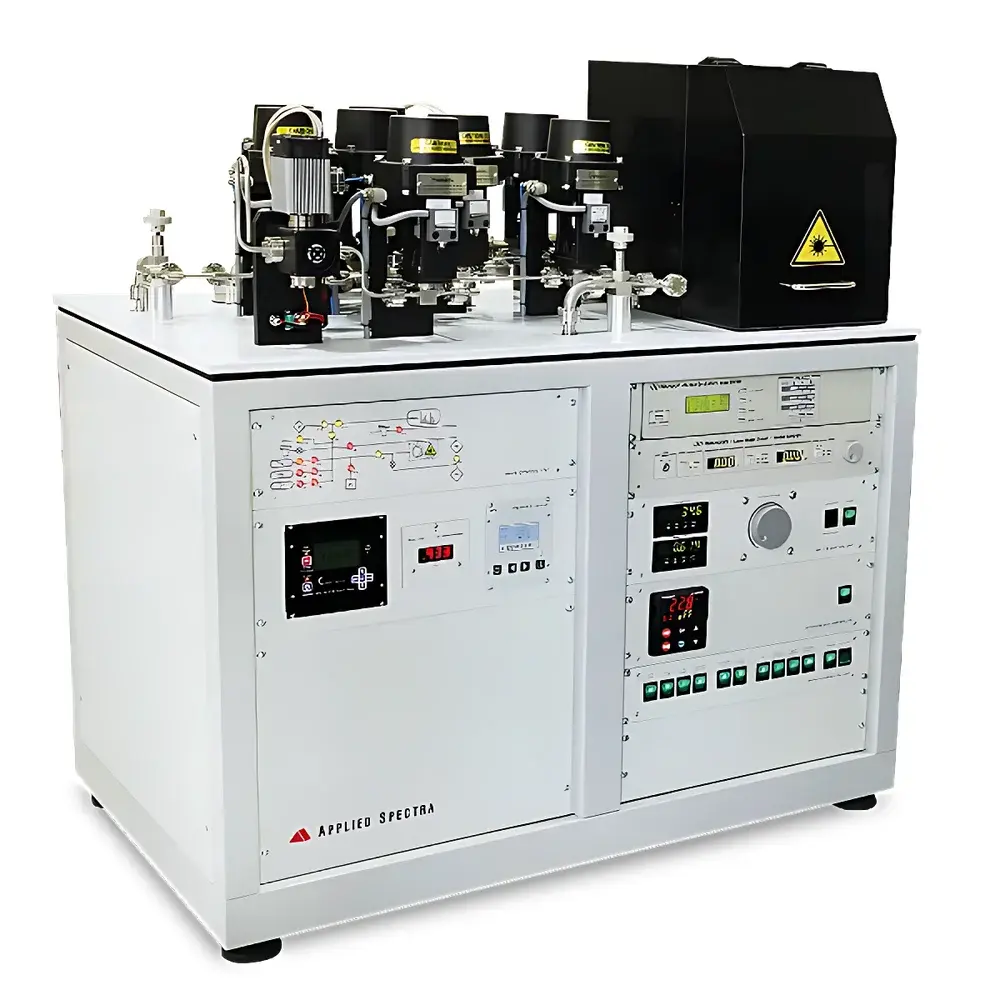

Alphachron Helium Isotope Automated Extraction and Analysis System
| Brand | Applied Spectra |
|---|---|
| Origin | USA |
| Manufacturer Status | Authorized Distributor |
| Origin Category | Imported |
| Model | Alphachron |
| Instrument Type | Stable Gas Isotope Ratio Mass Spectrometer |
| Mass Range | 1–50 u |
Overview
The Alphachron Helium Isotope Automated Extraction and Analysis System is a fully integrated, laboratory-scale platform engineered for high-precision measurement of helium isotope ratios (³He/⁴He) in geological, geochemical, and nuclear safeguards samples. It combines ultra-high-vacuum (UHV) noble gas extraction, cryogenic purification, and dual-collector isotope ratio mass spectrometry (IRMS) in a single, automated workflow. Unlike conventional offline or semi-automated systems, the Alphachron performs sequential degassing (e.g., step-heating or laser fusion), quantitative helium quantification via calibrated ion current measurement, and real-time isotope ratio calculation—all under software-controlled vacuum integrity monitoring. Its design adheres to established principles of noble gas geochemistry, where isotopic fidelity depends critically on blank minimization, memory effect suppression, and mass-dependent fractionation correction—features systematically addressed through its all-metal UHV architecture, bakeable manifold, and Faraday cup/detector array optimized for low-abundance ³He detection.
Key Features
- Automated, programmable sample processing: Supports both furnace-based step-heating (up to 1600 °C) and laser-assisted micro-extraction (with optional Nd:YAG laser module) for spatially resolved analysis of minerals, glasses, or irradiated materials.
- Dual-collector IRMS configuration: Simultaneous measurement of m/z = 3 and m/z = 4 ions using high-stability Faraday cups, enabling sub-permil precision (1σ ≤ 0.3‰) on ³He/⁴He ratios with integration times ≥ 60 s.
- Integrated UHV extraction line: All-metal (stainless steel + copper gasket) manifold with base pressure < 5 × 10⁻¹⁰ mbar; equipped with non-evaporable getter (NEG) pumps, turbomolecular pumping stages, and real-time residual gas analysis (RGA) for continuous blank assessment.
- On-line cryo-trapping and purification: Dual-stage cryogenic separation (liquid N₂ and closed-cycle He-cooled traps) removes H₂, H₂O, CO₂, N₂, CH₄, and Ne prior to helium introduction into the mass spectrometer.
- Calibration traceability: Built-in reference gas inlet with certified ³He/⁴He standard (e.g., HESJ or HD-B1), supporting bracketing protocols compliant with IUPAC Technical Report guidelines for stable isotope ratio measurements.
Sample Compatibility & Compliance
The Alphachron accommodates solid samples ranging from 1 mg to 5 g—including olivine, pyroxene, basaltic glass, zircon, meteoritic metal, and neutron-irradiated reactor materials. Sample holders are compatible with standard 6-mm or 9-mm diameter platinum or nickel crucibles. The system meets essential requirements for geochemical reference material intercomparison (e.g., USGS BHVO-2, NIST SRM 610) and supports audit-ready data acquisition per GLP and ISO/IEC 17025:2017 Annex A.2. Vacuum integrity logs, detector gain histories, and calibration event timestamps are automatically embedded in raw data files, satisfying traceability needs for regulatory submissions under ASTM D7891–19 (Standard Practice for Measurement of Noble Gas Isotopes in Geological Samples) and IAEA Nuclear Safeguards protocols.
Software & Data Management
Control and data reduction are performed via Alphachron Control Suite v4.x—a Windows-based application with modular architecture for instrument control, real-time spectral visualization, and post-acquisition ratio calculation. The software implements exponential law-based mass discrimination correction using measured ⁴He/²⁰Ne or ⁴He/⁴⁰Ar ratios from co-introduced standards. All acquired ion currents are stored in HDF5 format with embedded metadata (sample ID, temperature ramp profile, pump status, RGA spectra). Export options include CSV, Excel, and ISA-Tab-compliant formats. Audit trail functionality records user actions, parameter changes, and calibration events with time stamps and operator login IDs—fully compliant with FDA 21 CFR Part 11 requirements when configured with electronic signature modules.
Applications
- Crust-mantle differentiation studies using mantle-derived xenoliths and ocean island basalts.
- Thermochronology of apatite and titanite via (U–Th)/He dating, where precise ³He/⁴He measurement constrains diffusion kinetics and thermal history modeling.
- Nuclear forensics and non-proliferation verification through ³He ingrowth analysis in uranium/plutonium matrices following neutron irradiation.
- Planetary science applications including lunar regolith and martian meteorite analysis for solar wind implantation signatures.
- Groundwater age tracing in hydrogeological investigations, particularly in low-³He aquifers requiring high-sensitivity detection limits (< 10⁻¹⁵ mol ³He).
FAQ
What sample preparation is required prior to loading into the Alphachron system?
Minimal preparation is needed: samples must be cleaned of surface contaminants (e.g., ultrasonicated in dilute HNO₃), dried under vacuum, and loaded into clean, pre-baked crucibles. No chemical digestion or noble gas spiking is required.
Can the Alphachron measure other noble gases besides helium?
Yes—the system’s mass range (1–50 u) and cryo-purification architecture support full noble gas analysis (He, Ne, Ar, Kr, Xe), though dedicated tuning and calibration protocols are required for each element.
Is remote operation supported?
Remote monitoring and basic sequence initiation are enabled via secure VPN connection; however, physical intervention (e.g., sample loading, crucible replacement, vacuum leak checks) requires on-site personnel.
How often does the system require recalibration?
Daily bracketing with primary reference gas is recommended; long-term detector gain stability is verified weekly using secondary standards traceable to NIST-certified materials.
Does the system comply with ISO 17025 for accredited testing laboratories?
Yes—when operated with documented SOPs, scheduled preventive maintenance logs, and third-party metrological validation reports, the Alphachron satisfies technical competence criteria outlined in ISO/IEC 17025:2017 Clause 7.7 (Measurement Uncertainty) and Clause 7.8 (Reporting Results).
