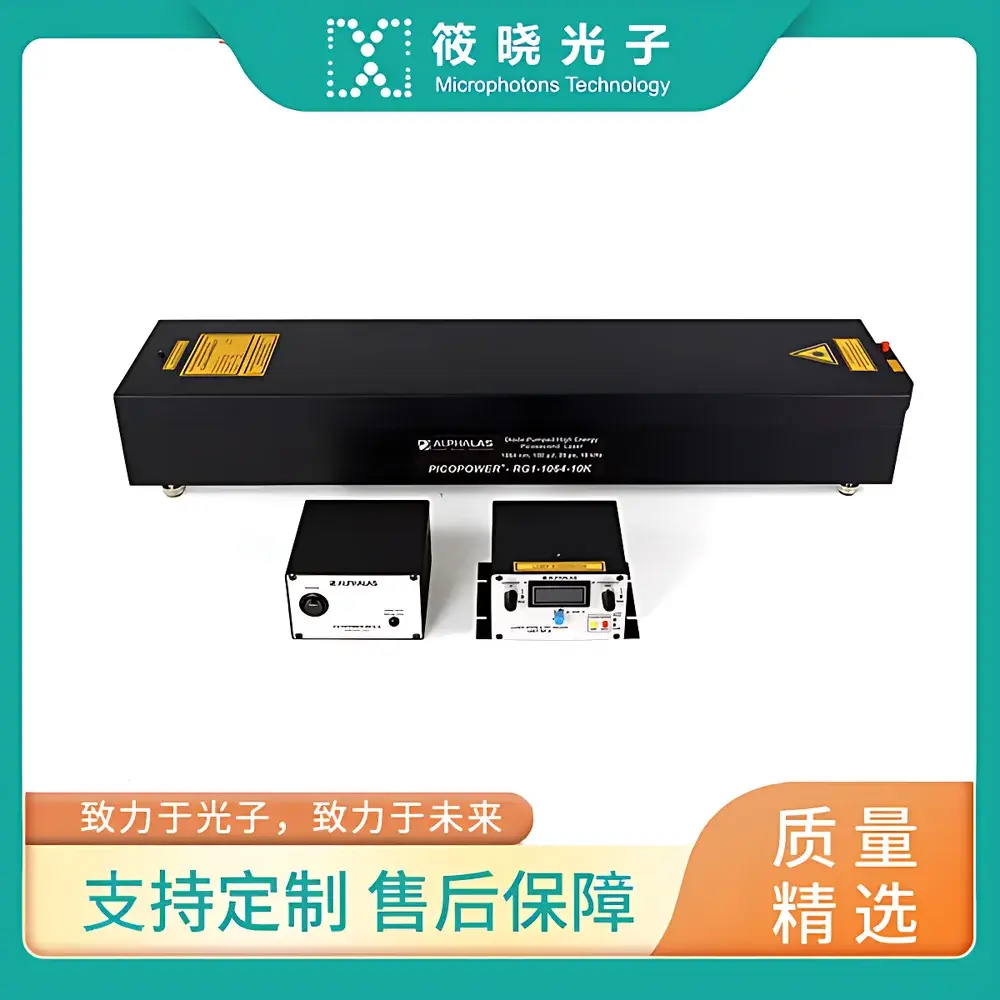

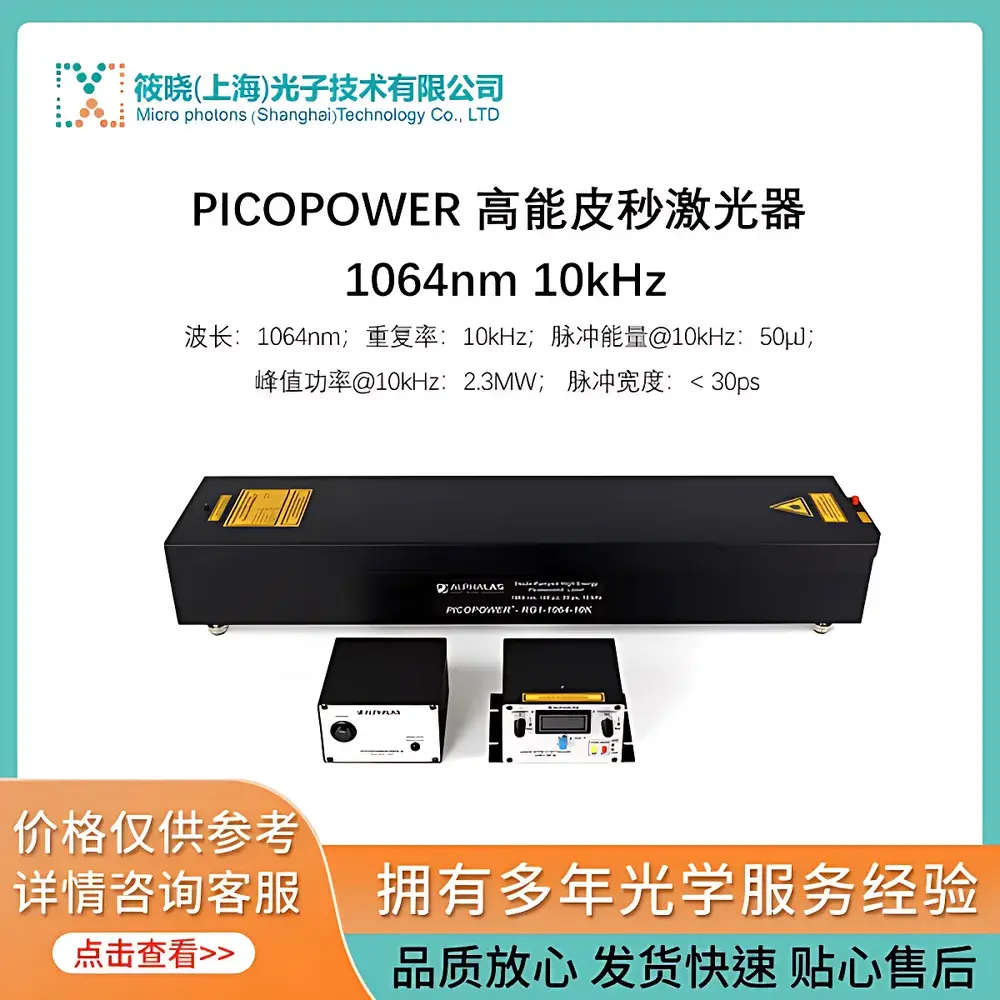

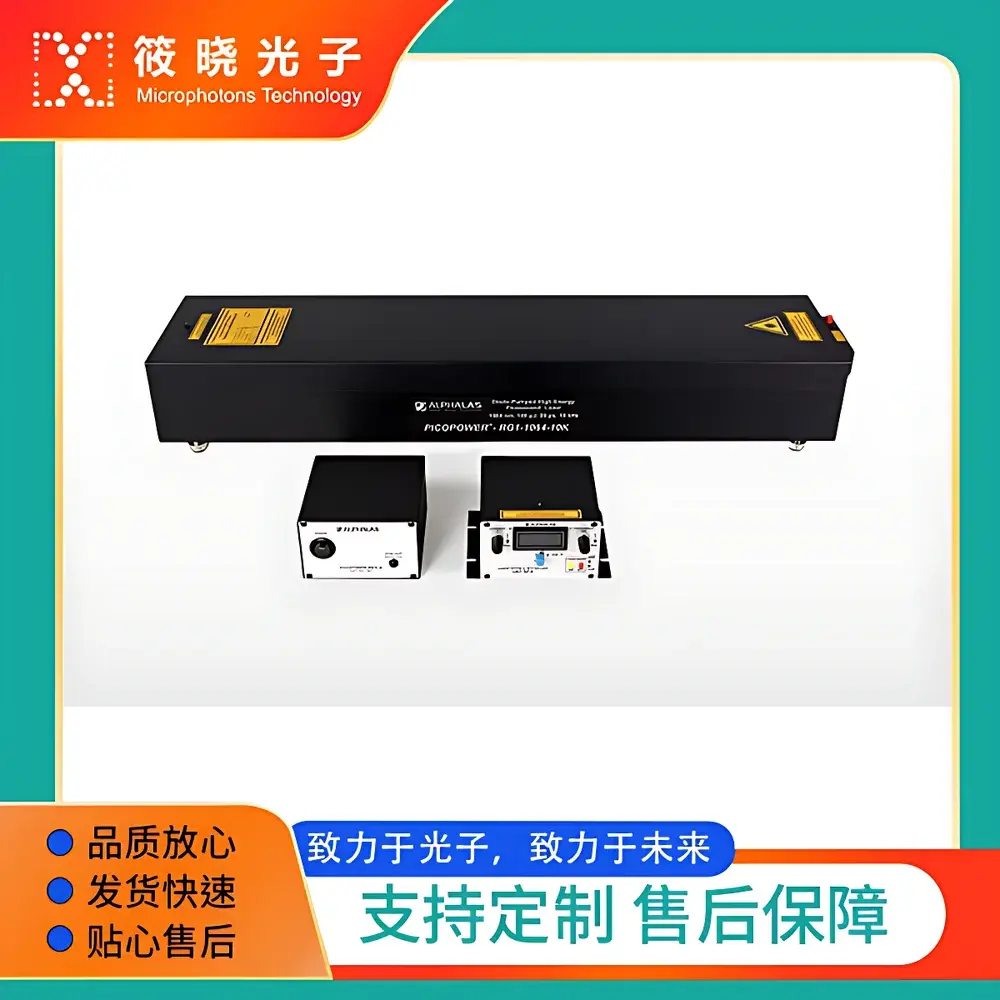

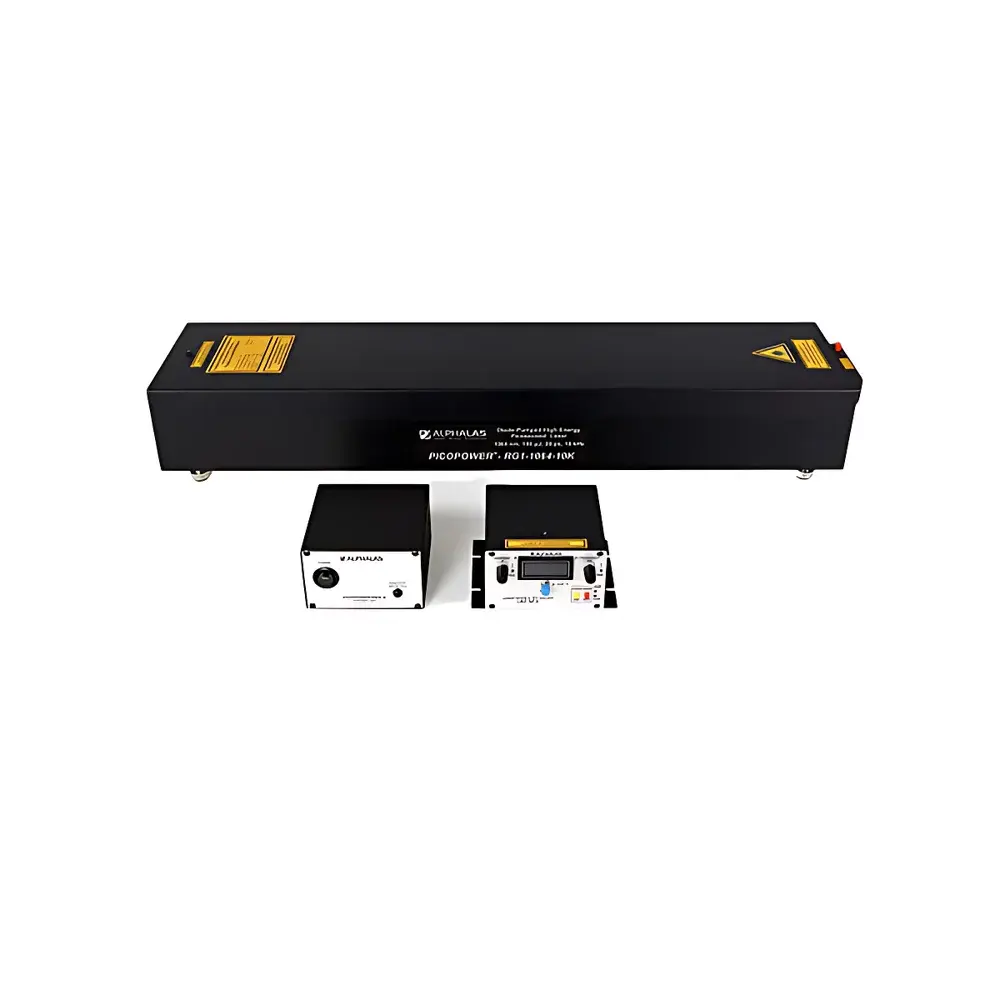

AlphaLas PICOPOWER-RG1-1064-10K High-Energy Picosecond Solid-State Laser System
| Brand | AlphaLas |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported Optical Instrument |
| Model | PICOPOWER-RG1-1064-10K |
| Laser Type | Diode-Pumped Solid-State (DPSS) Q-Switched Laser |
| Wavelength | 1064 nm |
| Repetition Rate | 10 kHz |
| Pulse Duration | <15 ps |
| Output Configuration | TEM₀₀ |
| Cooling | Air-Cooled |
| Compliance | CE, RoHS, IEC 60825-1:2014 Class 4 Laser Product |

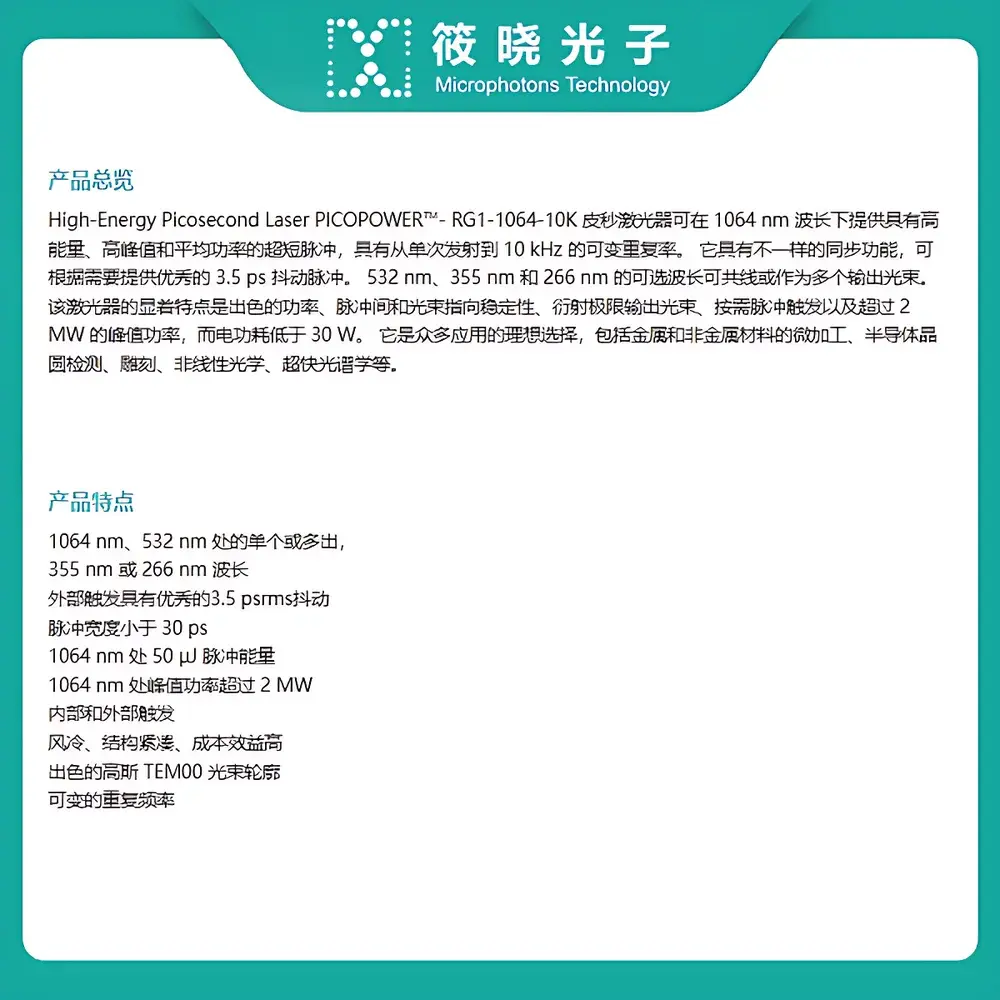

Overview
The AlphaLas PICOPOWER-RG1-1064-10K is a diode-pumped, passively Q-switched solid-state laser engineered for high-repetition-rate picosecond pulse generation at the fundamental Nd:YAG wavelength of 1064 nm. Based on a monolithic microchip cavity architecture with saturable absorber integration, it delivers sub-15 ps pulses with excellent temporal stability and spatial beam quality (TEM₀₀), enabling precise nonlinear optical excitation, time-resolved spectroscopy, and ultrafast pump-probe applications. Designed and manufactured in Germany under strict ISO 9001-certified processes, this system meets stringent requirements for laboratory-grade reliability, long-term amplitude stability (<1.5% RMS over 8 hours), and low timing jitter (<300 fs RMS). Its air-cooled, compact OEM-ready housing supports integration into turnkey systems for industrial metrology, scientific instrumentation, and photonics R&D platforms.
Key Features
- Stable 10 kHz repetition rate with internal or external TTL synchronization capability
- High peak power output (>100 kW typical) with pulse energy up to 12 µJ per pulse
- Passive Q-switching mechanism ensures zero maintenance and no active electronics in the resonator
- Integrated temperature-stabilized diode pumping for consistent pulse-to-pulse energy stability
- Beam collimation optics pre-aligned to deliver M² < 1.2 and divergence < 1.5 mrad (full angle)
- Compliant with IEC 60825-1:2014 safety standards; includes interlock connector and key switch for Class 4 laser operation
- RS-232 and USB 2.0 interfaces for remote control of repetition rate, pulse enable/disable, and status monitoring
Sample Compatibility & Compliance
The PICOPOWER-RG1-1064-10K is compatible with standard optical tables, delay stages, autocorrelators, streak cameras, and photodetectors used in ultrafast laboratories. Its 1064 nm output couples efficiently into nonlinear crystals (e.g., BBO, LBO, KTP) for harmonic generation (SHG/THG) and optical parametric amplification (OPA). The system conforms to European CE marking directives, RoHS 2011/65/EU, and laser safety requirements per EN 60825-1:2014. For regulated environments—including GLP-compliant analytical labs and FDA-regulated device development—the laser’s firmware supports audit-trail-capable logging via optional AlphaLas Control Suite v3.x, aligning with 21 CFR Part 11 data integrity principles when deployed with validated software configurations.
Software & Data Management
AlphaLas provides the cross-platform PicoControl GUI (Windows/macOS/Linux) for real-time parameter adjustment, pulse monitoring, and event logging. All operational states—including diode current, cavity temperature, repetition rate lock status, and fault codes—are timestamped and exportable as CSV or HDF5 files. The SDK (C/C++, Python, LabVIEW) enables seamless integration into custom acquisition pipelines, including synchronization with oscilloscopes, TCSPC modules, or FPGA-based timing controllers. Firmware updates are delivered via signed binary packages with SHA-256 verification to ensure traceability and integrity—critical for ISO/IEC 17025-accredited calibration workflows.
Applications
- Time-resolved fluorescence lifetime imaging (FLIM) and single-photon counting
- Pump-probe spectroscopy for carrier dynamics in semiconductors and 2D materials
- Optical time-domain reflectometry (OTDR) and laser-induced breakdown spectroscopy (LIBS)
- Two-photon polymerization and precision micromachining of transparent dielectrics
- Seed source for amplified Ti:sapphire or fiber-based CPA systems
- Calibration of fast photodiodes and streak camera response functions
FAQ
What is the maximum average output power of the PICOPOWER-RG1-1064-10K?
Typical average power is 120 mW at 10 kHz; exact value depends on ambient temperature and drive current tuning within specified operating range.
Can the laser be externally triggered or synchronized to another device?
Yes—TTL-compatible trigger input accepts rising-edge signals with adjustable delay (0–100 ns resolution) and jitter compensation mode.
Is the beam polarization linear and stable over time?
Yes—output polarization extinction ratio exceeds 100:1, maintained across thermal cycles and continuous operation.
Does the system include beam delivery optics or require external collimation?
A factory-collimated free-space output is provided; optional fiber coupling kits (FC/APC or SMA-905) are available upon request.
What documentation is supplied for regulatory compliance and installation?
Each unit ships with EC Declaration of Conformity, laser safety manual, calibration certificate (traceable to PTB), and mechanical/electrical interface drawings.
