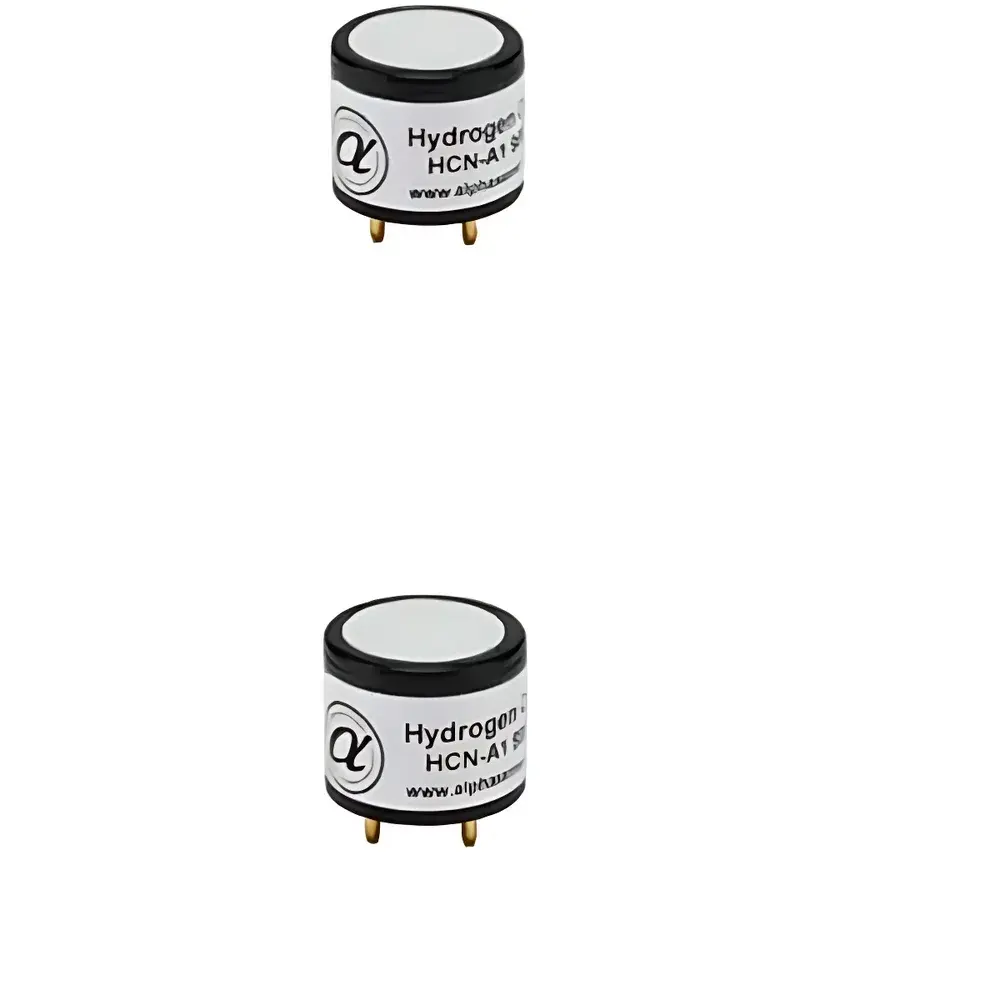

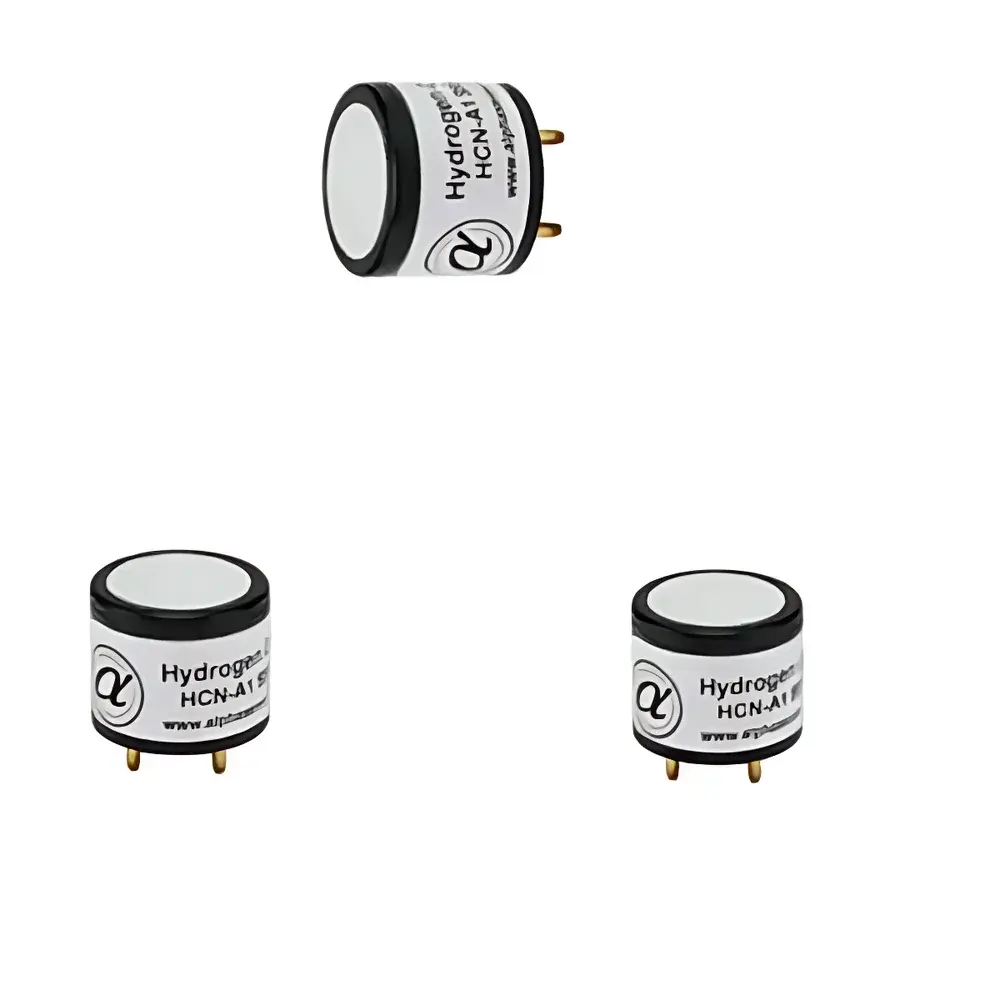

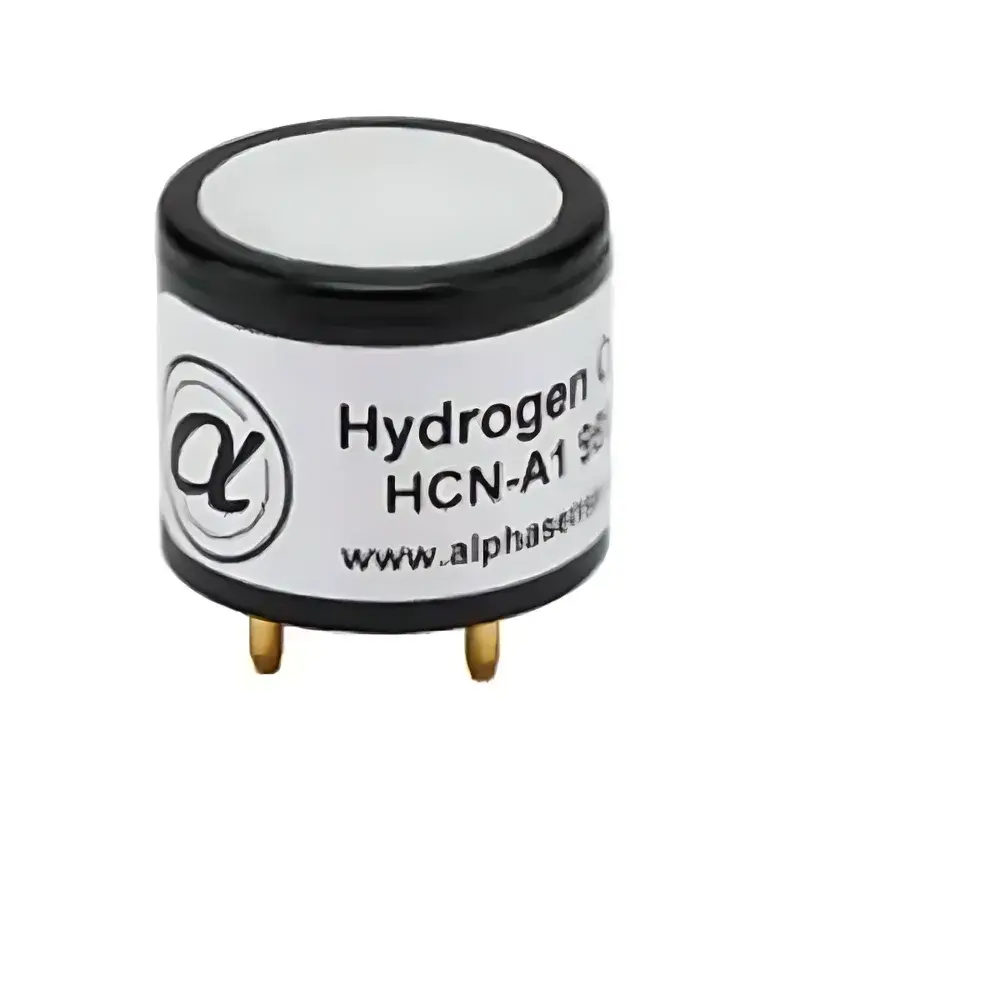

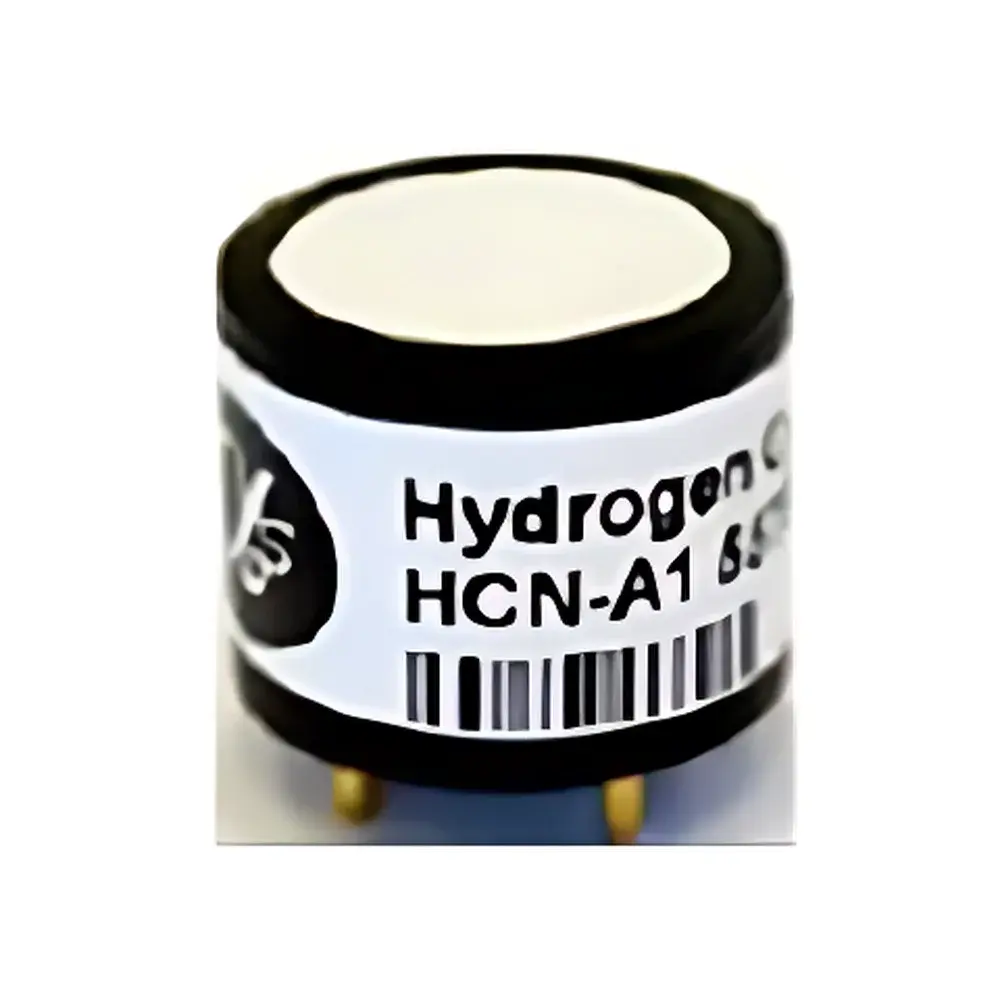

Alphasense HCN-A1 Electrochemical Hydrogen Cyanide (HCN) Gas Sensor

Overview

The Alphasense HCN-A1 is a high-performance, three-electrode electrochemical gas sensor engineered for the selective and stable detection of hydrogen cyanide (HCN) in ambient air. Based on amperometric transduction, the sensor operates via diffusion-controlled oxidation of HCN at the working electrode in an acidic electrolyte, generating a current proportional to gas concentration. Its design adheres to fundamental electrochemical principles defined in IEC 60079-29-1 and conforms to performance benchmarks for fixed and portable toxic gas monitoring systems used in industrial hygiene, confined space entry, and process safety applications. The HCN-A1 delivers calibrated output in nanoampere (nA) signals compatible with standard 4–20 mA or 0–5 V transmitter interfaces, enabling seamless integration into OEM gas detectors, multi-gas monitors, and distributed control systems (DCS).

Key Features

• Optimized selectivity for HCN with minimized cross-sensitivity to common interferents including CO, NO₂, SO₂, and H₂S—validated per Alphasense Application Note AN-001-RevD.
• Stable baseline and low zero drift (<±2 nA over 30 days at 23 °C, 50 %RH), ensuring long-term measurement integrity without frequent recalibration.
• Robust construction with PTFE hydrophobic membrane and integrated activated carbon filter to mitigate humidity-induced signal suppression and organic vapor poisoning.
• Compact cylindrical form factor (Ø20.2 × 16.5 mm) designed for space-constrained PCB mounting in handheld and wall-mounted analyzers.
• Factory-calibrated with traceable NIST-traceable HCN reference gas; calibration certificate supplied with each batch.
• Compliant with RoHS 2011/65/EU and REACH Annex XVII, with lead-free solder-compatible terminals and halogen-free housing materials.

Sample Compatibility & Compliance

The HCN-A1 is intended for continuous or intermittent sampling of ambient air in non-explosive environments (Category II 2G, per EN 60079-0). It is not rated for use in ATEX Zone 0 or IECEx Zone 0 applications without additional system-level certification. The sensor meets functional safety requirements for SIL 2-capable subsystems when deployed with appropriate redundancy and diagnostic coverage per IEC 61508. For occupational exposure monitoring, it supports compliance with OSHA PEL (10 ppm TWA) and NIOSH REL (4.7 ppm ceiling), and its linear range (0–40 ppm) covers both short-term exposure limit (STEL) and immediately dangerous to life or health (IDLH) thresholds (50 ppm). Data logging and alarm triggering functions must be implemented at the host instrument level in accordance with ISO 10156 and EN 45544-1 for toxic gas detection systems.

Software & Data Management

While the HCN-A1 itself is an analog transducer without embedded firmware, its signal output is fully supported by Alphasense’s open-interface ecosystem. Host instruments utilizing the sensor can implement linearization algorithms based on the documented sensitivity range (45–85 nA/ppm) and temperature compensation coefficients provided in the official datasheet (Document No. HCN-A1-DS-RevF). For audit-ready deployments, OEMs may integrate the sensor into platforms compliant with FDA 21 CFR Part 11 (electronic records/signatures) and EU Annex 11 (computerized systems), particularly where HCN monitoring supports GLP or GMP environmental controls in pharmaceutical manufacturing or chemical synthesis facilities. Alphasense provides full technical documentation—including aging curves, humidity correction tables, and shelf-life validation reports—for inclusion in quality management system (QMS) files.

Applications

• Fixed-point toxic gas monitoring in electroplating, metal finishing, and acrylic fiber production facilities where HCN is generated as a byproduct.
• Portable multi-gas detectors for emergency response teams responding to chemical spills, fire incidents involving nitrogen-containing polymers, or industrial accidents.
• Process analytical technology (PAT) in pharmaceutical API synthesis where HCN is used as a reagent or intermediate, requiring real-time off-gas analysis.
• Indoor air quality (IAQ) assessment in laboratories handling cyanide salts or conducting fumigation with HCN-based biocides.
• Environmental monitoring near landfills or wastewater treatment plants where HCN may evolve from anaerobic degradation of nitrogenous waste.

FAQ

What is the recommended warm-up time before stable operation?
Minimum 24 hours after removal from sealed packaging; full stabilization typically achieved within 48–72 hours under continuous bias.

Can the HCN-A1 be operated below −20 °C?
Operation below −20 °C is not recommended due to increased electrolyte viscosity and risk of condensation-induced signal hysteresis; extended exposure below −30 °C may cause irreversible membrane damage.

Is periodic zero calibration required?
Yes—Alphasense recommends zero calibration every 30 days in field use, using certified zero air (hydrocarbon-free, 100 ppm.

How does relative humidity affect measurement accuracy?
Signal attenuation of up to 15 % may occur at >90 %RH without active humidity compensation; OEMs should implement either hardware-based RH sensing with algorithmic correction or use of integrated desiccant cartridges.

What is the shelf life under refrigerated storage?
6 months at 5–10 °C in original vacuum-sealed packaging; storage above 25 °C accelerates electrolyte evaporation and reduces operational lifespan.
