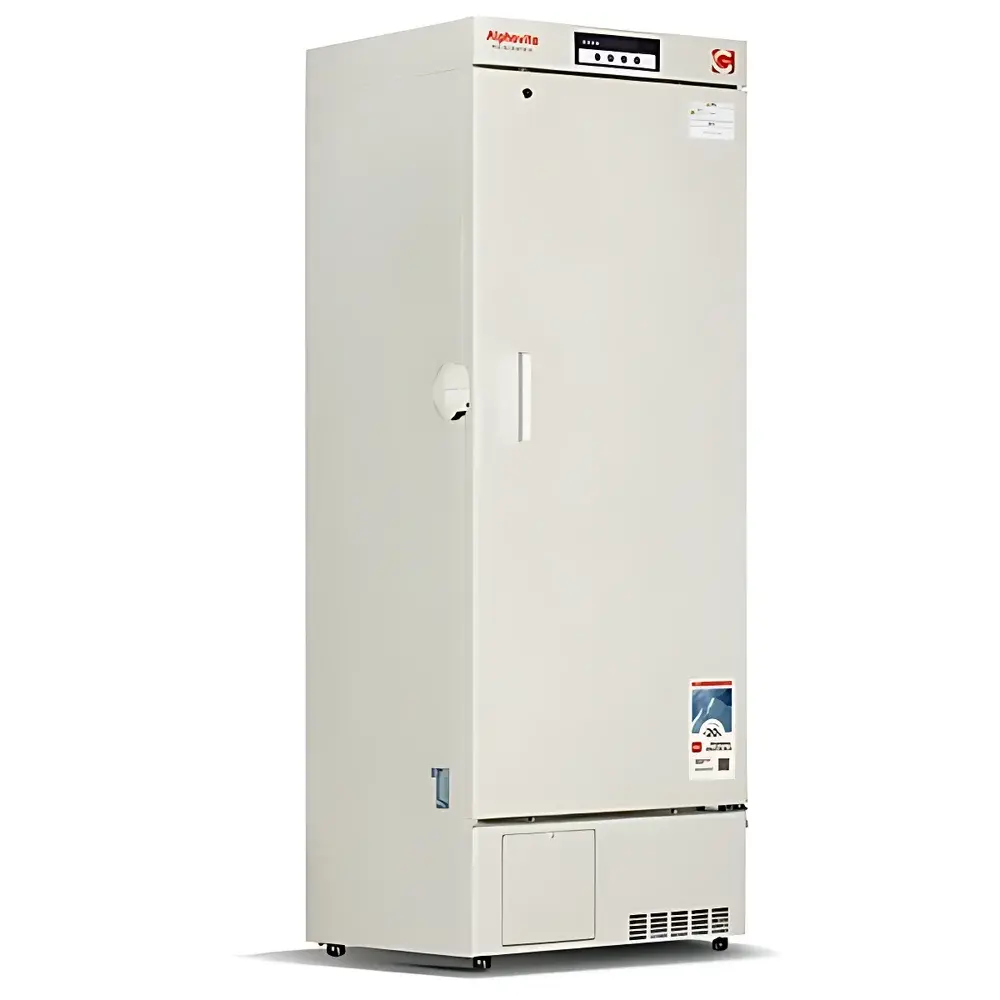

Alphavita GDF-529H Ultra-Low Temperature Laboratory Freezer

Overview

The Alphavita GDF-529H Ultra-Low Temperature Laboratory Freezer is an upright, high-efficiency cryogenic storage system engineered for long-term, stable preservation of temperature-sensitive biological materials—including vaccines, recombinant proteins, primary cell lines, enzymatic reagents, serum-supplemented media, and nucleic acid preparations. Designed around a dual-stage cascade refrigeration architecture with original imported compressors, the unit delivers precise thermal control across its operational range of –40 °C to –86 °C, with optional configuration support for intermediate cold storage zones (–10 °C to –20 °C and –20 °C to –40 °C) to accommodate heterogeneous sample portfolios within a single footprint. Its structural integrity, thermal uniformity, and energy-efficient operation align with ISO 13485–aligned manufacturing practices and meet core requirements for GLP-compliant biobanking environments.

Key Features

• Robust dual-stage cascade refrigeration system with imported compressors, ensuring consistent cooling performance and extended service life under continuous operation.
• VIP (Vacuum Insulation Panel) technology integrated into all six cabinet walls, significantly reducing heat ingress and improving energy efficiency—validated by ≤ 40 dB(A) acoustic emission during steady-state operation.
• Hydrocarbon (HC)-based refrigerant formulation compliant with Montreal Protocol phase-out schedules and EU F-Gas Regulation (EU No. 517/2014), eliminating ozone-depleting substances and high-GWP fluorocarbons.
• Intelligent power-loss recovery: All setpoints, alarm thresholds, and logging parameters are retained in non-volatile memory during mains interruption; system resumes pre-failure configuration automatically upon power restoration.
• Enhanced access security via dual-locking mechanism—integrated rotating latch prevents accidental door opening, while standardized padlock-compatible hasp enables physical access restriction per institutional SOPs.
• Modular interior architecture featuring adjustable-height wire shelving and configurable stainless-steel partitions, supporting customizable compartmentalization for vial racks, cryoboxes, or stacked containers without compromising airflow or thermal homogeneity.

Sample Compatibility & Compliance

The GDF-529H maintains thermal stability within ±1.5 °C throughout its 504 L working volume, validated per ICH Q5C and USP guidelines for cold chain integrity. Its chamber design supports standard ANSI/SLAS-format cryogenic storage accessories (e.g., 10 × 10 grid boxes, 2 mL cryovials, and 50 mL conical tubes). The unit complies with electrical safety standards IEC 61010-1 and EMC directive 2014/30/EU. While not certified to UL 471 or NSF/ANSI 456, it meets essential functional criteria for laboratory-grade ultra-low temperature storage as referenced in ISO 20387:2018 (Biobanking) and WHO Technical Report Series No. 999 Annex 6 (Storage of Vaccines).

Software & Data Management

Equipped with an embedded microprocessor controller featuring real-time digital display, programmable alarms (high/low temperature, door ajar, power failure), and event-driven logging of critical parameters (temperature, compressor runtime, defrost cycles). Optional RS485 Modbus RTU interface enables integration into centralized BMS or LIMS platforms. Audit trail functionality supports timestamped records of user-initiated changes—fully compatible with 21 CFR Part 11–aligned validation protocols when paired with validated third-party data acquisition software.

Applications

• Long-term archival storage of clinical-grade vaccines and monoclonal antibody drug substances at –70 °C or lower.
• Stabilization of thermolabile enzymes (e.g., restriction endonucleases, reverse transcriptases) and lyophilized reagents requiring uninterrupted sub–40 °C conditions.
• Biobank infrastructure supporting ISO 20387-compliant specimen repositories for human tissue, PBMCs, and genomic DNA libraries.
• QC/QA laboratories maintaining reference standards and calibration materials under controlled low-temperature environments per ISO/IEC 17025 clause 5.5.2.
• Academic and contract research organizations managing multi-tiered cold storage workflows—from –20 °C buffer stocks to –80 °C master cell banks.

FAQ

What is the recommended ambient operating environment for the GDF-529H?

The unit is rated for installation in rooms maintained between 10 °C and 32 °C with relative humidity ≤ 80% RH, non-condensing. Clearance of ≥ 100 mm on all sides and above is required for adequate condenser ventilation.
Does the freezer support remote monitoring or network connectivity?

Standard configuration includes local display and audible/visual alarms. RS485 Modbus RTU output is available as a factory option for integration with building management systems or custom SCADA interfaces.
Is the GDF-529H suitable for storing liquid nitrogen–sensitive samples?

No. This is a mechanical ultra-low temperature freezer—not a liquid nitrogen–based cryostat. It does not achieve temperatures below –86 °C nor provide vapor-phase storage capability.
How often does the unit require preventive maintenance?

Compressor oil and refrigerant integrity checks are advised annually; condenser coil cleaning every six months in dusty environments. Full service intervals follow manufacturer-recommended PM schedules aligned with ISO 13485 maintenance documentation requirements.
Can temperature uniformity be independently verified?

Yes. The inner chamber accommodates up to nine calibrated PT100 probes per ICH Q5C mapping protocol. Validation reports may be generated using external data loggers compliant with ASTM E2810–11 and EU GMP Annex 15.
