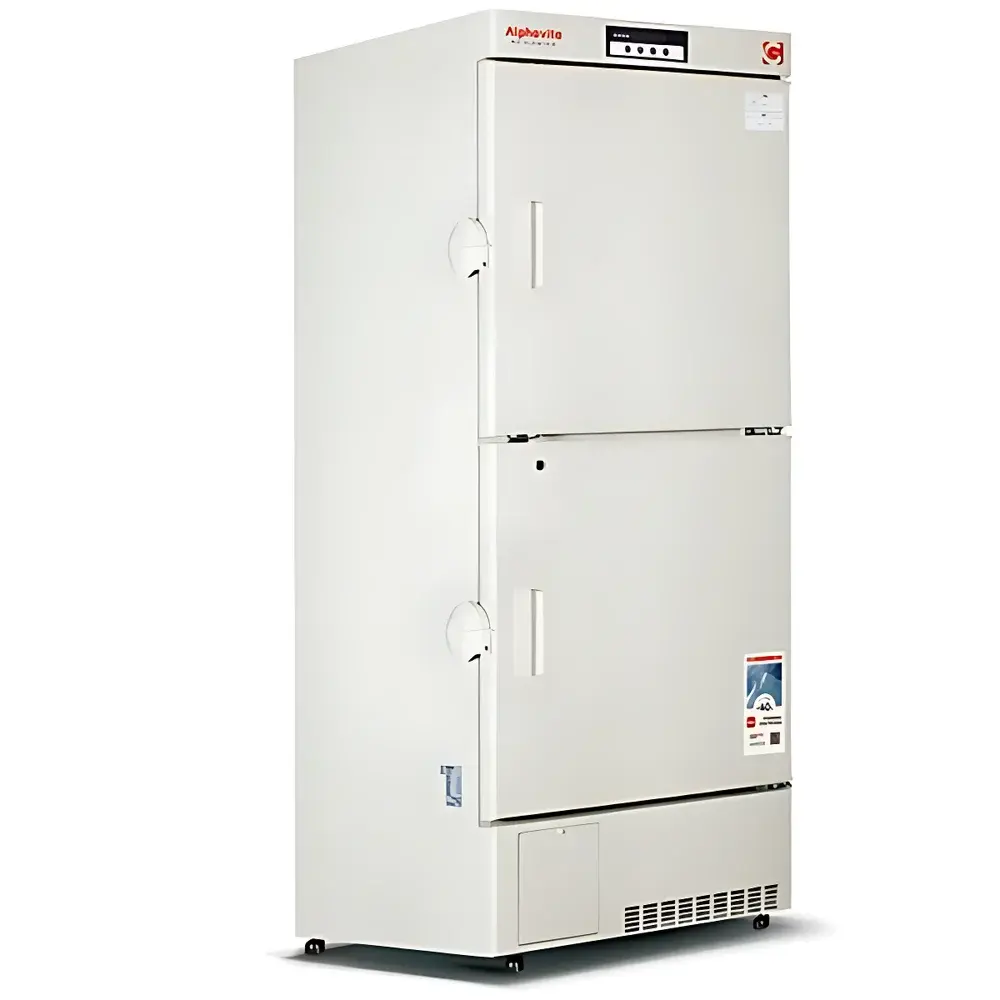

Alphavita GDF-549H Ultra-Low Temperature Laboratory Freezer

Overview

The Alphavita GDF-549H is an upright ultra-low temperature (ULT) laboratory freezer engineered for long-term, high-integrity storage of biologics—including vaccines, recombinant proteins, primary cell lines, enzymatic reagents, cryopreserved tissues, and diagnostic reference standards. Operating stably within a validated temperature range of –40 °C to –86 °C (typical setpoint: –80 °C), the unit employs a cascade refrigeration system with dual-stage hydrocarbon-based compressors (R290/R170 blend), delivering precise thermal control with minimal energy consumption and zero ozone depletion potential (ODP = 0). Its thermally optimized architecture integrates vacuum-insulated panel (VIP) technology in critical wall and door sections, combined with high-density polyurethane foam (≥150 mm thickness), achieving superior thermal resistance (U-value < 0.18 W/m²·K) and reducing temperature fluctuation to ±1.5 °C across the entire chamber under standard load conditions (IEC 60068-2-1/2 testing protocol).

Key Features

• High-efficiency cascade refrigeration system with imported hermetic compressors—designed for continuous operation at –80 °C with >20,000-hour MTBF (Mean Time Between Failures)
• VIP-enhanced insulation structure minimizing heat ingress and improving recovery time after door openings (≤12 min to recover from 30-sec open-door event at ambient 25 °C)
• Dual-stage rotary door latch mechanism with tactile feedback and integrated padlock-compatible aperture—meets ISO 15197:2013 mechanical security recommendations for clinical sample storage
• Intelligent power-loss management: All user-defined parameters (setpoint, alarm thresholds, logging intervals) are retained in non-volatile memory; automatic resumption of prior configuration upon grid recovery
• Low-noise operation (≤40 dB[A] at 1 m distance) achieved via acoustic dampening mounts, optimized airflow ducting, and low-RPM fan speed modulation
• Ergonomic interior layout with fully adjustable stainless-steel wire shelving (5-tier standard), supporting customizable height increments (25 mm steps) and optional drawer modules for vial/box organization

Sample Compatibility & Compliance

The GDF-549H supports storage of diverse biospecimens requiring stringent thermal stability: cryovials (1.0–2.0 mL), cryoboxes (10×10 format), enzyme microtubes, lyophilized reagents, and pre-filled syringes. Chamber uniformity meets ASTM F2607–22 Class II specifications (±3 °C max deviation at nine-point mapping under static load). The unit is designed to support compliance with ISO 20387:2018 (biobanking), CLSI GP44-A4 (temperature monitoring for cold chain integrity), and FDA 21 CFR Part 11 when integrated with compliant data loggers and audit-trail-enabled software. Temperature mapping validation kits and IQ/OQ documentation templates are available upon request.

Software & Data Management

While the GDF-549H operates via an embedded microcontroller-based interface with LED display and membrane keypad, it features RS485 Modbus RTU and optional Ethernet (TCP/IP) ports for integration into centralized laboratory infrastructure. Compatible with Alphavita’s ALCM (Advanced Lab Climate Monitor) software suite, the freezer enables remote real-time monitoring, configurable SMS/email alerts (via gateway), and exportable CSV logs traceable to ISO/IEC 17025 calibration records. All alarm events—including door-open duration, high-temp excursions, compressor fault codes, and sensor drift warnings—are timestamped and stored with ≥12-month local history (expandable via SD card module).

Applications

• Clinical trial biobanking: Long-term archiving of PBMCs, serum/plasma aliquots, and FFPE tissue blocks under CAP-accredited workflows
• Vaccine R&D: Stability testing of mRNA-LNPs, viral vectors, and adjuvanted formulations per WHO TRS 1015 Annex 5 guidance
• QC/QA laboratories: Storage of certified reference materials (CRMs), calibrators, and control sera per ISO 15197 and USP
• Academic core facilities: Shared-resource ULT storage supporting multi-user access control, usage logging, and automated inventory tagging (via optional RFID reader integration)
• Regulated diagnostics: Cold-chain maintenance for IVD reagents subject to IVDR Annex II requirements on storage condition traceability

FAQ

What is the minimum achievable temperature and how is it verified?
The GDF-549H achieves and maintains –86 °C under ISO 20387-defined test conditions (empty chamber, 25 °C ambient, 60% RH). Verification is performed using NIST-traceable PT100 sensors during factory IQ/OQ.
Does the unit support 21 CFR Part 11-compliant electronic records?
Yes—when paired with ALCM software v3.2+ and a validated digital signature module, full audit trail, role-based access control, and electronic signature functionality are enabled.
Can the interior be configured for ANSI/SLAS microplate storage?
Yes—optional plate racks (max 12× 96-well plates per tier) and universal adapter trays are available as accessories.
Is routine calibration required, and what standards apply?
Annual calibration against ISO/IEC 17025-accredited references is recommended; Alphavita provides certified calibration certificates traceable to NIM (China National Institute of Metrology).
What safety certifications does the GDF-549H hold?
CE marking (2014/30/EU EMC Directive, 2014/35/EU LVD), RoHS 2011/65/EU, and GB/T 20154–2014 (Chinese national standard for ULT freezers).
