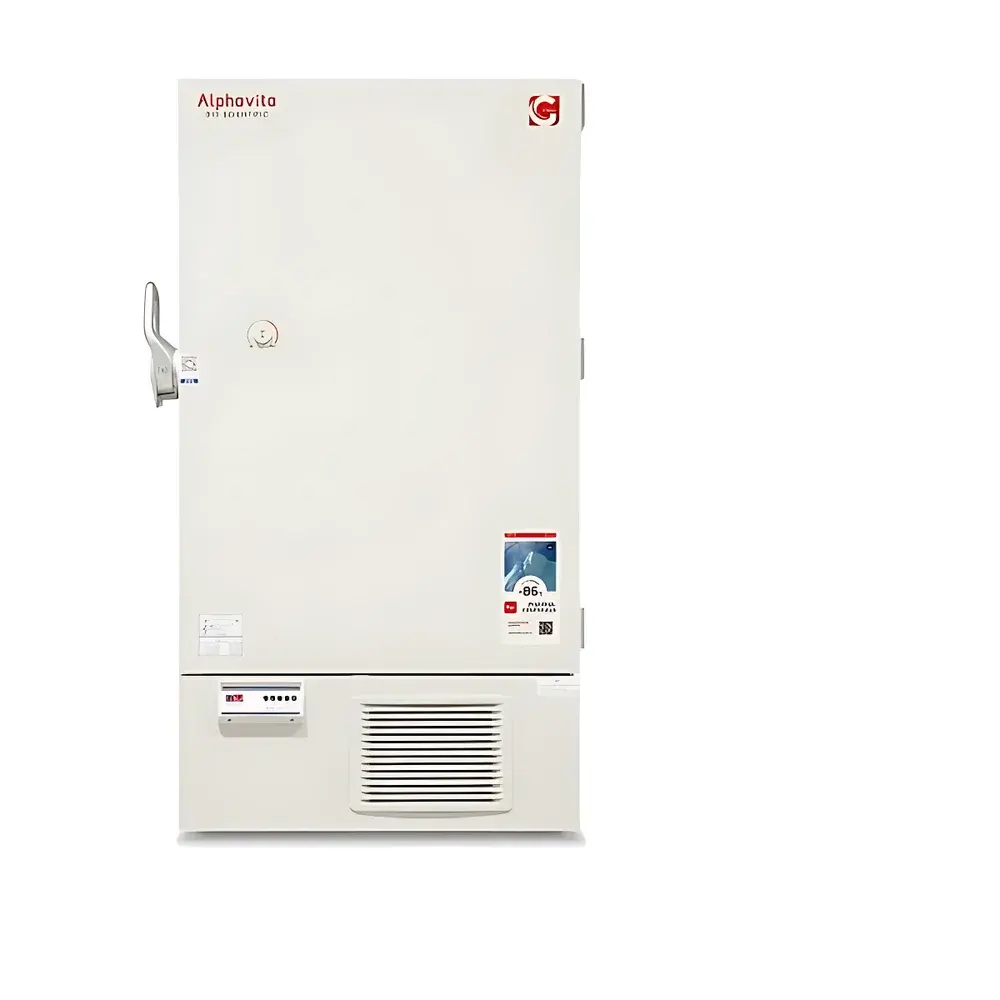

Alphavita GDF-U780VHE Ultra-Low Temperature Freezer

Overview

The Alphavita GDF-U780VHE Ultra-Low Temperature Freezer is engineered for long-term cryogenic storage of sensitive biological specimens—including primary cells, stem cell lines, genomic DNA, RNA, recombinant proteins, and clinical biospecimens—in compliance with ISO 20387:2018 (Biobanking) and CAP/CLIA pre-analytical requirements. It employs a cascade (two-stage) refrigeration architecture with hydrocarbon (R290/R600a) refrigerants to achieve stable operation at -80°C, minimizing thermal drift and ensuring sample integrity over extended periods. The system maintains temperature uniformity of ±2.5°C across the full chamber volume under steady-state conditions (per IEC 61000-4-2 and ISO 15502 test protocols), critical for preserving enzymatic activity and nucleic acid stability. Designed for integration into GxP-compliant environments, its mechanical architecture avoids electronic components susceptible to condensation-induced failure, supporting continuous operation in high-humidity laboratory settings.

Key Features

• Cascade refrigeration system with dual compressors and hydrocarbon refrigerant blend—enabling faster cooldown (≤3.5 hours from 25°C to -80°C) and reducing energy consumption by ≥30% versus conventional R404A-based units.
• Quad-layer door gasket design: four independent sealing planes arranged orthogonally to minimize cold leakage; validated to limit frost accumulation to <1.2 g/day during continuous operation at -80°C.
• Inner door constructed with ≥30 mm polyurethane foam insulation (density ≥38 kg/m³), eliminating thermal bridging and maintaining consistent cavity temperature during frequent access cycles.
• Programmable delayed startup (0–30 minutes) mitigates peak electrical demand in shared lab circuits—essential for facilities operating multiple ULT freezers on common distribution panels.
• Ergonomic external handle with integrated lock-mounting points supports physical access control per ISO/IEC 27001 Annex A.8.2.3 and institutional biorepository security policies.
• Modular inner door configuration (three or four compartments) enables customizable sample organization without compromising thermal mass or airflow symmetry.

Sample Compatibility & Compliance

The GDF-U780VHE accommodates standard cryogenic storage formats including 2-inch and 5-inch cryoboxes (up to 120 boxes), 1.2 mL and 2.0 mL internally threaded cryovials (Nunc, Thermo Fisher, Corning), and 50 mL conical tubes. Its interior chamber is constructed from electropolished stainless steel (AISI 304), resistant to corrosion from ethanol-based decontamination agents and compatible with routine autoclave validation of accessories. The unit meets CE marking requirements under Directive 2014/35/EU (Low Voltage) and 2014/30/EU (EMC), and complies with GB/T 20154–2014 (Chinese national standard for ultra-low temperature freezers). While not FDA 510(k)-cleared as a medical device, it satisfies ancillary equipment criteria for use in USP -compliant biologics manufacturing environments.

Software & Data Management

The embedded microprocessor controller features non-volatile memory for storing up to 30 days of temperature logs (1-minute intervals), accessible via USB export. Optional RS485 Modbus RTU interface enables integration with centralized building management systems (BMS) or laboratory information management systems (LIMS) for automated alarm forwarding and audit trail generation. All temperature setpoints, alarm thresholds, and delay-start parameters are password-protected and support role-based access (administrator/operator levels). Data integrity conforms to ALCOA+ principles: attributable, legible, contemporaneous, original, accurate, complete, consistent, enduring, and available—meeting baseline expectations for GLP and GMP documentation workflows.

Applications

• Long-term archival storage of human tissue samples in biobanks adhering to ISBER Best Practices (2022 edition).
• Cold chain maintenance for mRNA vaccine intermediates and viral vector stocks requiring sustained -70°C to -80°C exposure.
• Backup storage for liquid nitrogen-dependent repositories during LN2 supply interruptions (validated hold time ≥72 h at -80°C following power loss).
• QC/QA laboratories performing stability testing per ICH Q5C guidelines for therapeutic proteins.
• Academic core facilities supporting multi-user access with configurable compartmentalization and access logging.

FAQ

What is the minimum ambient temperature required for stable operation at -86°C?
The unit is rated for continuous operation at -86°C only when ambient temperature remains between 10°C and 30°C. Operation outside this range may compromise compressor efficiency and increase frost formation.
Does the freezer support 21 CFR Part 11-compliant electronic records?
The base controller does not include digital signature capability or audit trail encryption; however, third-party middleware solutions (e.g., LabArchives, Veeva Vault) can be deployed to meet Part 11 requirements for regulated environments.
Can the inner door configuration be modified after installation?
Yes—the triple and quadruple inner door kits are field-replaceable using standard Torx drivers; no recalibration or service technician visit is required.
Is the hydrocarbon refrigerant charge compliant with F-Gas Regulation (EU) No 517/2014?
Yes. With total charge <150 g and zero global warming potential (GWP = 3), the system falls below the regulatory threshold requiring leak-check certification or reporting.
What validation documentation is supplied with the unit?
Factory-installed IQ/OQ documentation (per ASTM E2500-13) is provided, including temperature mapping reports, alarm response verification, and door-open recovery time tests conducted at three load conditions (empty, 50%, full).
