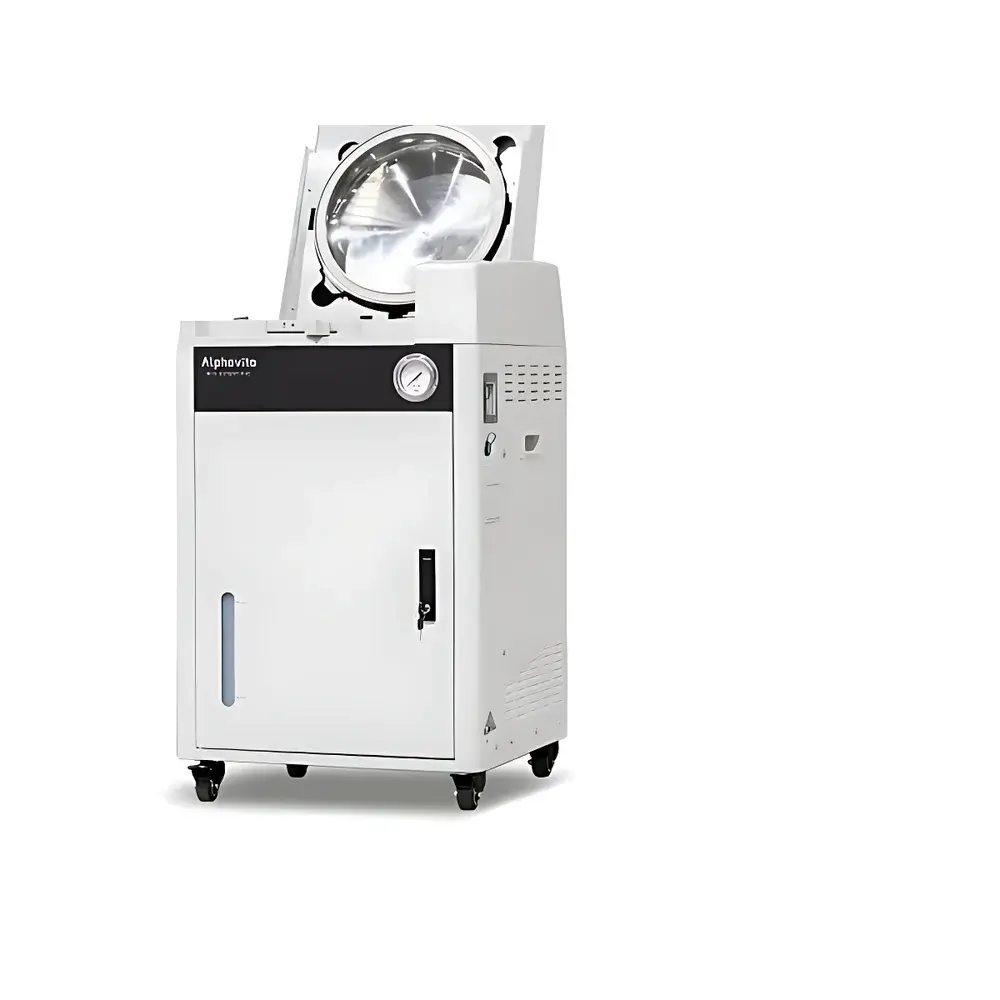

Alphavita MVS-84 Vertical Steam Sterilizer

Overview

The Alphavita MVS-84 Vertical Steam Sterilizer is a CE-compliant, Class B gravity displacement and pre-vacuum capable sterilization system engineered for reliable, repeatable terminal sterilization of heat- and moisture-stable laboratory and clinical materials. It operates on the fundamental principle of saturated steam under controlled pressure and temperature—leveraging the lethal effect of moist heat on microorganisms, including bacterial spores, viruses, and fungi. Designed for use in academic research labs, quality control facilities, pharmaceutical production support areas, and diagnostic centers, the MVS-84 meets stringent regulatory expectations for sterilization process validation and documentation integrity. Its vertical orientation optimizes floor space utilization while maintaining full compliance with ISO 17665–1 (Sterilization of health care products — Moist heat) and supports integration into GLP- and GMP-aligned workflows.

Key Features

• Electrode-type liquid level sensing system providing real-time water level feedback and automatic low-water alarm activation to prevent heater element exposure.
• Integrated overtemperature protection: thermally coupled bi-metallic cut-off switch mounted directly against the heating tube surface ensures immediate power interruption if surface temperature exceeds safe operational thresholds.
• Robust pressure vessel construction using S30408-2B austenitic stainless steel per GB/T 24511–2017, with minimum wall thickness of 3 mm for long-term structural integrity under cyclic pressurization.
• Seven-layer safety architecture: dual dry-run safeguards, overcurrent circuit breaker, residual-current device (RCD), four-point mechanical/electrical interlock system, ASME-certified spring-loaded safety valve, chamber overpressure audible/visual alarm, and fail-safe door locking mechanism.
• Stabilized exhaust control enabling >98% air removal from the chamber prior to sterilization phase—critical for achieving uniform steam penetration in porous loads and wrapped instruments.
• Six-stage adjustable exhaust modulation: independent control over exhaust rate and final exhaust temperature permits precise adaptation to load composition (e.g., liquids, solids, textiles, or mixed configurations).
• High-altitude operation capability validated up to 4000 meters above sea level, with dynamic pressure compensation algorithms ensuring consistent F₀ delivery across variable atmospheric conditions.

Sample Compatibility & Compliance

The MVS-84 accommodates a broad spectrum of sterilizable items, including but not limited to: glassware (flasks, pipettes, Petri dishes), stainless-steel surgical instruments, autoclavable polymer containers, textile packs, microbiological culture media (liquid and solid), and laboratory waste bags. All sterilization cycles conform to internationally recognized biological indicator challenge requirements per EN 285 and ISO 11140–1. The unit’s design adheres to YY/T 1007–2018 (Chinese national standard for vertical steam sterilizers) and pressure vessel fabrication standards per GB 150. Optional data logging modules support 21 CFR Part 11–compliant electronic records when paired with validated software platforms.

Software & Data Management

The embedded control interface supports five factory-preset sterilization programs (Pre-heating, Standard,保温, Dissolution & Holding, Liquid Cycle) with user-defined parameter storage for up to 10 custom protocols. Each cycle logs timestamped event data—including chamber pressure, jacket temperature, core temperature (via optional probe input), door status, and alarm history—with internal non-volatile memory retaining ≥1000 complete cycle records. USB export functionality enables traceable audit trail generation for internal QA review or external regulatory inspection. Firmware architecture supports periodic security updates and maintains backward compatibility with legacy validation documentation.

Applications

• Pre-sterilization preheating of biohazardous samples to minimize thermal shock during subsequent exposure to lethal temperatures.
• Terminal sterilization of culture media (e.g., LB broth, agar plates) with programmable dissolution-to-hold transitions preventing caramelization or nutrient degradation.
• Validation-grade sterilization of reusable labware where cycle repeatability and load uniformity are critical for assay reproducibility.
• Batch processing of PPE (gowns, masks) and filtration devices in biosafety Level 2+ environments requiring documented sterility assurance levels (SAL) of 10⁻⁶.
• Support of ISO/IEC 17025-accredited testing laboratories needing NIST-traceable temperature and pressure calibration pathways.

FAQ

What is the maximum allowable operating altitude for the MVS-84?

The unit is certified for continuous operation at elevations up to 4000 meters above sea level, with integrated barometric compensation to maintain target F₀ values.
Does the MVS-84 support automated validation protocols?

While the base configuration does not include built-in IQ/OQ/PQ templates, its digital log output format is compatible with third-party validation software suites used in pharmaceutical QC environments.
Can the sterilizer be connected to a building management system (BMS)?

Yes—optional RS485 Modbus RTU interface enables remote monitoring of operational status, cycle completion signals, and fault codes within centralized facility control networks.
Is the chamber jacket heated?

Yes—the double-walled chamber features independent jacket heating to ensure rapid steam generation and minimize condensate formation during dynamic load conditions.
What biological indicators are recommended for routine performance verification?

Geobacillus stearothermophilus spore strips (ATCC 7953) or self-contained indicators meeting ISO 11138–3 specifications are validated for use with this sterilizer class.
