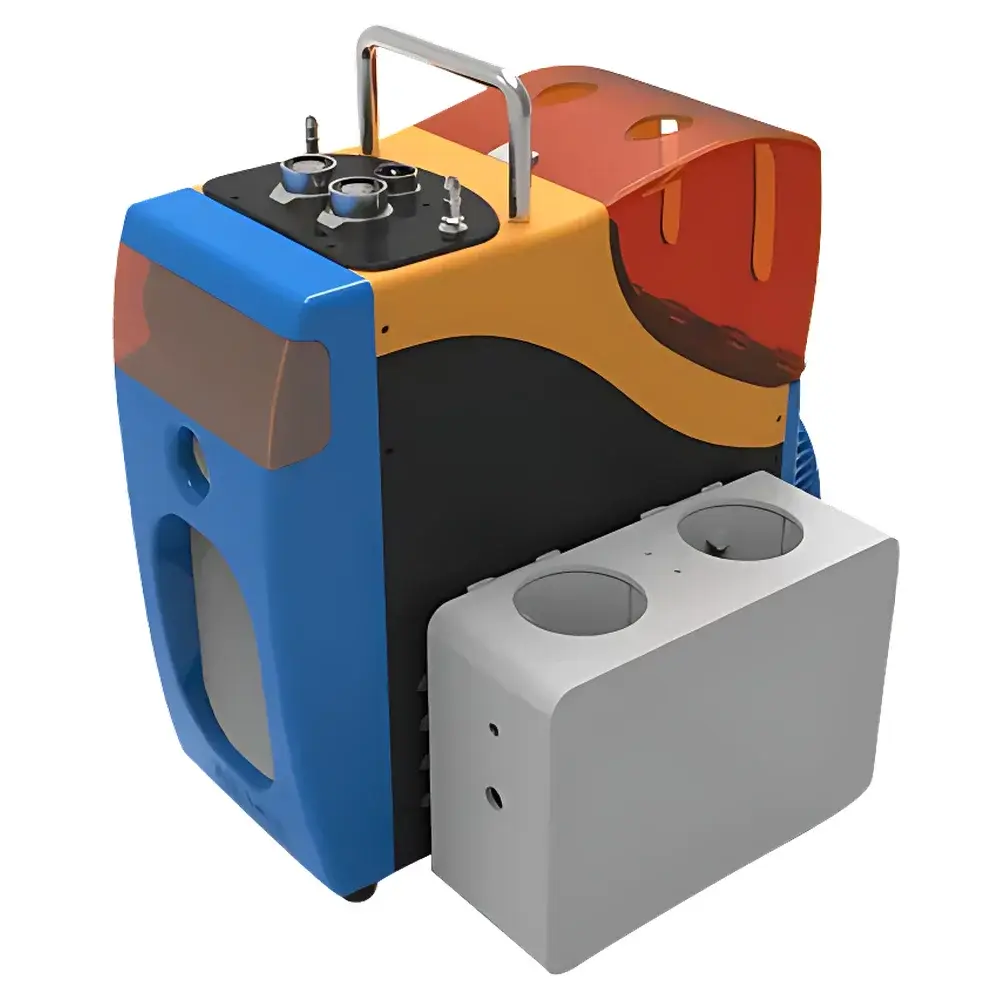

AMAE AC-3072C Intelligent Dual-Channel Flue Gas Sampler

Overview

The AMAE AC-3072C Intelligent Dual-Channel Flue Gas Sampler is an engineered field-deployable instrument designed for quantitative collection of gaseous pollutants from stationary emission sources—such as industrial stacks, boilers, and incinerators—in compliance with international and national ambient air quality monitoring protocols. It operates on the principle of isokinetic or proportional sampling, where sample flow rate is dynamically regulated to match flue gas velocity at the sampling point, ensuring representative capture of target analytes (e.g., SO₂, NOₓ, HCl, VOCs) in absorption solutions or sorbent tubes. The system integrates real-time measurement of stack operating parameters—including dynamic pressure, static pressure, temperature, flue gas velocity, moisture content, actual volumetric flow, and standardized dry flow—enabling full traceability and correction of sampled volumes to standard conditions (e.g., 273.15 K, 101.325 kPa). Its dual-channel architecture supports parallel sampling for redundancy, method validation, or simultaneous analysis of multiple compounds, making it suitable for regulatory compliance audits, environmental impact assessments, and continuous emissions monitoring system (CEMS) performance verification.

Key Features

• Dual independent sampling channels with fully programmable start/stop timing (0–24 h), enabling asynchronous operation for cross-validation or multi-analyte workflows.
• High-stability diaphragm vacuum pumps (imported) coupled with adaptive flow control algorithms ensure ±2% repeatability across the full 200–2000 mL/min range—even at low-flow endpoints critical for trace-level compound collection.
• Integrated 5-inch capacitive touchscreen interface with dual-channel visual feedback: real-time A/B flow rates, elapsed time, remaining battery, pressure differentials, and moisture-corrected flow values—all displayed simultaneously without menu navigation.
• Onboard rechargeable Li-ion battery provides ≥10 hours of continuous operation at 1 L/min (non-heated mode), meeting field deployment requirements for unattended sampling campaigns.
• Dedicated anti-backflow protection circuitry prevents solution contamination during pump shutdown or pressure transients—a critical safeguard for absorption-based methods per GB/T 16157-1997 and HJ/T 47-1999.
• Modular thermal management: dual heated absorption bottle holders (standard) and optional dual-channel heated probe (small-diameter, lightweight design) maintain consistent reagent temperature during high-moisture sampling.
• Embedded data logging capacity of ≥100,000 records with timestamp, GPS coordinates (optional), channel-specific flow profiles, and calibration metadata—fully exportable via USB, Wi-Fi, or 4G LTE.

Sample Compatibility & Compliance

The AC-3072C accommodates standard EPA Method 6C, 7E, 8, and ISO 12141-compliant sampling configurations—including impingers (e.g., 125 mL, 250 mL, or 500 mL bubblers), silica gel cartridges, Tenax® tubes, and custom sorbent media. Its pressure-sensing module meets JJG 1169-2019 metrological verification requirements for differential pressure accuracy (±10 Pa) and temperature measurement (±0.5 °C). All firmware and data handling routines are structured to support GLP/GMP-aligned audit trails, including user authentication logs, parameter change history, and electronic signature readiness for regulatory submissions under China’s MEE guidelines and EU Directive 2010/75/EU (IED).

Software & Data Management

The device runs a deterministic embedded OS with secure firmware signing and configurable data retention policies. Local storage supports CSV and XML export formats compatible with LIMS integration. Optional cloud-enabled firmware (via 4G/Wi-Fi) allows remote configuration updates, live telemetry streaming, and over-the-air calibration certificate uploads. The companion mobile application (iOS/Android) provides role-based access control, geotagged sampling session review, and automated report generation aligned with HJ/T 397-2007 reporting templates. All data exports include SHA-256 hash verification for integrity assurance and meet basic FDA 21 CFR Part 11 principles for electronic records.

Applications

• Regulatory stack testing for sulfur dioxide (SO₂), nitrogen oxides (NOₓ), hydrogen chloride (HCl), and volatile organic compounds (VOCs).
• Performance evaluation of flue gas desulfurization (FGD) and selective catalytic reduction (SCR) systems.
• Workplace exposure assessment in power plants, cement kilns, and metal smelters per OSHA Z-1 and GBZ 159 standards.
• Method development and inter-laboratory comparison studies requiring synchronized dual-path sampling.
• Educational field training for environmental engineering students in emission source characterization techniques.

FAQ

Does the AC-3072C support isokinetic sampling calculations in real time?

Yes—the onboard processor computes isokinetic ratio continuously using measured stack velocity, pitot tube differential pressure, and user-input nozzle diameter, automatically adjusting flow to maintain ratio within ±10% per HJ/T 397-2007.
Can the instrument be calibrated in the field without external hardware?

It supports two-point electronic flow calibration using NIST-traceable primary standards; no external calibrator is required for routine verification between annual metrological checks.
Is the data logger compliant with chain-of-custody requirements for legal proceedings?

All logged entries include immutable timestamps, operator ID, GPS coordinates (if enabled), and cryptographic checksums—sufficient for evidentiary use under China’s Environmental Protection Law Article 25 and judicial interpretation No. 29.
What is the maximum allowable moisture content for reliable operation?

The system has been validated for flue gas with up to 25% v/v moisture when used with heated probe and condensate trap accessories; dew point control maintains absorption efficiency above 95% for aqueous scrubbing media.
How does the anti-backflow function operate during power interruption?

A spring-loaded mechanical check valve engages instantly upon pump de-energization, isolating the absorption train from negative pressure transients—preventing back-suction into sampling lines or analytical instruments.
