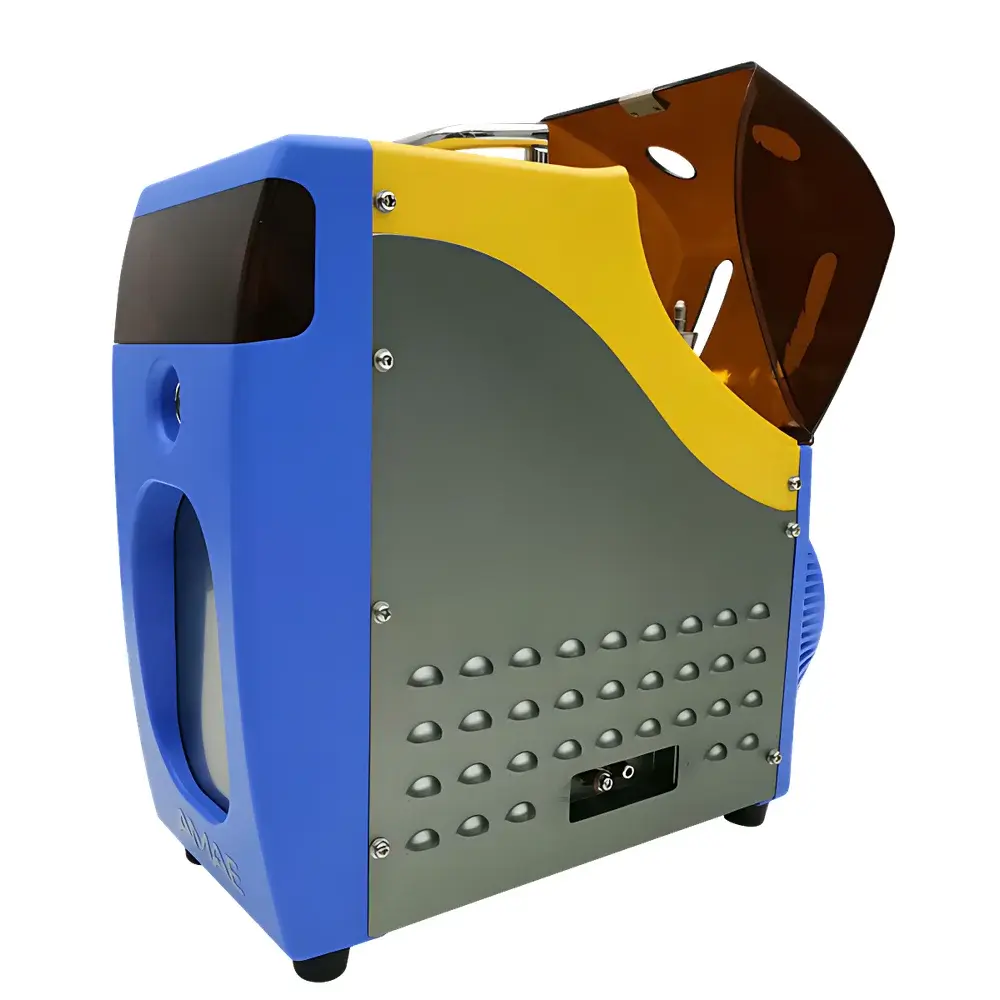

AMAE AC-5000A Dual-Channel Intelligent VOC Sampler

Overview

The AMAE AC-5000A Dual-Channel Intelligent VOC Sampler is a field-deployable, battery-powered sampling instrument engineered for compliant, high-fidelity collection of volatile organic compounds (VOCs) from both fixed emission sources (e.g., industrial stacks, ducts) and ambient air environments. It operates on the solid-phase adsorption principle—compatible with standard sorbent tubes (e.g., Tenax TA, Carbopack B/C, activated carbon, or multi-bed configurations)—and is explicitly designed to meet the flow control, thermal management, and data integrity requirements of key Chinese environmental analytical standards including HJ 734-2014, HJ 644-2013, HJ 583-2010, and GB/T 16157-1997. Unlike single-channel or non-refrigerated samplers, the AC-5000A integrates dual independent sampling channels with synchronized electronic cooling, enabling simultaneous parallel or serial (breakthrough monitoring) sampling under rigorously controlled flow and temperature conditions. Its architecture prioritizes operational robustness in harsh field settings—featuring corrosion-resistant fluidic pathways, low-noise precision diaphragm pumps, and real-time thermoelectric cooling of adsorption tubes to minimize analyte breakthrough and maximize retention efficiency across diverse VOC classes (e.g., BTEX, halogenated hydrocarbons, aldehydes, and semi-volatiles).

Key Features

• Dual-channel configuration with fully independent flow control and refrigeration—supports concurrent ambient and stack sampling or tandem tube (main/backup) deployment per channel.
• High-accuracy mass flow control: maintains constant flow (10–200 mL/min) within ±2% full scale across variable backpressure conditions, critical for compliance with HJ 644-2013 and US EPA Method TO-17 derivations.
• Integrated thermoelectric cooling system: proprietary cold trap chamber cools sorbent tubes to ≤5 °C during sampling, significantly reducing thermal desorption losses and improving recovery of light VOCs (e.g., C2–C6 aliphatics).
• Self-cleaning pump module: automated purge cycle reduces particulate accumulation and extends pump service life—minimizing maintenance downtime in long-term unattended deployments.
• Intelligent power management: built-in rechargeable Li-ion battery delivers >24 hours continuous operation at 200 mL/min per channel; supports seamless resume-after-interruption (RAI) functionality with non-volatile memory backup.
• 5-inch high-brightness capacitive touchscreen interface with intuitive icon-driven navigation; firmware supports one-touch switching between “stack mode” and “ambient mode” per channel.
• Onboard GPS module (optional): enables geotagging of sampling events with configurable logging intervals—supporting audit-ready spatial traceability per GLP and HJ/T 397-2007 requirements.
• Wireless connectivity via Bluetooth 5.0 and optional 4G LTE: enables remote status monitoring, parameter adjustment, and real-time data streaming through the dedicated AMAE FieldLink mobile application (iOS/Android).

Sample Compatibility & Compliance

The AC-5000A is validated for use with industry-standard 6 mm OD × 89 mm or 110 mm stainless steel or glass sorbent tubes, including single-bed (e.g., Tenax GR), dual-bed (e.g., Carbopack X + Carbopack B), and custom-packed configurations. It complies with all referenced Chinese national standards for VOC sampling methodology and quality assurance, including mandatory provisions for flow calibration traceability, temperature stability reporting, and data audit trails. The instrument’s firmware enforces mandatory pre-sampling calibration checks and generates timestamped, tamper-evident log files containing flow setpoints, actual flow readings, battery voltage, ambient temperature, and GPS coordinates (if enabled)—ensuring full alignment with HJ/T 47-1999 technical specifications for flue gas samplers and supporting readiness for regulatory audits under China’s Ministry of Ecology and Environment (MEE) inspection protocols.

Software & Data Management

The embedded operating system records up to 100,000 sampling events with full metadata (date/time, channel ID, flow rate, duration, temperature, pressure, battery level). All data are stored in CSV-compatible format and exportable via USB flash drive—no proprietary software required for post-processing. Firmware updates are performed securely via signed USB firmware packages, preserving configuration integrity. The AMAE FieldLink mobile app provides live dashboards, push notifications for low-battery or flow deviation alerts, and offline session queuing for intermittent connectivity scenarios. Audit logs include user login history, parameter changes, and calibration events—supporting basic 21 CFR Part 11–aligned accountability where local regulations require electronic record retention.

Applications

• Regulatory compliance monitoring of VOC emissions from chemical manufacturing, coating operations, and pharmaceutical production facilities.
• Ambient air quality assessment in urban, industrial, and roadside monitoring networks.
• Indoor air quality (IAQ) studies in vehicles (per HJ 400-2007), offices, and residential buildings.
• Method validation and inter-laboratory comparison studies requiring precise, reproducible sorbent tube sampling.
• Source apportionment campaigns involving paired stack–ambient sampling for receptor modeling inputs.

FAQ

Does the AC-5000A support ISO/IEC 17025-compliant calibration documentation?
Yes—calibration certificates traceable to NIM (National Institute of Metrology, China) are provided upon request, including uncertainty budgets for flow measurement.
Can the unit operate while charging?
Yes—continuous operation is maintained during AC charging; battery charging and sampling functions are electrically isolated.
Is the cooling system adjustable to temperatures below 5 °C?
No—the thermoelectric module is optimized for stable 0–5 °C operation during sampling; lower temperatures would compromise condensation control and sorbent integrity.
What sorbent tube types are validated for use?
Tenax TA, Carbopack B/C/X, HayeSep D, and custom multi-bed tubes up to 110 mm length; compatibility confirmed per HJ 734-2014 Annex A.
How is flow accuracy verified in the field?
Built-in electronic flow sensor is calibrated against a NIST-traceable primary standard; users may perform daily zero/span checks using a dry calibrator or bubble meter.
