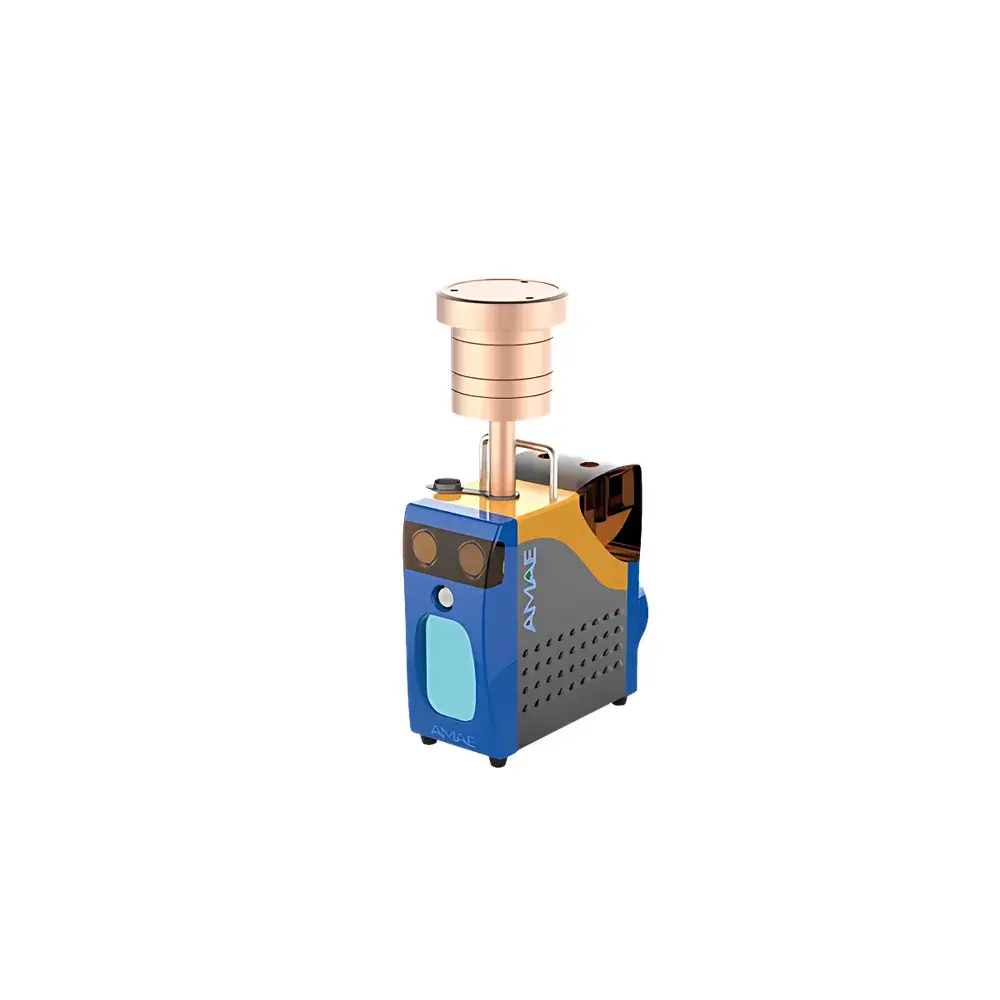

AMAE ADS-2062E (2.0) Intelligent Integrated Ambient Air Sampler
| Brand | AMAE |
|---|---|
| Origin | Guangdong, China |
| Model | ADS-2062E (2.0) |
| Application | TSP, PM10, PM2.5, and gaseous pollutants (SO₂, NOₓ) sampling via filter gravimetry and impinger absorption |
| Flow Range | 0.1–100 L/min (dual-channel independent control) |
| Load Capacity | >9 kPa at 100 L/min |
| Power Supply | Integrated rechargeable Li-ion battery (6–8 h operation at standard flow) |
| Weight | <4 kg (including thermoelectric temperature control module) |
| Compliance | HJ 618–2011, HJ 93–2013, HJ/T 374–2007, HJ/T 375–2007, HJ/T 376–2007, JJG 943–2011, JJG 956–2013 |
Overview
The AMAE ADS-2062E (2.0) Intelligent Integrated Ambient Air Sampler is an engineered solution for simultaneous, gravimetric collection of total suspended particulates (TSP), inhalable particulate matter (PM10), and fine particulate matter (PM2.5), alongside concurrent absorption-based sampling of gaseous pollutants—including sulfur dioxide (SO2) and nitrogen oxides (NOx)—from ambient, indoor, or fugitive emission sources. Designed to meet the stringent operational and metrological requirements outlined in Chinese environmental monitoring standards (HJ 618–2011, HJ 93–2013, HJ/T 374–2007, etc.), the instrument implements dual independent flow channels: one optimized for high-volume particulate filtration (up to 100 L/min) and two low-flow gas sampling paths (0.1–1.0 L/min each), all regulated under constant pressure and constant flow (CPCF) control architecture. Its core measurement methodology relies on NIST-traceable volumetric flow calibration, real-time barometric and thermal compensation, and gravimetric mass determination post-sampling per ISO 12103-1 and US EPA Method IO-1A principles.
Key Features
- Independent Dual-Channel Flow Control: Two programmable low-flow channels (0.1–1.0 L/min) maintain stable flow under variable backpressure using precision mass flow sensors and closed-loop PID regulation—ensuring compliance with HJ/T 375–2007 and HJ/T 376–2007 for continuous ambient air sampling.
- High-Capacity Particulate Sampling: A brushless DC motor drives the main pump with >9 kPa load capability at 100 L/min, enabling robust operation with loaded filters or impingers—critical for extended-duration field campaigns in high-humidity or high-dust environments.
- Integrated Environmental Compensation: Onboard high-accuracy temperature and absolute pressure sensors automatically compute standardized volume (at 273.15 K and 101.325 kPa) in real time, eliminating manual correction and reducing uncertainty in mass concentration calculations (µg/m³).
- Thermoelectric Temperature Stabilization: A Peltier-based cooling/heating module maintains sample air at user-defined temperatures (e.g., 20 °C ±1.5 °C) during collection—minimizing volatilization losses of semi-volatile compounds and supporting GLP-aligned method validation.
- Intelligent Moisture Management: A passive condensate separation system with automatic drainage replaces traditional desiccant bottles, reducing maintenance frequency and preventing absorption solution dilution—a key requirement for SO2 and NH3 quantification per HJ 482–2009.
- Field-Ready Mobility & Power Resilience: Weighing less than 4 kg (including active thermal module), the unit operates up to 8 hours on internal Li-ion battery; hot-swappable battery design (optional) enables uninterrupted sampling during extended deployments.
Sample Compatibility & Compliance
The ADS-2062E (2.0) supports standard 47 mm and 90 mm quartz fiber or PTFE membrane filters (for TSP/PM10/PM2.5), as well as 10–30 mL absorption bottles (e.g., porous glass bubblers, midget impingers) for acidic gases and aldehydes. All flow paths are chemically inert (PTFE-lined tubing, stainless-steel fittings) and compatible with EPA TO-15, HJ 533–2017 (NH3), and HJ 547–2017 (Cl2) methodologies. The device meets electromagnetic compatibility (EMC) Class B per GB/T 18268.1–2010 and carries factory calibration certificates traceable to national primary standards. It supports audit-ready data logging with time-stamped flow, temperature, pressure, and battery status—fully aligned with GLP documentation practices and preparatory for ISO/IEC 17025 accreditation workflows.
Software & Data Management
Data acquisition and remote supervision are managed through a secure, encrypted mobile application (iOS/Android) and SMS-based command interface. The embedded 5-inch capacitive touchscreen displays real-time flow profiles, error logs, GPS coordinates (with timestamped geotagging), and battery health metrics. All sampling records—including start/stop times, cumulative volume, and environmental parameters—are stored locally in CSV format with SHA-256 hash integrity verification. Optional cloud synchronization enables centralized fleet management, automated report generation (PDF/Excel), and role-based access control—supporting FDA 21 CFR Part 11-compliant electronic signatures when integrated with validated laboratory information management systems (LIMS).
Applications
This sampler is routinely deployed in regulatory ambient air quality monitoring networks, occupational hygiene assessments (per GBZ 159–2004), environmental impact assessment (EIA) field studies, emergency response scenarios (e.g., chemical spill plume tracking), and academic aerosol research. Its dual-mode capability makes it especially suitable for co-located PM/gas correlation studies, source apportionment modeling input, and method comparison exercises between gravimetric and optical techniques. Field validation reports confirm successful operation across temperature ranges from –10 °C to +45 °C and relative humidity up to 95% RH (non-condensing).
FAQ
Does the ADS-2062E (2.0) support automatic flow calibration verification during sampling?
Yes—users can initiate on-site flow verification at any time via the touchscreen interface, using built-in calibration constants and optional external primary calibrators (e.g., bubble meters or critical orifices).
Is GPS data logged with each sample record, and can it be exported?
Yes—geographic coordinates, altitude, and UTC timestamp are embedded in every data file and exportable in GPX or KML formats.
What is the maximum allowable backpressure for the gas sampling channels at 0.5 L/min?
The low-flow channels maintain ±2% flow accuracy up to 7 kPa backpressure at 0.5 L/min, verified per JJG 956–2013 Annex C.
Can the instrument operate while charging?
Yes—the system supports simultaneous AC charging and active sampling without interruption or thermal throttling.
Are firmware updates available, and how are they applied?
Firmware updates are distributed quarterly via the mobile app or USB drive and include enhanced sensor diagnostics, expanded compliance reporting templates, and security patches.
