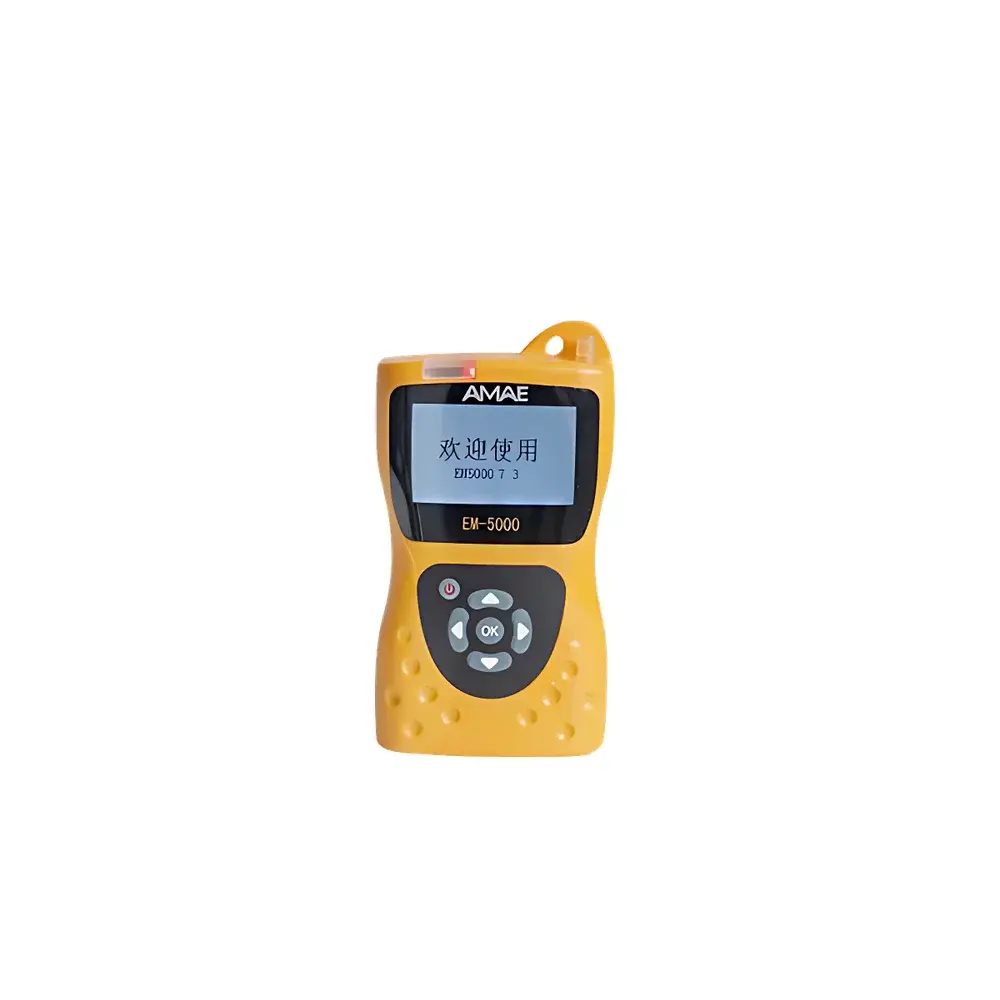

AMAE EM-5000 Portable Personal Air Sampler (Dust & Toxic Gas Sampling Pump)

Overview

The AMAE EM-5000 is a CE-compliant, handheld personal air sampling pump engineered for occupational hygiene monitoring in accordance with ISO 7708:1995 (particle size-selective sampling), OSHA Method ID-121, NIOSH Manual of Analytical Methods (NMAM) Chapter 2, and the Chinese national standards GB/T 17061–1997 (Technical Specifications for Air Sampling Instruments in Workplace Air) and JJG 956–2013 (Verification Regulation for Air Samplers). It operates on constant-flow volumetric sampling principles using a brushless DC motor coupled with closed-loop pressure and flow feedback control. This architecture ensures stable aspiration across variable filter media resistance—critical for consistent collection efficiency when sampling respirable dust, metal aerosols (e.g., lead, chromium), fluoride particulates, or vapors of low-molecular-weight toxicants such as toluene diisocyanate (TDI), methylene diphenyl diisocyanate (MDI), acrylamide, and ozone. Its design supports both personal (belt-mounted, worker-worn) and area (fixed-location) sampling protocols, making it suitable for time-weighted average (TWA) exposure assessment under ISO 8519 and ACGIH TLV® guidelines.

Key Features

• True Constant-Flow Control: Digital closed-loop regulation maintains flow within ±3% RSD despite fluctuations in battery voltage, ambient temperature (–10 °C to +45 °C), or filter loading up to 5 kPa backpressure—enabling reliable gravimetric and chemical analysis per ISO 13137 and EN 13205.
• Extended Operational Endurance: High-energy-density polymer lithium-ion battery delivers ≥12 hours of continuous operation at 1.0 L/min against 5 kPa resistance, validated per IEC 62133 safety standards.
• User-Accessible Flow Calibration: Field-adjustable calibration interface supports traceable flow verification using primary standards (e.g., bubble meters, electronic calibrators per ISO 17025-accredited labs); optional auto-calibration mode reduces operator dependency.
• Tri-Mode Sampling Logic: Configurable timer-based, volume-triggered, and interval-scheduled sampling modes facilitate compliance with PC-TWA (Permissible Concentration–Time Weighted Average) requirements defined in GBZ 2.1–2019 and EU Directive 2004/37/EC.
• Intelligent Power & Status Management: Real-time display of elapsed time, remaining battery capacity, cumulative sampled volume, and active flow rate; automatic shutdown prevents over-discharge and preserves data integrity.

Sample Compatibility & Compliance

The EM-5000 is validated for use with standard 37-mm and 25-mm diameter filter cassettes (e.g., PVC, PTFE, mixed cellulose ester), sorbent tubes (e.g., activated charcoal, silica gel), and impingers. It meets mechanical and metrological requirements specified in HJ 583–2010 (for benzene homologues analysis via thermal desorption–GC), GB/T 17061–1997 (flow accuracy, pressure drop tolerance, noise emission ≤55 dB(A)), and JJG 956–2013 (linearity, repeatability, and drift testing). All firmware operations log timestamps and configuration changes, supporting audit-ready documentation for GLP and ISO/IEC 17025 environments.

Software & Data Management

Data export is supported via USB-C interface to Windows-based desktop software (EM-Sampler Suite v3.x), which enables batch configuration, real-time telemetry visualization, and CSV-formatted report generation compliant with OSHA Form 91 and EU REACH Annex XVII reporting templates. The system records full sampling session metadata—including start/stop times, average flow, battery voltage history, and error flags—ensuring full traceability required under FDA 21 CFR Part 11 (when used in pharmaceutical cleanroom air monitoring) and ISO 9001 quality management systems.

Applications

• Personal exposure monitoring for respirable crystalline silica (RCS), beryllium, cobalt, and hexavalent chromium in construction, mining, and battery manufacturing.
• Fixed-site sampling of ozone (O₃), formaldehyde, and isocyanates in coating, adhesive, and polyurethane production facilities.
• Field deployment in environmental health surveys assessing PM₂.₅-bound metals and fluorides near industrial emission sources.
• Compliance verification for workplace air quality under China’s GBZ 159–2004 (Workplace Air Monitoring Specification) and EU Directive 2017/2398 (carcinogens and mutagens).

FAQ

Does the EM-5000 support multi-point sequential sampling?
No—it is a single-channel pump designed for dedicated individual or fixed-location sampling. For multi-analyte or multi-location studies, multiple units must be deployed synchronously.
Can it be used with conductive tubing for static-sensitive sampling?
Yes—its non-sparking motor and grounding-compatible housing permit safe operation with antistatic (carbon-loaded) sampling lines in explosive atmospheres (ATEX Zone 2 / Class I, Division 2, Group D compliant when paired with certified accessories).
Is firmware update capability available in the field?
Yes—updates are delivered via signed .bin files through the EM-Sampler Suite software; each update includes version-stamped changelogs and cryptographic checksum validation.
What filter media resistance limits are validated for 5 L/min operation?
At nominal 5.0 L/min, the pump sustains ±5% flow accuracy up to 2.5 kPa backpressure using standard 37-mm PVC filters (0.8 µm pore size); performance degrades above 3.0 kPa due to motor torque saturation.
Does the device meet international electromagnetic compatibility (EMC) requirements?
Yes—it complies with IEC 61326-1:2020 (industrial EMC) and EN 55011:2016 (radiated/conducted emissions), tested in third-party accredited laboratories.
