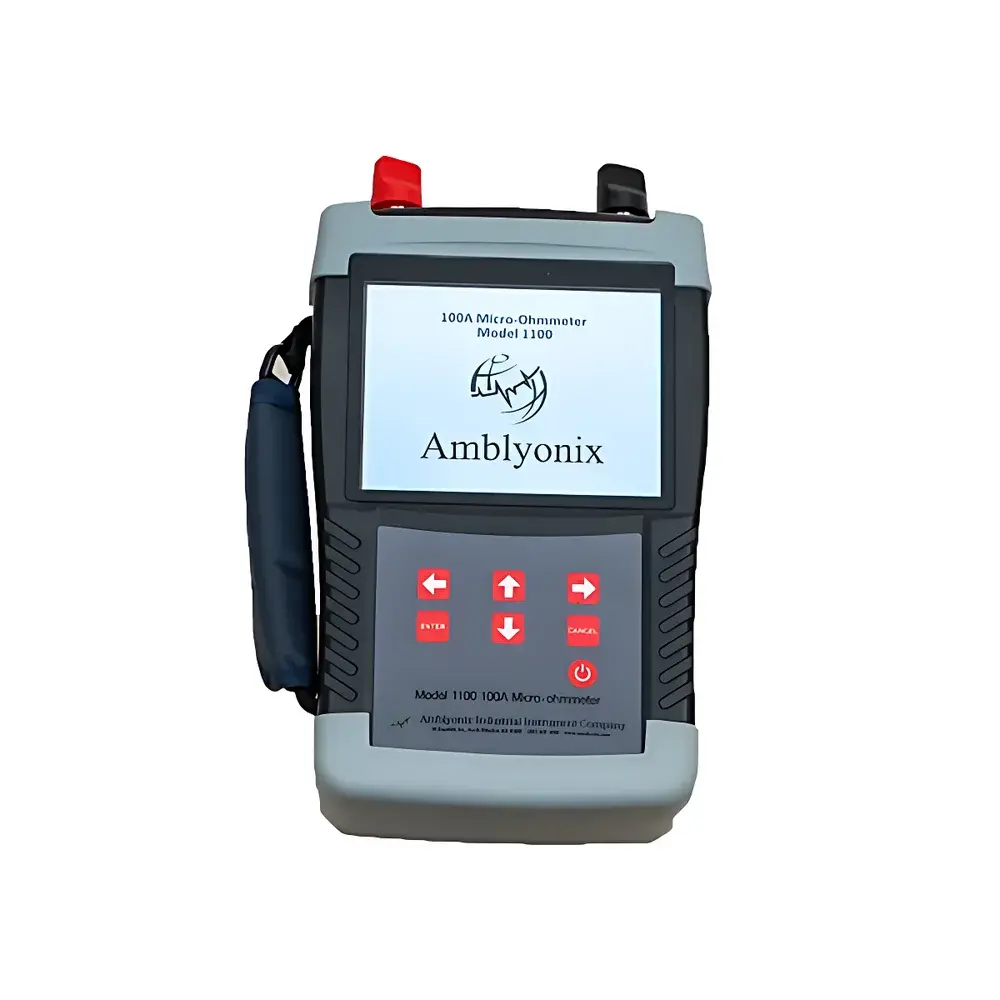

Amblyonix MODEL1100 Micro-Ohmmeter

Overview

The Amblyonix MODEL1100 Micro-Ohmmeter is a precision handheld instrument engineered for low-resistance measurement in high-current electrical systems. Utilizing four-wire (Kelvin) measurement methodology, it eliminates lead resistance errors to deliver traceable, repeatable DC resistance values down to 0.1 µΩ. Designed specifically for field and maintenance applications in power infrastructure, the MODEL1100 applies programmable test currents—up to 100 A—to overcome contact oxidation and ensure stable voltage drop readings across joints, contacts, and conductive paths. Its architecture complies with fundamental principles outlined in IEEE Std 1188™ and IEC 62357 for maintenance testing of switchgear and busbar connections, supporting condition-based assessment rather than pass/fail thresholds alone.

Key Features

• Four selectable test current levels (30 A, 50 A, 80 A, and 100 A) optimized for varying contact geometries and thermal mass—enabling consistent excitation without excessive Joule heating
• High-resolution 5.6-inch industrial-grade color TFT display with configurable contrast and backlighting for visibility under substation lighting or outdoor ambient conditions
• Integrated rechargeable lithium-ion battery system rated for ≥600 consecutive measurements per full charge, supporting extended field campaigns without external power dependency
• Automatic power management including user-configurable auto-shutdown and low-battery warning indicators compliant with IEC 62368-1 safety requirements
• Dual isolation protection circuitry: open-circuit detection prevents erroneous readings during probe disconnection; real-time thermal monitoring halts current output if internal temperature exceeds safe operational limits
• Robust mechanical design featuring IP54-rated enclosure, reinforced test lead connectors, and shock-absorbing housing compliant with MIL-STD-810G for vibration and drop resistance

Sample Compatibility & Compliance

The MODEL1100 is validated for use on copper and aluminum busbars, circuit breaker main contacts, isolator knife switches, grounding grid interconnections, and welded/crimped cable terminations. It meets essential electromagnetic compatibility (EMC) criteria per EN 61326-1:2013 for industrial environments and conforms to safety standards IEC 61010-1:2010 (CAT III 600 V). While not certified for intrinsic safety, its current-limited output and galvanic isolation make it suitable for energized-dead testing protocols per NFPA 70E Article 130. All firmware and calibration routines are traceable to NIST-certified reference standards, with optional factory calibration certificates available upon request.

Software & Data Management

Data export and configuration are supported via native USB and RS232 interfaces, enabling direct integration into asset management platforms such as SAP PM or IBM Maximo. The included PC software provides time-stamped logging, trend analysis of resistance drift over multiple test cycles, and comparative reporting against historical baselines or manufacturer-specified limits (e.g., IEEE C37.09 for breaker contact resistance). Audit trails include operator ID, test current setting, ambient temperature (if external sensor connected), and GPS-tagged location metadata when used with compatible field tablets. Software complies with FDA 21 CFR Part 11 requirements for electronic records and signatures when deployed in regulated utility maintenance programs operating under GLP/GMP-aligned quality systems.

Applications

• Power Transmission & Distribution: Routine verification of bolted busbar joints in 110 kV and lower substations; periodic contact resistance testing of vacuum and SF6 circuit breakers per IEC 62271-1 Annex H
• Railway Electrification: Continuity validation of pantograph-to-rail return paths; traction motor brush contact resistance assessment; signal system bonding conductor integrity checks
• Renewable Energy Infrastructure: Series resistance profiling of photovoltaic string interconnects; cell-level weld joint evaluation in battery module assembly lines; DC link busbar thermographic correlation studies
• Industrial Switchgear Maintenance: Preventive testing of HV/MV switchgear contacts per ANSI/IEEE C37.09; motor winding DC resistance baseline establishment for predictive maintenance programs

FAQ

What is the minimum measurable resistance and associated resolution?
The MODEL1100 resolves down to 0.1 µΩ within its 0–20 mΩ full-scale range, using 24-bit analog-to-digital conversion and digital filtering optimized for low-noise DC measurement.

Does the instrument support automated test sequences for multi-point joint inspection?
Yes—via USB-connected host PC, users can define scripted test plans with variable current steps, dwell times, and pass/fail criteria, generating consolidated PDF reports per IEC 61557-4 compliance requirements.

Is calibration traceability documented to international standards?
All factory calibrations are performed against Fluke 742A transfer standards accredited to ISO/IEC 17025 by NVLAP Lab Code 200705-0, with full uncertainty budgets provided in the Certificate of Calibration.

Can the MODEL1100 operate safely on live circuits?
No—it is designed exclusively for de-energized testing. Voltage presence detection is not integrated; users must verify absence of hazardous voltage per OSHA 1910.333 prior to connection.

Are replacement test leads and battery packs available as service parts?
Yes—Amblyonix offers certified replacement kits including 100 A-rated Kelvin clips, heavy-duty 4 m test leads with strain relief, and field-swappable Li-ion modules with built-in fuel gauges and cycle-life monitoring.
