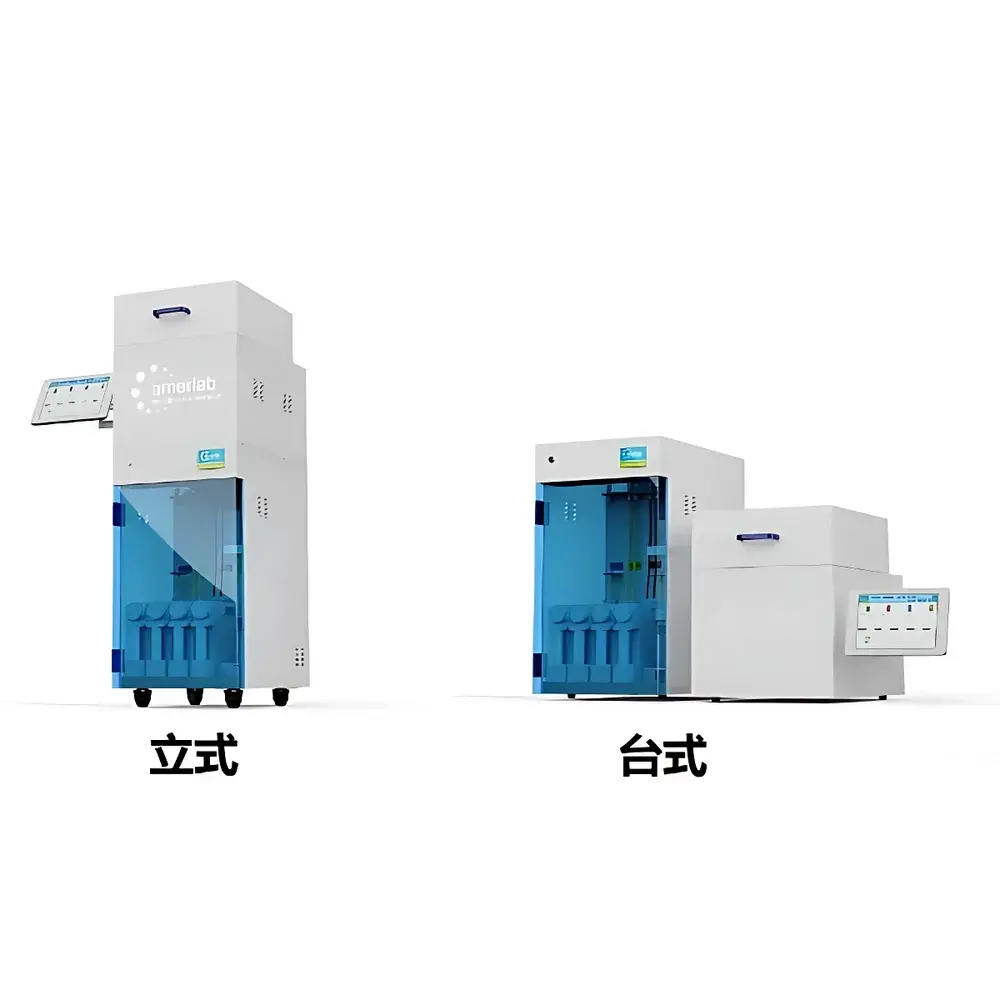

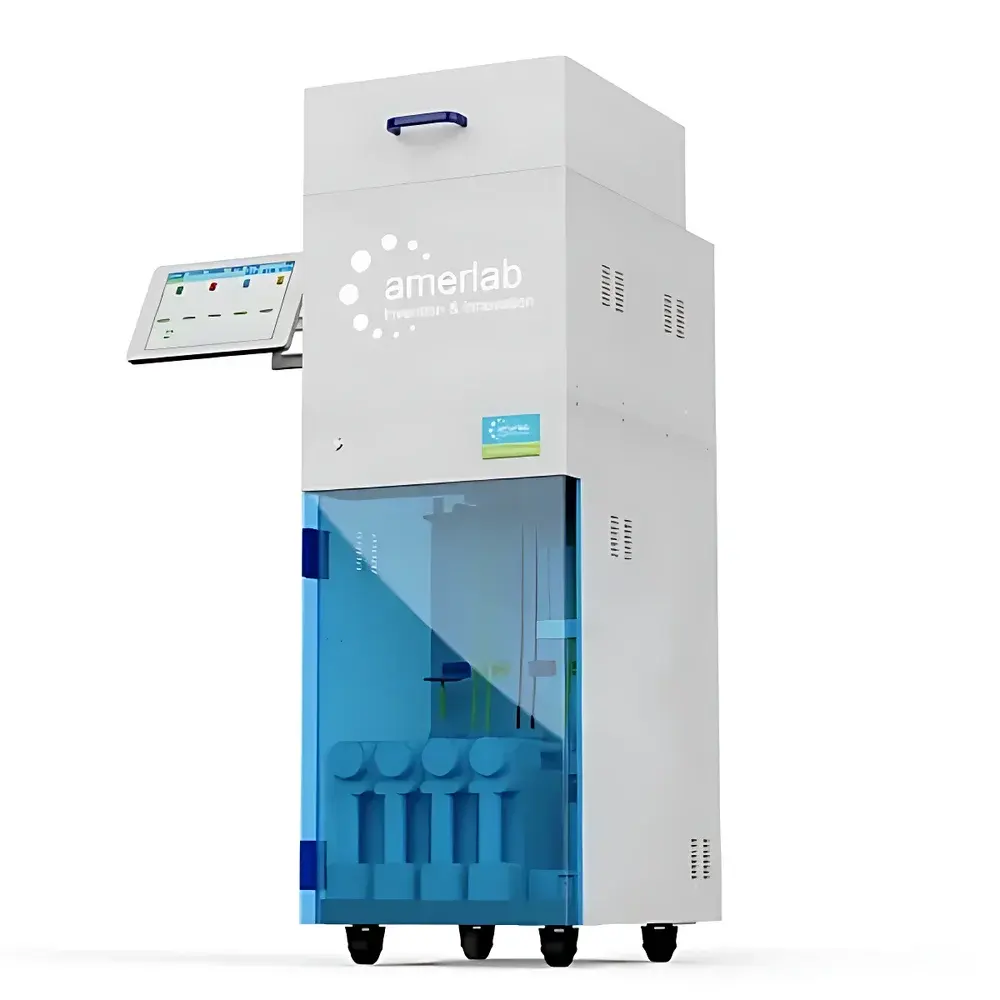

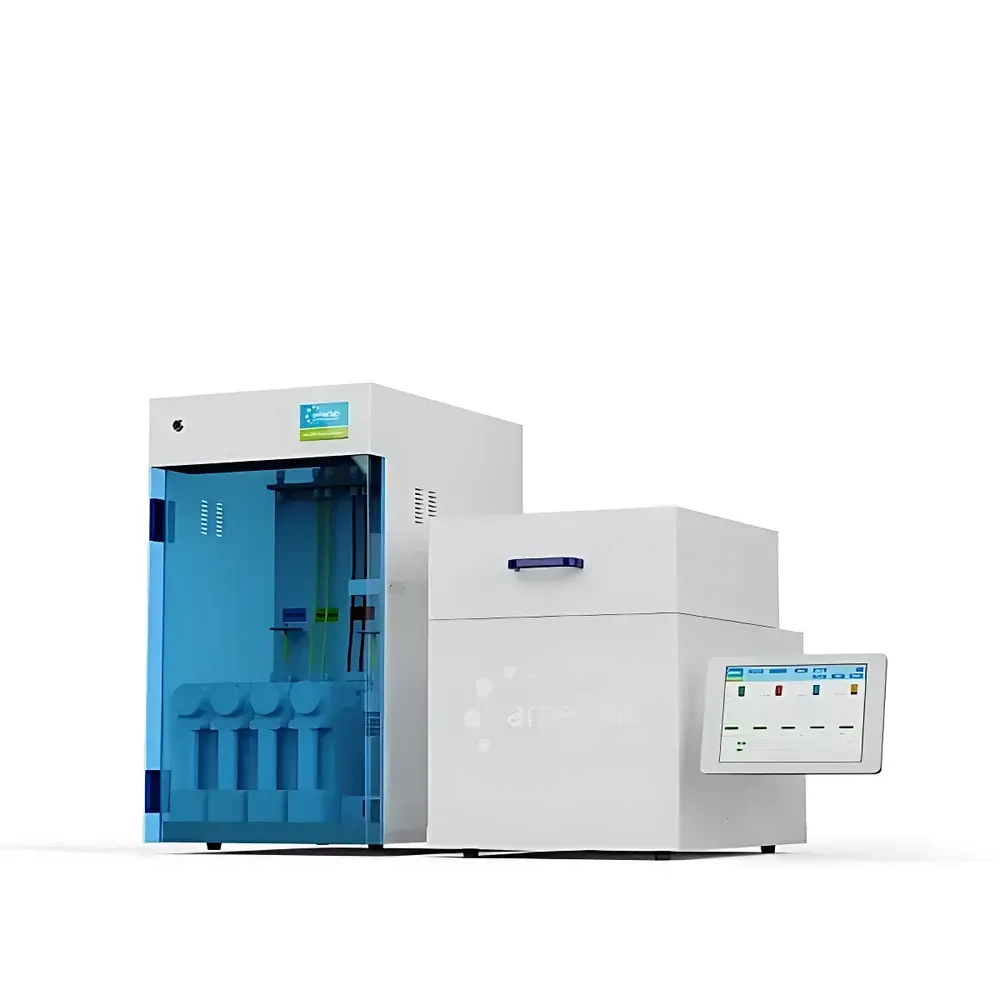

Amerlab AC360M Automated Sub-Boiling Acid Vapor Cleaner

Overview

The Amerlab AC360M Automated Sub-Boiling Acid Vapor Cleaner is a sixth-generation trace-metal-free cleaning system engineered for ultra-trace analytical laboratories requiring reproducible, contamination-free preparation of sample introduction vessels. It operates on the principle of sub-boiling acid vapor generation—where high-purity acids (e.g., HNO₃, HCl, HF) are heated below their boiling points to produce a saturated, low-velocity vapor phase that condenses uniformly onto vertically oriented sample containers. This thermodynamically controlled process minimizes aerosol carryover and eliminates splashing or boiling turbulence, thereby preventing redeposition of metallic contaminants—a critical requirement for ICP-MS, HR-ICP-MS, and isotopic analysis workflows. Unlike conventional ultrasonic or manual acid soaking methods, the AC360M employs counterflow vapor dynamics: fresh acid vapor rises while spent condensate drains downward under gravity, establishing a continuous purification gradient across the chamber. This architecture ensures consistent exposure time, uniform thermal profile, and inherent separation of clean and waste phases—key factors in achieving ppt-level residual metal contamination (e.g., <10 fg Fe, Cr, Ni per vessel).

Key Features

• Fully automated operation: Integrated sequence control for acid vapor generation, multi-stage rinsing (deionized water, ultrapure water), and inert-gas-assisted drying—all executed without operator intervention.
• Sub-boiling vapor generation: Precisely regulated heating elements maintain acid temperature 5–15 °C below atmospheric boiling point, suppressing volatile acid decomposition and minimizing particulate formation.
• Dual-path fluid architecture: Independent PTFE/PFA-lined vapor delivery and condensate recovery circuits prevent cross-contamination; no metallic components contact process fluids at any stage.
• Real-time safety interlocks: Redundant monitoring of chamber temperature, internal pressure, liquid level in reservoirs, and effluent pH ensures immediate shutdown if thresholds exceed ISO/IEC 17025-compliant operational limits.
• Modular rack compatibility: Supports over 30 standardized fixtures—including microwave digestion vessels (CEM, Milestone), open-vessel quartz/glassware (vials, volumetric flasks, test tubes), and custom geometries—without tooling changes.
• Compact footprint & ventilation independence: Designed for benchtop deployment (<0.8 m² floor space); integrated acid fume scrubbing enables safe operation outside dedicated fume hoods per ANSI Z9.5-2022 laboratory ventilation guidelines.

Sample Compatibility & Compliance

The AC360M accommodates borosilicate glass, fused quartz, PTFE, PFA, and ETFE labware up to 1 L capacity. Its cleaning efficacy has been validated against ASTM D5686-22 (Standard Practice for Cleaning Trace Metal Analytical Glassware) and USP <645> (Water for Pharmaceutical Purposes), demonstrating ≤0.1 ng/cm² residual Cr, Cu, Pb, and Zn after full cycle. All wetted surfaces comply with FDA 21 CFR 177.1550 (fluoropolymer food-contact compliance) and EU Regulation EC No. 1935/2004. The system supports GLP/GMP audit readiness via timestamped cycle logs, user-access-controlled parameter locking, and optional 21 CFR Part 11–compliant electronic signatures.

Software & Data Management

Controlled via a ruggedized 10.1″ capacitive touchscreen running embedded Linux OS, the AC360M firmware stores ≥10,000 complete cycle records locally—including acid type, temperature ramp profiles, rinse conductivity traces, final drying dew point, and fault event timestamps. Data export is supported via USB 3.0 and Ethernet (TCP/IP), with CSV/JSON formatting compatible with LIMS integration (e.g., LabWare, Thermo SampleManager). Optional cloud synchronization enables remote diagnostics, predictive maintenance alerts (based on heater duty cycle degradation), and centralized fleet management across multi-site laboratories.

Applications

• Pre-cleaning of ICP-MS sample introduction systems (nebulizers, spray chambers, torches)
• Decontamination of microwave digestion vessels prior to high-sensitivity elemental mapping
• Routine cleaning of Class 100 cleanroom-compatible glassware for semiconductor metrology
• Reconditioning of reused high-purity acid storage containers in nuclear forensics labs
• Validation of blank levels in EPA Method 200.8 and ISO 17294-2 compliant environmental testing

FAQ

What acid types are compatible with the AC360M?

Nitric acid (HNO₃), hydrochloric acid (HCl), hydrofluoric acid (HF), and mixtures thereof (e.g., aqua regia) — all at ≥65% purity grade. Dilution and concentration adjustments occur automatically via integrated peristaltic metering.
Does the system support acid recycling?

Yes. An optional acid reclamation module distills spent condensate using fractional sub-boiling distillation, recovering ≥92% of initial acid mass while rejecting >99.9% of dissolved metals per ASTM D1129-21.
How is operator safety ensured during HF handling?

All HF operations require dual verification: (1) RFID-tagged acid bottle authentication and (2) real-time HF vapor sensor feedback (0–10 ppm range, ±0.1 ppm accuracy) integrated into the interlock chain.
Can cleaning protocols be customized per vessel type?

Yes. Up to 99 user-defined methods can be saved, each specifying acid selection, vapor dwell time (1–120 min), rinse volume (50–500 mL), and drying duration (10–180 min), with password-protected editing rights.
Is third-party calibration certification available?

Amerlab provides NIST-traceable temperature and pressure calibration reports (ISO/IEC 17025 accredited) upon request, with annual recalibration services aligned to ISO 9001:2015 quality management requirements.
