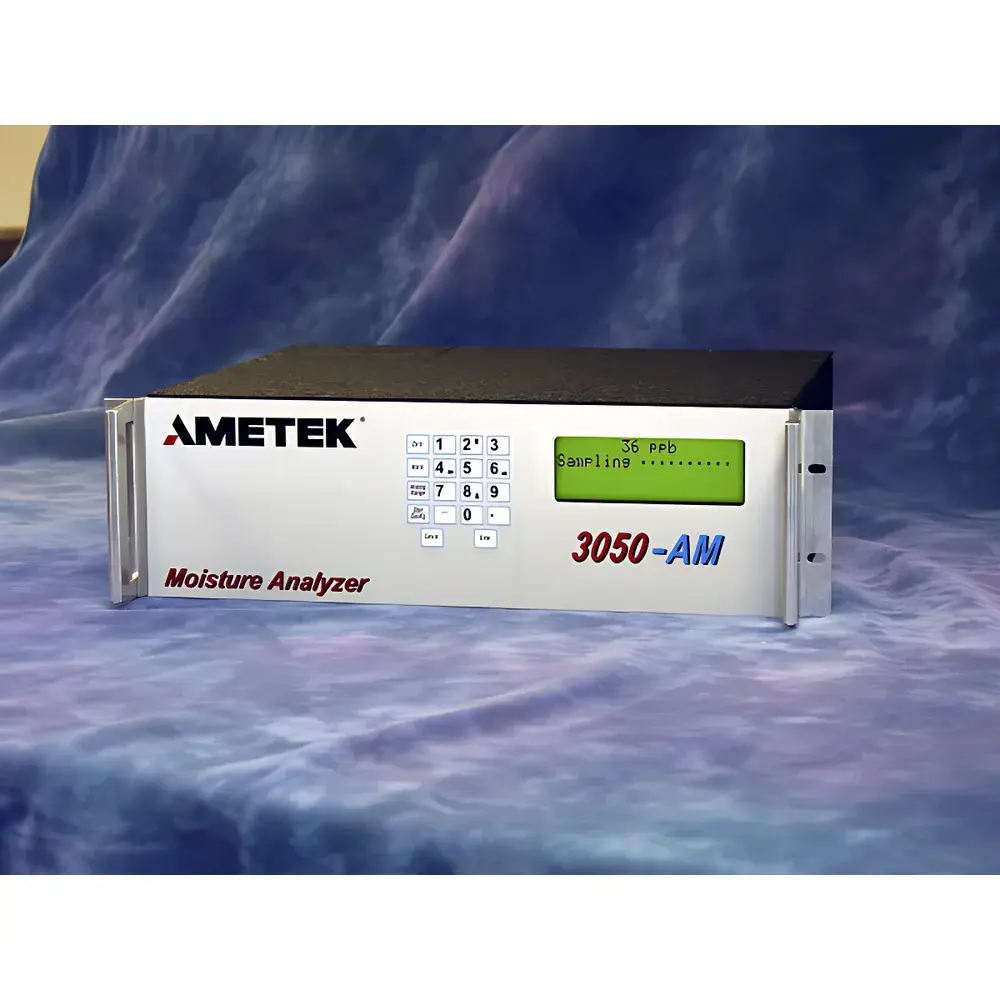

AMETEK 3050-AM Trace Moisture Analyzer

Overview

The AMETEK 3050-AM Trace Moisture Analyzer is a high-sensitivity, tunable diode laser absorption spectroscopy (TDLAS)-based instrument engineered for continuous, real-time quantification of water vapor at sub-part-per-trillion (pptv) levels in aggressive and reactive industrial process gases. Designed specifically for semiconductor fabrication, specialty gas production, and high-purity electronic materials handling, the 3050-AM delivers stable, drift-free measurements without consumables or chemical reagents. Its core measurement principle relies on wavelength-scanned near-infrared (NIR) laser absorption targeting a unique rotational-vibrational transition line of H₂O at ~1.39 µm — a spectral region selected to minimize interference from common background gases and matrix effects. Unlike electrochemical or chilled-mirror technologies, TDLAS provides inherent selectivity, immunity to condensation artifacts, and zero cross-sensitivity to hydrocarbons, fluorinated compounds, or acidic impurities.

Key Features

• Sub-ppbv detection limit (typical <50 pptv H₂O) with full-scale ranges configurable from 0–10 ppb to 0–100 ppm, optimized for ultra-dry applications
• Patented optical path design featuring Herriott-type multi-pass cell (effective path length >10 m) to maximize absorbance signal-to-noise ratio
• Integrated temperature and pressure compensation algorithms compliant with ISO 8573-8 and ASTM D7446 for trace moisture in compressed gases
• Gas-tight wetted path constructed from electropolished 316L stainless steel and Kalrez® seals, rated for compatibility with highly corrosive and pyrophoric process streams
• Auto-zero and span validation routines supported via internal reference gas ports, enabling unattended operation over extended maintenance intervals
• Modular architecture allowing field-upgradable firmware, optional analog/digital I/O expansion, and integration-ready Modbus TCP and EtherNet/IP protocols

Sample Compatibility & Compliance

The 3050-AM is validated for direct, in-line analysis of critical electronic specialty gases including CF₄, CHF₃, CH₃F, CH₂F₂, AsH₃, GeH₄, Ge₂H₆, PH₃, C₂F₆, C₃F₈, C₄F₆, and C₄F₈ — all without catalytic pre-treatment or sample conditioning. Its gas-handling system meets SEMI F57 and CGA G-13 requirements for purity-critical instrumentation. The analyzer complies with CE marking directives (EMC 2014/30/EU, RoHS 2011/65/EU), carries ATEX/IECEx certification for Zone 1 hazardous area installation (II 2G Ex db IIB T4 Gb), and supports GLP/GMP data integrity through configurable audit trails and user access levels per FDA 21 CFR Part 11.

Software & Data Management

The embedded web-based interface (accessible via HTTPS) provides real-time trend visualization, alarm configuration, and historical data export in CSV or XML format. Optional AMETEK Insight™ software enables centralized fleet monitoring, predictive diagnostics, and automated report generation aligned with ISO/IEC 17025 laboratory accreditation requirements. All measurement data include embedded metadata: timestamp (UTC), sample pressure/temperature, laser current/voltage, optical density residuals, and calibration status flags — ensuring full traceability for quality audits.

Applications

• Monitoring moisture ingress in bulk and cylinder-delivered electronic specialty gases prior to delivery to fab tools
• In-line verification of dryer performance in gas purification skids for CVD, ALD, and etch process gases
• Quality release testing of high-purity arsine, phosphine, and germane used in compound semiconductor epitaxy
• Leak detection and purge validation in nitrogen or argon blanketing systems for moisture-sensitive manufacturing environments
• Supporting ISO 8573-1 Class 0 compliance verification for critical instrument air and process gas networks

FAQ

Does the 3050-AM require periodic recalibration with certified moisture standards?
Yes — initial factory calibration is traceable to NIST SRM 2811; recommended recalibration interval is 12 months under typical operating conditions, though risk-based assessment per ISO/IEC 17025 may extend this with documented performance verification.
Can the analyzer be installed directly in a gas cabinet without external sample conditioning?
Yes — it features integrated heated sample lines (up to 180 °C), pressure regulation, and particulate filtration; no external chillers, dryers, or scrubbers are required for standard applications.
Is remote firmware update supported?
Yes — secure over-the-air (OTA) updates are enabled via TLS-encrypted HTTP(S) connection using signed firmware packages verified by onboard cryptographic keys.
What is the minimum sample flow rate required for stable operation?
1–2 L/min at inlet pressure of 1–5 bar(g); lower flows are acceptable with optional low-flow sensor module and extended averaging.
How does the 3050-AM handle condensable species such as HF or HCl that may coexist with moisture?
The optical measurement is unaffected by non-absorbing contaminants; however, aggressive condensables require upstream acid-resistant filters (e.g., sintered Hastelloy) to protect the cell — a configuration validated per CGA G-13 Annex B.
