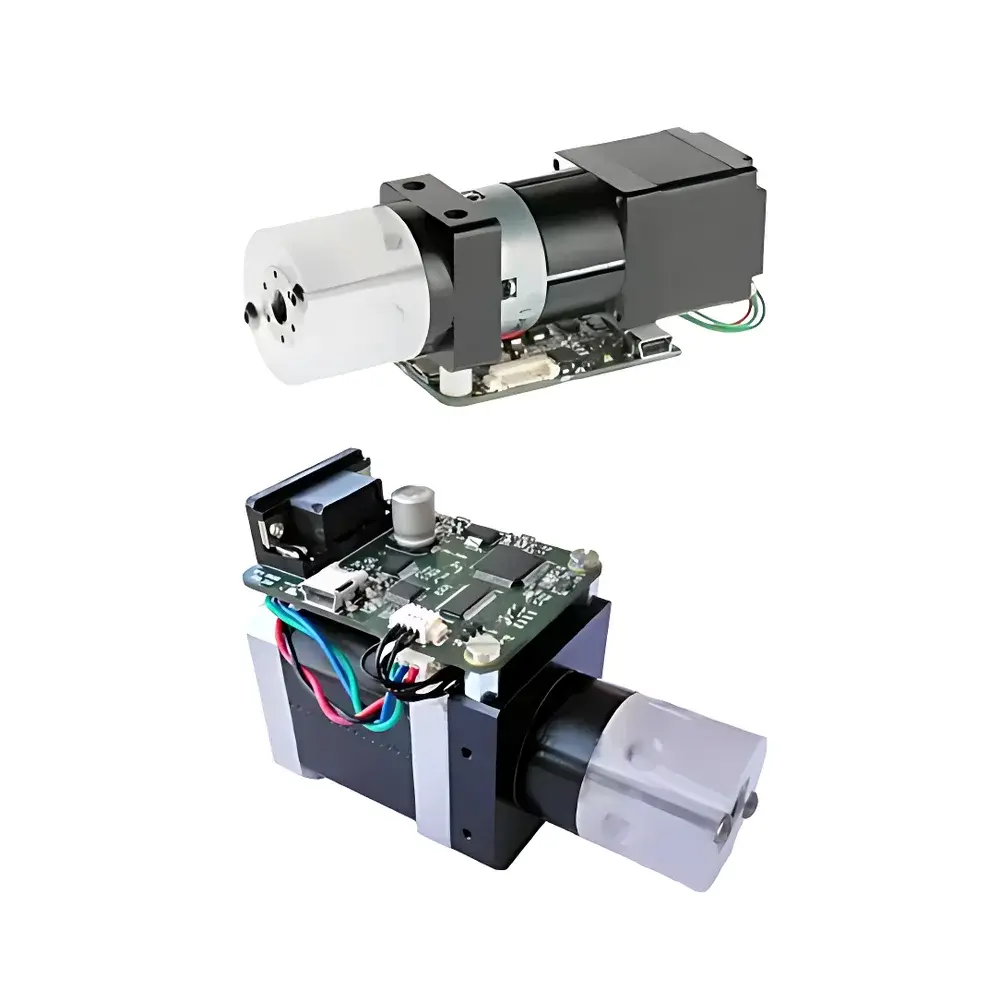

AMF RVM OEM Microfluidic Multi-Function Switching Valve
| Brand | AMF / Advanced MicroFluidics |
|---|---|
| Origin | Switzerland |
| Model | RVM |
| Operating Voltage (Low-Pressure Version) | USB-powered (5 V DC) |
| Operating Voltage (High-Pressure Version) | 24 V DC |
| Internal Volume | As low as 3.5 µL |
| Valve Head Interchangeability | Yes — single actuator body supports multiple replaceable valve heads (e.g., 1-to-N, on/off, 2-position 6-way) |
| Dead Volume | Negligible (designed for bubble-free fluid path switching) |
Overview
The AMF RVM OEM Microfluidic Multi-Function Switching Valve is an engineered solution for precise, repeatable, and low-disruption fluid routing in advanced microfluidic systems. Designed and manufactured by Advanced MicroFluidics (AMF), a Swiss developer of high-precision microfluidic components, the RVM leverages piezoelectric or solenoid-based actuation (model-dependent) to achieve rapid, bidirectional flow path selection without mechanical seals or sliding parts prone to wear. Its core architecture minimizes internal volume to 3.5 µL—enabling near-instantaneous fluid displacement, eliminating carryover, and critically suppressing bubble nucleation during state transitions. This makes the RVM particularly suitable for applications demanding strict fluid integrity, such as organ-on-a-chip perfusion, reagent injection in automated assay platforms, and closed-loop sample circulation in analytical microsystems.
Key Features
- Ultra-low internal volume (down to 3.5 µL) with negligible dead volume—ensures minimal sample loss and cross-contamination between channels.
- Modular valve head design: A single actuator base accepts interchangeable valve heads—including 1-to-N distribution, on/off shut-off, and 2-position 6-way configurations—enabling functional reconfiguration without replacing the entire valve assembly.
- Dual-voltage operation: Low-pressure variant operates directly from standard USB 5 V DC power; high-pressure variant requires 24 V DC supply, supporting higher backpressure tolerance and faster actuation kinetics.
- Bubble-resistant switching mechanism: Optimized internal geometry and synchronized actuation timing prevent air entrapment during port transition—critical for optical detection (e.g., fluorescence) and sensitive cell-based assays.
- OEM-optimized form factor: Compact footprint, standardized mounting interfaces (e.g., M3/M4 threaded ports), and TTL/RS-232 or analog voltage control compatibility facilitate seamless integration into custom instrument chassis and automated fluidic workstations.
Sample Compatibility & Compliance
The RVM is chemically compatible with aqueous buffers, organic solvents (including isopropanol, acetonitrile, and DMSO), and common cell culture media. Wetted materials include chemically inert PEEK, FFKM (perfluoroelastomer), and stainless steel (316L), ensuring stability under sterilization (autoclave-compatible up to 121°C for selected configurations) and long-term exposure to biological fluids. While the RVM itself is not a medical device, its construction and traceability documentation support integration into ISO 13485–certified instrumentation and comply with material requirements outlined in USP and for extractables and leachables assessment. For regulated environments (e.g., GLP/GMP labs), firmware logging and hardware-level actuation counters are available upon request to support audit trails.
Software & Data Management
The RVM supports both open-loop and closed-loop control via industry-standard protocols. Low-level command sets (ASCII over UART or USB CDC) allow direct integration with LabVIEW, Python (PySerial), MATLAB, or custom C++ firmware. Optional firmware upgrades provide time-stamped actuation logs, cycle counter persistence, and error-state reporting (e.g., overtemperature, undervoltage). When deployed within larger AMF-integrated platforms, the valve synchronizes with pump drivers and flow sensors using deterministic trigger signals—enabling sub-second coordinated fluidic sequences. All configuration parameters (e.g., dwell time, debounce delay, fail-safe position) are programmable and persist across power cycles.
Applications
- Organ-on-a-chip systems: Dynamic perfusion routing for multi-tissue co-cultures with real-time media exchange and drug gradient generation.
- Automated sample preparation: Precise reagent addition, dilution series setup, and waste diversion in benchtop analyzers and IVD platforms.
- Cell handling workflows: Bubble-free aspiration and dispensing in single-cell sorting, microinjection, and 3D bioprinting support modules.
- Fluorescence-based assays: Synchronized valve actuation with camera exposure windows to eliminate flow-induced artifacts during live-cell imaging.
- OEM instrumentation: Core fluidic routing engine in portable diagnostics, environmental sensors, and point-of-care devices requiring high reliability and compact packaging.
FAQ
What valve head configurations are supported by the RVM platform?
The RVM actuator base supports three primary interchangeable valve heads: 1-to-4, 1-to-6, and 2-position 6-way configurations—each optimized for distribution, isolation, or recirculation tasks.
Can the RVM be used in sterile or closed-system applications?
Yes—valve bodies with autoclavable wetted paths and ethylene oxide (EtO)-compatible materials are available; full sterilization validation documentation can be provided upon request.
Is firmware update capability included as standard?
Basic firmware is pre-installed; field-upgradable firmware with enhanced logging and diagnostic features is available under AMF’s OEM support agreement.
Does the RVM meet electromagnetic compatibility (EMC) requirements for lab instrumentation?
The RVM complies with EN 61326-1:2013 for laboratory equipment emissions and immunity when installed per AMF’s recommended grounding and cable separation guidelines.
How is lifetime performance validated for high-cycle applications?
AMF specifies ≥5 million cycles at rated pressure and temperature; accelerated life testing data and Weibull reliability analysis reports are accessible to qualified OEM partners.
