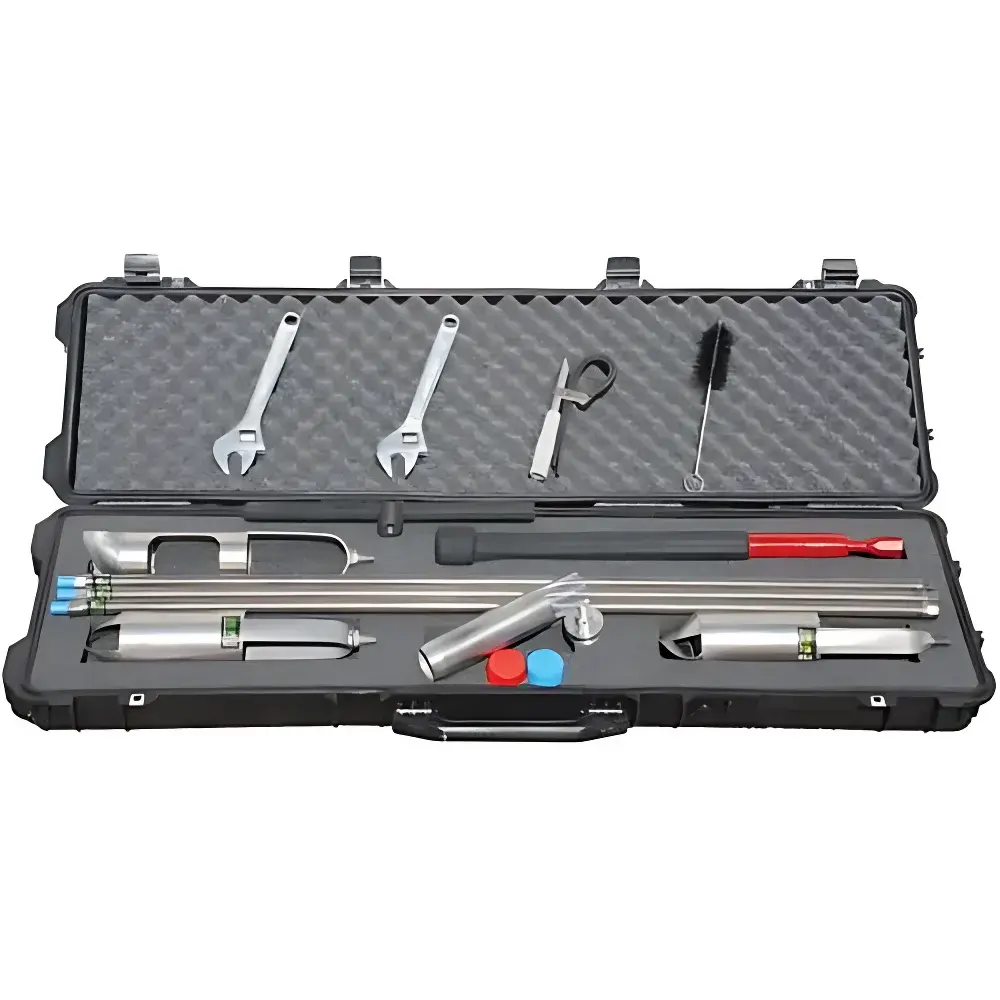

AMS 209.57 Environmental Soil Sampling Kit

Overview

The AMS 209.57 Environmental Soil Sampling Kit is a field-deployable, corrosion-resistant sampling system engineered for regulatory-compliant soil characterization in contaminated land assessment, environmental site investigations, and remediation monitoring. Designed to ASTM D1586 (Standard Test Method for Penetration Resistance and Classification of Soils), ASTM D3550 (Standard Practice for Thick-Walled Tube Sampling of Soils), and ISO 22475-1 (Geotechnical Investigation and Testing — Sampling Methods and Groundwater Measurements), this kit enables undisturbed or semi-undisturbed core retrieval from shallow to intermediate depths (up to 3.6 m with full rod extension). Its all-stainless-steel construction—utilizing 304 and 316-grade alloys—ensures long-term integrity in acidic, saline, or hydrocarbon-impacted matrices where carbon steel tools would degrade or introduce metallic contamination. The 5/8″ UNF threaded interface guarantees mechanical compatibility across the AMS modular sampling ecosystem, including hammer-driven, rotary, and direct-push platforms.

Key Features

• Corrosion-resistant 304/316 stainless steel components, certified for use in pH < 4 environments and aggressive soil chemistries (e.g., acid sulfate soils, landfill leachate zones)
• Modular 5/8″ UNF thread standard enabling interchangeability with AMS extension rods, hammers, and drive adapters
• Dual-diameter auger options: 5.72 cm (209.57/209.58) and 8.26 cm (209.55/209.56) for optimized sampling in varying soil textures and regulatory depth requirements
• Split-core sampler (3.49 cm Ø × 15.24 cm L) with precision-machined brass locking collars for minimal sample disturbance during extraction and sectioning
• Rubber-coated ergonomic handle (45.72 cm L) designed for controlled torque application and operator fatigue reduction during repetitive manual coring
• Included plastic liners (polyethylene, low-extractable grade) meet EPA Method 5035A requirements for VOC preservation; compatible with fluoropolymer film liners for trace-metal or PFAS-sensitive analyses
• Premium carrying case with custom-cut foam inserts ensures secure transport, rapid inventory verification, and field readiness under ISO/IEC 17025-accredited lab workflows

Sample Compatibility & Compliance

This kit supports representative sampling of cohesive (clay, silt), granular (sand, gravel), and mixed-texture soils—including high-organic-content peats and compacted fill materials—without significant smearing or core loss. The split-core design maintains stratigraphic integrity for horizon-specific analysis per US EPA SW-846 Method 5035A and ASTM D5778. All stainless steel surfaces are electropolished to Ra ≤ 0.4 µm, minimizing adsorption of organic analytes and heavy metals. Plastic liners comply with ASTM D4292 for low-volatile organic compound (VOC) leaching. The system meets GLP documentation requirements when used with AMS-certified chain-of-custody logs and barcode-labeled liners. It is routinely deployed in projects governed by CERCLA, RCRA, and state-level Tier II site assessments.

Software & Data Management

While the 209.57 is a manual field tool, it integrates seamlessly into digital environmental data workflows. Each component is serialized for traceability; liner caps support QR-code labeling aligned with LIMS platforms such as LabWare LIMS, Thermo Fisher SampleManager, and EQuIS. AMS provides free downloadable templates for field logbooks compliant with 21 CFR Part 11 audit-trail standards—including electronic signature fields, GPS-tagged location stamps, and depth-registered sampling metadata. Optional AMS FieldLog mobile app (iOS/Android) enables real-time photo capture, georeferenced point mapping, and automatic PDF report generation synced to cloud storage.

Applications

• Phase I/II Environmental Site Assessments (ESAs) per ASTM E1527 and E1903
• Soil gas probe installation and vadose zone profiling
• Remediation performance monitoring (e.g., ISCO, bioremediation, thermal treatment)
• Agricultural soil health surveys requiring metal-free sampling (e.g., Cd, Pb, As speciation)
• Forensic geotechnical investigations and landfill boundary delineation
• Academic research in pedology, biogeochemistry, and contaminant transport modeling

FAQ

What depth range can be achieved with the standard 1.2 m rods and sliding hammer?
With three 1.2 m extension rods and a standard sliding hammer, typical penetration reaches 3.0–3.6 m in medium-density soils; depth varies with moisture content, gravel content, and operator technique.
Are plastic liners included pre-sterilized for microbiological analysis?
No—liners are supplied clean and low-extractable but not sterile; users must autoclave or gamma-irradiate them per ISO 11737-1 if required for microbial assays.
Can the split-core sampler be used for saturated soils?
Yes—the brass locking collar and tapered core catcher minimize water loss; however, for fully saturated clays, pre-drilling with a pilot auger is recommended to reduce hydraulic resistance.
Is the kit compliant with EU REACH and RoHS directives?
All stainless steel components and PE liners are REACH SVHC-free and RoHS-compliant; full material declarations available upon request for EU-based procurement.
How does the 209.57 differ from the 209.58 configuration?
The 209.58 includes 25 pre-cut liners, 50 caps, 50 fluoropolymer films, and a #2 stainless steel铲 for surface scraping—optimized for high-throughput field campaigns requiring extensive replicate sampling.
