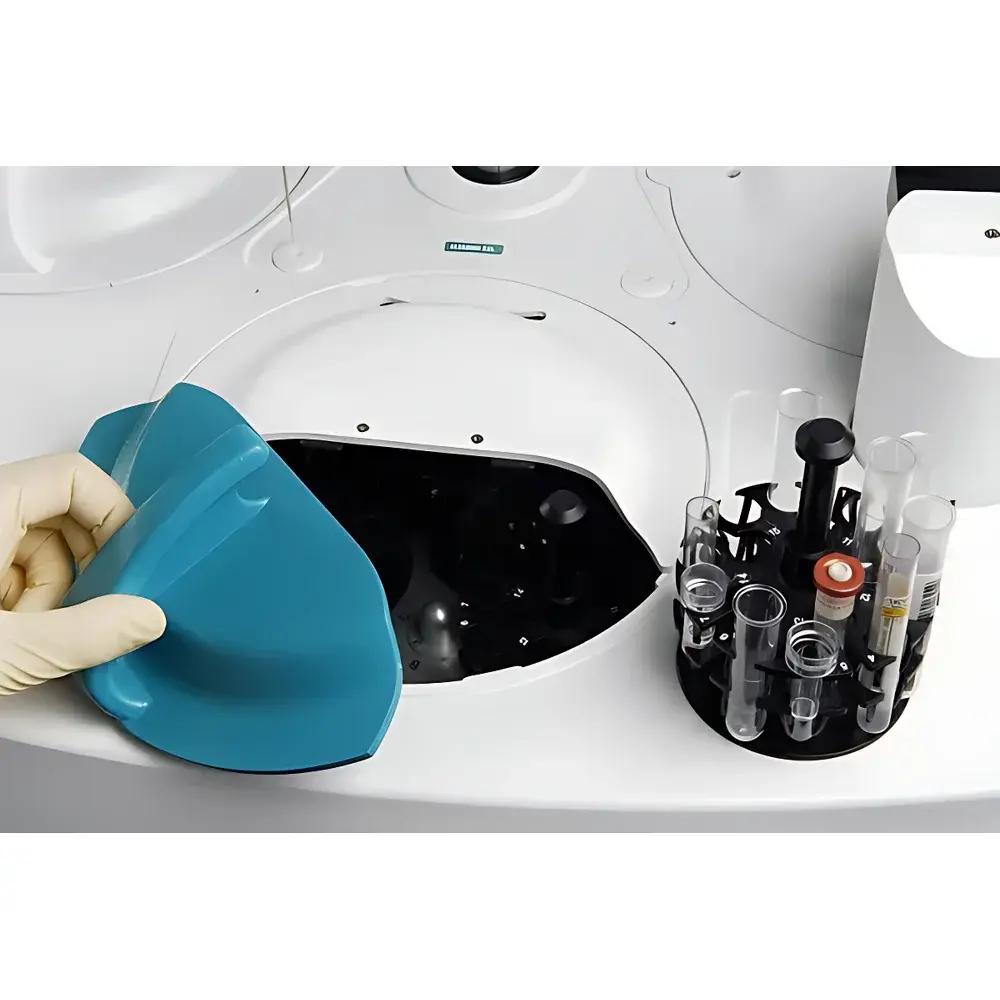

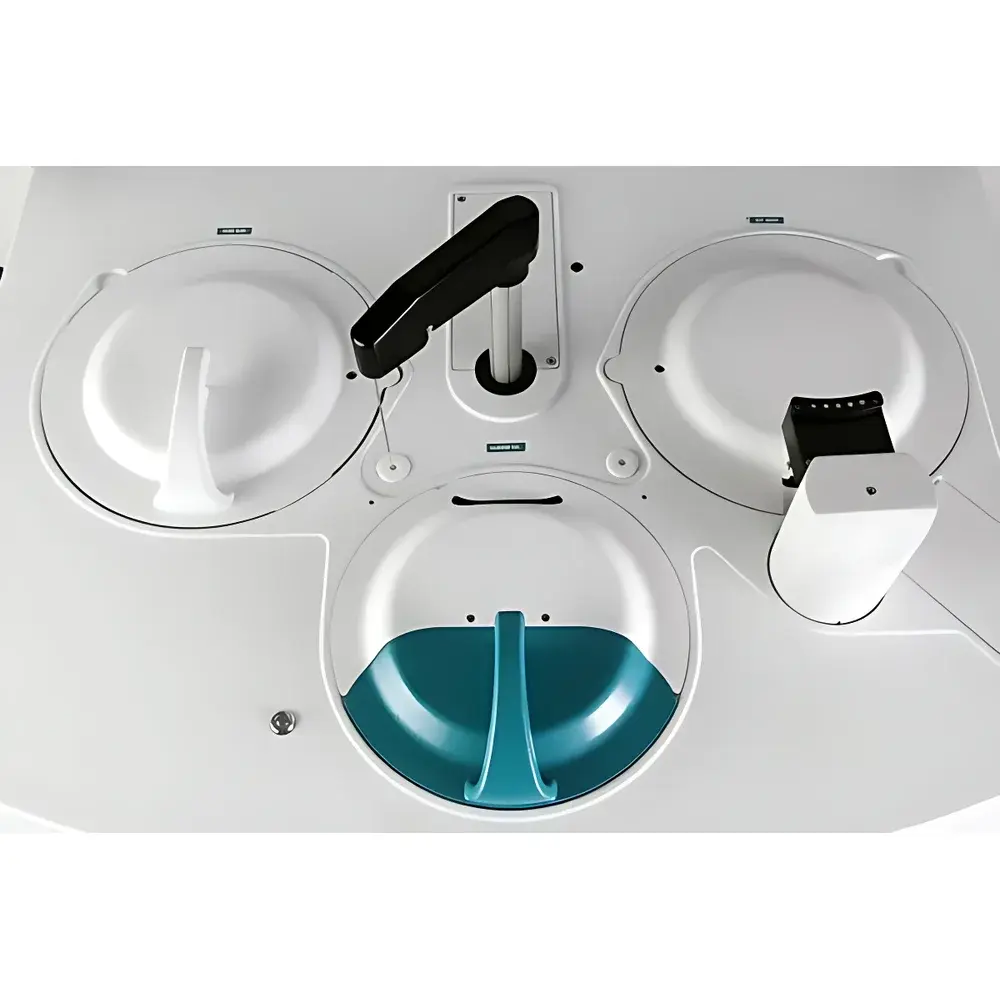

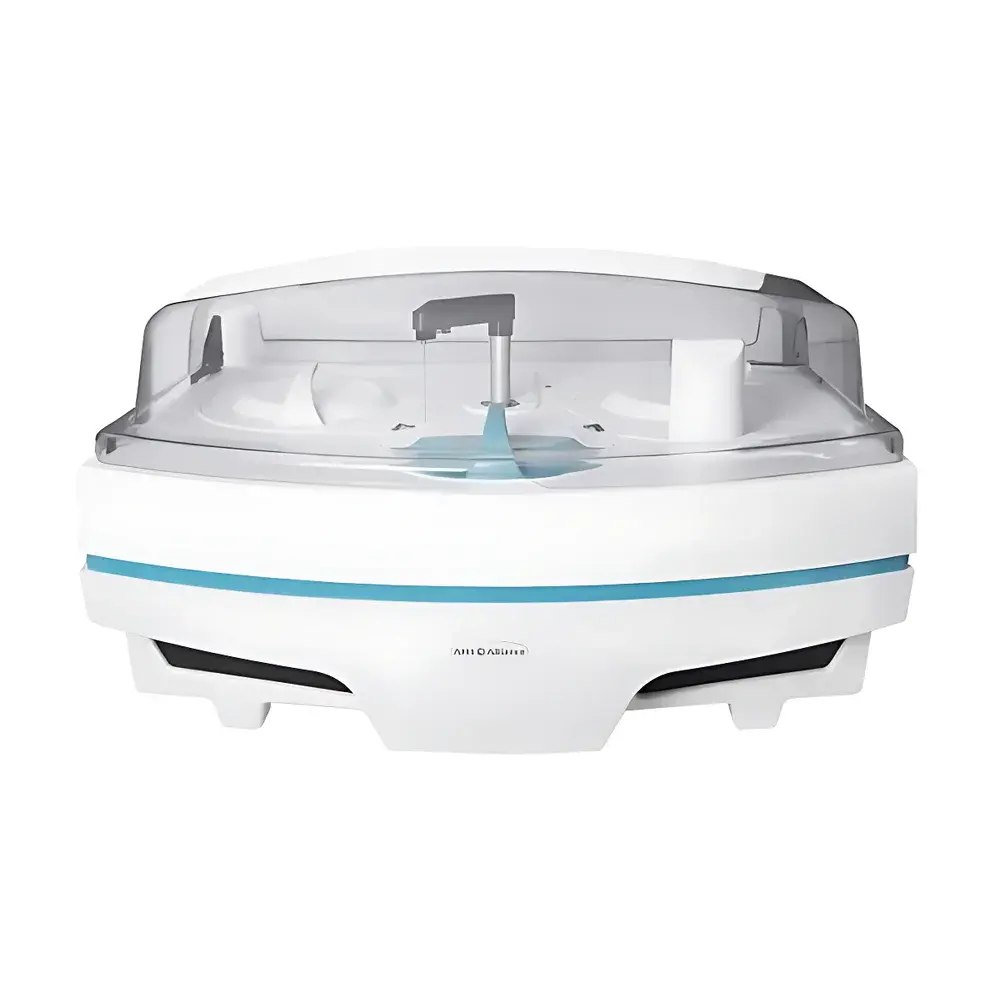

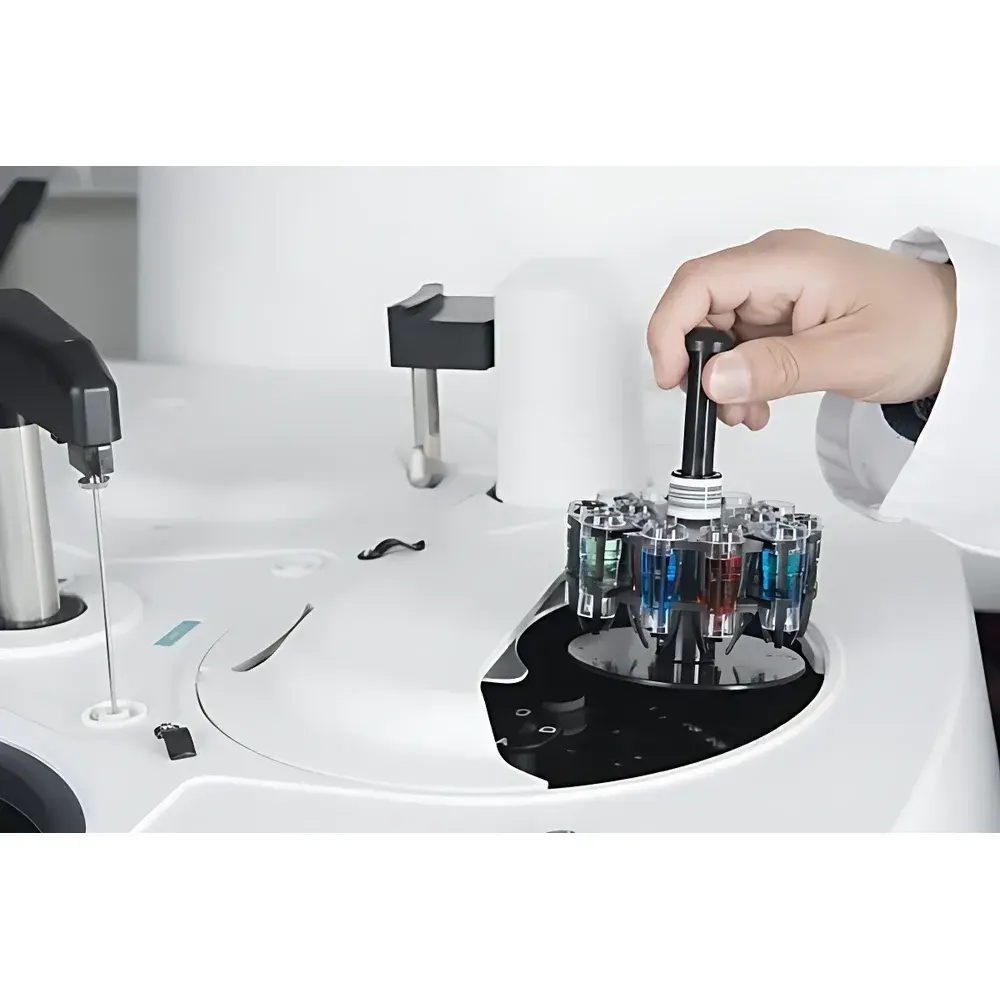

AMS Alliance SmartChem 450 Automated Discrete Analyzer
| Brand | AMS Alliance |
|---|---|
| Origin | Italy |
| Model | SmartChem 450 |
| Sample Capacity | 100 positions (standard configuration) |
| Reagent Positions | 72 (with optional refrigeration) |
| Wavelength Range | 340–880 nm |
| Cuvette Path Length | 6 mm |
| Light Source | 6 V / 10 W halogen lamp |
| Throughput | up to 450 determinations per hour (including ISE module) |
| Absorbance Range | 0.001–4.200 Abs |
| Resolution | 0.0001 Abs |
| Temperature Control | 37 °C ± 0.3 °C |
| Dimensions | 500 × 700 × 1050 mm (H × W × L) |
| Weight | 48 kg |
Overview
The AMS Alliance SmartChem 450 is a fully automated discrete chemical analyzer engineered for high-precision, high-throughput environmental, food, agricultural, and clinical laboratory applications. Unlike continuous-flow or flow-injection systems, the SmartChem 450 employs true discrete analysis—each sample and reagent is dispensed into an individual cuvette, enabling precise reaction timing, controlled incubation, and minimization of cross-contamination. Its photometric detection system utilizes a stable 6 V / 10 W halogen light source and a monochromator-based optical path covering 340–880 nm, supporting endpoint, kinetic, differential, dual-wavelength, and fixed-time methodologies. Designed for regulatory compliance and method standardization, the platform delivers reproducible absorbance measurements from 0.001 to 4.200 Abs with 0.0001 Abs resolution and thermally stabilized reaction kinetics at 37 °C ± 0.3 °C. The instrument’s architecture integrates modular analytical capabilities—including optional cadmium reduction columns for nitrate/nitrite determination and direct-read ion-selective electrode (ISE) modules—within a compact footprint (500 × 700 × 1050 mm), making it suitable for ISO 17025-accredited laboratories requiring audit-ready traceability and operational efficiency.
Key Features
- True discrete analysis architecture ensuring independent reaction control per sample, eliminating carryover and enabling method flexibility across diverse chemistries.
- High-throughput capability: up to 450 determinations per hour when combining photometric and ISE modules; 300 determinations/hour via photometry alone.
- Integrated Quality Assurance System (QAS) with automated pre- and post-analysis cuvette cleaning and optical verification for long-term measurement stability.
- 72-position reagent carousel with optional refrigerated storage to preserve reagent integrity and extend shelf life under GLP-compliant conditions.
- 100-sample capacity with barcode scanning for unambiguous sample and reagent identification, linked to dynamic inventory management software.
- Touchscreen-enabled control interface with intuitive workflow navigation, real-time status monitoring, and context-sensitive help functions.
- Modular expansion support: optional Cd-column module for nitrate-to-nitrite reduction; ISE module for simultaneous Na⁺, K⁺, Cl⁻, and Li⁺ quantification at up to 140 samples/hour.
Sample Compatibility & Compliance
The SmartChem 450 accommodates liquid samples across wide matrices—including drinking water, wastewater, seawater, soil extracts, plant digests, food homogenates, wine, beer, dairy, and tobacco extracts—without requiring manual dilution or pretreatment in most cases. Sample injection volume is programmable from 3.0 µL to 330 mL (in 1 mL increments), accommodating both micro-volume environmental assays and macro-volume food testing protocols. All photometric methods are validated against internationally recognized standards including ISO 6878 (phosphorus), ISO 11905-1 (nitrogen), AOAC Official Methods™, US EPA Methods 353.2 and 354.1, AFNOR T90-211, and BATF guidelines. The system supports full 21 CFR Part 11 compliance through electronic signatures, audit trails, and role-based user access controls when deployed with AMS-certified software configurations.
Software & Data Management
The SmartChem Control Software provides a unified environment for method development, instrument calibration, QC monitoring, and report generation. It features embedded method libraries compliant with ISO/IEC 17025 documentation requirements, automatic calibration curve fitting (linear, quadratic, log-log), and real-time outlier detection using Westgard rules. Raw absorbance data, temperature logs, reagent consumption metrics, and maintenance records are timestamped and stored with immutable audit trails. Export options include CSV, PDF, and LIMS-compatible ASTM E1384 and HL7 formats. Optional integration with enterprise LIMS platforms is supported via ODBC and RESTful API interfaces, enabling seamless data flow into centralized QA/QC dashboards.
Applications
- Water & Wastewater Analysis: Ammonia-N, nitrate/Nitrite-N, total phosphorus, orthophosphate, sulfate, sulfide, cyanide, phenol, urea, chloride, conductivity, and COD.
- Food & Beverage Testing: Total/reducing sugars, nitrate/nitrite, SO₂, ascorbic acid, protein (Kjeldahl digestates), glucose/fructose/sucrose, volatile acidity, nicotine, and turbidity-corrected analytes.
- Agricultural & Soil Science: Extractable K⁺, Ca²⁺, Mg²⁺, NO₃⁻, PO₄³⁻, SiO₂, B, Cu, Fe, Zn, and total Kjeldahl nitrogen in soil, fertilizer, and plant tissue digests.
- Tobacco & Regulatory Testing: Routine QC for national tobacco quality control centers, including ISO 10302-compliant phenol and formaldehyde assays.
- Public Health & Research: High-volume screening in CDC-equivalent labs, university core facilities, and environmental monitoring agencies requiring ISO/IEC 17025 traceability.
FAQ
What distinguishes discrete analysis from flow-injection or segmented-flow methods?
Discrete analysis isolates each reaction in a dedicated cuvette, enabling precise incubation timing, variable reaction volumes, and elimination of dispersion-related errors inherent in continuous-flow systems.
Can the SmartChem 450 comply with FDA 21 CFR Part 11 requirements?
Yes—when configured with AMS-certified software, electronic signature validation, and enabled audit trail logging, the system meets Part 11 technical and procedural criteria for regulated environments.
Is method validation support available for new applications?
AMS Alliance provides application notes, certified reference material protocols, and collaborative method transfer services aligned with ISO 17025 clause 7.2.2.
How does the QAS ensure measurement reliability over time?
The integrated Quality Assurance System performs automated optical verification of cuvette cleanliness and baseline absorbance before each analysis cycle, flagging deviations exceeding user-defined thresholds.
What maintenance intervals are recommended for routine operation?
Daily: Cuvette washer inspection and waste reservoir emptying. Quarterly: Lamp intensity calibration and fluidic line integrity checks. Annually: Full optical alignment and temperature sensor verification by AMS-certified service engineers.
