AMS Alliance Smartchem140 Discrete Automated Chemistry Analyzer
| Brand | AMS Alliance |
|---|---|
| Origin | Italy |
| Model | Smartchem140 |
| Product Type | Discrete Flow Analyzer |
| Wavelength Range | 330–840 nm |
| Sample Capacity | 64 positions |
| Reagent Positions | 24 + 10 |
| Cuvette Path Length | 6 mm |
| Light Source | Halogen Lamp |
Overview

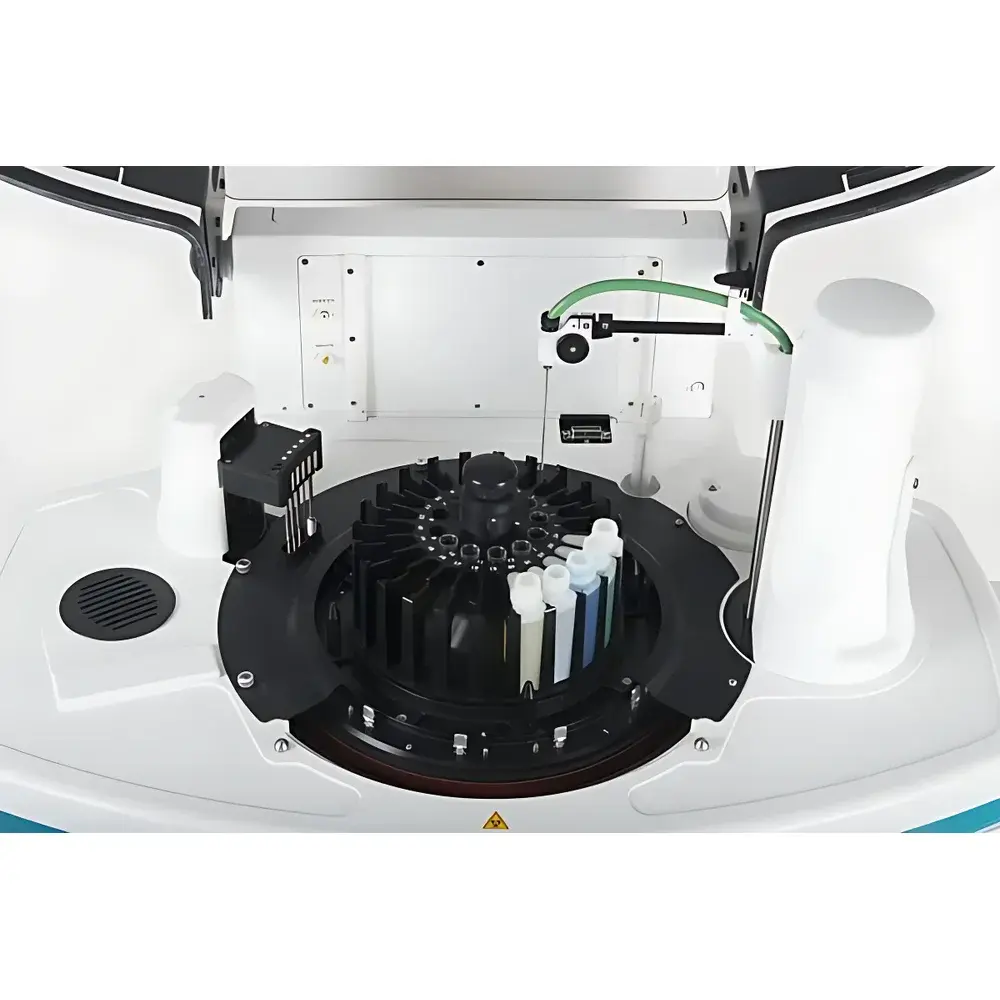

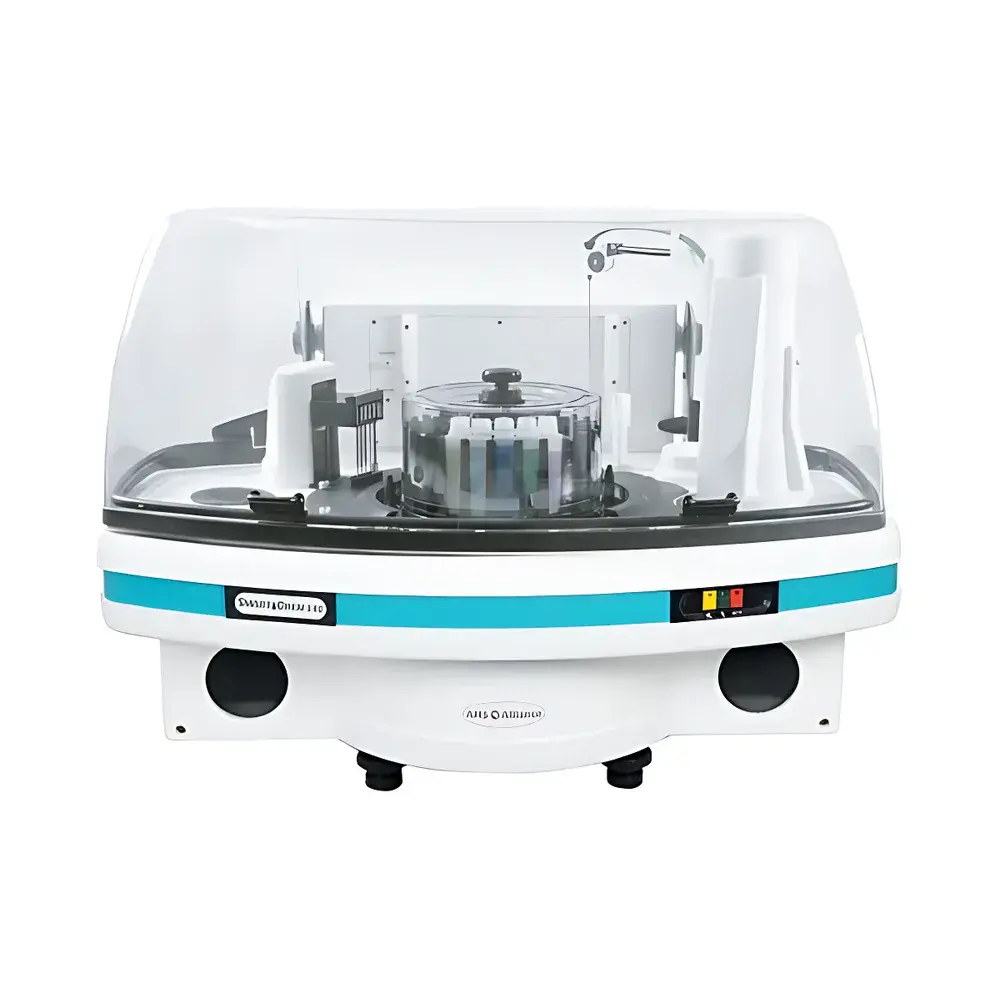

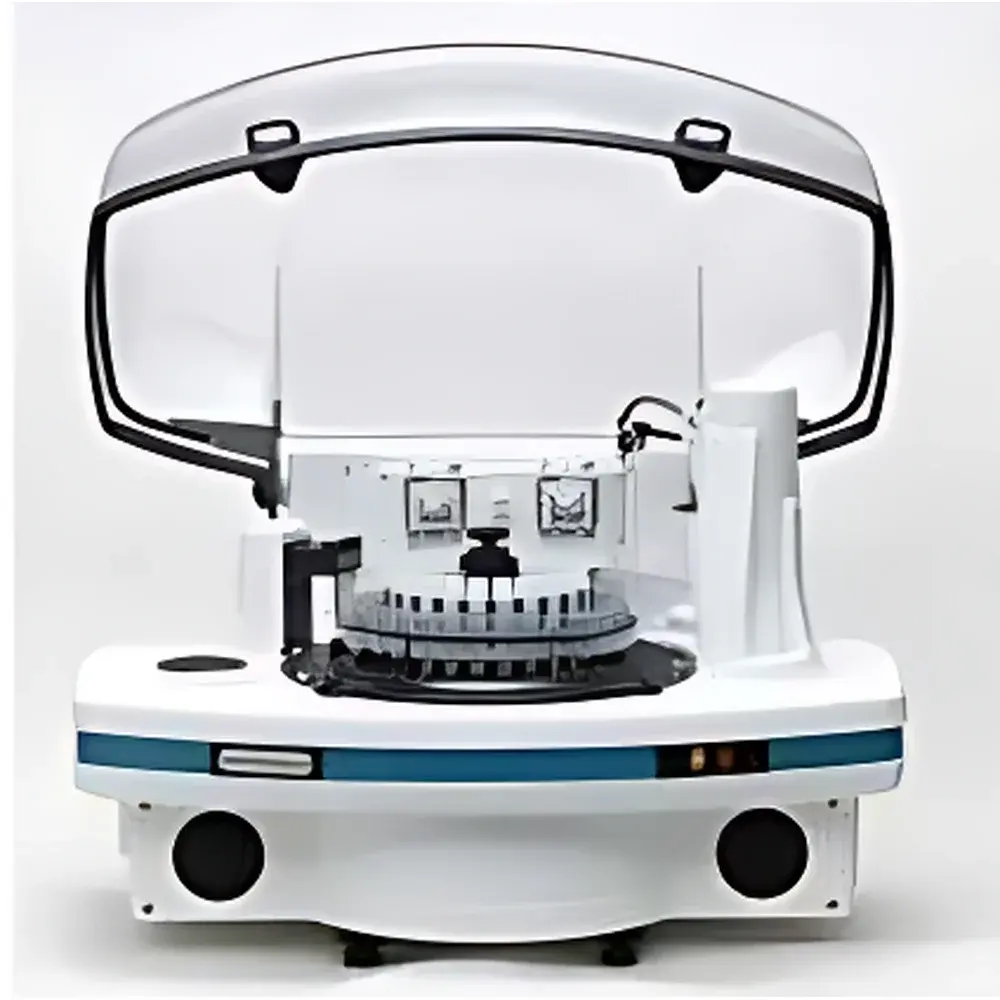

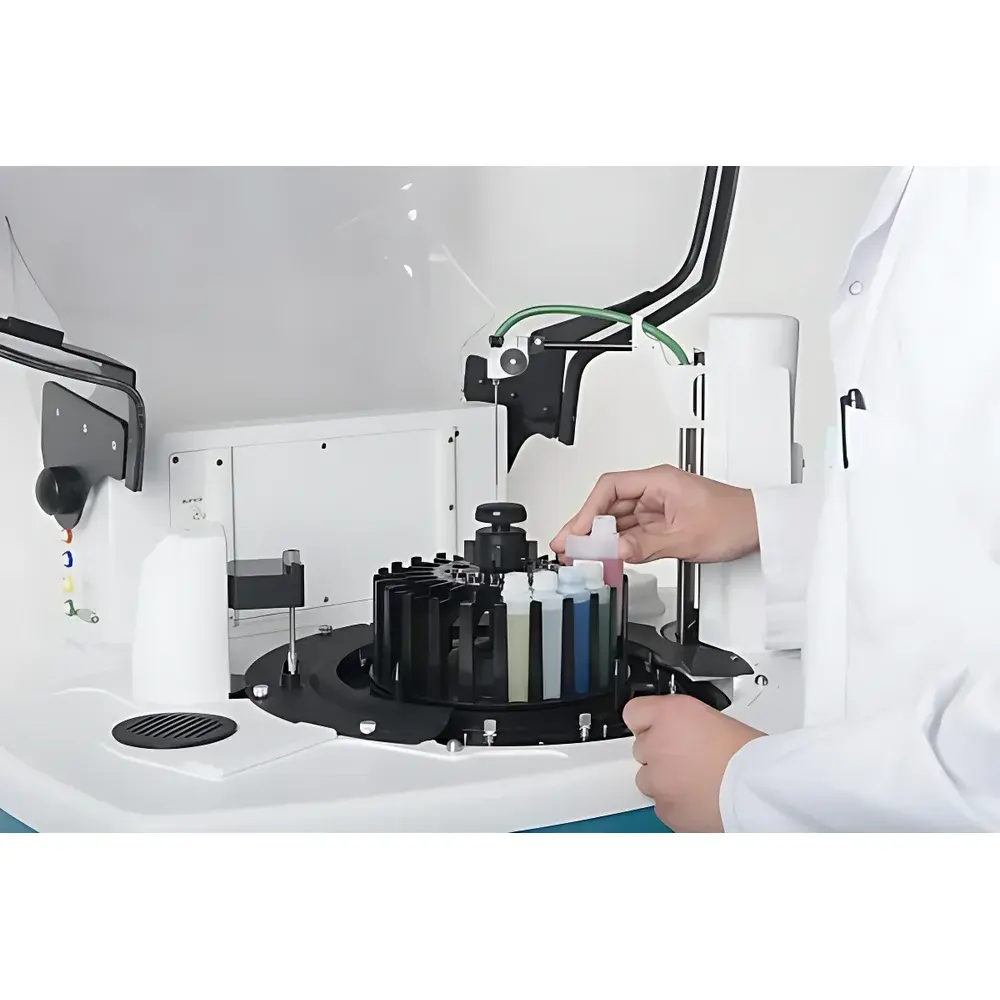

The AMS Alliance Smartchem140 is a fully automated discrete chemistry analyzer engineered for high-precision, low-maintenance clinical and environmental laboratory analysis. Unlike continuous-flow or segmented-flow systems, the Smartchem140 employs true discrete (batch-type) analysis—where each sample and reagent combination is processed in an individual quartz or optical-grade plastic cuvette, eliminating cross-contamination and enabling independent reaction kinetics per test. Its measurement principle is based on photometric absorbance detection using dual-beam digital spectrophotometry, compliant with standardized colorimetric methodologies defined in ISO 6878, ASTM D3869, USP , and EPA Methods 353.2, 365.2, and 4500-NH₃ F. The system integrates robotic liquid handling, real-time cuvette quality assurance (QAS), and adaptive wavelength selection across 330–840 nm—ensuring traceable, GLP-aligned data generation without manual intervention.
Key Features
- True discrete analysis architecture with individual cuvette-based reaction vessels for maximum assay independence and reproducibility
- Integrated Cuvette Quality Assurance System (QAS): automatically validates optical clarity, geometry, and cleanliness of each cuvette prior to use—reducing baseline drift and false positives
- Dedicated cadmium reduction module for selective nitrate-to-nitrite conversion, enabling accurate NO₃⁻/NO₂⁻ speciation per EPA 353.2 and ISO 12355
- Robotic arm with fixed-tip aspiration system delivering ±0.5 µL precision for 300 µL minimum reaction volume
- Halogen lamp light source coupled with thermally stabilized monochromator ensures spectral stability over extended runtime (±0.3 °C temperature control at 37 °C incubation zone)
- Barcode scanning capability for both samples and reagents—enabling full chain-of-custody tracking and audit-ready sample traceability
- Modular expandability: optional Peltier-cooled reagent compartment (4–12 °C), additional reagent carousels, and dedicated modules for sulfide, cyanide, or phenol analysis
Sample Compatibility & Compliance
The Smartchem140 accommodates aqueous matrices including drinking water, wastewater, seawater, soil extracts, plant digests, food homogenates, and biological fluids (serum, urine). It supports standard regulatory workflows under ISO/IEC 17025-accredited laboratories and meets analytical requirements for EU Directive 98/83/EC (drinking water), US EPA Clean Water Act methods, FDA food safety testing protocols (e.g., 21 CFR Part 11-compliant data integrity), and WHO guidelines for nutrient and contaminant monitoring. All assays are validated per CLSI EP15-A3 and ISO 5725-2 for trueness, precision, and intermediate precision (within-laboratory reproducibility).
Software & Data Management
Controlled via SmartView™ v5.x software—a Windows-based platform supporting method editor, scheduler, QC manager, and electronic lab notebook (ELN) integration. The software enforces role-based access control (RBAC), complete audit trail (per 21 CFR Part 11), and automatic calibration curve fitting (linear, quadratic, log-log, spline). Raw absorbance data, kinetic traces, and diagnostic logs are stored in encrypted SQLite databases with configurable backup intervals. Export formats include CSV, PDF reports, LIMS-compatible ASTM E1384 XML, and HL7 v2.5 messages for hospital laboratory interfaces.
Applications
The Smartchem140 delivers validated performance across three primary domains: (1) Environmental testing—ammonia, total phosphorus, orthophosphate, nitrate/nitrite (via Cd-reduction), cyanide, phenol, sulfate, sulfide, urea, and anionic detergents; (2) Food & beverage analysis—total sugar, reducing sugars, SO₂, ascorbic acid, nitrate/nitrite in cured meats, volatile acidity in wine, and protein in dairy; (3) Agricultural & soil science—Kjeldahl nitrogen, silicate, boron, chloride, conductivity, and extractable micronutrients (Fe, Cu, Zn, K) following AOAC 985.26, ISO 11260, and EN 13651 protocols.
FAQ
What distinguishes discrete analysis from flow injection or segmented flow techniques?
Discrete analysis processes each sample-reagent mixture in a physically isolated cuvette, eliminating memory effects and enabling flexible reaction timing per parameter—critical for kinetic assays and multi-step chemistries.
Is the Smartchem140 compliant with 21 CFR Part 11 for regulated environments?
Yes—the SmartView™ software includes electronic signatures, audit trails, data encryption, and operator-level permissions required for FDA-regulated QC/QA labs.
Can the system perform kinetic measurements?
Yes—it supports endpoint, kinetic, differential, dual-wavelength, and fixed-time modes with configurable read intervals from 1–300 seconds.
What maintenance is required for long-term reliability?
Daily cleaning cycle, quarterly photometer verification with NIST-traceable filters, and annual calibration using certified reference materials (CRMs) per ISO Guide 34.
How does the cadmium reduction module ensure nitrate specificity?
The integrated Cd-column dynamically reduces NO₃⁻ to NO₂⁻ under controlled pH and flow conditions, followed by diazotization and coupling—minimizing interference from chloride or organic nitrogen compounds.
