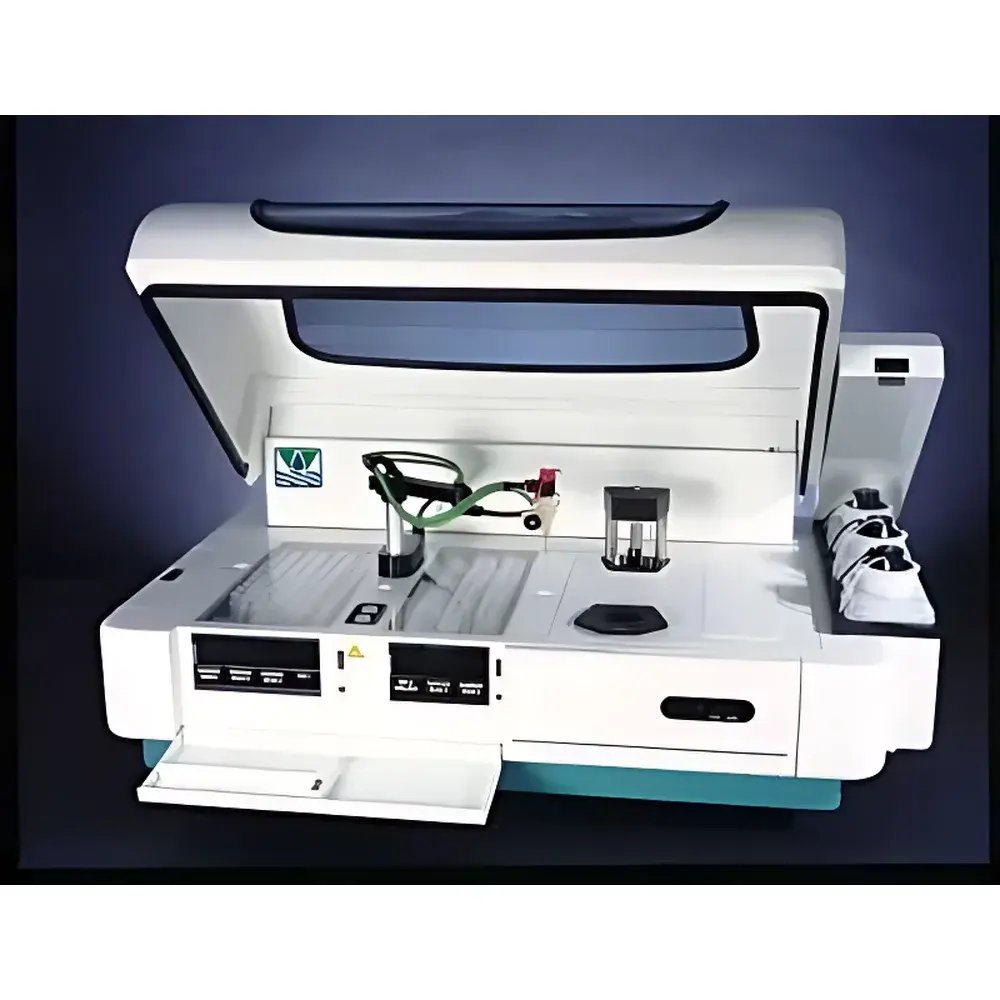

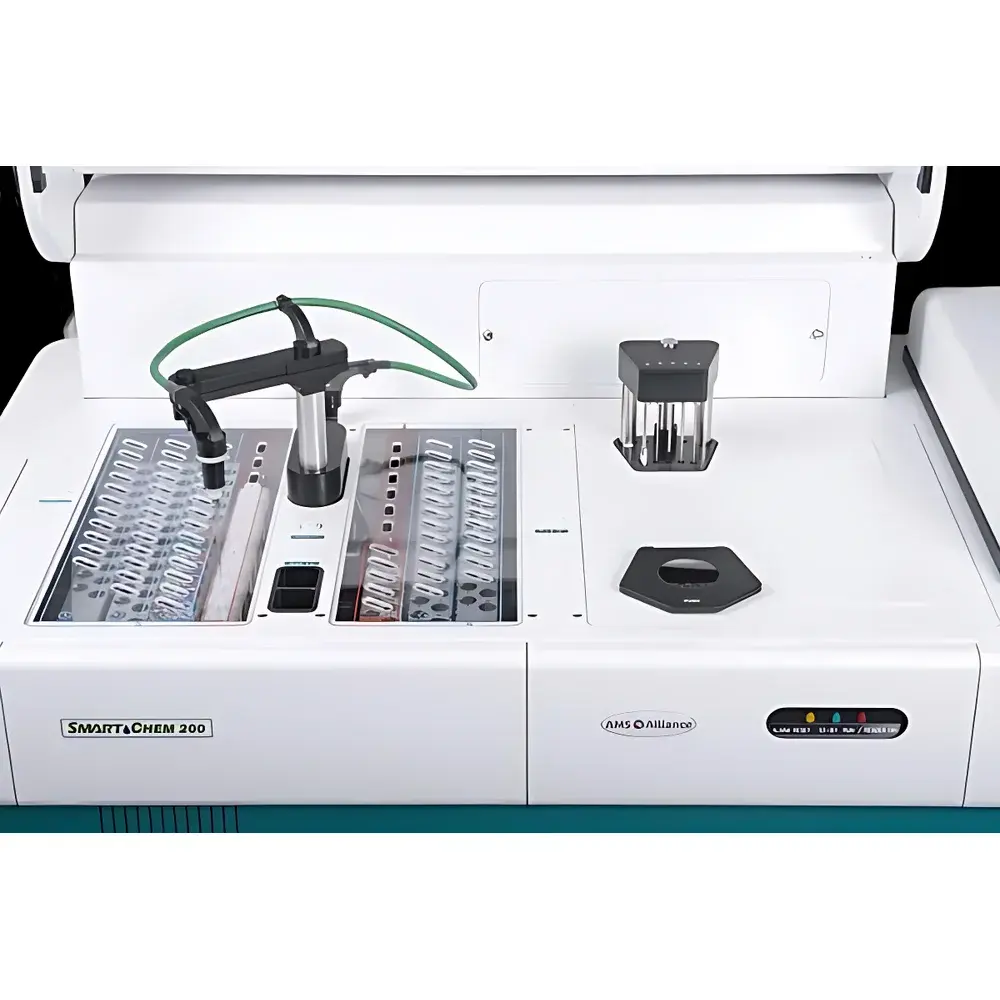

AMS Alliance SmartChem200 Automated Discrete Analyzer
| Brand | AMS Alliance |
|---|---|
| Origin | Italy |
| Model | SmartChem200 |
| Product Type | Automated Discrete Analyzer |
| Wavelength Range | 420–880 nm |
| Sample Capacity | 126 positions |
| Reagent Positions | 10 (expandable to 28) |
| Cuvette Path Length | 10 mm |
| Light Source | 6 V / 10 W Halogen Tungsten Lamp (2000 h lifetime) |
| Measurement Speed | Up to 200 tests/hour (per method) |
| Minimum Reaction Volume | 300 µL |
| Absorbance Range | 0.001–2.500 Abs |
| Absorbance Resolution | 0.0001 Abs |
| Thermostat Accuracy | 37 °C ± 0.3 °C |
| Dimensions (H×W×L) | 420 × 650 × 1000 mm |
| Weight | 43 kg |
Overview
The AMS Alliance SmartChem200 is an automated discrete analyzer engineered for high-precision, low-maintenance routine and specialized wet-chemistry analysis in regulated and research laboratory environments. Unlike continuous-flow or flow injection systems, the SmartChem200 implements true discrete analysis—each sample and reagent is pipetted into a dedicated, optically calibrated quartz or glass cuvette, where reactions proceed under precisely controlled thermal and temporal conditions. This architecture eliminates cross-contamination, minimizes reagent carryover, and ensures stoichiometric integrity across heterogeneous sample matrices. The instrument operates on photometric detection principles (absorbance measurement via dual-beam spectrophotometry), with optical pathlength fixed at 10 mm and spectral acquisition spanning 420–880 nm using a long-life halogen tungsten lamp. Its modular design supports endpoint, kinetic, differential, dual-wavelength, and fixed-time reaction monitoring—enabling method flexibility without hardware modification.
Key Features
- Automated Cuvette Quality Assurance System (QAS): Prior to each analysis cycle, every cuvette undergoes automated optical inspection—including blank absorbance verification, scratch detection, and meniscus alignment validation—to ensure metrological traceability and inter-cuvette consistency.
- Dedicated Cadmium Reduction Module: Patented inline Cd-column system for selective nitrate-to-nitrite conversion, enabling compliant quantification of total nitrate/nitrite in environmental and food matrices per ISO 12359, EPA Method 353.2, and AFNOR T90-015.
- Integrated ISE Expansion Capability: Optional ion-selective electrode module supports simultaneous or sequential measurement of pH, conductivity, and redox potential—fully synchronized with photometric data acquisition and calibrated per ASTM D1293, D5391, and ISO 7888.
- Barcode-Driven Sample & Reagent Tracking: 1D/2D barcode readers log identity, lot number, expiration date, and preparation time for full chain-of-custody compliance with GLP, GMP, and FDA 21 CFR Part 11 requirements.

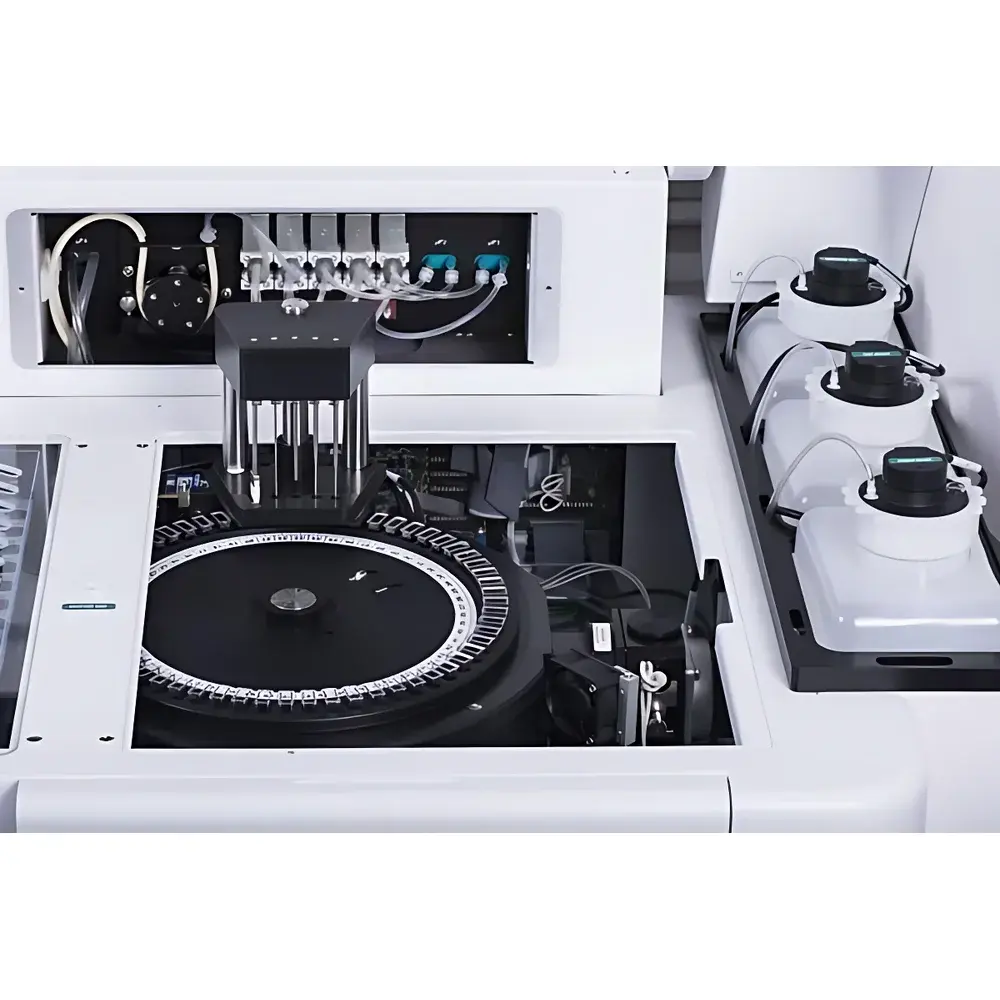

- Thermostatically Controlled Reaction Environment: Peltier-regulated cuvette carousel maintains 37 °C ± 0.3 °C across all positions, critical for enzymatic and colorimetric assays requiring strict temperature dependency (e.g., phosphate hydrolysis, phenol-hypochlorite ammonia detection).
Sample Compatibility & Compliance
The SmartChem200 accommodates liquid samples across broad matrix complexity—from ultrapure drinking water and seawater (with salinity compensation) to turbid wastewater, digested soil extracts, wine must, dairy homogenates, and plant tissue leachates. Its 126-position sample carousel accepts standard 12–16 mm diameter tubes (including screw-cap and crimp-top vials), while the reagent deck supports up to 28 individually cooled or ambient reservoirs. All validated methods align with international regulatory frameworks: ISO 6878 (phosphorus), ISO 11905-1 (nitrogen), ISO 6777 (ammonia), AOAC 973.42 (cyanide), BATF Method 32 (sulfide), USEPA Methods 354.1, 350.1, and 365.4, as well as COFRAC-accredited test procedures for environmental certification labs.
Software & Data Management
SmartView™ software provides a validated, audit-trail-enabled interface compliant with 21 CFR Part 11 (electronic signatures, user role-based access control, immutable event logs). It supports method development via drag-and-drop protocol builder, real-time reaction curve visualization, automatic outlier flagging based on replicate SD thresholds, and export to LIMS-compatible formats (ASTM E1384, HL7, CSV). Raw absorbance data, temperature logs, cuvette ID history, and reagent consumption metrics are archived with SHA-256 hash integrity verification. Software updates are delivered via secure HTTPS channel with version-controlled release notes and impact assessments.
Applications
- Water & Wastewater Analysis: Ammonia-N, nitrate-N, nitrite-N, total Kjeldahl nitrogen (TKN), orthophosphate, total phosphorus, sulfate, sulfide, cyanide, phenols, urea, chloride, silica, boron, carbonate alkalinity.
- Food & Beverage Testing: Total sugar, reducing sugars, SO₂ (free/bound), vitamin C (ascorbic acid), nitrate/nitrite in cured meats, volatile acidity in wine, protein (Kjeldahl/NIR correlation), COD in juice processing effluents.
- Agricultural & Soil Science: Extractable ammonium, nitrate, phosphate, potassium, iron, zinc, copper, aluminum, and electrical conductivity in Mehlich-3, CaCl₂, or distilled water extracts.
- Tobacco & Plant Biochemistry: Nicotine, chlorogenic acid, reducing sugars, starch, total alkaloids, and polyphenol oxidation kinetics.
FAQ
What distinguishes discrete analysis from flow injection or segmented flow techniques?
Discrete analysis isolates each reaction in a dedicated cuvette, eliminating dispersion, dilution artifacts, and memory effects inherent in continuous tubing-based systems—critical for high-accuracy, multi-analyte panels in variable-matrix samples.
Can the SmartChem200 be integrated into an existing LIMS environment?
Yes—it supports ASTM E1384-compliant data export, ODBC connectivity, and configurable HL7 message templates for bidirectional sample registration and result ingestion.
Is method validation support available for regulatory submissions?
AMS Alliance provides IQ/OQ documentation packages, performance qualification protocols aligned with ISO/IEC 17025, and application notes referencing EPA, ISO, and AOAC validation criteria.
How is calibration traceability maintained across cuvettes and lamps?
Each cuvette is individually characterized during QAS; lamp intensity decay is continuously monitored and compensated in real time using internal reference photodiodes and NIST-traceable neutral density filters.
What maintenance intervals are recommended for routine operation?
Daily: Cuvette cleaning cycle and blank verification. Quarterly: Lamp replacement (2000 h rated), pump tubing inspection, and ISE electrode recalibration. Annually: Full optical alignment verification and thermostat calibration against PT100 reference.
