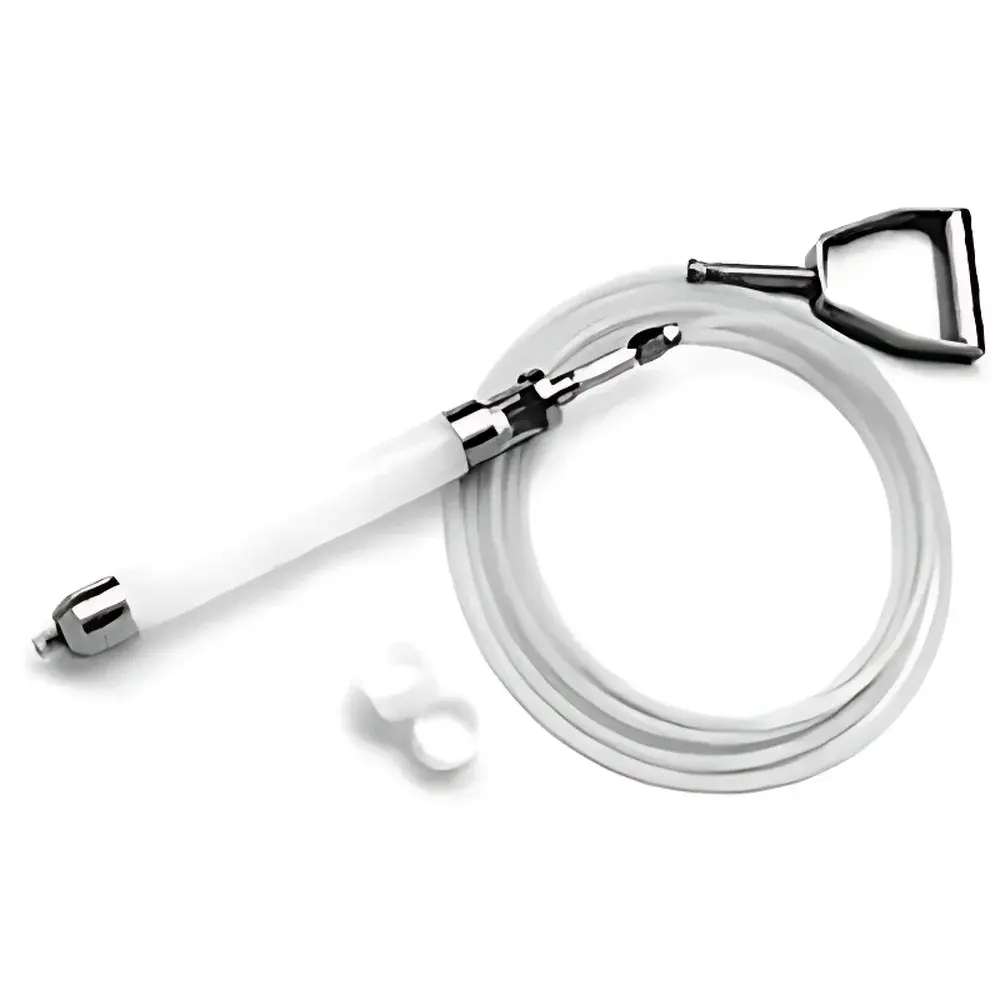

AMS AMS3 Portable Single-Valve Groundwater Sampler

Overview

The AMS AMS3 Portable Single-Valve Groundwater Sampler is an engineered field tool designed for reliable, low-contamination collection of discrete groundwater samples from monitoring wells and boreholes. It operates on a gravity-driven, single-actuation principle: the sampler is lowered to the target depth using a calibrated measuring cable; upon reaching position, the operator rotates the T-handle to open the fluoropolymer valve, allowing formation water to enter the 0.5 L fluoropolymer sample chamber via hydrostatic pressure differential. Once filled, the valve is closed before retrieval, minimizing cross-contamination and preserving in-situ chemical integrity. This design eliminates the need for compressed air, pumps, or electrical power—making it ideal for remote, off-grid, or environmentally sensitive sites where minimal well intrusion and rapid deployment are critical.

Key Features

• Single-valve fluoropolymer actuation mechanism ensures chemical inertness and resistance to corrosion across a wide pH range (1–14), critical for VOC, metals, and nutrient analysis.
• Stainless steel body provides structural rigidity and long-term durability in abrasive or high-salinity environments while maintaining compliance with ASTM D6771 and ISO 5667-3 sampling protocols.
• Modular cable system supports extension beyond the standard 7.62 m depth—compatible with custom-length cables up to 100 m when paired with appropriate winch and tension-rated hardware.
• Optimized geometry accommodates minimum well casing inner diameters of 5.08 cm (2 inches), enabling use in standard PVC, stainless steel, and HDPE monitoring wells without adapter modification.
• T-handle actuator delivers tactile feedback during valve opening/closing, reducing operator error and supporting consistent sampling technique under variable field conditions (e.g., wind, gloves, low light).
• All wetted components—including sample tube, top cap, overflow cap, and valve seal—are constructed from fluoropolymer (e.g., PTFE or FEP), eliminating leachables and meeting US EPA Method 502.2 and 524.2 requirements for trace-level organic analysis.

Sample Compatibility & Compliance

The AMS3 is validated for use with aqueous matrices including freshwater, brackish groundwater, and low-TDS industrial effluents. Its fluoropolymer-wetted path prevents adsorption of polar analytes (e.g., nitrate, phosphate, BTEX) and minimizes metal ion binding—supporting accurate quantification per EPA SW-846 Methods 6010D (ICP-MS), 6020B (ICP-OES), and 8260D (GC/MS). The device conforms to regulatory sampling best practices outlined in ASTM D6771 (Standard Guide for Selection of Sampling Devices for Groundwater Monitoring Wells) and ISO 5667-3:2018 (Water quality — Sampling — Part 3: Guidance on preservation and handling of water samples). While not intrinsically certified for hazardous locations, its passive mechanical operation allows safe deployment in Class I, Division 2 zones when used with non-sparking cable reels and grounding protocols.

Software & Data Management

The AMS3 is a standalone mechanical sampling device and does not incorporate embedded electronics, firmware, or wireless connectivity. As such, it requires no software installation, calibration certificates, or cybersecurity validation. Field data—including sampling depth (recorded manually from calibrated cable markings), date/time, well ID, and operator signature—are documented externally using paper logbooks or digital forms compliant with 21 CFR Part 11 (when deployed with validated electronic data capture systems). The absence of electronic components ensures zero risk of electromagnetic interference, battery failure, or firmware obsolescence—enhancing long-term auditability and reducing lifecycle maintenance overhead.

Applications

• Regulatory compliance monitoring at RCRA, CERCLA, and UST sites requiring discrete zone sampling per EPA guidance.
• Pre- and post-remediation assessment of plume migration using depth-specific VOC and dissolved oxygen profiling.
• Baseline characterization of aquifer chemistry prior to construction or land-use change.
• Long-term trend analysis in multi-level monitoring wells equipped with dedicated access ports per ASTM D5092.
• Academic and government hydrogeologic studies requiring reproducible, low-disturbance sampling in shallow unconfined aquifers.
• Emergency response scenarios where rapid, battery-free deployment is essential (e.g., fuel spill investigations, agricultural runoff events).

FAQ

Can the AMS3 be used in artesian wells with upward flow?
Yes—its gravity-settling design and positive-seal fluoropolymer valve prevent backflow during retrieval, even under mild artesian pressure. For high-flow wells (>0.5 L/min), pre-purging with a bailer is recommended to stabilize hydraulic head prior to AMS3 deployment.
Is sterilization required between samples?
Sterilization is not required for routine inorganic or stable organic analyses. However, for microbiological or DNA-based assays, EPA-recommended decontamination protocols (e.g., 10% bleach soak followed by triple deionized water rinse) must be applied—fluoropolymer components withstand this treatment without degradation.
Does the 0.5 L capacity include dead volume?
No—the stated 0.5 L represents net recoverable sample volume after valve closure and surface drainage; dead volume within the valve seat and tubing is negligible (<2 mL) and excluded from certified capacity per manufacturer test report AMS-TR-2023-04.
What cable length tolerances are supported for depth accuracy?
Calibrated AMS measuring cables maintain ±1.5 cm accuracy over 7.62 m; extended cables (up to 50 m) retain ±0.2% full-scale tolerance when thermally stabilized at ambient field temperature prior to deployment.
Is third-party certification available for method validation?
AMS provides factory test reports and material compliance documentation (RoHS, REACH, FDA 21 CFR 177.1550 for fluoropolymers); independent method validation per ISO/IEC 17025 must be performed by the end-user’s accredited laboratory as part of site-specific QA/QC procedures.
