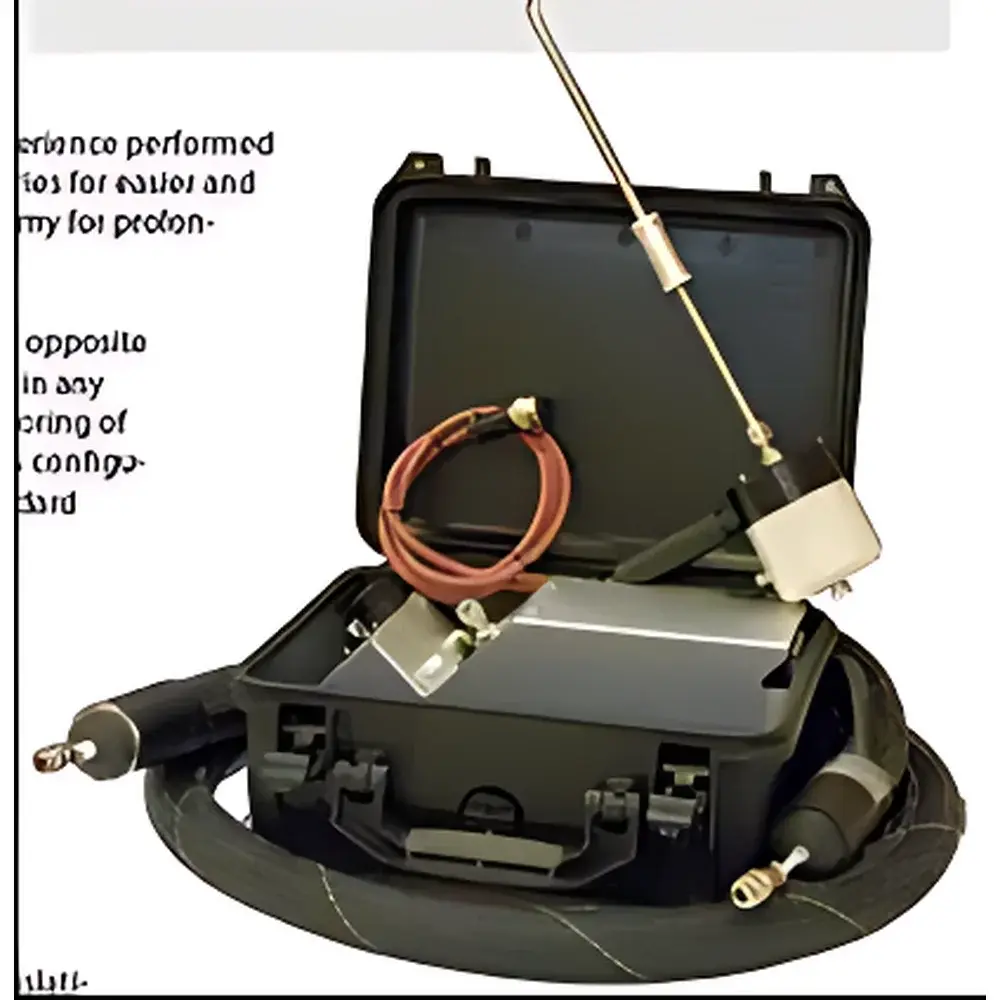

AMS Stack Gas2001 Heated Flue Gas Sampling Probe

Overview

The AMS Stack Gas2001 Heated Flue Gas Sampling Probe is an engineered solution for representative, condensation-free sampling of hot, moisture-laden, and particulate-laden flue gases directly from industrial stacks and ducts. Designed in accordance with ISO 16911-1:2013 (Stationary source emissions — Manual method of determination of the mass concentration of dust in flue gas) and aligned with EPA Method 5 and EN 13284-1 requirements, the probe operates on the principle of isokinetic sampling—maintaining a probe tip velocity matching the local gas stream velocity to prevent particle-size bias. Its core architecture integrates active thermal management: a precisely regulated heating zone ensures all internal surfaces—including the sampling nozzle, filter holder, and transfer line inlet—remain above the dew point of acidic condensates (typically >180 °C), thereby eliminating water dropout, sulfuric acid deposition, and filter clogging. This thermally stable path preserves the integrity of gaseous analytes (e.g., SO₂, NOₓ, HCl) and enables accurate quantification of total suspended particulates (TSP) and PM₁₀ fractions when used with gravimetric or beta-attenuation downstream analyzers.

Key Features

• Integrated heated particulate filtration: Sintered stainless-steel or ceramic filter element housed within the probe body, maintained at constant temperature (adjustable range: 160–220 °C) via PID-controlled heating circuit.
• Dual-length probe options: Standard 350 mm and extended 750 mm configurations accommodate varying stack wall thicknesses and access constraints without compromising isokinetic alignment.
• Self-contained power architecture: Sealed 14 Ah lead-acid battery (IEC 61056-1 compliant) provides ≥4 hours of continuous operation at full heating load; supports field recharging via 12–24 V DC input.
• Cooling-integrated sampling line: 1.25 m dual-wall polyethylene conduit includes an outer cooling jacket and inner heated transfer tube, managed by the dedicated electronic control unit (P/N 2100152) for real-time temperature monitoring and thermal gradient compensation.
• Modular interface design: Equipped with dual NPT 1/4″ female ports for simultaneous connection to primary analyzers and optional DiluGas™ dynamic dilution modules—enabling trace-level calibration gas generation and low-concentration measurement validation per ISO 12039 and ASTM D6522.
• Ruggedized transport housing: IP65-rated waterproof case with molded foam inserts secures probe, battery, controller, and accessories; certified for transport under UN 3480 (Class 8 Corrosive Substances) due to battery containment design.

Sample Compatibility & Compliance

The Stack Gas2001 is validated for use across combustion sources including coal-fired boilers, cement kilns, waste incinerators, and biomass furnaces. It accommodates flue gas temperatures up to 400 °C (short-term peak), moisture content ≤30% v/v, and particulate loading ≤10 g/m³ (dry basis). All wetted materials—316L stainless steel probe body, PTFE-sealed fittings, and fluoropolymer-lined tubing—meet USP Class VI and FDA 21 CFR 177.1550 compliance for chemical resistance. The system supports GLP/GMP audit trails when paired with AMS-certified data loggers (e.g., DataLogger Pro v4.2), fulfilling traceability requirements under ISO/IEC 17025:2017 clause 7.7. Calibration certificates are supplied with NIST-traceable flow verification (±2% accuracy confirmed via primary rotameter and dry-calibrated mass flow meter).

Software & Data Management

While the Stack Gas2001 operates as a hardware-centric sampling platform, its electronic control unit (ECU) communicates via RS-485 Modbus RTU protocol to external host systems. AMS provides open-protocol documentation enabling integration into LIMS, SCADA, or custom QA/QC dashboards. Firmware updates (v2.1+) support time-stamped event logging—including heater activation, battery voltage decay, and thermal fault alerts—with timestamp resolution of 1 second. When deployed with AMS’s optional DiluGas™ module, the combined system generates encrypted CSV reports compliant with FDA 21 CFR Part 11 Annex 11 requirements, including user authentication, electronic signatures, and immutable audit logs for regulatory submissions.

Applications

• Regulatory stack testing per EPA Performance Specification 2 (PS-2) for continuous emission monitoring system (CEMS) certification.
• Source testing during MACT (Maximum Achievable Control Technology) compliance audits under 40 CFR Part 63.
• Method validation studies for mercury speciation (EPA Method 29/30B) requiring artifact-free Hg⁰ preservation.
• Process optimization in energy-from-waste facilities where real-time O₂, CO, and unburnt hydrocarbon feedback informs combustion tuning.
• Research-grade sampling for aerosol characterization (e.g., SEM-EDS, XRD analysis of fly ash morphology) requiring undisturbed particle size distribution.

FAQ

What is the maximum allowable flue gas temperature for continuous operation?
Continuous operation is rated to 350 °C; short-term excursions to 400 °C are permitted for ≤15 minutes per sampling event.
Can the probe be used for sampling corrosive gases such as HCl or HF?
Yes—the 316L stainless-steel construction and PTFE sealing system provide proven resistance to halogen acids at concentrations up to 500 ppmv when operated above 180 °C.
Is the battery replaceable in the field?
Yes—the 14 Ah sealed lead-acid battery is user-replaceable using standard Torx T20 tools; replacement units are supplied with CE/UKCA marking and UN38.3 transport certification.
Does the system include isokinetic flow control capability?
No—isokinetic control requires external pitot-static probes and flow controllers (e.g., AMS FlowMaster 3000); the Stack Gas2001 provides the heated sampling path but does not regulate velocity.
How often must the heated filter be cleaned or replaced?
Under typical coal-combustion conditions (≤2 g/m³ dust), filter service intervals exceed 40 hours; cleaning is performed via ultrasonic bath in isopropanol, followed by oven drying at 120 °C.
