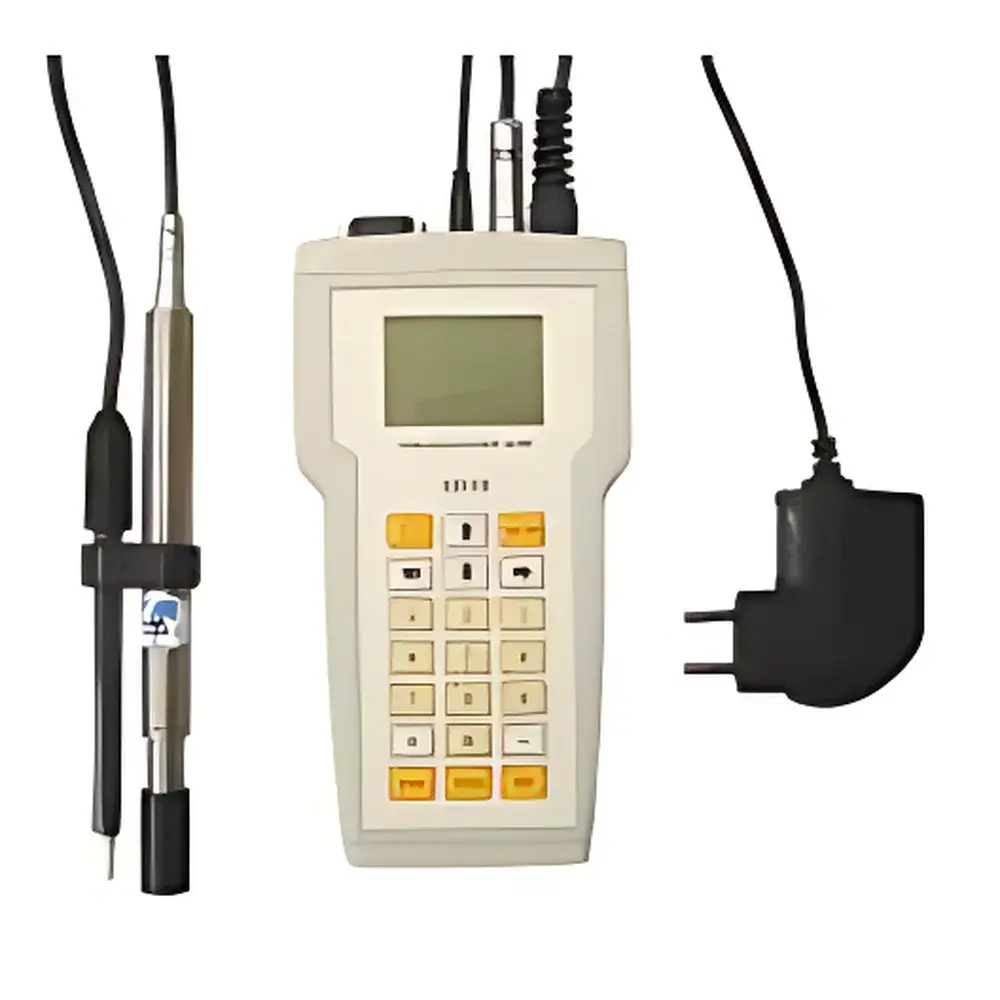

AMT MS08 Handheld Multigas Readout Meter

Overview

The AMT MS08 Handheld Multigas Readout Meter is a microprocessor-controlled, field-deployable instrumentation platform engineered for real-time, in-situ measurement of dissolved and gaseous analytes in water and ambient air. Unlike conventional wet-chemistry or lab-based analytical methods, the MS08 operates as a universal signal conditioner and digital interface for AMT’s electrochemical microsensors—enabling direct, reagent-free quantification without sample extraction, dilution, or chemical addition. Its core architecture implements potentiometric and amperometric transduction principles, with integrated temperature compensation (via built-in Pt1000 sensor) to ensure thermally corrected concentration outputs across variable environmental conditions. Designed for dual-use in both laboratory quality control workflows and uncontrolled outdoor environments—including wastewater treatment plants, drinking water distribution networks, aquaculture facilities, and industrial effluent monitoring sites—the MS08 delivers trace-level detection capability while maintaining operational robustness under humidity, vibration, and transient thermal gradients.

Key Features

• Universal readout platform compatible with AMT’s interchangeable electrochemical microsensor cartridges: H₂O₂, O₂, H₂S, H₂, and O₃
• Integrated high-precision temperature sensing (Pt1000, ±0.1 °C accuracy) for automatic thermal compensation of sensor output
• On-device real-time display of analyte concentration, temperature, and pH (when paired with AMT pH microsensors)
• Internal calibration memory supporting up to 10 independent sensor-specific calibration coefficients—stored with slope, offset, and temperature correction parameters
• RS232 serial interface compliant with EIA/TIA-232-F standard for data logging, remote configuration, and integration with SCADA or LIMS systems
• Rechargeable power supply enabling continuous operation for >12 hours under typical field duty cycles
• Tool-free sensor cartridge replacement—no recalibration required when swapping within same analyte family (e.g., H₂O₂ to O₂)
• User-configurable measurement units (e.g., mg/L, ppm, % saturation, µmol/L) and decimal resolution settings

Sample Compatibility & Compliance

The MS08 is validated for use with aqueous matrices ranging from ultrapure water (conductivity < 1 µS/cm) to high-salinity seawater (up to 45 psu) and municipal wastewater (TSS ≤ 150 mg/L). It meets IEC 60529 IP67 ingress protection rating for dust and temporary immersion resistance. Sensor cartridges comply with ISO 15839:2012 for performance evaluation of sensors used in water quality monitoring, and support GLP-compliant data integrity through timestamped measurement records and non-volatile calibration storage. When deployed in regulated environments—including those subject to US EPA Method 1681 or EN ISO 5815-1 for dissolved oxygen—the MS08 facilitates audit-ready documentation when paired with compliant data acquisition software.

Software & Data Management

The MS08 communicates natively with AMT’s proprietary PC-based configuration and data analysis suite (AMT SensorLink v3.x), which supports automated calibration curve generation, drift correction modeling, and export to CSV, Excel, or XML formats. All measurement sessions include embedded metadata: sensor ID, calibration date, temperature reading, operator ID (user-defined), and GPS coordinates (when connected to external GNSS module). The device firmware implements secure parameter locking and supports 21 CFR Part 11–aligned audit trails—including user login history, calibration event logs, and modification timestamps—for laboratories operating under FDA, EU Annex 11, or ISO/IEC 17025 requirements.

Applications

• Real-time monitoring of hydrogen peroxide residuals in disinfection validation protocols for pharmaceutical water systems
• In-situ dissolved oxygen profiling during activated sludge process optimization in WWTPs
• H₂S tracking at sewer force mains and lift stations to assess corrosion risk and odor control efficacy
• Ozone concentration verification in advanced oxidation process (AOP) reactors for micropollutant degradation
• Hydrogen gas detection in electrolysis-based green hydrogen production and storage safety monitoring
• Field-based pH and redox potential (Eh) mapping in sediment porewater studies and wetland biogeochemical surveys

FAQ

Can the MS08 be used for regulatory compliance reporting?
Yes—when operated with certified AMT microsensors and paired with validated software, the MS08 supports data integrity requirements under ISO/IEC 17025, USP , and EU Water Framework Directive Annex V monitoring protocols.
Is sensor cross-sensitivity compensated in firmware?
AMT provides application-specific interference correction algorithms (e.g., Cl⁻ compensation for H₂O₂ in chlorinated water), which are embedded in sensor firmware and automatically invoked upon cartridge recognition.
Does the device support multi-point calibration?
Yes—up to three-point linear or two-point non-linear (e.g., log-log) calibrations can be performed directly on-device or via SensorLink software, with full traceability to NIST-traceable standards.
What is the operating temperature range for the instrument itself?
The MS08 housing is rated for −10 °C to +50 °C ambient operation; sensor cartridges have individual temperature limits documented in their respective datasheets (e.g., H₂S: 0–40 °C; O₃: 0–35 °C).
How is firmware updated?
Firmware updates are delivered via encrypted .bin files through the RS232 interface using SensorLink; updates preserve all stored calibration coefficients and user configurations.
