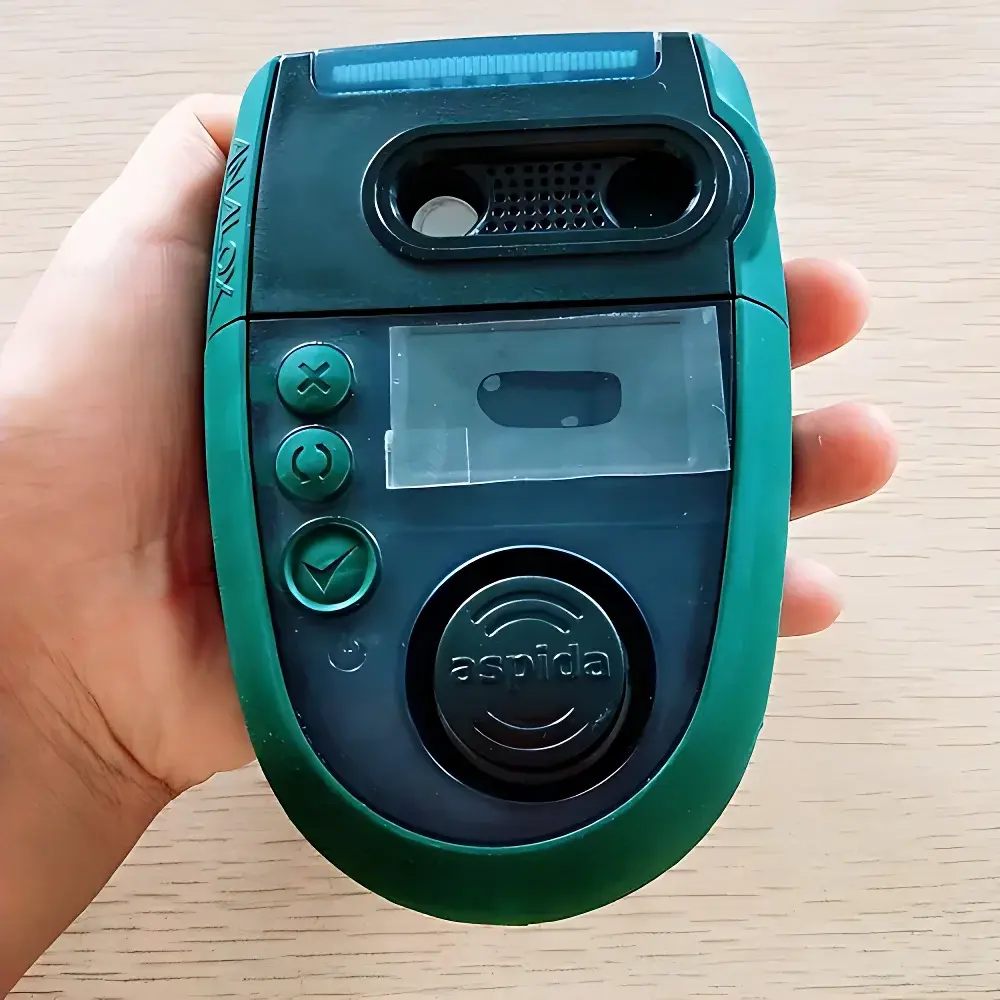

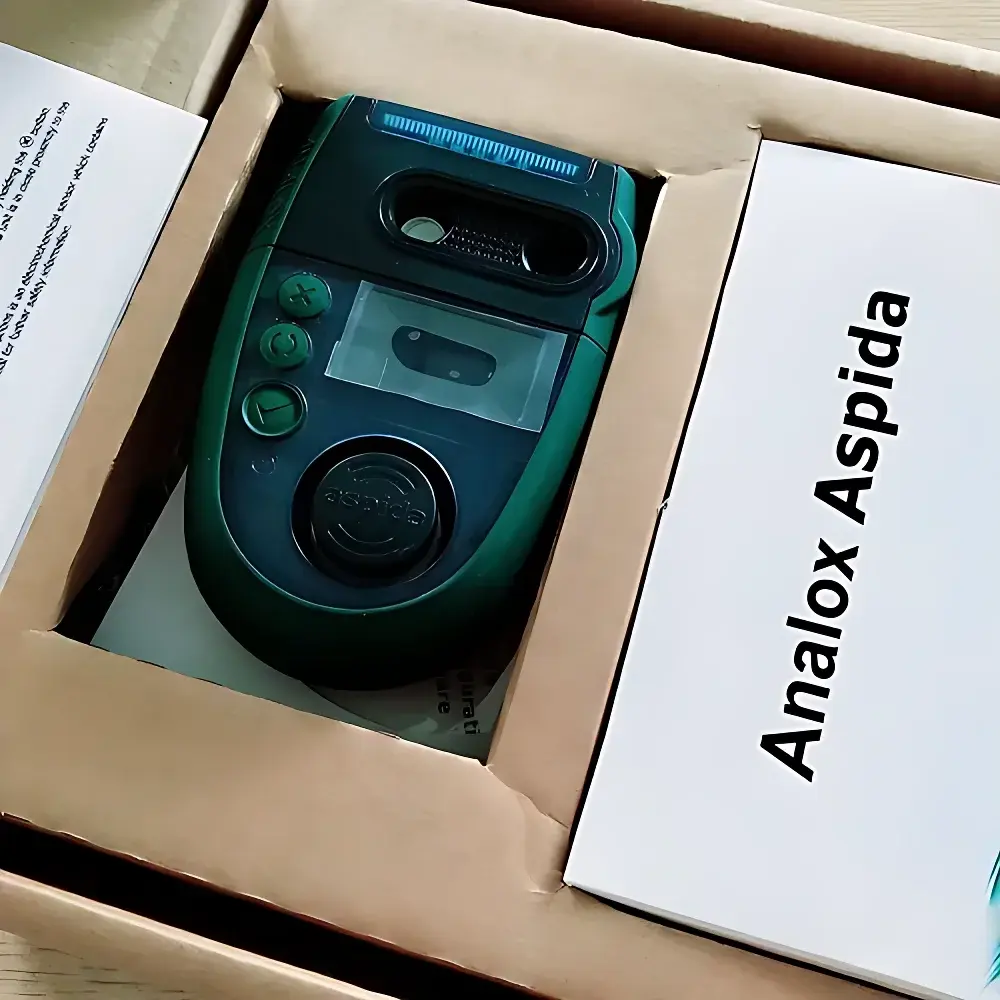

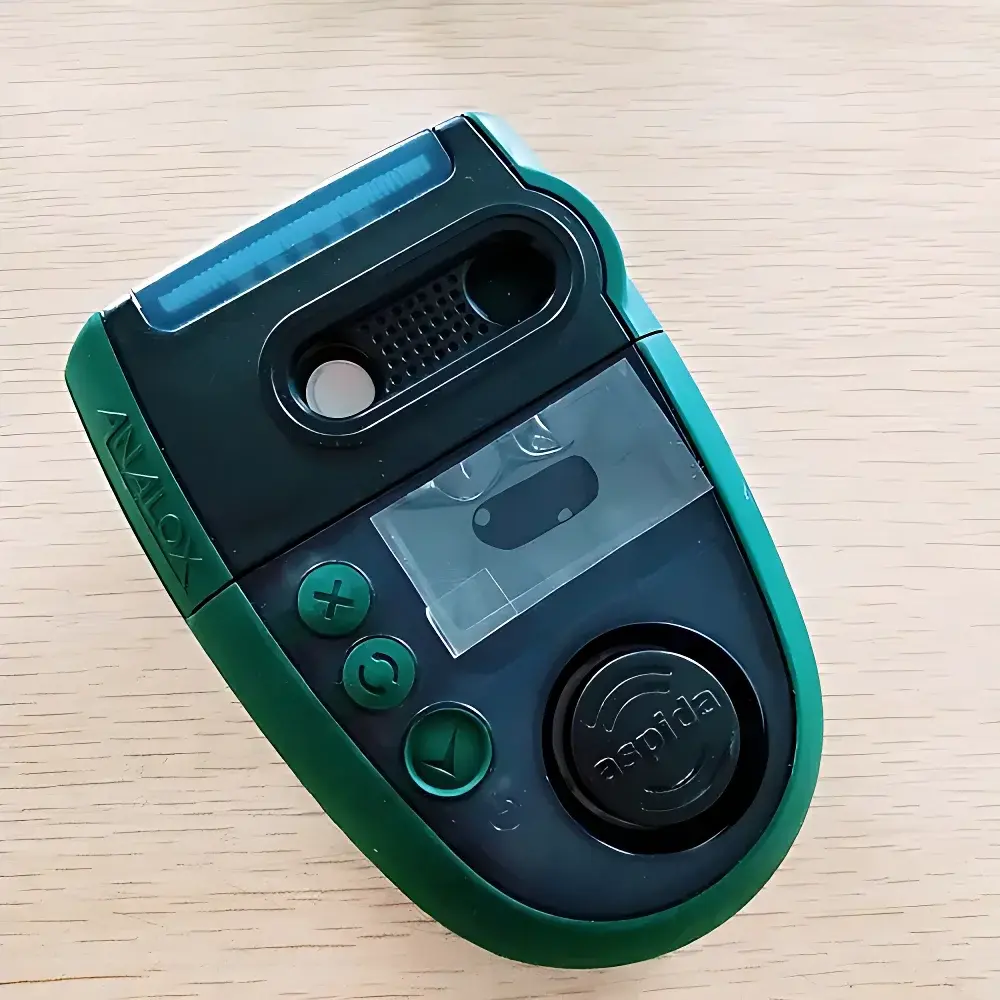

Analox Aspida ASP-BB02-Y1101 Portable CO₂ Analyzer

Overview

The Analox Aspida ASP-BB02-Y1101 is a portable, single-gas carbon dioxide (CO₂) analyzer engineered for high-reliability environmental monitoring in controlled agricultural and occupational settings. It employs non-dispersive infrared (NDIR) spectroscopy via the Analox MIR dual-channel micro-infrared sensor platform — a robust, low-power architecture optimized for long-term stability and field-deployable accuracy. Unlike electrochemical or metal-oxide sensors, NDIR detection delivers inherent selectivity for CO₂ without cross-sensitivity to common atmospheric interferents such as CO, CH₄, or humidity fluctuations. The ASP-BB02-Y1101 is specifically calibrated and validated for continuous CO₂ concentration measurement within the 0–5 %vol (0–50,000 ppm) range — a critical span for mushroom cultivation environments where CO₂ accumulation directly impacts mycelial respiration, fruiting body development, and worker safety. Its design complies with fundamental principles outlined in ISO 13485 (for medical-grade gas monitoring infrastructure) and aligns with operational expectations under GLP-aligned facility management protocols.

Key Features

• True NDIR-based CO₂ sensing using Analox’s proprietary MIR micro-infrared sensor — no consumables, no zero-gas requirements, and minimal calibration drift
• High-contrast OLED display with real-time concentration readout, status indicators (green OK / amber fault / triple red alarm), and intuitive menu navigation

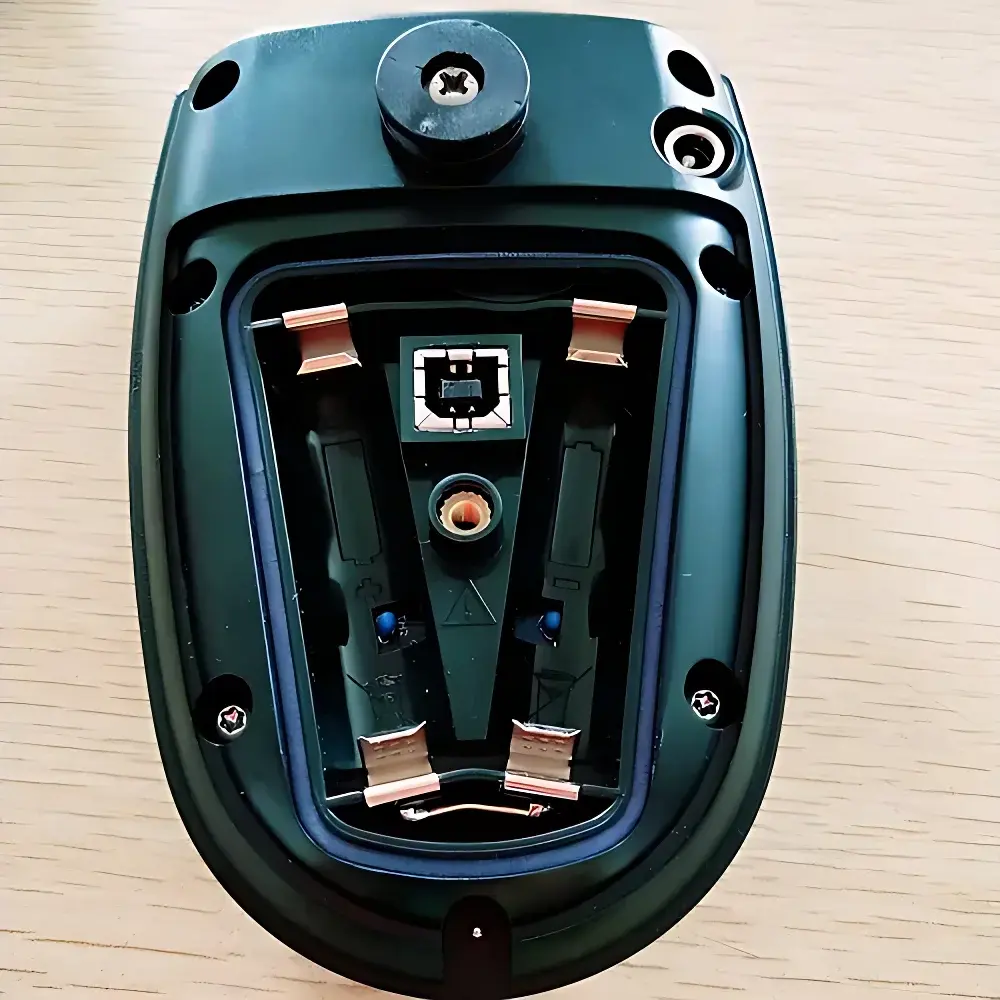

• Dual power flexibility: supports both standard AA alkaline batteries and rechargeable AA NiMH cells — enabling uninterrupted operation even during extended field deployments
• Triple configurable CO₂ alarm thresholds plus one user-defined Time-Weighted Average (TWA) alarm — fully programmable via onboard interface
• Mandatory man-down and manual emergency alarm functions: triggers 110 dB audible alert at 30 cm upon detected immobility or intentional activation
• Vibration feedback integrated into alarm sequence — essential for noisy agricultural or industrial environments where auditory alerts may be masked
• IP65-rated enclosure ensures resistance to dust ingress and water jets — suitable for humid, high-condensation mushroom growing chambers and outdoor staging areas

Sample Compatibility & Compliance

The ASP-BB02-Y1101 is designed exclusively for ambient air sampling in non-explosive atmospheres (ATEX Zone 2 / IECEx not required). It does not require sample conditioning, filtration, or external pumping — relying on natural diffusion for representative CO₂ measurement. Its 0–5 %vol range matches documented physiological thresholds for Agaricus bisporus cultivation: CO₂ > 0.1 % (1,000 ppm) begins suppressing pinning; > 0.5 % (5,000 ppm) causes stunted cap expansion; and sustained exposure above 1.5 % (15,000 ppm) correlates with visible morphological anomalies including cauliflower deformities and bluish discoloration. From a regulatory standpoint, the instrument meets baseline performance criteria referenced in EN 50104 (gas detectors for CO₂) and supports documentation traceability consistent with ISO/IEC 17025–compliant QA workflows. While not FDA 21 CFR Part 11–certified out-of-the-box, its data export capability enables integration into validated electronic lab notebooks (ELNs) or LIMS platforms requiring audit trails.

Software & Data Management

Data logging is performed internally with timestamped CO₂ concentration records stored in non-volatile memory (capacity: ≥10,000 entries). Logged data can be exported via USB connection to standard Windows or macOS systems using Analox’s proprietary Aspida PC Utility — a lightweight, installer-free application supporting CSV export, TWA calculation verification, and alarm event filtering. The firmware implements intelligent maintenance prompting: based on cumulative operating hours, sensor age, and self-diagnostic cycles, it displays service reminders (e.g., “Calibration due in 7 days”) directly on the OLED screen — eliminating reliance on external scheduling tools. No cloud connectivity or subscription services are embedded; all configuration, calibration, and data retrieval remain fully offline and under end-user control — ensuring compliance with data sovereignty requirements in regulated agri-tech facilities.

Applications

• Mushroom cultivation facilities: Real-time CO₂ mapping across growth rooms, pre-harvest tunnels, and post-harvest cold storage — supporting ventilation optimization and preventing yield loss due to hypercapnia
• Controlled-environment agriculture (CEA) research: Validation of CO₂ enrichment strategies in vertical farms and hydroponic greenhouses where precise dosing is critical for photosynthetic efficiency
• Occupational health & safety: Monitoring confined spaces such as composting bays, fermentation cellars, and silos where CO₂ buildup poses acute asphyxiation risk
• Educational laboratories: Teaching modules on gas exchange physiology, respiration kinetics, and environmental sensor metrology — with direct correlation to ASTM D6196 and ISO 8573 standards
• Third-party validation audits: Field verification of fixed CO₂ monitoring systems installed in commercial mushroom production units prior to certification renewal

FAQ

What is the recommended calibration interval for the ASP-BB02-Y1101?

Analox recommends functional verification with certified 2.5 %vol CO₂ span gas every 3 months under continuous use, and full two-point (zero/span) calibration annually — though the intelligent maintenance prompter will notify users based on actual usage metrics.

Can this unit detect CO in addition to CO₂?

No — the ASP-BB02-Y1101 is a dedicated CO₂ analyzer. Analox offers separate Aspida models for CO, O₂, or multi-gas configurations, but sensor cross-functionality is not supported.

Is the MIR sensor replaceable by the end user?

Sensor replacement requires factory-level recalibration and is not field-serviceable. Units returned for sensor replacement undergo full metrological revalidation per ISO/IEC 17025 procedures.

Does the device support Bluetooth or wireless data transmission?

No — data transfer occurs exclusively via physical USB connection to preserve data integrity, prevent unauthorized remote access, and comply with ITAR-free deployment policies.

How does the man-down alarm function in high-humidity mushroom growing rooms?

The accelerometer-based motion detection algorithm includes adaptive thresholding to distinguish between ambient vibration (e.g., HVAC operation) and true immobility — validated under 95 % RH conditions per IEC 60068-2-30 testing protocols.
