Analox SDA-CO2 Carbon Dioxide Analyzer

Overview

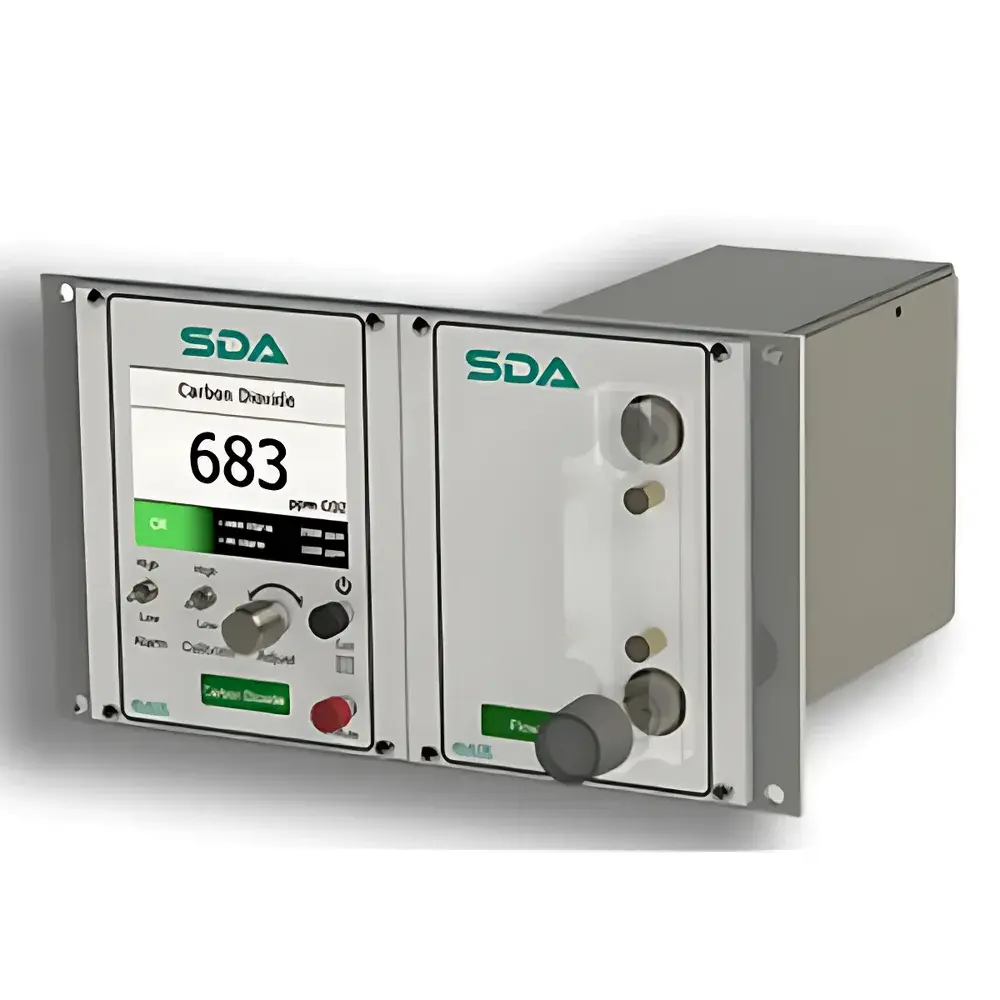

The Analox SDA-CO₂ Carbon Dioxide Analyzer is a certified, marine-grade gas monitoring instrument engineered for continuous, high-integrity CO₂ measurement in critical life-support and hyperbaric environments—particularly commercial diving control rooms, saturation systems, subsea intervention vessels, and confined-space safety applications. Utilizing dual-beam non-dispersive infrared (NDIR) spectroscopy, the analyzer eliminates optical drift by referencing a stable internal reference beam against the active measurement path, ensuring long-term stability without frequent zero adjustments. Its core sensing element—the digital 5S3 NDIR module—is factory-calibrated and field-replaceable, supporting traceable calibration verification and minimizing downtime during maintenance cycles. Designed as a direct replacement for the legacy Analox 5001 platform, the SDA-CO₂ maintains mechanical and electrical compatibility with existing mounting frames and I/O interfaces while delivering enhanced signal processing, improved environmental resilience, and expanded communication capabilities.

Key Features

• Dual-beam NDIR optical architecture for inherent compensation of lamp aging, window fouling, and thermal drift
• High-brightness, sunlight-readable full-color TFT display with intuitive menu navigation and real-time trend visualization
• Configurable alarm thresholds with simultaneous visual (LED strobe) and audible (85 dB @ 30 cm) alerting; latching or auto-reset modes supported
• Front-panel-accessible calibration and sensor replacement prompts—no tools or software required for routine maintenance
• Compact depth profile (≤120 mm behind panel) enabling installation in space-constrained control consoles and rack enclosures
• Integrated 4–20 mA current loop output with HART-compatible configuration, plus isolated relay outputs for fail-safe shutdown signaling
• Ethernet interface supporting Modbus TCP/IP protocol for integration into SCADA, DCS, or centralized alarm management systems
• Optional embedded data logger (up to 1 million timestamped records) with CSV export via USB or network transfer

Sample Compatibility & Compliance

The SDA-CO₂ is optimized for ambient air sampling under controlled flow conditions (recommended sample flow: 0.5–2.0 L/min). It operates effectively across temperature ranges from 0 °C to 45 °C and relative humidity up to 95% non-condensing. The analyzer meets stringent third-party certification requirements for offshore and diving operations, including DNV GL OS-F101 (Subsea Production Systems), IMCA D 018 (Diving Control Room Monitoring), Lloyd’s Register IR Class Rules (Chapter 6, Life Support Systems), ABS Guide for Diving Systems (2022 Edition), and ADCI Consensus Standards (Section 5.4.2). All firmware and calibration procedures are documented per ISO/IEC 17025:2017 principles, and audit trails—including calibration events, alarm activations, and sensor replacements—are time-stamped and retained onboard for GLP-compliant review.

Software & Data Management

Configuration, diagnostics, and historical data retrieval are managed via the front-panel interface or remotely through the built-in web server (accessible via standard browser over Ethernet). The device supports secure, role-based access control (administrator/operator levels) and logs all configuration changes with user ID and timestamp. Data export complies with ASTM D6216-21 Annex A1 for gas concentration reporting and can be formatted for direct ingestion into laboratory information management systems (LIMS) or regulatory submission platforms. Firmware updates are delivered as signed binary packages to ensure integrity, and rollback capability is retained for validation continuity. Optional PC-based configuration utility provides batch setup for multi-unit deployments and automated report generation aligned with ISO 14644-1 cleanroom documentation templates.

Applications

• Real-time CO₂ monitoring in saturation diving chambers and bell umbilicals to maintain partial pressure within IMCA-specified limits (typically <0.015 bar)
• Continuous surveillance of breathing gas quality in hyperbaric treatment facilities and submarine escape training tanks
• Environmental safety assurance in confined industrial spaces such as LNG compressor rooms, battery storage enclosures, and fermentation vaults
• Validation support for HVAC performance testing in cleanrooms and pharmaceutical manufacturing suites requiring ASHRAE 62.1 compliance
• Integration into emergency response systems where rapid CO₂ rise detection triggers ventilation override or personnel evacuation protocols

FAQ

What is the recommended calibration frequency for the SDA-CO₂ in diving operations?
Per IMCA D 018, calibration must be performed prior to each diving shift using certified span gas (e.g., 2000 ppm CO₂ in N₂), with zero verification conducted daily using filtered ambient air.
Can the SDA-CO₂ measure CO simultaneously?
No—the SDA-CO₂ is a dedicated CO₂-specific analyzer. Analox offers the SDA-CO variant for carbon monoxide, but cross-gas interference between the two models is not compensated.
Is the 5S3 sensor compatible with older Analox 5001 housings?
Yes—mechanical and electrical pinout compatibility enables drop-in replacement; however, firmware and display firmware must be updated to SDA-series versions to unlock full functionality.
Does the Ethernet interface support TLS encryption or SNMP monitoring?
The standard implementation uses unencrypted Modbus TCP/IP; TLS and SNMPv3 are available under custom firmware contracts subject to cybersecurity review per IEC 62443-3-3.
How is sensor lifetime defined, and what indicates end-of-life?
The 5S3 sensor is rated for ≥10 years in typical diving air environments; the analyzer displays a “Sensor Health Index” (%) derived from signal-to-noise ratio, baseline stability, and spectral fit residuals—values below 70% trigger a replacement advisory.
